Unidirectional ESC To Bidirectional Operation Wire Exchanger Line Switcher For RC Model Spare Parts

Features:

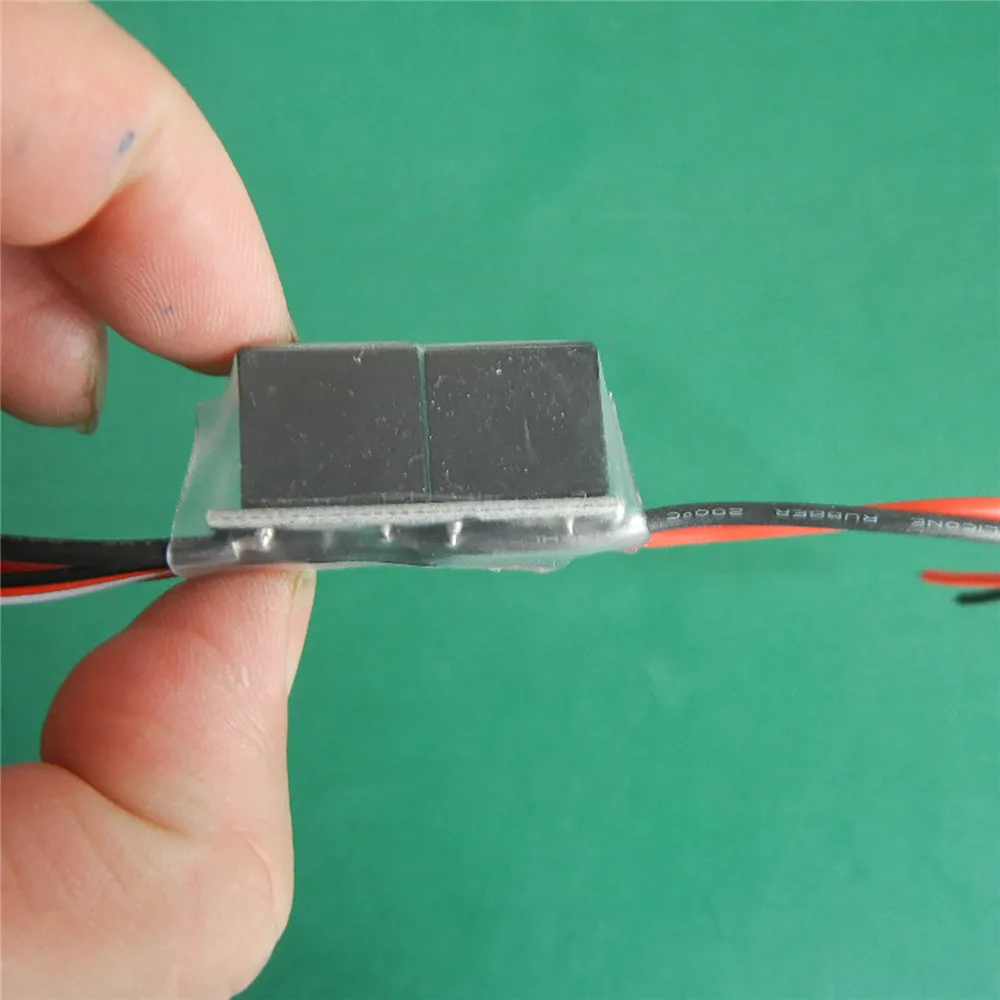

This product realizes the physical circuit exchange through the dual relay, which can switch the one-way brushless/brushless electric adjustment to the two-way operation

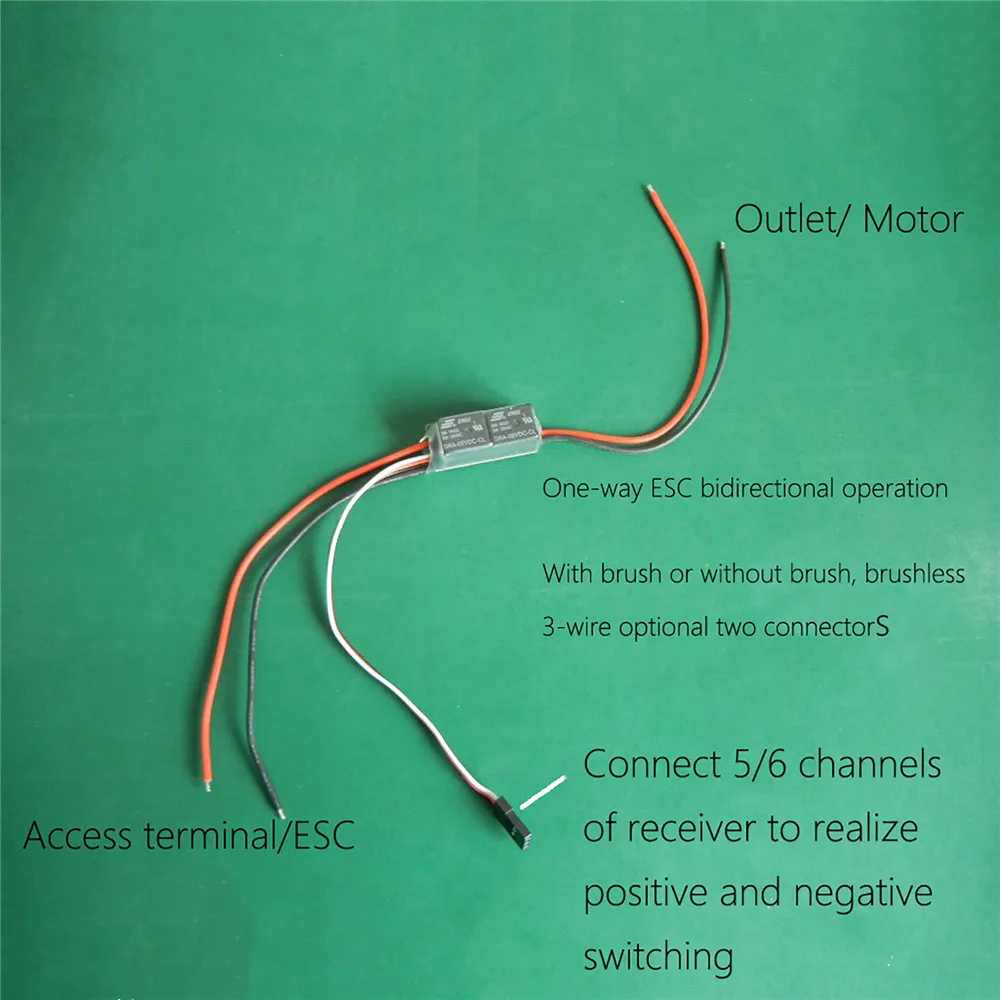

Wiring according to the circuit diagram provided in the description (note: input and signal lines are on the same side)

Relay suction needs to consume more than 200mA current, please make sure bec 5V has enough current.(Since absorption is not without cost, the absorption state should not be regarded as the normal state)

Reduce the throttle first to avoid the impact of heavy current on the relay and electrical adjustment.

This device is connected to the electric motor and between This device is connected between the ESC and the motor (Do not connect between the battery and the ESC, otherwise it will burn in seconds)

Specifications:

Two-way load: 14V/20A (less than voltage/current is available, this is physical switching)

Control terminal: Connect 5/6 channels of the remote control, the knob or switch is switched, and the receiver 5V powers the control terminal of this board. When the control terminal signal is high (both: PWM> 1750), the relay draws in and realizes line exchange

Package Include:

1 x Wires Exchanger
