eWeLink 2CH WIFI Switch Smart Module DC12V 24V 32V AC220V Dry Contact Switch NO COM NC Compatible With Google assistant & Alexa

Note:Please make sure to select the right model before buying,or leave us a message before shipping

Features:

Cutover current≤ 10A
Voltage：Type1,2 DC/AC 7-32V
Type 3,4 AC85-250V
Working Temperature: -20 to 70degree
Working Humidity: 40% to 80% RH
WIFI Standard:2.4GHZ, 802.11 b/g/n(don't support 5G)
Size:120*38*25mm
APP:eWeLink
Remote battery:27A 12V(Not include)

Product Selling:

1.Supports WiFi network,remotely turn on or off connected appliance/light;
2.Supports status tracking: device status timely provided to the "EWeLink";
3.Supports max 8 enabled scheduled/countdown/loop timers for each device;

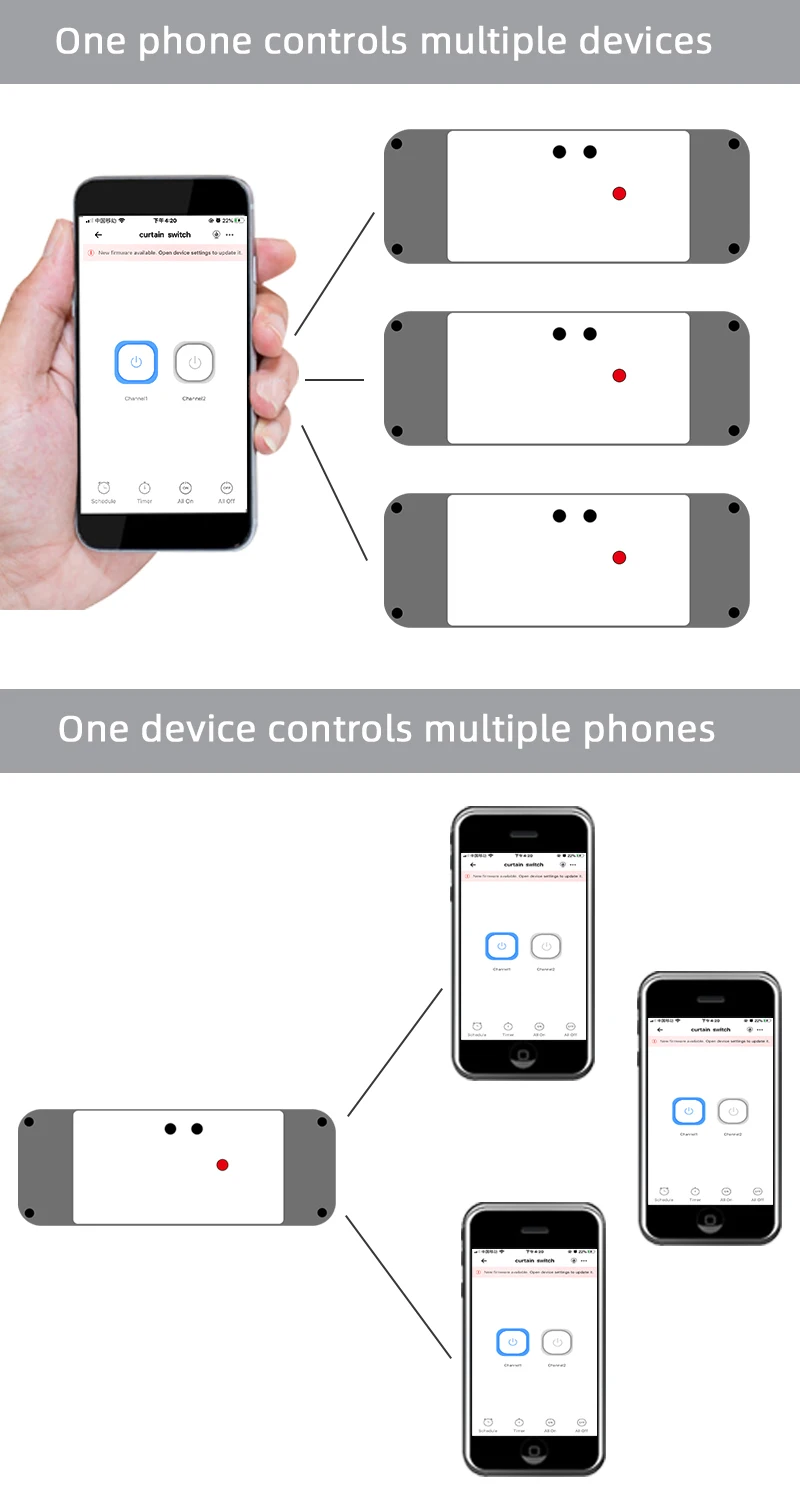

4.Supports numerous WiFi smart switches on one smart phone;
5.Works with Amazon Echo, Echo Dot, Amazon Tap;
6.Works with Google Home and Google Nest.

Compatible with Google assistant & Alexa

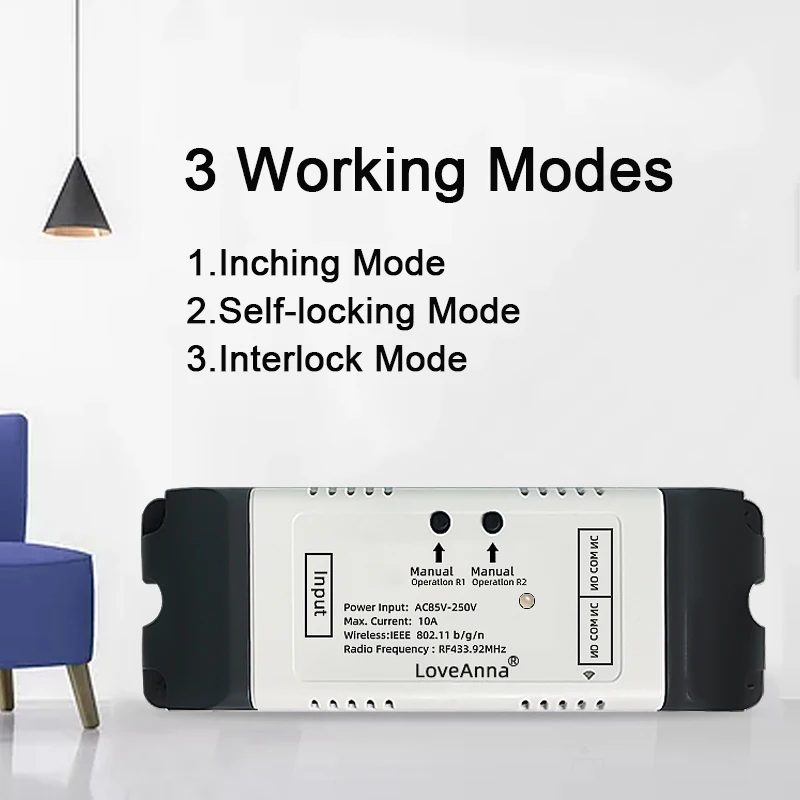

Working mode:

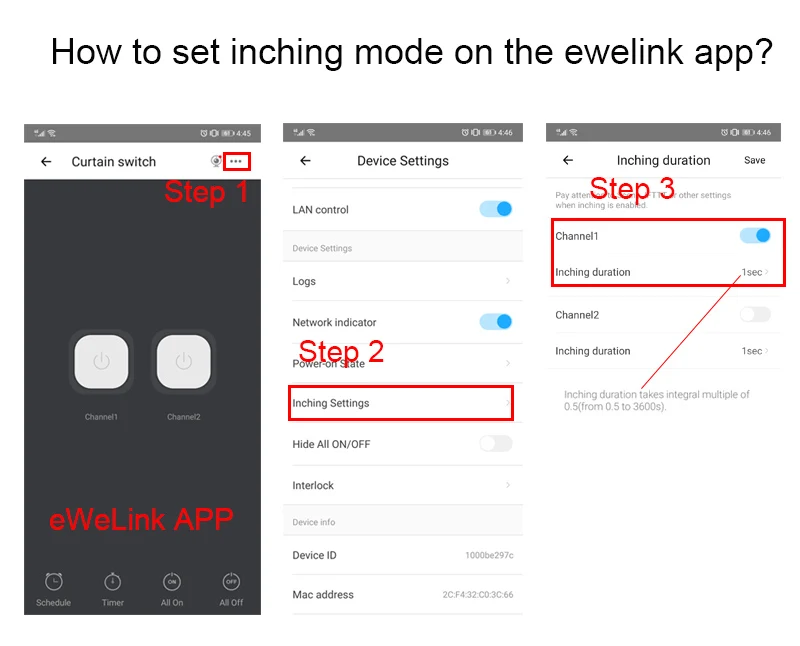

1.Inching mode : Switch on channel 1 , channel 1 will be automatically closed after 0.5-3600s. Channel 2 is same to the channel 1 .
2.Self-locking : like normal 2 channle switch , each channel could be switched on/off seperately .

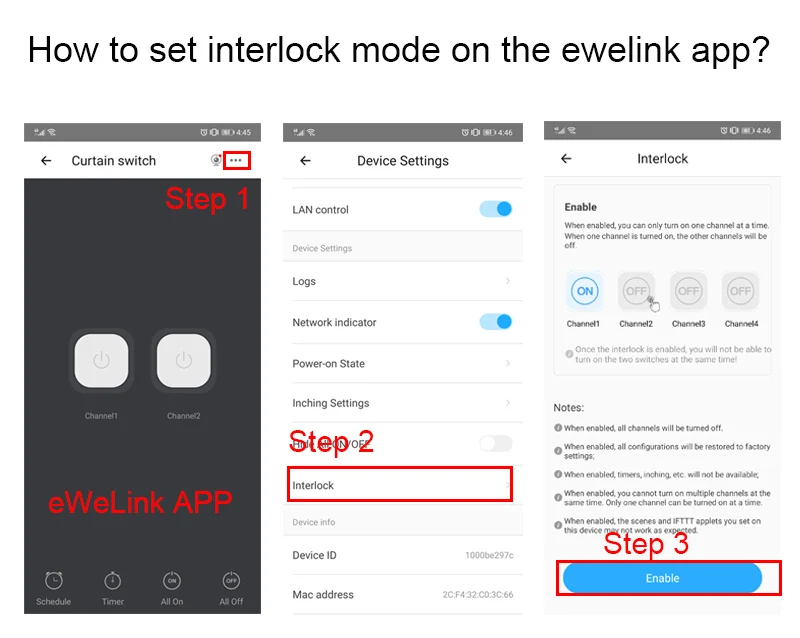

3.Inter lock : Switch on any 1 channel , other channels will be switched off automatically .

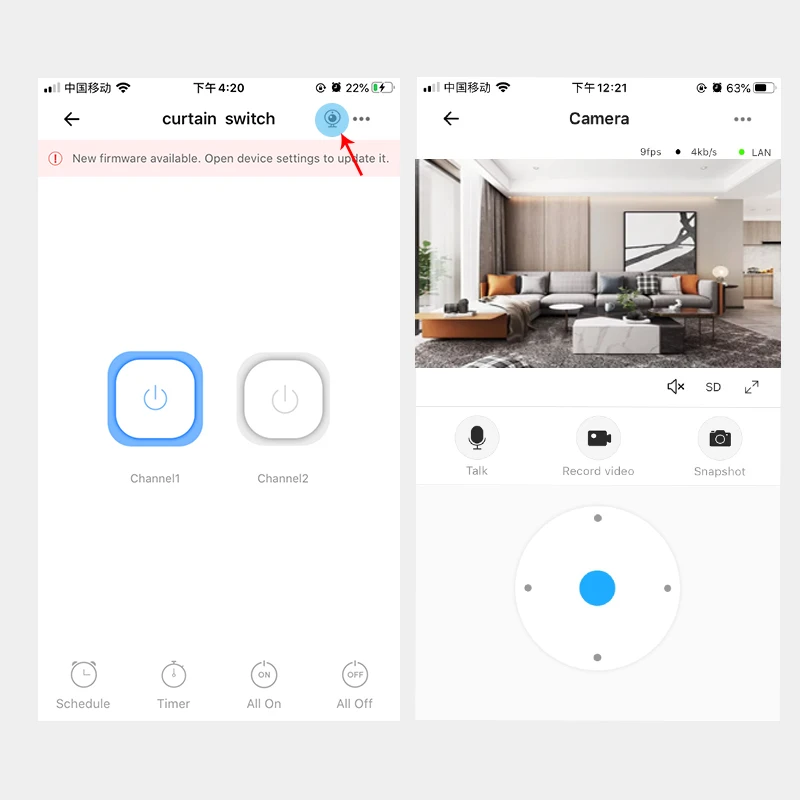

APP Interface

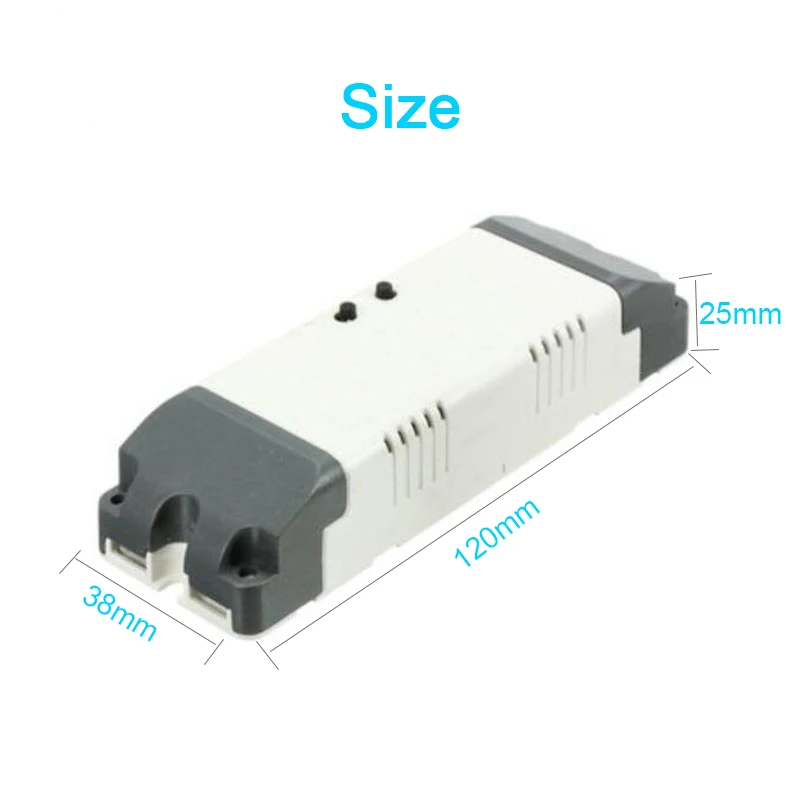

Size

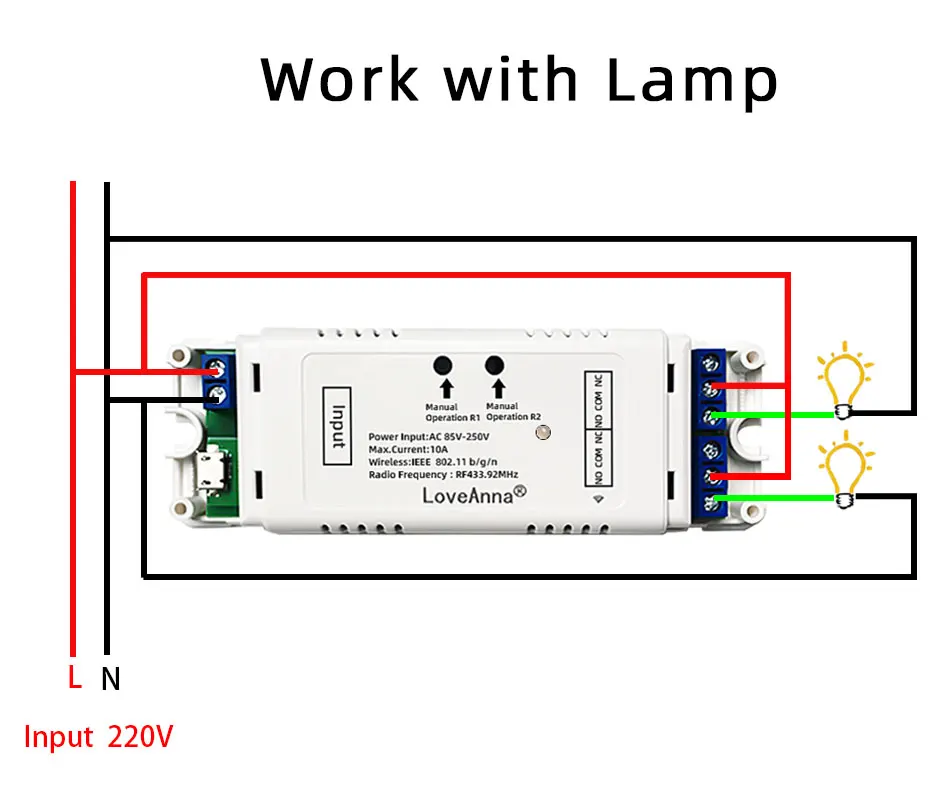

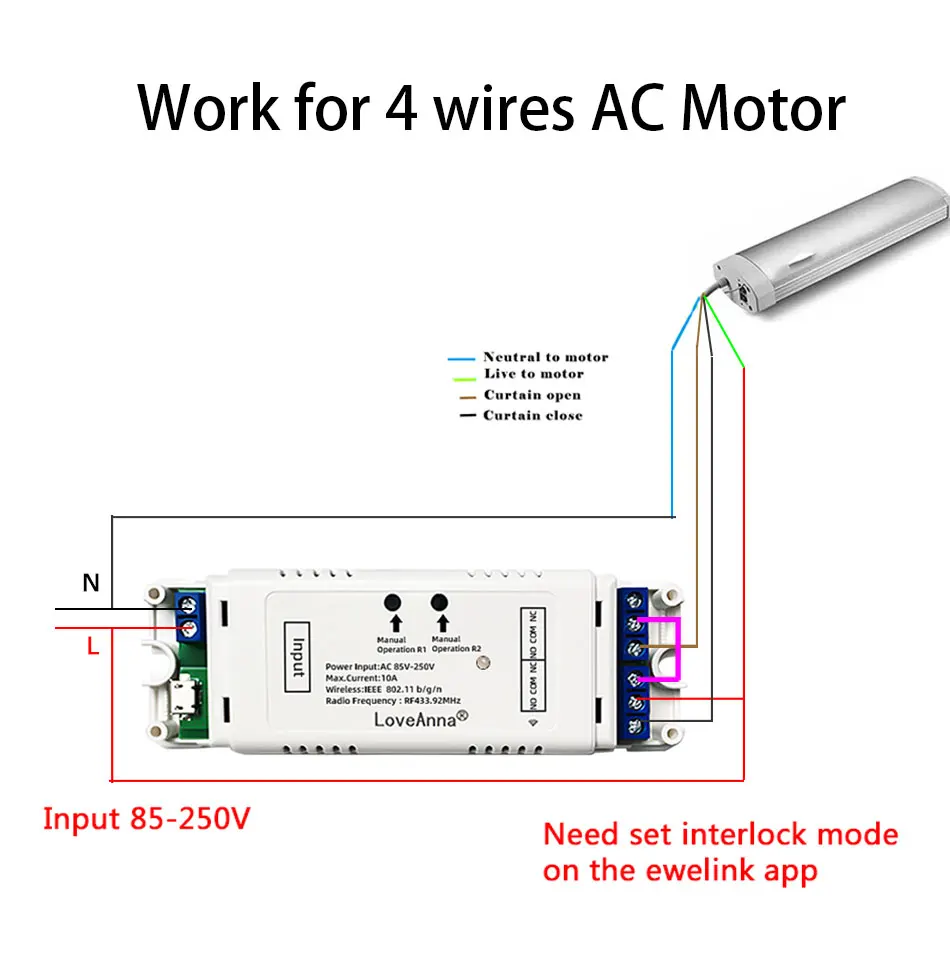

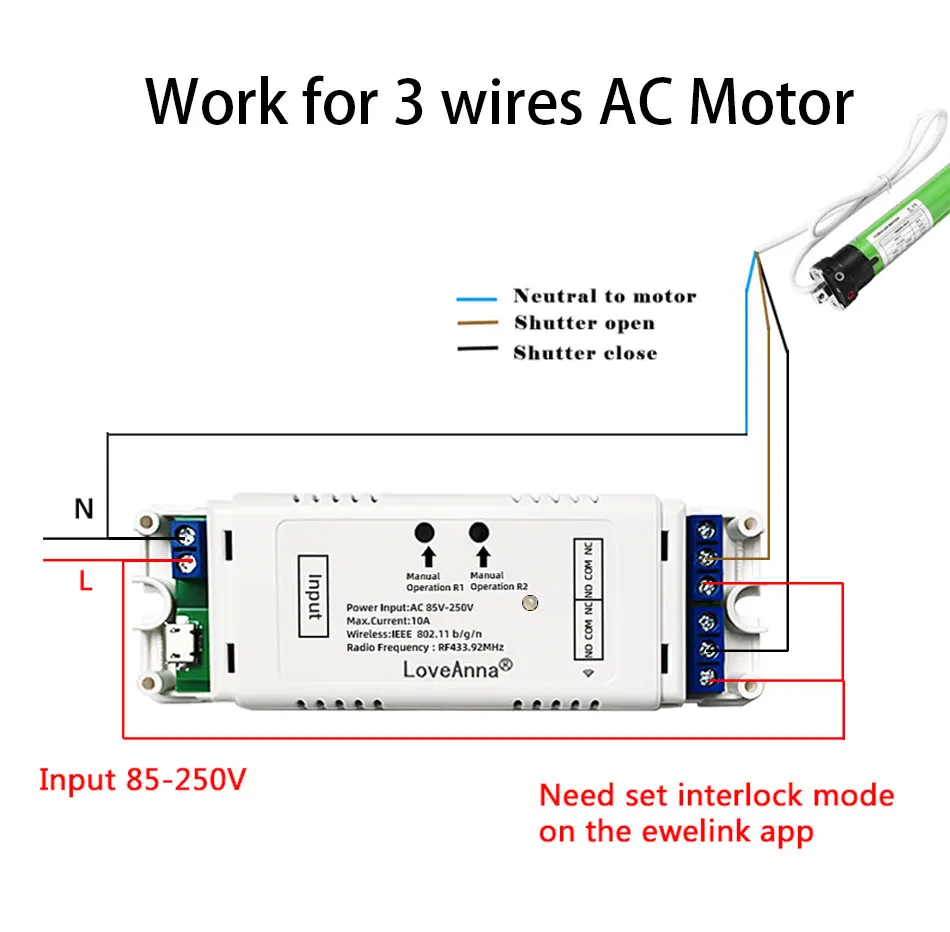

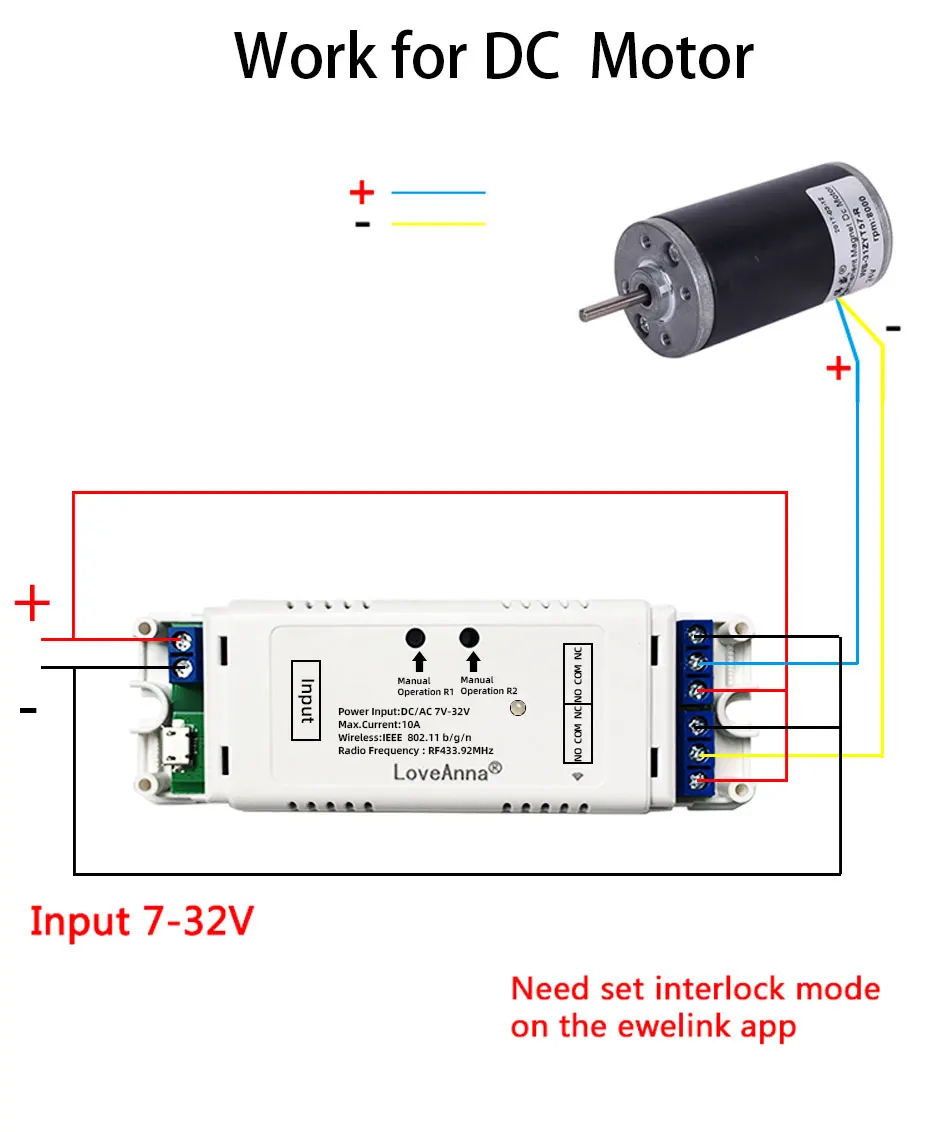

Wiring Diagram

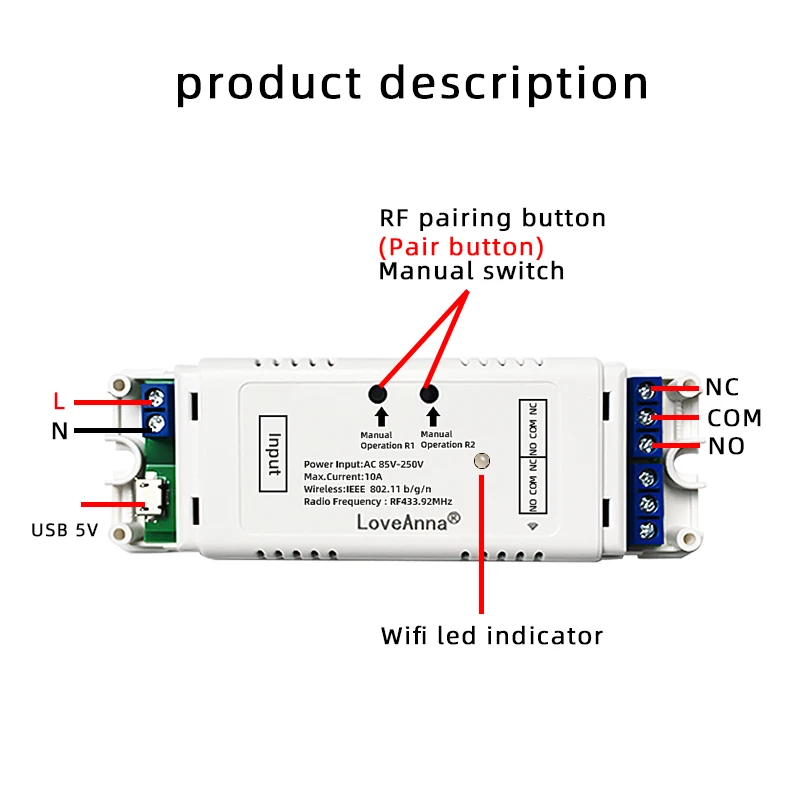

How to pairing with 433mhz Remote and clearing code?

Learning:
1.hold 433 Pairing button(R1 or R2) for 4 seconds
2.Long press any key match on the remote,pairing successfully
Clearing code:
1.Long press the pairing button for 10-15 seconds

Note:

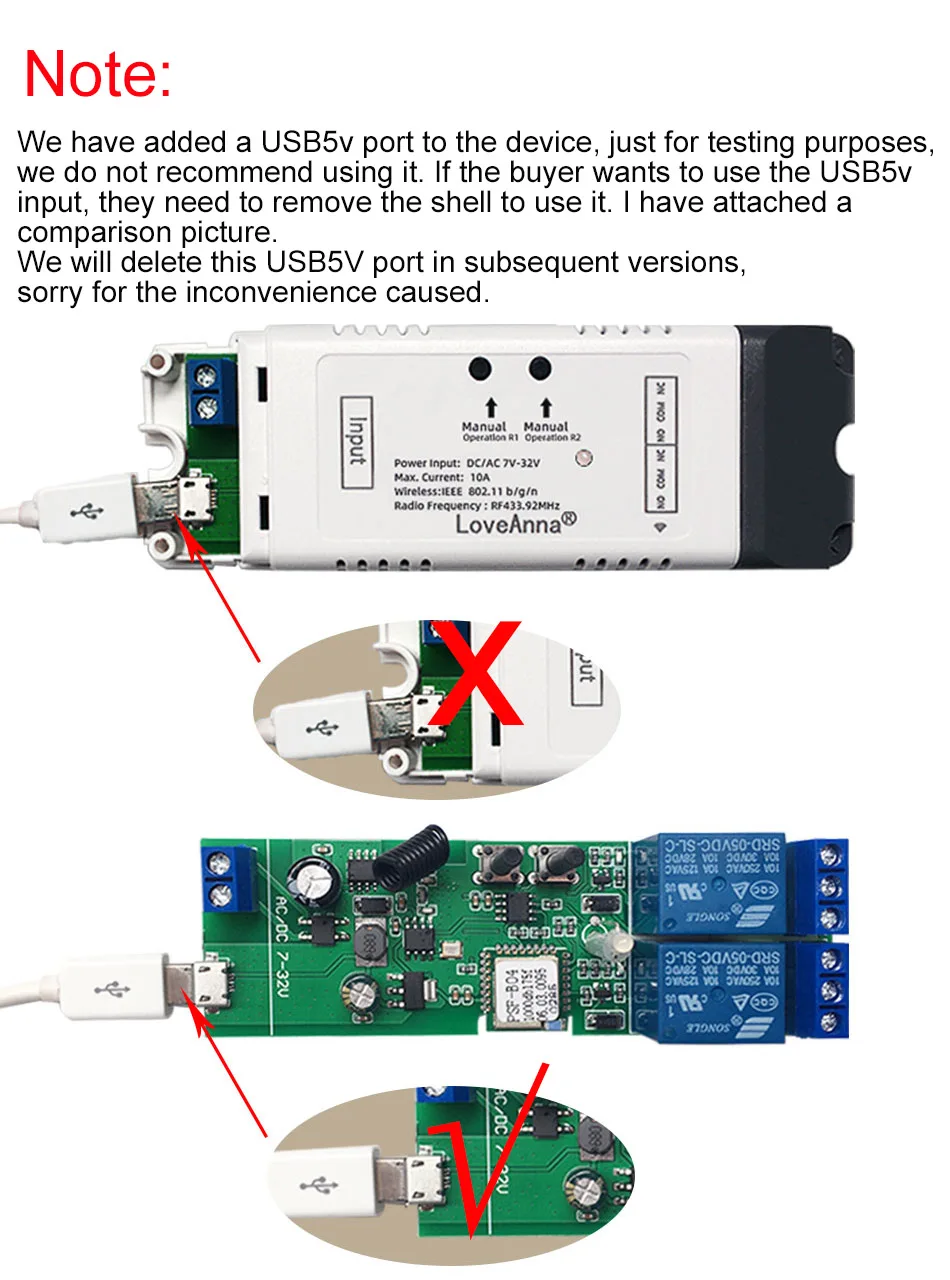

We have added a USB5v port to the device, just for testing purposes, we do not recommend using it. If the buyer wants to use the USB5v input, they need to remove the shell to use it. I have attached a comparison picture.
We will delete this USB5V port in subsequent versions, sorry for the inconvenience caused.
