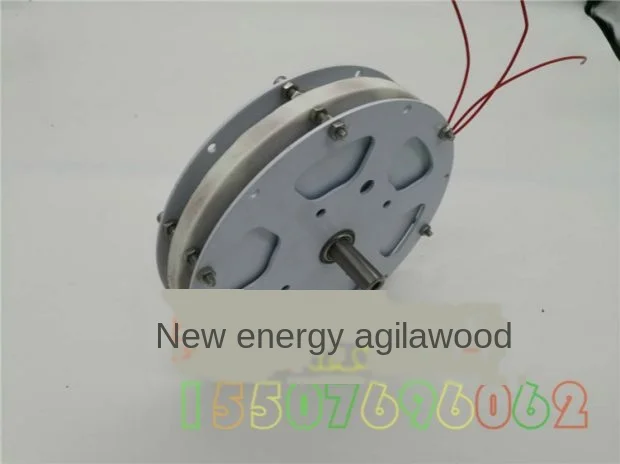

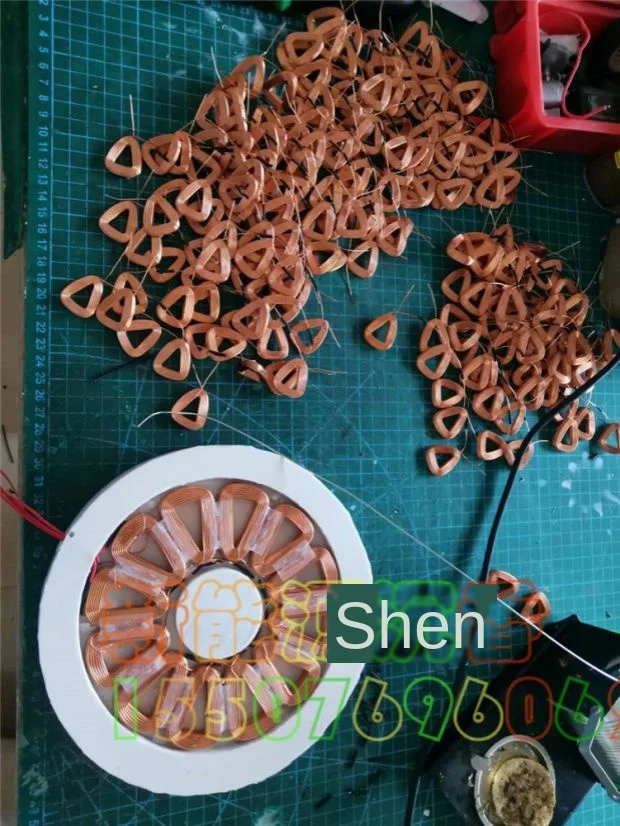

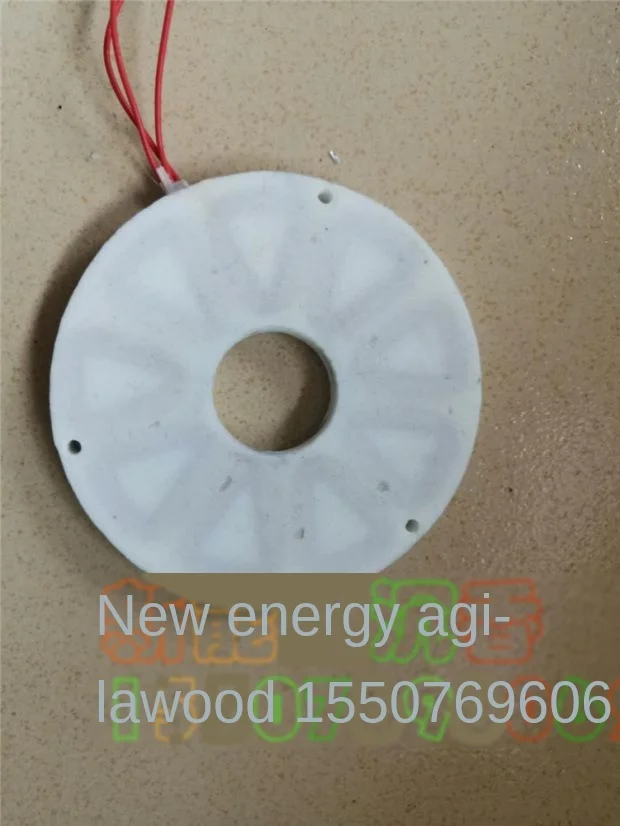

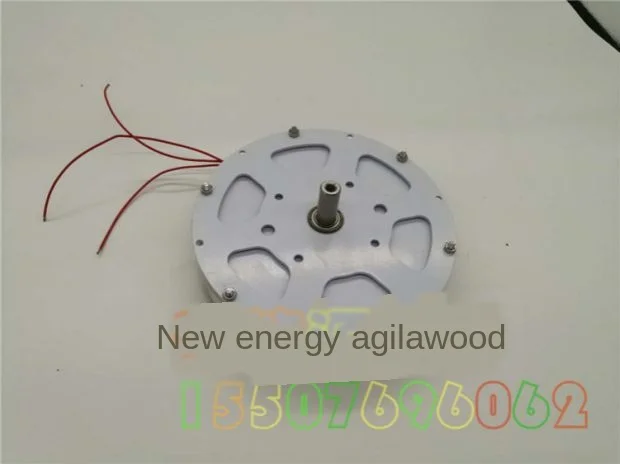

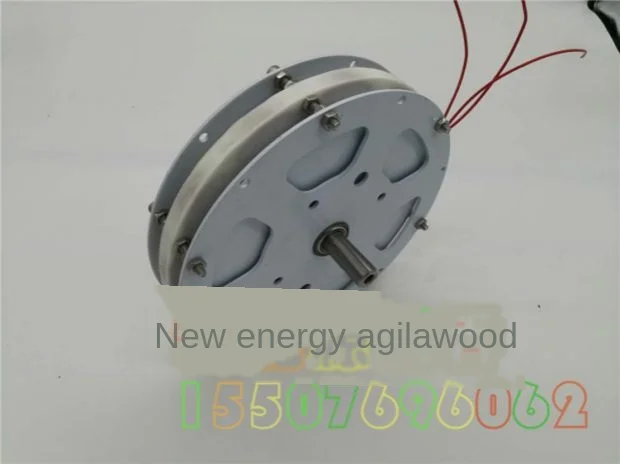

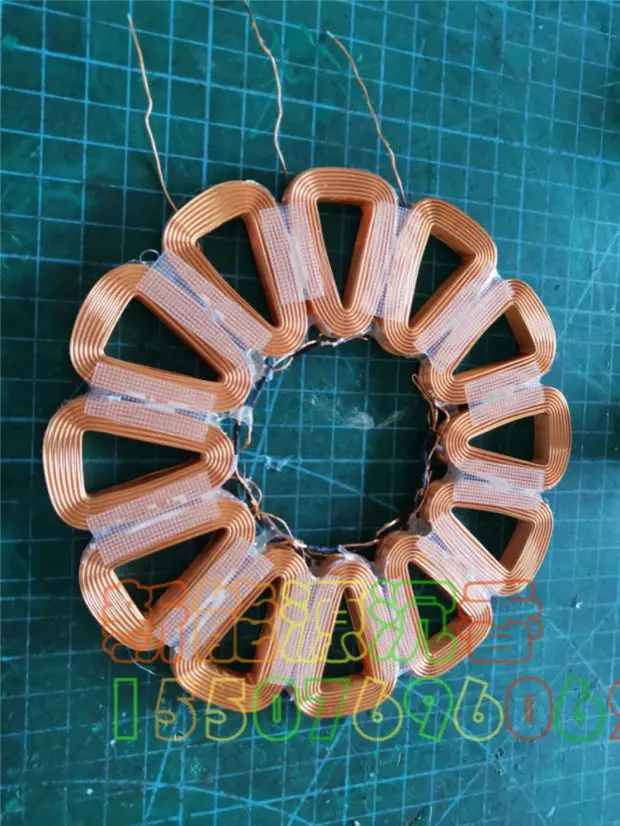

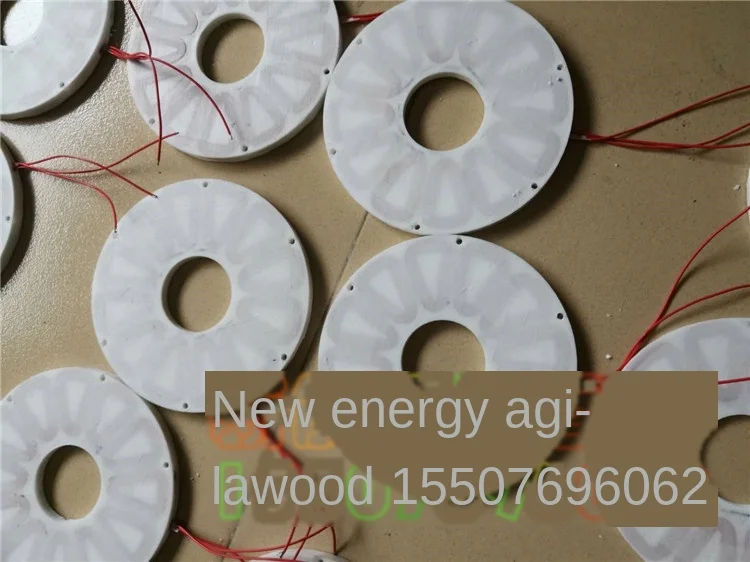

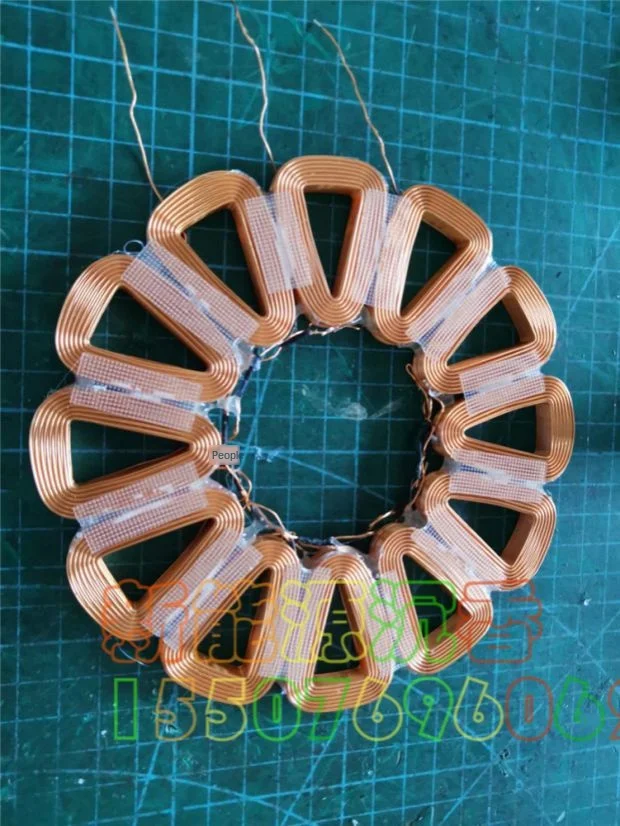

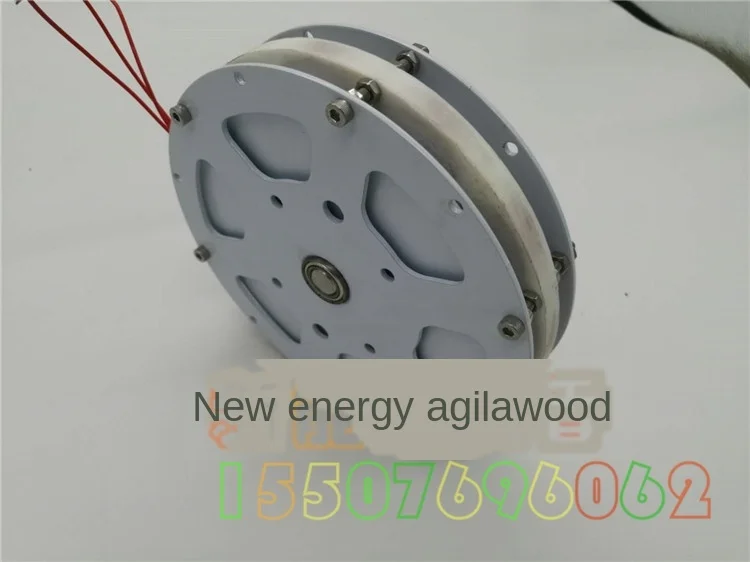

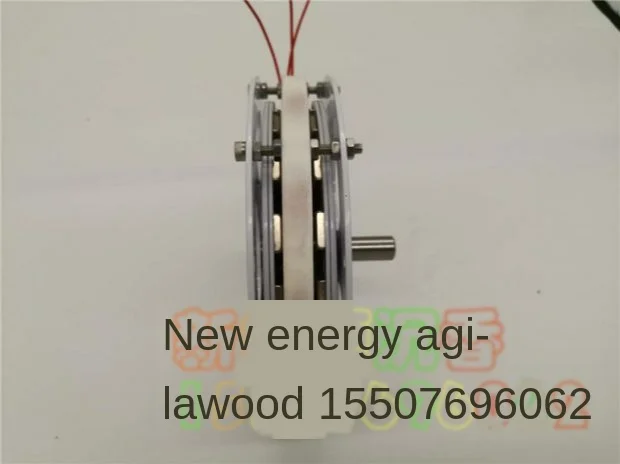

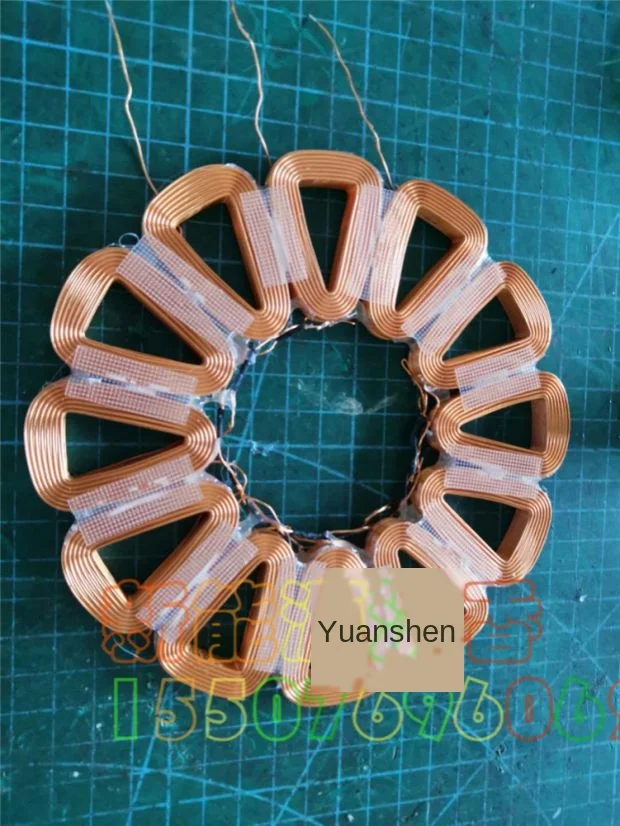

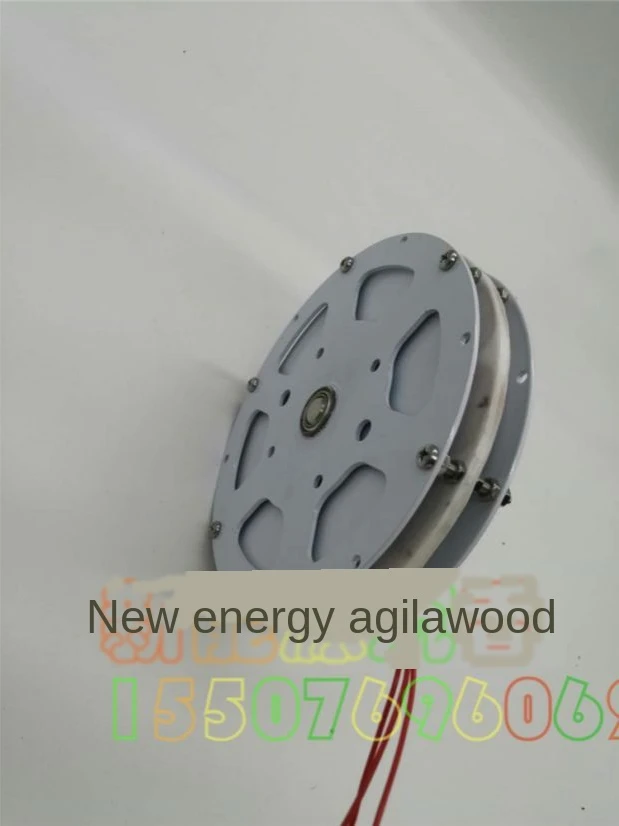

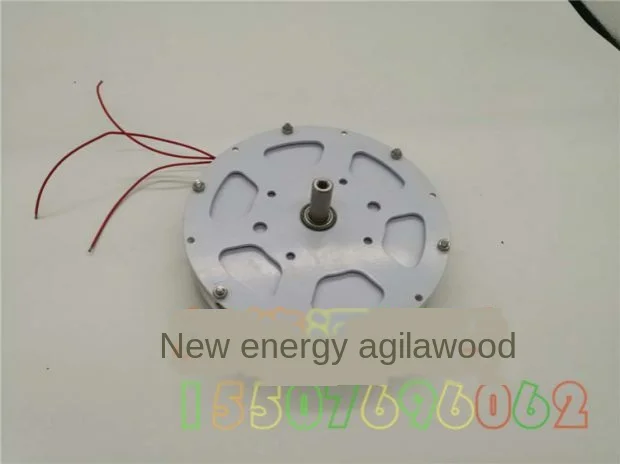

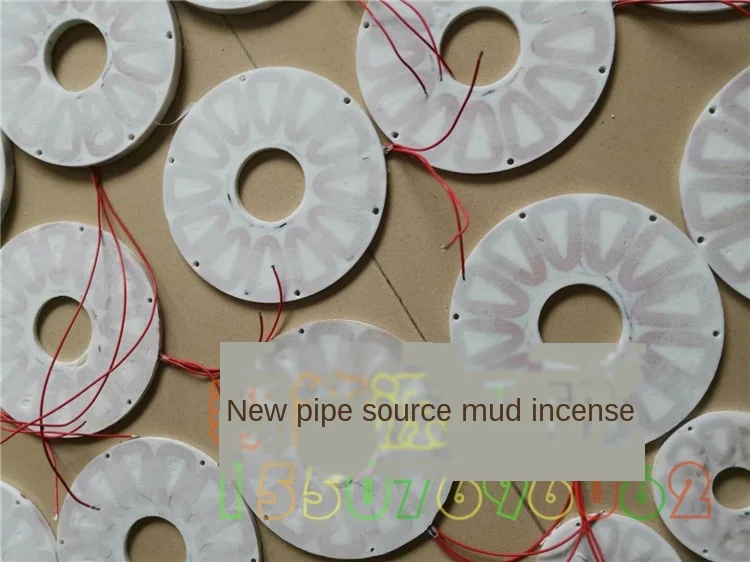

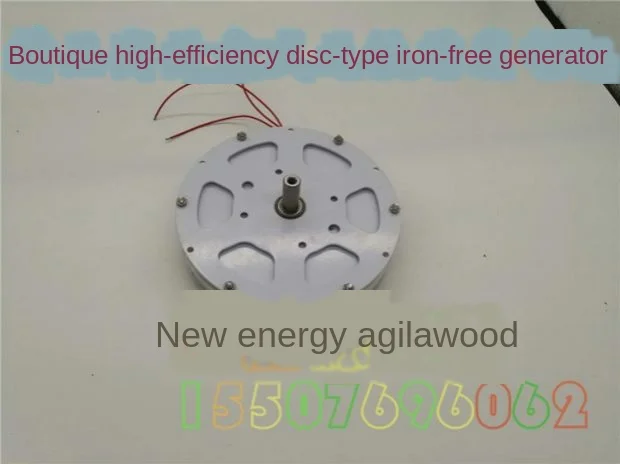

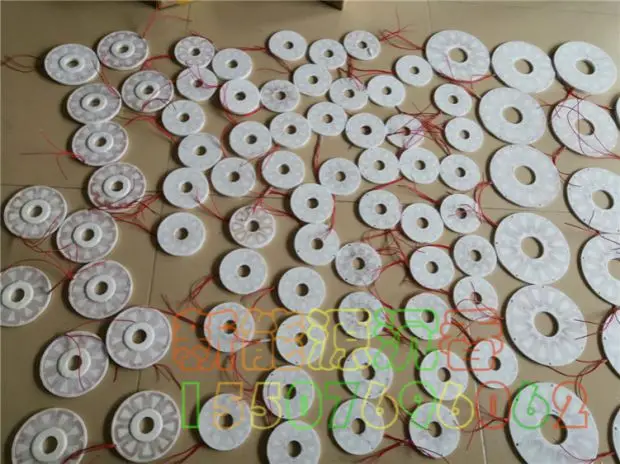

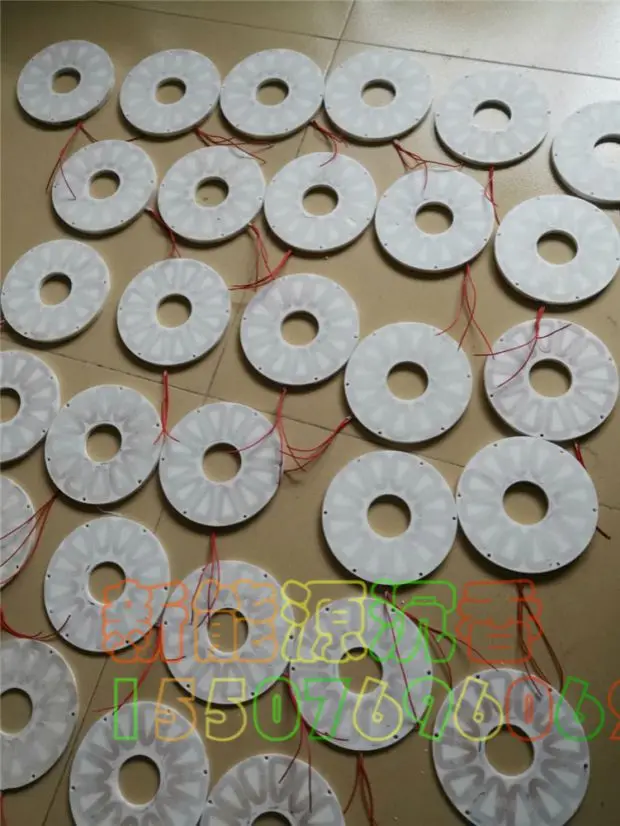

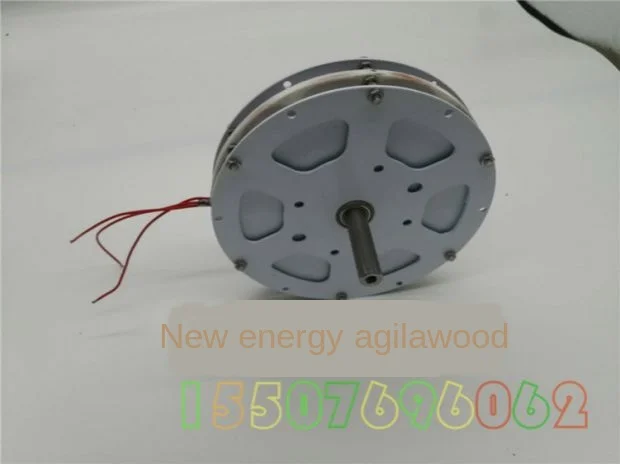

    Our newly developed products are coming out,micro three-phase disc rare earth permanent magnet coreless generator, output three-phase AC, rectifier to direct current, generatorthe outer diameter is 160mm, the thickness is only about 34mm, the output shaft is made of stainless steel shaft, the shaft diameter is 12mm, the rotor of the case is made of metal, the baking varnish is rust-proof, the material is sufficient, the workmanship is exquisite, and, the stator is packaged with white epoxy resin, waterproof, dusty, inner rotortype. No magnetic resistance, lightweight starting. High power generation efficiency,it is suitable for micro power generation devices, toys, scientific research, experiments, breeze power generation, hydraulic power, hand-cranking power generation, free energy cycle power generation, magnetic motor, wireless electronic power supply, household, field, DIY and other multi-purpose

 the characteristics

our products have many characteristics such as low speed rating, low wind speed starting, small volume, low energy consumption, light weight, compact structure, high efficiency, etc.

generator Model-16034

        rated power of generator: 300W

the generator voltage: 1-60v

generator current: 0.1-6A

rotational speed: 50-1400

generator size: 160x34

shaft diameter: 12mm

generator Magnet pole: 16 poles

generator coil plate thickness: 9mm

starting torque of generator: 0.1N.m
