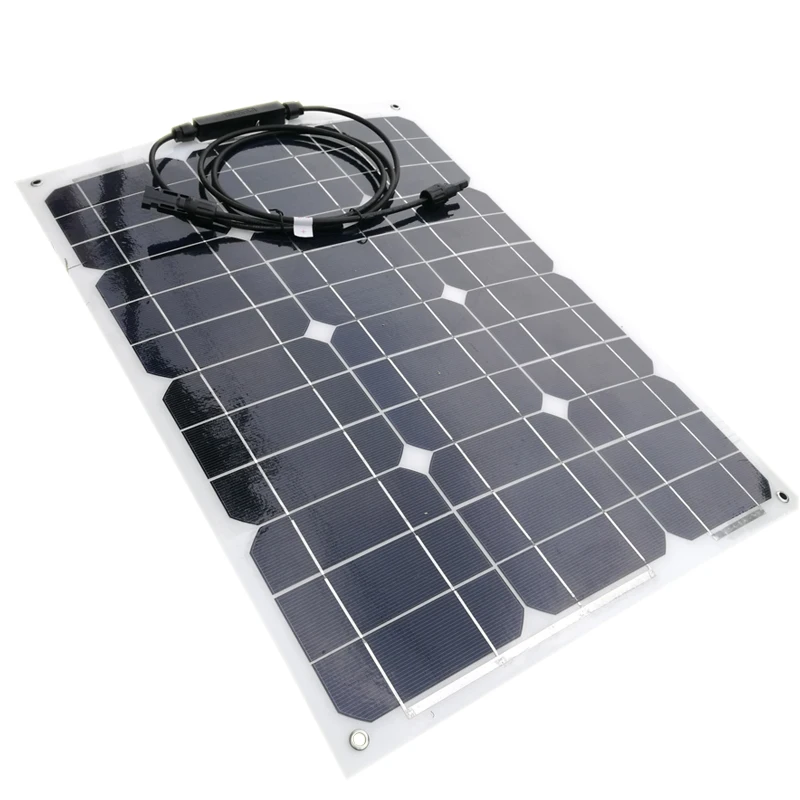

Flexible Solar Panel 12v 35w 70w 140w 210w 280w 350w 420w Solar Battery Charger Car Caravan Camping Rv Motorhomes Fan Phone LED

Feature

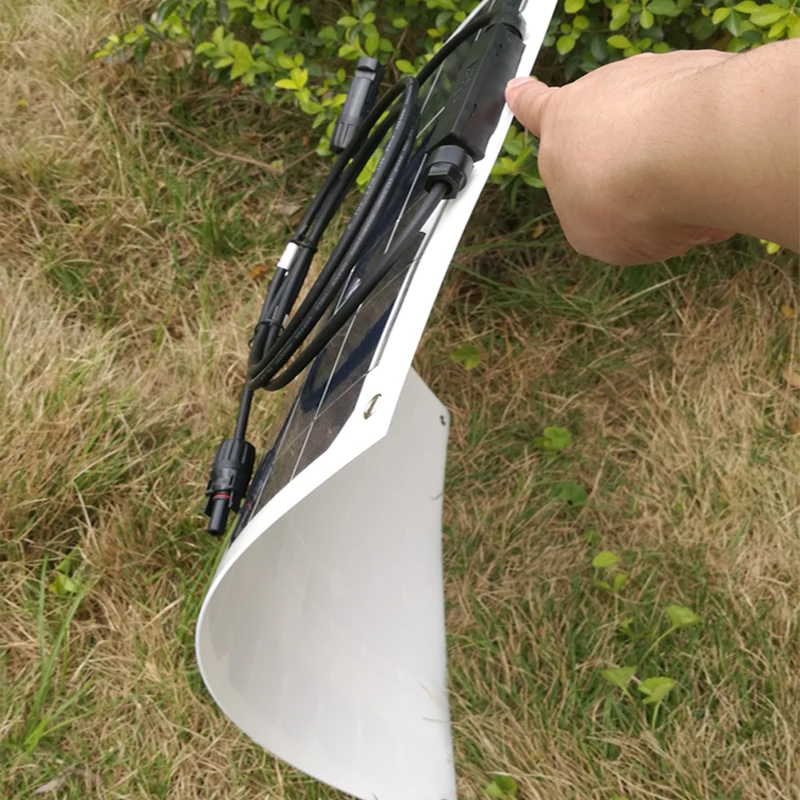

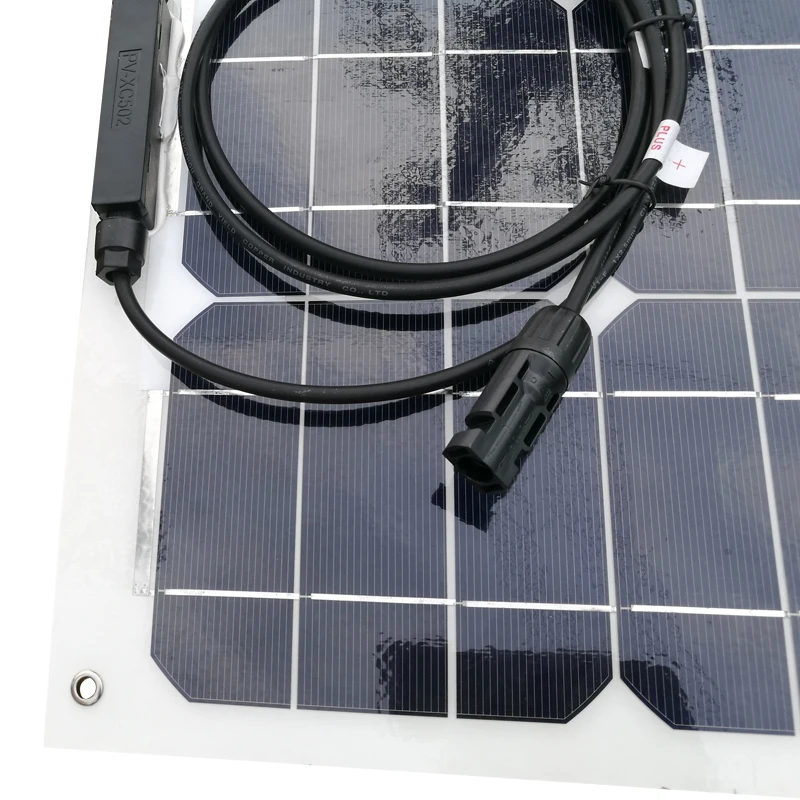

Excellent performance: High efficiency monocrystalline solar cells offer good performance even under poor light condition, internal diodes can prevent current leakage during night time. Flexible: This panel is a good choice for curved surfaces of RV, boat,sailboat, yacht,truck, car, coach, cabin, camper , tent , trailer, golf cart or any other irregular surface. High reliability with guaranteed +/-3% output power tolerance.The modules can withstand high wind-pressure, snow loads and extreme temperatures. Reliable: Advanced encapsulation material with multi-layered sheet laminations to enhance cell performance and provide a long service life. Junction box built-in diode for anti-reverse charging to battery. Easy Installation: The solar panel is easy to install with clue, adhesive, screw, and also grommet at corner is easy for installation. Controller can protect battery in charging. Extension cables and 2 in 1 connector is good for use.

Roof mounting method

1. Use high temperature and strong adhesion 3MM double-sided foam adhesive to stick to the back of the solar panel, and then attach it to the position where the roof should be installed. 2. Use a special sealing silicone gel for solar panels. 3. The solar panel should not be too curved, and the lateral direction cannot be bent, otherwise the solar panel will crack. 4. Install the solar panel on the roof to introduce the cable into the car. It can be from the gap of the rubber edge of the car (recommended to use the car roof) 5. Special line features: thin, soft, less than 1MM, can enter the car from any closed position of the roof 6. Can be directly connected to the battery of the engine compartment of the roof 7. On the cigarette lighter of the car. 8. Connect the bulb line inside the car or other wires connected to the battery. In-vehicle installation method 1. Use a rectangular board to affix the front or rear windshield without blocking the line of sight. 2. Place directly on the glass table of the rear windshield Note: The effect of the interior installation is not as good as the roof installation. The method of matching the controller: the positive and negative terminals of the solar energy are connected to the positive and negative terminals of the controller, and then the battery output port of the controller is connected to the positive and negative terminals of the battery. (The controller first connects the battery and then connects the solar panel)
