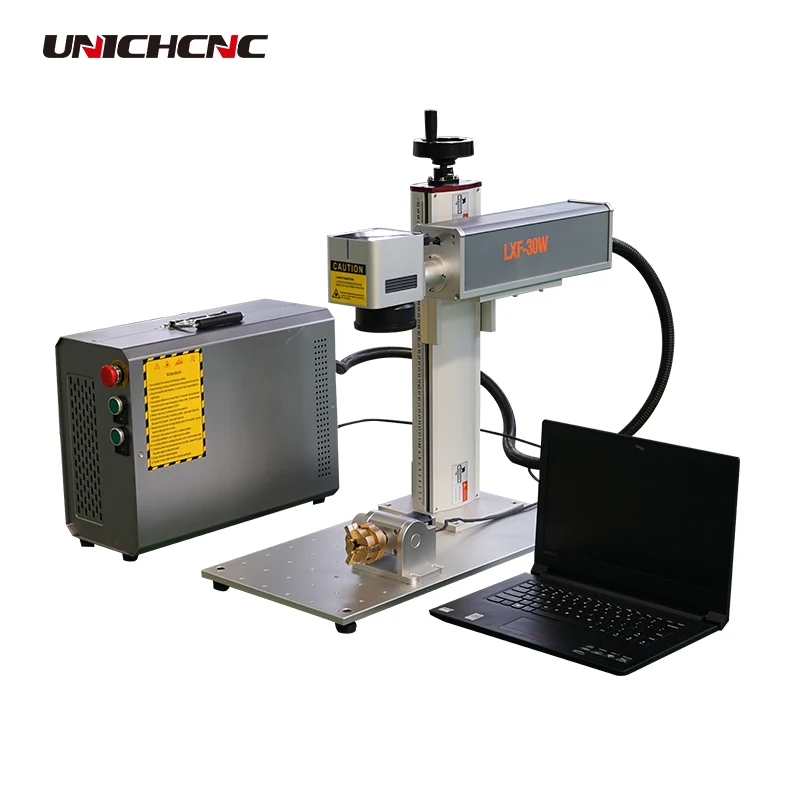

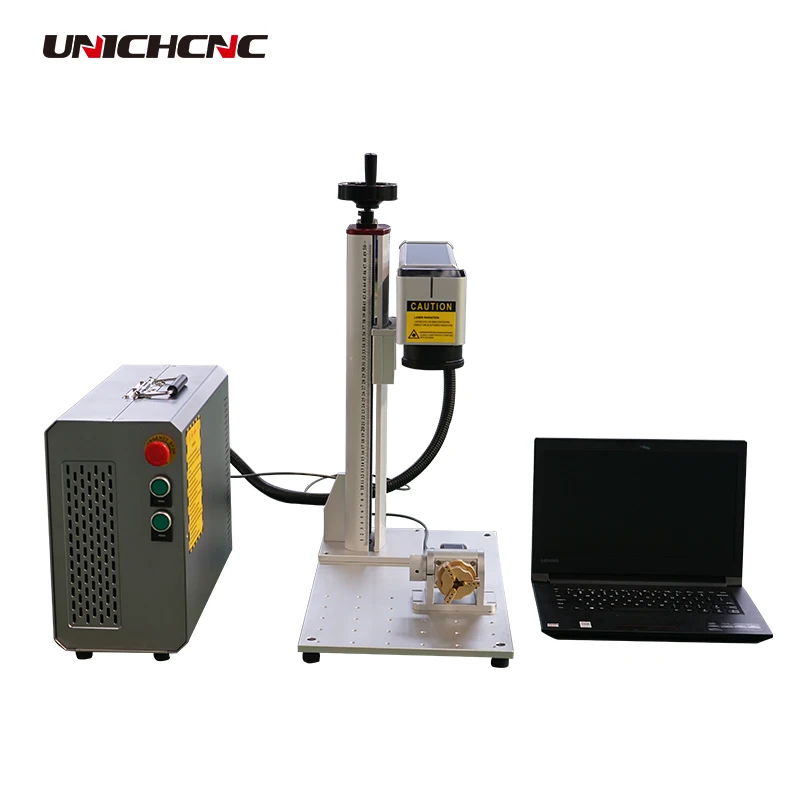

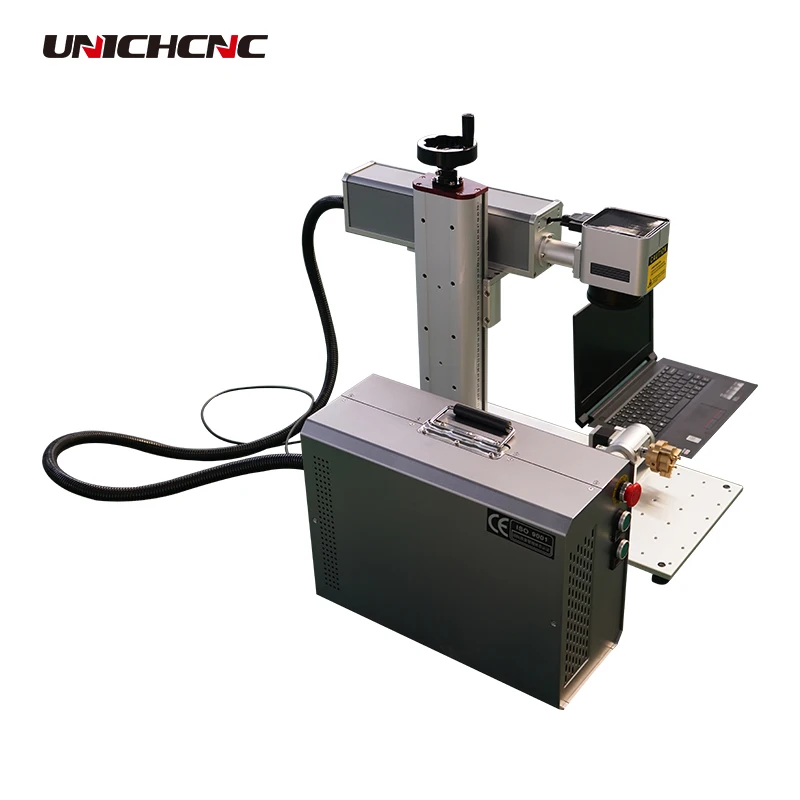

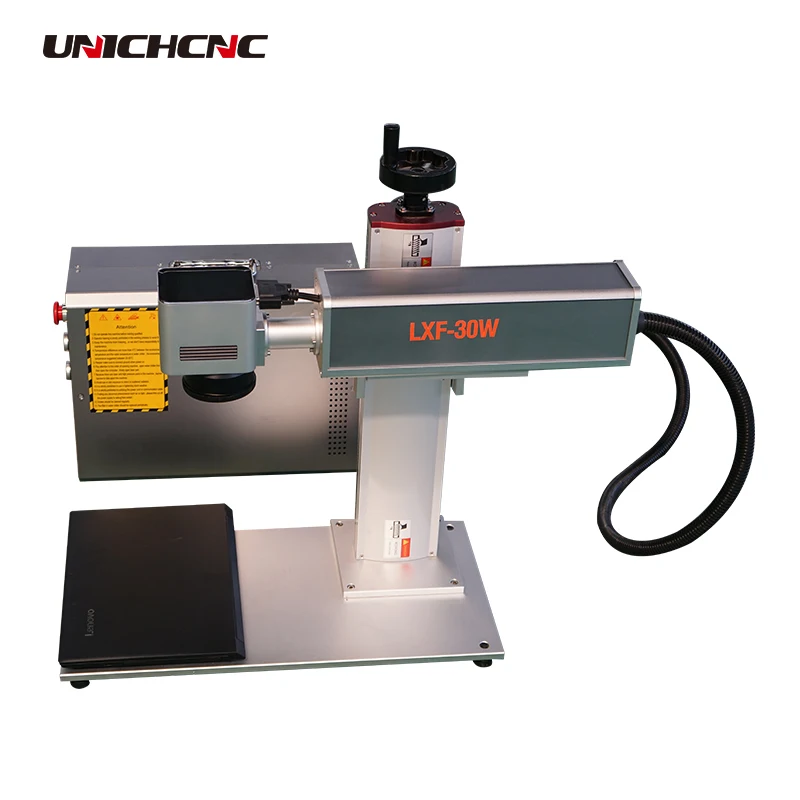

CE certificate raycus 20w fiber marking mini portable machine

The biggest advantages of machine help you choose most suitable one:

Portable connection mini marking machine:

Marking products are relatively simple and small with Fixed focus and the fied lens with diameter 110mm.

Standard Features:

1).Long lifetime, over 100,000 hours.

2).Compact laser source with air cooling.

3).2 to 5 times more productive a traditional laser marker or laser engraver.

4).Super quality galvanometer scanning system.

5).High accuracy and repeatability for correct marks each time with galvanometer scanners and electronic controls.

6).More stable performance.

7).Professional control board and marking software. The software controlling system has the interface of windows and comprises files output by software such as Coreldraw, AutoCAD, Photoshop etc. It can support various file formats such as PLT,DXF,PCX,BMP etc.

8).Output power is stable, optical mode is good, beam quality is excellent.

9).Marking speed is fast, efficient, and high accuracy.

10).Appearance is professional, operation is easy.

Technical Parameter:

Item  /  Model

LXF-20/30/50/60/70/100W

Laser source

Domestic Raycus(Germany IPG/China CAS/MAX/JPT Mopa color marking for optional)

Laser power

20w, 30w, 50w,60w ,70w,100w

Laser type

Fiber laser

Graphic Format Supported

PLT,BMP,JPG,PNG,TIP,PCX,TGA,ICO,

DXF

Marking speed

≤8000mm/S

Max.Marking Depth

≤0.4mm

Laser Wavelength

1064nm

Marking lines

0.06-0.1mm

Minimum line width

0.06mm

Minimum character

0.15mm

Resolution ratio

0.01mm

Graphic format supported

BMP, PLT, DST, DXF, AI

Software supported

TAJIMA, CorelDraw, Photoshop, AutoCAD

Equipment Dimensions

710*500*730mm(different model has different size,detailed can be confirmed with sellers)

Net Weight:

61kg

(different configuration has small difference)

Unit Power

≤500W

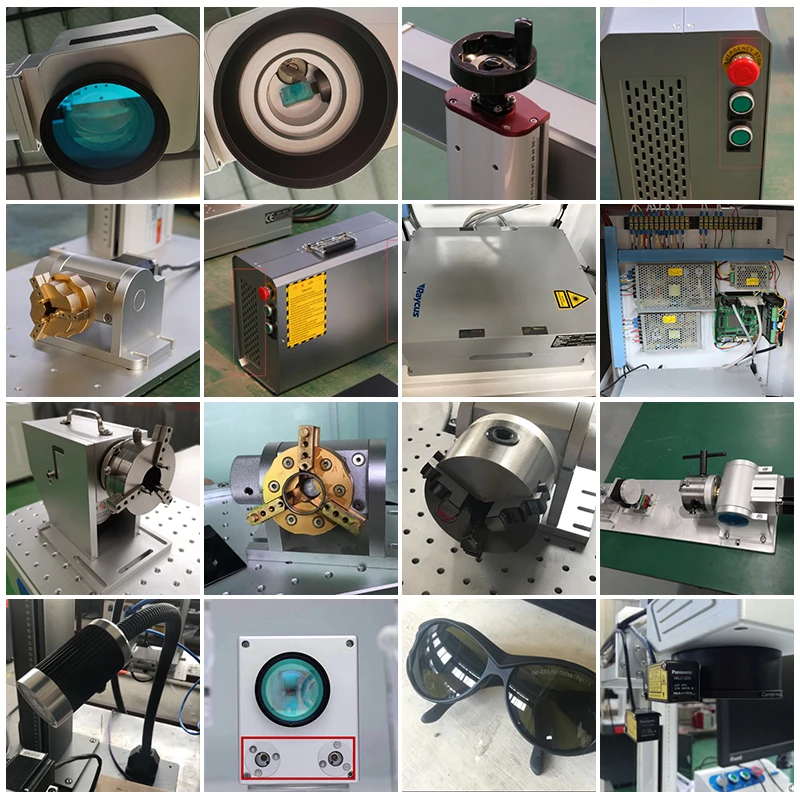

Optional Spare Parts

 Rotary/Protection glasses/outside red light/night light and so on.

Application:

1).Materials:

Metals ( Gold, silver, copper, alloy, aluminum, steel, stainless steel, name card )

Non-metal ( Plastic: engineering plastic and hard plastic, etc. Used in electronic components integrated circuits, mobile communications, precision instruments, glasses watch and clocks, computer keyboard, accessories, auto parts, plastic buttons, plumbing fittings, sanitary ware, PVC pipe, medical equipment, packaging bottles, etc.)

2).Industry:

Jewellery, Keyboards of cell phone, Auto parts, Electronic components, Electronic appliance, Communication apparatus, sanitary wares, buckles, kitchenware, Sanitary equipment’s, Hardware tools, Knife, Glasses, Clock, Cooker, Stainless steel products etc.

1. 2 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge(some parts will be maintained) when if any problem during the warranty period.

2. Lifetime maintenance free of charge.

3. Free training course at our plant.

4. 18 hours on line service and email each day, free technical support.We will reply you in 24 hours after receive your problem of the machine.

5. Machine has been tested and adjusted before delivery.We will take machine photos and make machine working image for you ,after getting your agreement ,then we will book a ship.

6. Provide technical services to the door(We have professional engineers to offer machine installation commissioning and maintenance) if customers pay the charges of ticket.

7. If you have any problem during your use.you need our technician to judge

where the problem is and help you to solve it. We can provide team viewer

and skype with cam till all of your problems solved.
