cnc laser 3020 40w 50w 220v 110v co2 engraving cutting machine 300x200mm | Инструменты

cnc laser 3020 40w 50w 220v 110v co2 laser engraving cutting machine 300x200mm

Main Features

1) Red light position
2) auto air blowing
3) up and down table

4) 30*20 cm working size

5) New type strong golden color laser head and mirror frames

6) high precision inner slide guide rail with dual axis

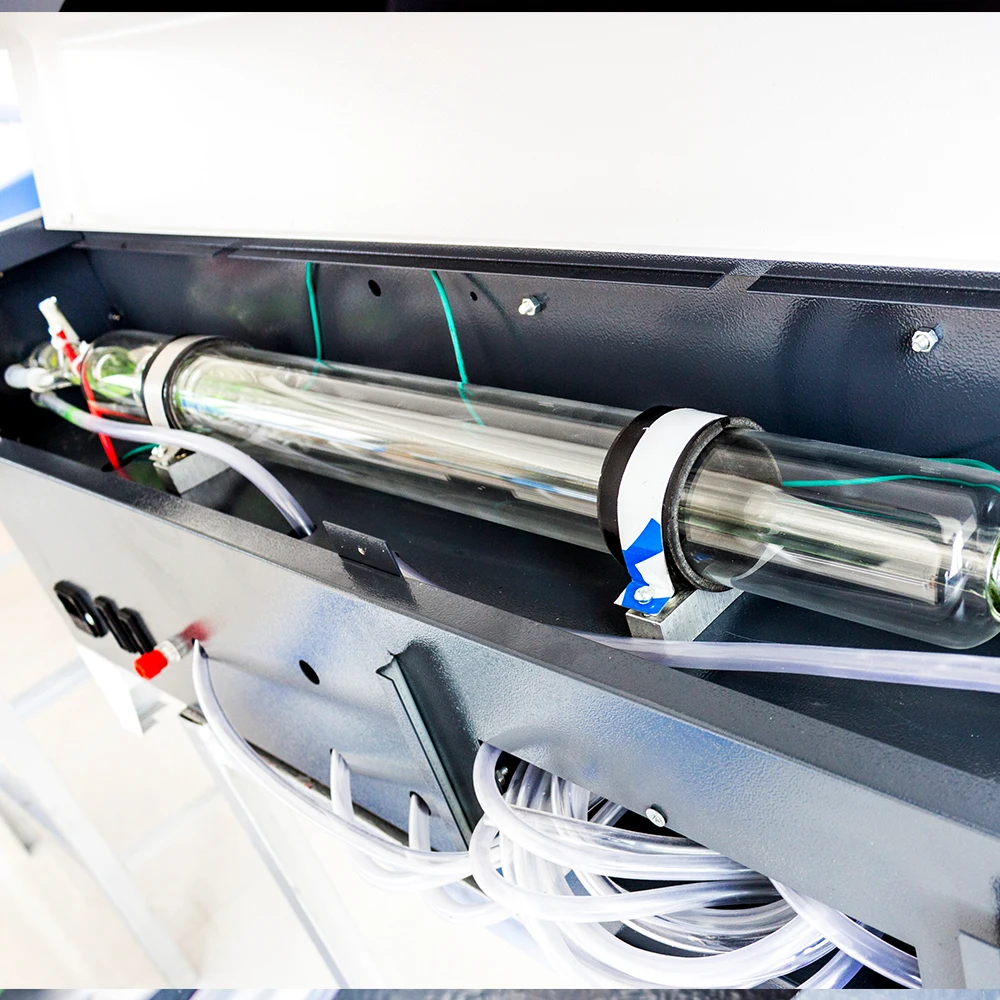

7) with water sensor to protect laser tube in case of no water

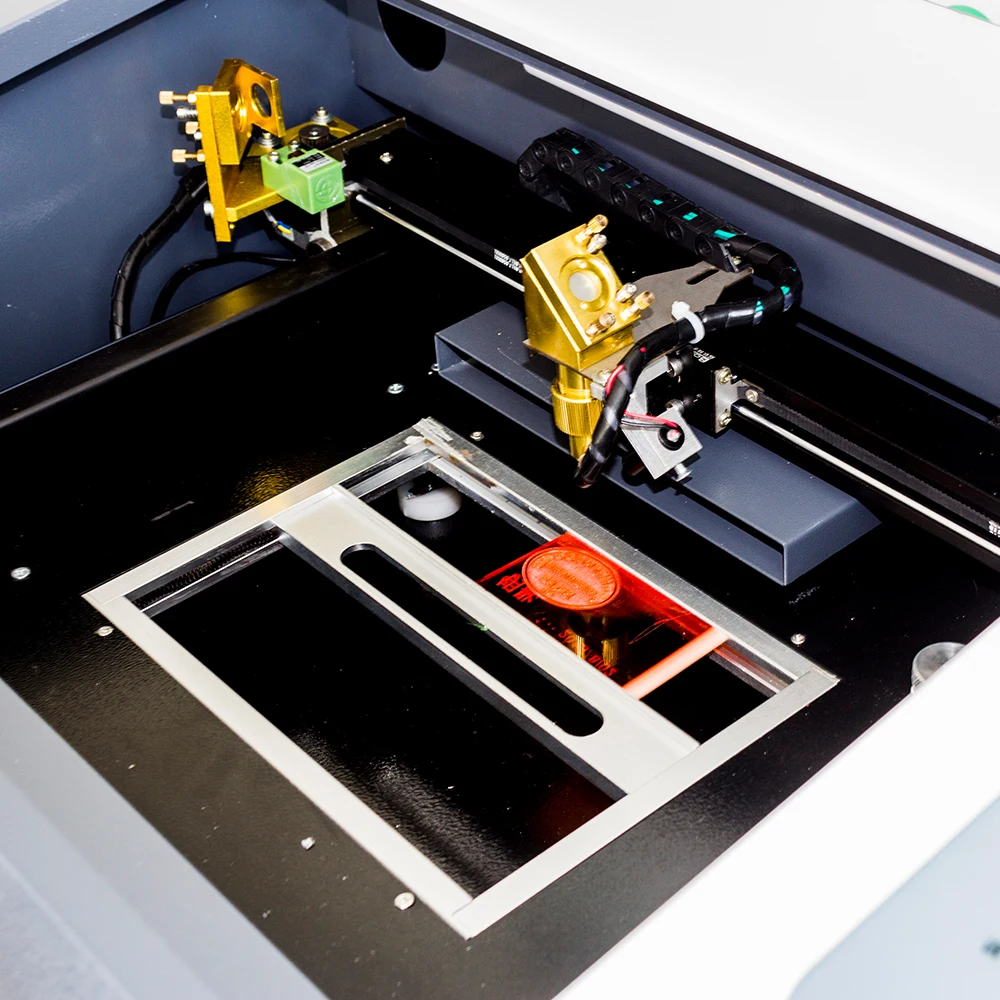

New type strong golden laser head and mirror frames

with red light position and auto air blowing functions

digital panel in English

Simple and easy to operate

up-down working table

with jig and an extra honeycomb working table

plotter with high precision inner slide guide rail

special inner slide guide rail with dual axis

Product Application

Applicable Materials: plastic, jade, crystal, rubber, wood, organic glass and other non-metal materials
Applicable Industry: Mainly used for the engraving and cutting of little artistic works, such as engraved portraits, badges, breast cards and various engraved packages. It can also engrave seals and crabs.



Technical Parameters for 3020 CO2 Lasers Model: DK-3020C Power: 40W 50W Laser tube life span: 1500 working hours Working area: 300*200mm Applicable Materials: Acrylic, Glass, crystal, wood, leather, cloth, rubber, marble, ceramic .etc Positioning accuracy: 0.01mm Main board: M2 board Software: LaserDRAW Panel: Digital panel Up-down table: Yes(The height of up-down distance is 40mm) optional Cellular platform: Optional Engraving speed: 1-500mm/s Engraving depth: 1-4mm(acrylic) Cutting speed: 1-50mm/s Cutting depth: 1-4mm(acrylic) Air blowing protection: Yes Red-light position: Yes Operation temperature: 5℃-35℃ Resolution ratio: ≤1000dpi Warranty: 1year(laser tube, lens and mirrors: 3 months) Color: White and blue(optional) Voltage: AC220±10% 50Hz / AC110±10% 60Hz Packing: International standard wooden packing Packing size: 96*69*46cm Gross weight 45kg





Samples

Necessary spare parts

Multiple Colors Available

factory show

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.



After-Sales Service

* Training how to install the machine, training how to use the machine.

* Engineers available to service machinery overseas.

* Warranty for the machine is 1 year, but for consumables(laser tube, lens and mirrors), the warranty is 3 months



Packing & Delivery

The normal package is wooden box(Size: L*W*H). If export to European countries,the wooden box will be fumigated.If container is too tighter,we will use PE film for packing or pack it according to customers special request.
