Introduction

The 3020Z-DQ Easily produce name badges, equipment tags, small signs, plaques and awards, gift items, pet tags,ID tags, electrical tags, military name tags, desk plates, or mark industrial parts.

Whether you are a startup business, or a model enthusiasts, or looking to add a machine to supplement the capacity of an existing operation, the 3020Z-DQ is a great fit.

We look forward, 3020Z-DQ will become your good helper

In addition, it can be upgraded to be installed a rotational axis.

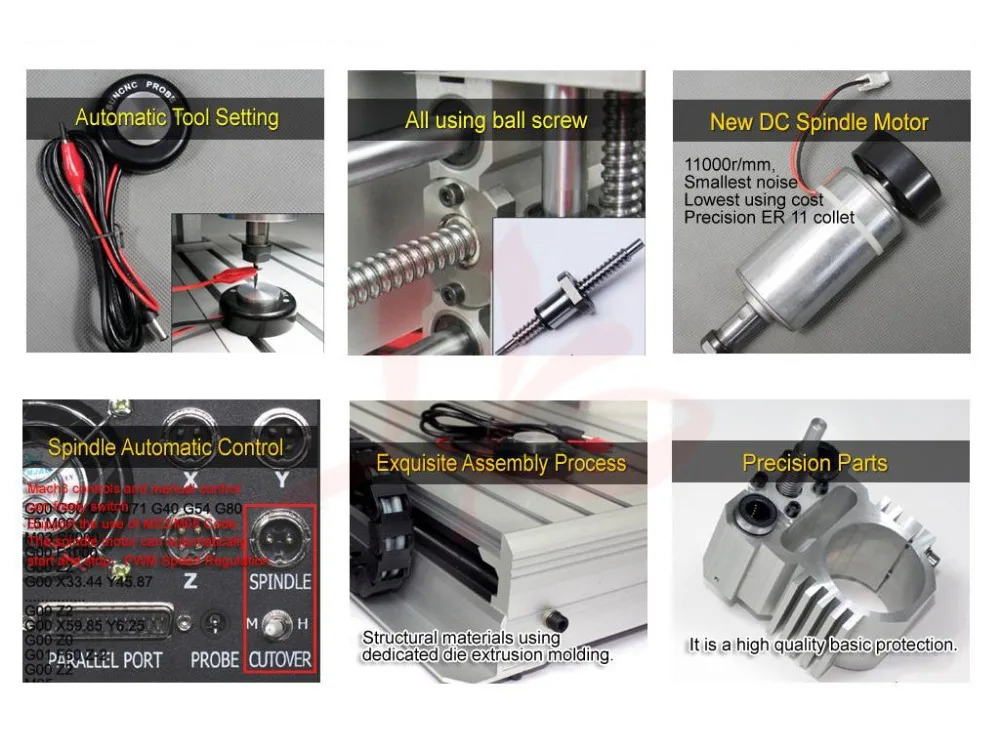

More Precise Stepping Motor

The engraving process is visible as controlled by computer

Simple operation and installation

CNC3020Z-DQ engraving machine part parameters:

Machine Dimensions:

525X400X370mm

Rack material:

6061 and 6063 Hard aluminum alloy
(The unique and dedicated mold extrusion profiles, Let counterfeiters dwarfs.)

Engraving area:

300X200mm

Z-Axis Stroke:

45mm, Engraving depth depends on the length of the tool edge)

Acceptable material thickness:

≤60mm

Rail type:

Chromeplate shaft+Linear Bearings,)(Surface hardening 61HRC)

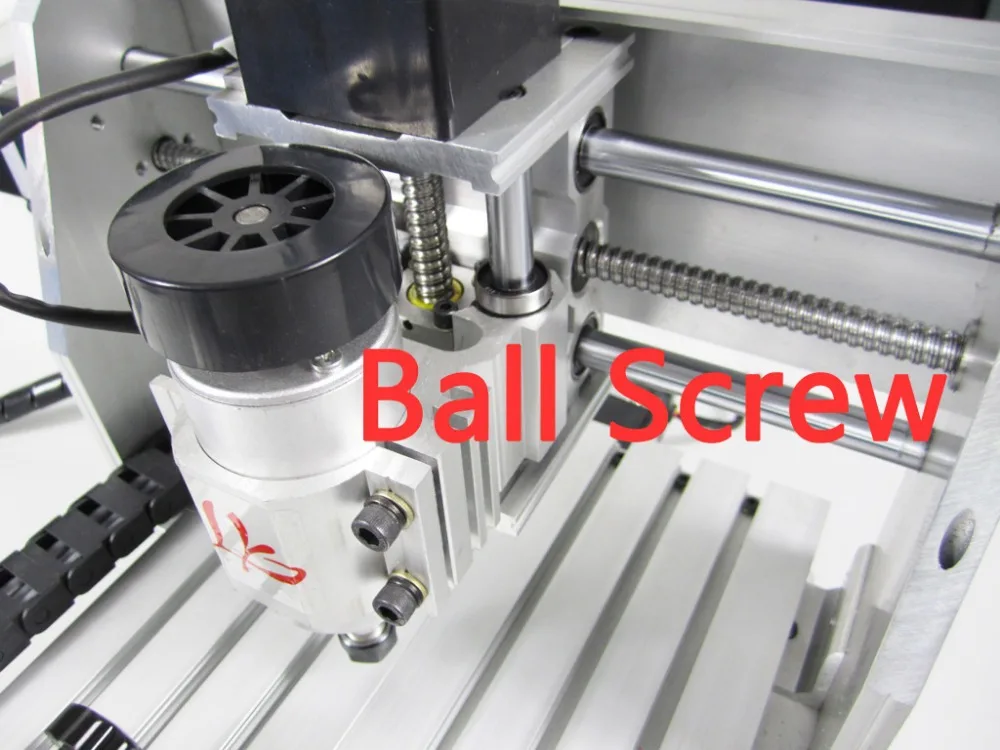

Type of screw:

Ball screw,Pitch 4mm

Spindle motor:

230W/11000r/min((Very small noise))

Collet type:

ER11,1/8"(3.175mm) Collet

Stepper motor and drive:

two-phase hybrid stepping motor , 1.8A/PHASE,40N.cm, 8 segments drive.

Maximum operating speed:

4000mm/min (Engraving speed :300-3000mm/min)

Repeat positioning Accuracy:

0.04mm

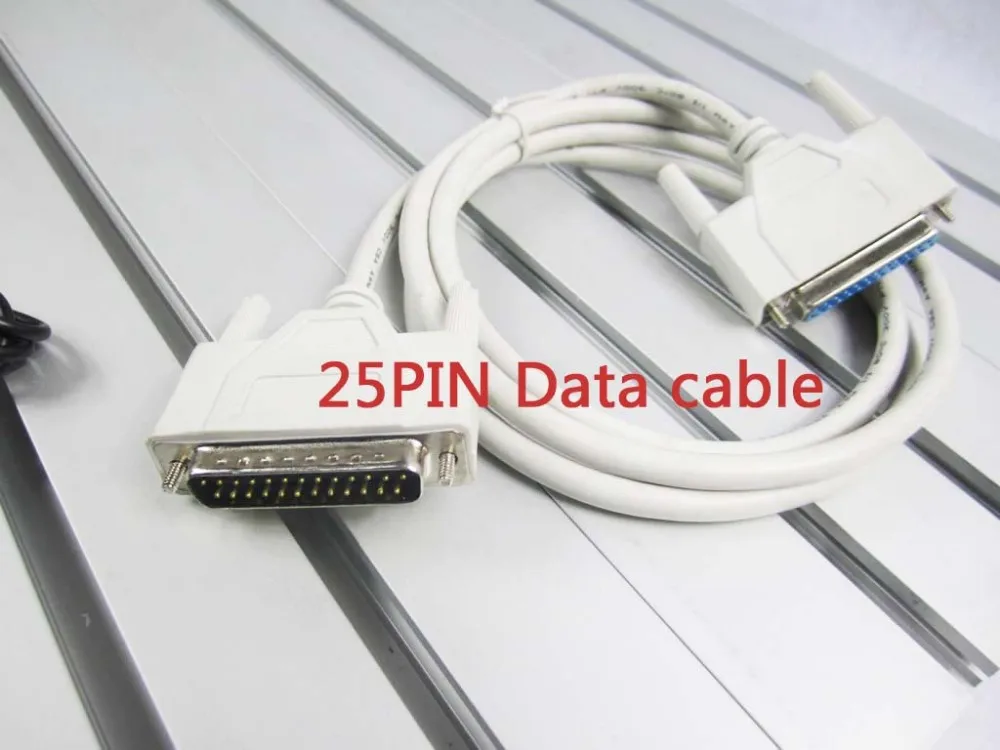

Communication interface:

Parallel port (Must use the desktop computer, Does not support laptop)

Software Compatability:

Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM,coppercam)

Command code:

G code/.nc/.ncc/.tab/.txt

Machine weight:

22kg
