DIYSECUR 4.3inch Handheld Video Intercom Door Phone Bell 700TV Line Night Vision HD Camera for Home Office Factory | Безопасность и







4.3" Video Door Phone Intercom for Home / Office Security System 1 x Outdoor Unit & 5 x Indoor Monitor Why Do You Need A Video Door Phone Intercom System



Description

Video door phone is a system that enables you to receive "calls" from your front door or some other door on the outside of your building, which enables you to actually see who is at the outside station and talk to them. It will add security and peace of mind to your house.

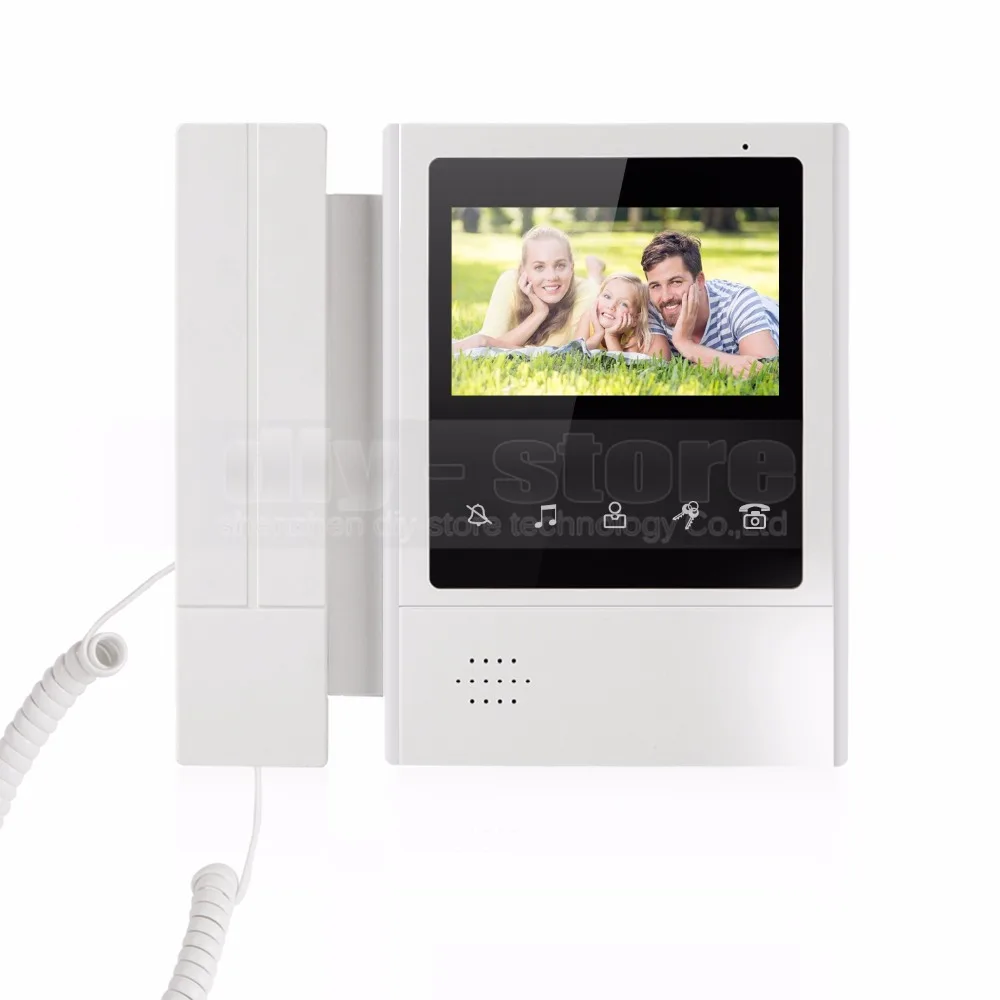

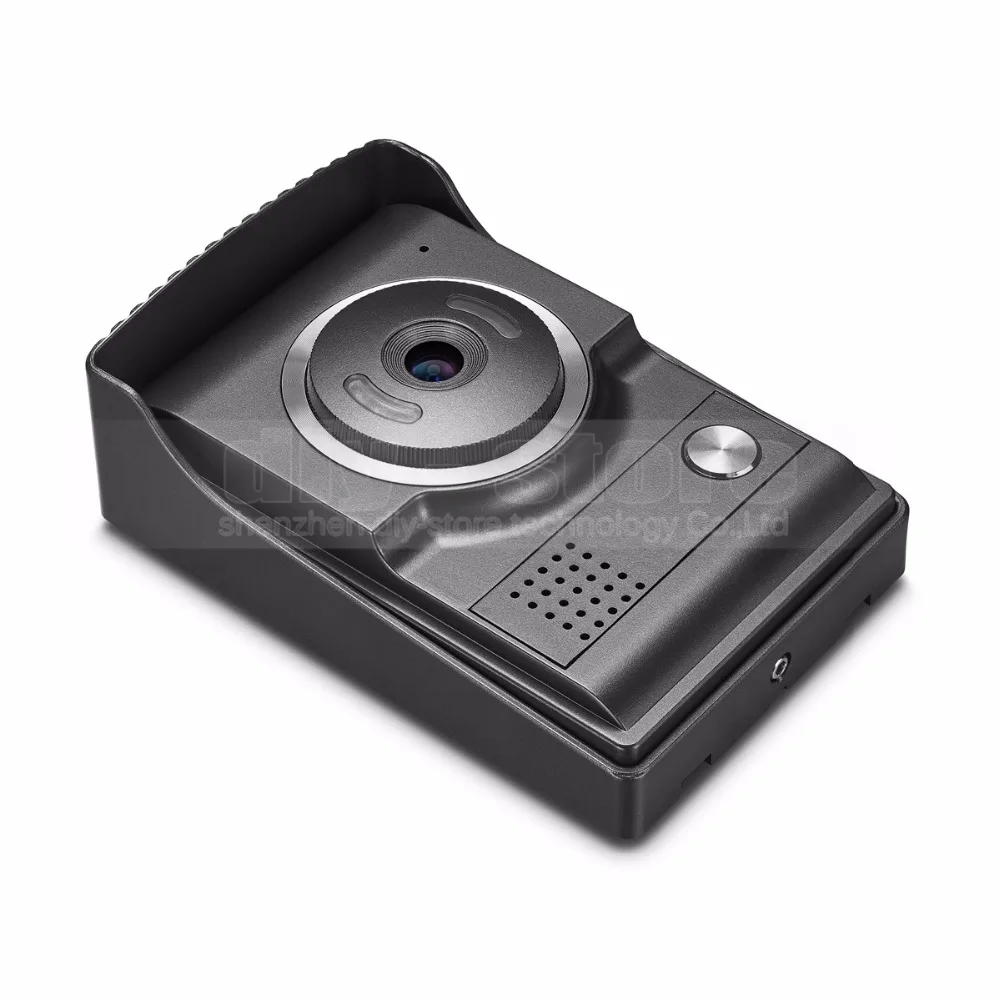

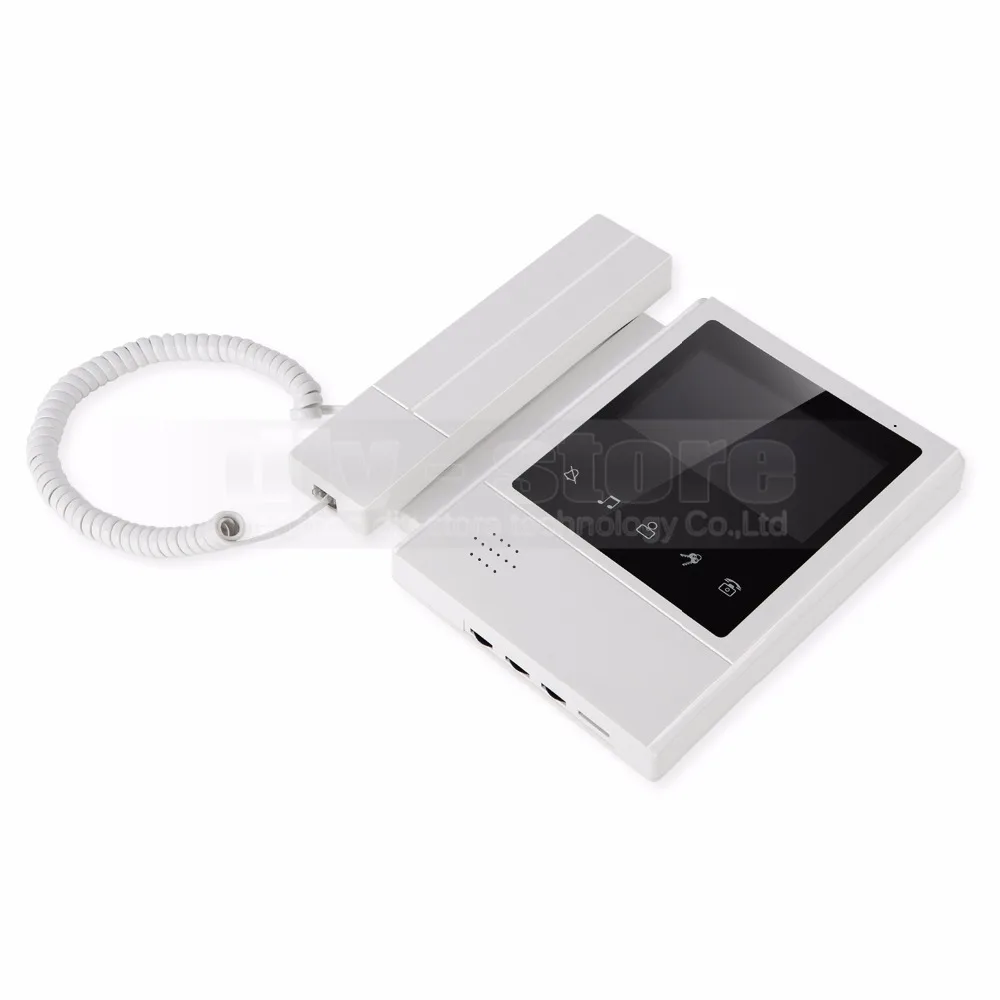

The item you are watching now is our new arrival video door phone system. It has nice appearance and excellent performance. About the outdoor unit, a 700tvl camera lets you see clearly who is at the door, built-in led lights enhance the night view  . About indoor monitor, a   4.3inh LCD color screen   gives you great view, white color makes it looks more fashionable . Besides, the installation is not difficult, both of the outdoor unit and indoor unit have plug-and-play connector. It is a great system for home intercom and security.

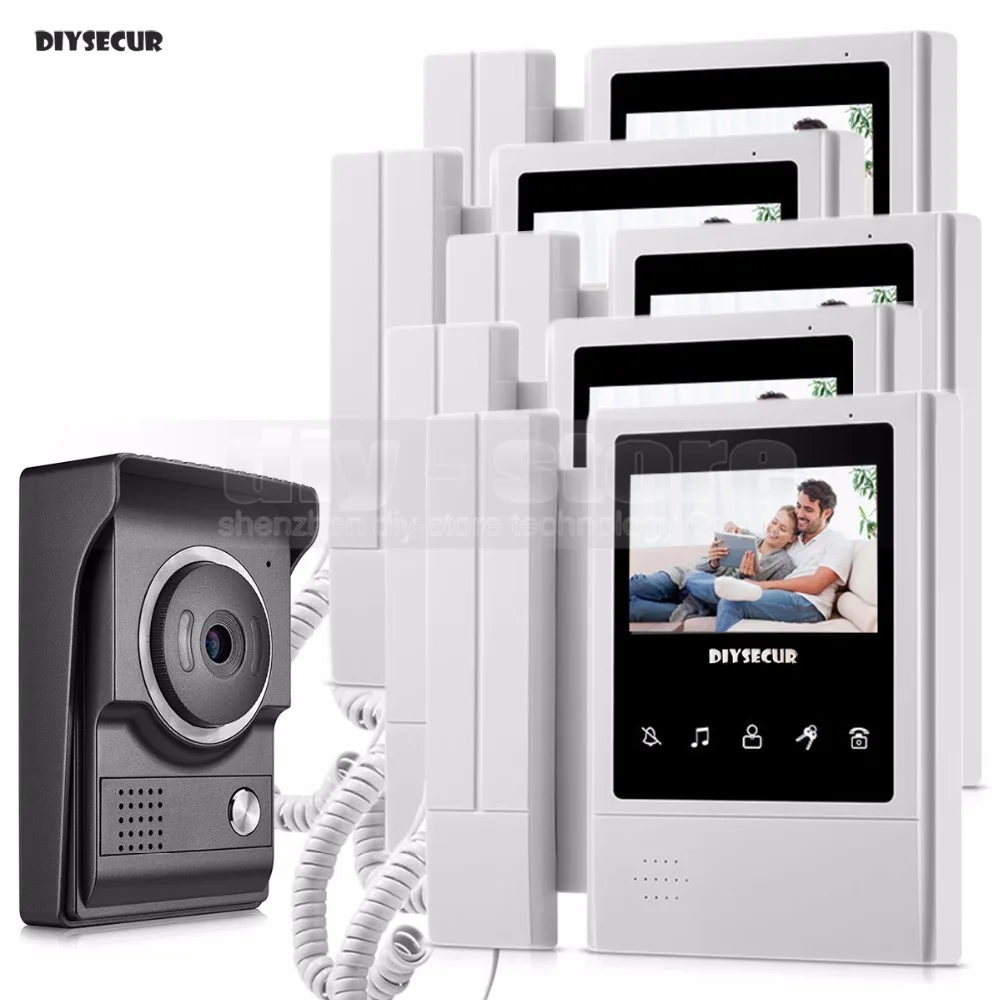

It supports Handsfree Dual-way Intercom, Indoor Monitoring, Indoor Unlocking, Night Vision. It contains 1 outdoor unit and 5 indoor unit. It supports Max 2 outdoor units and 6 indoor units, if you need more cameras and monitors, please feel free to contact us. (For 2 outdoor unit kit, you need a mutil door controller; for 5 or 6 indoor units kit, you need a mutil monitor amplifer.)





Feature:







Main Functions











Compatible with Electric lock, keep house safer   This system can work with 12V electric lock. With this function, you don't need go to the door to unlock for your guest, just press unlock button on the monitor, which brings great convenience. (Please note the electric locks at below photo are not included in this kit. If you need one, please contact us)



https:/store/group/Electric-Lock/830381_501341887.html?spm=2114.12010108.0.0.7d847a7Dn5ufs











Applications

This apartment door phone system is mostly used in 6 units apartment or 6 families house, which allows the vistor call separate room directly.



  Other options

We provide more options for the outdoor and indoor unit. There are several models that you can choose as you wish, please contact us for quotation with the model.











Specifications:



Outdoor Camera Model No. L+ Night Vision IR Light, visible within 5 meters Vision Angle 90 Wide Angle Resolution 700 TV Line Plus Control Automatically Power Consumption Standby: 0.1W; Working: 4W Working temperature -20°c~+60°c Installation Wall mounted Material ABS Plastic Size 130(L)*90(W)*45(H)mm Net Weight 180g Indoor Monitor   Model No. V43E168 Screen 4.3'' wide angle TFT LCD, 16:9 Display Resolution 480*RGB*272 Power input AC100V-240V 50Hz-60Hz Delay Calling time 120s 10% Delay Monitoring time 40s 10% Valid Distance 100M (4x0.75 mm2) Power Consumption Standby: 0.5W; Working: 8W Adapter Input AC100~ 240V, 50/60Hz Adapter Output DC 15V Working Temperature -40°c~+70°c Standby Temperature -20°c~+60°c Installation Wall mounted/lift on desk Size 195(L)*185(W)*30(H)mm Materail ABS Net Weight 600g











Packing list:
