Internal consistency differences of the Intel Atom x7-Z8700 chip results in suspension of display driver when some players play games after receiving the GPD WIN. Our suggestions to solve this problem are to upgrade the intel graphics card driver and to adjust the graphics card’s performance model in Windows. For the issues which cannot be solved with these methods, the way of modifying the circuit components can be applied (this method will lead to 10%-15% power dissipation; it has not be confirmed whether the modifying of circuit components will lead to other risks or not; for machines which have not ever or have seldom experienced suspension of display driver, it is strongly not recommended to apply this method). Below are the steps on how to solve this issue by modifying the hardware:

​

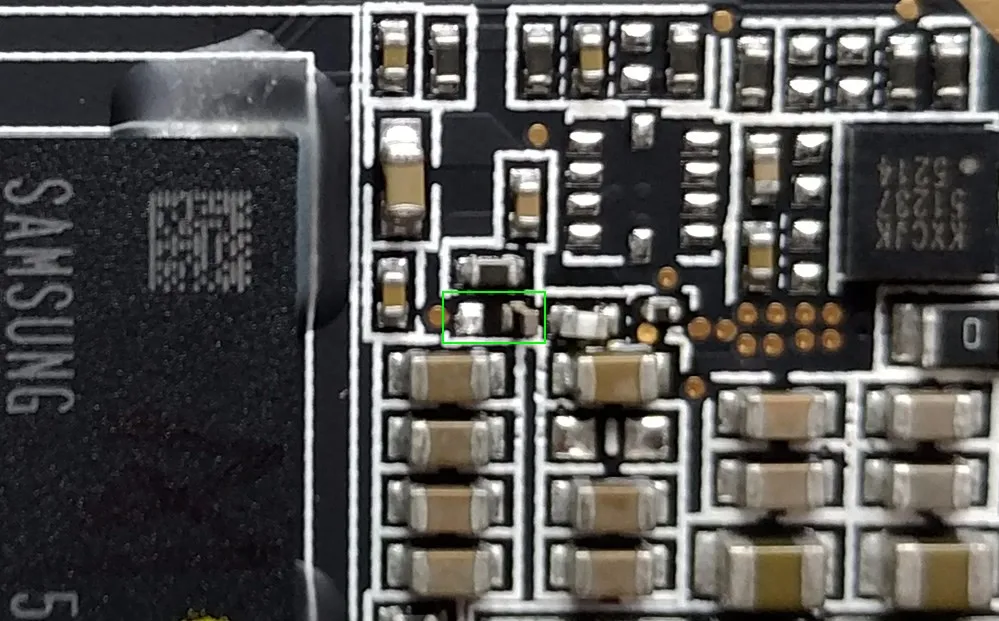

When the mainboard is torn down, we will need to modify the frame part in green as shown below:

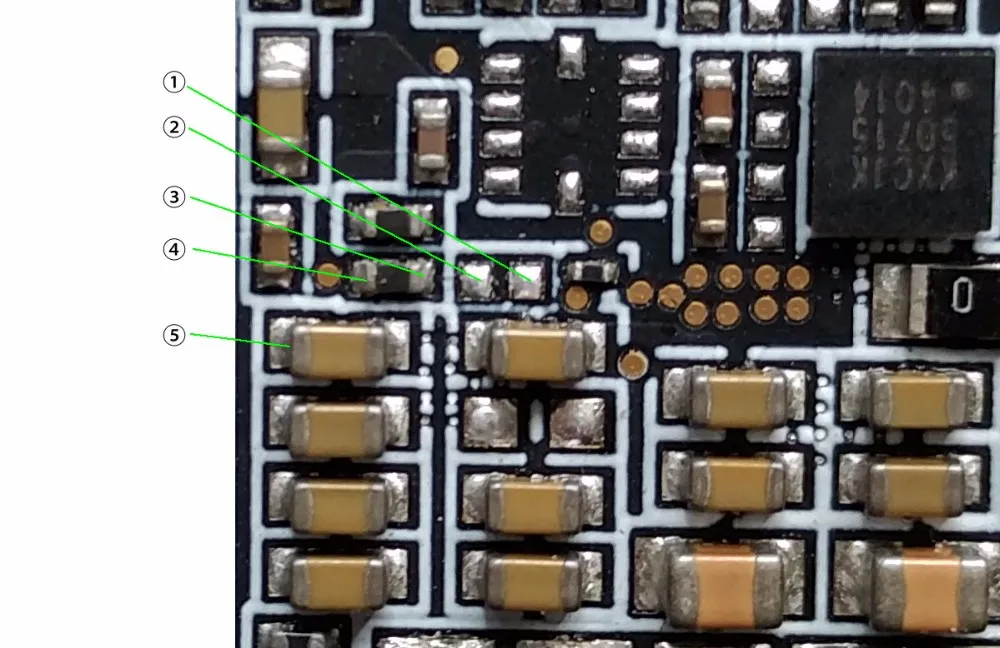

Let’s have a look at the zoom in details of this part before modification. The digital identifications are the ones we need to modify.
