Горячий набор сервомотора 600 Вт 60ST-M01930 переменного тока с постоянным магнитным синхронизатором и тормозом для резьбовой машины на.

Brand NameNoneModel NumberLCMT06L02ZB-60M01930B/LCDB2-062002-LB622TypeServo MotorFrequency50 ( Khz)Output Power0.6 (Kw)Protect FeaturewaterproofEfficiencyIE 2PhaseThree-phaseCertificationceAC Voltage208-230 / 240 VMeasurement unitset/setsEach pack1Power SupplyACRated Voltage220 (v)Rated Torque1.91 (N.m)Rated Speed3000 (rmp)Matched MotorLichuan 600W Servo Motors34 549,60 ₽-17%34 549,60 ₽-17%28 676,49 ₽28 676,49 ₽Add to CartBuy now28 676,49 ₽loaderDescription

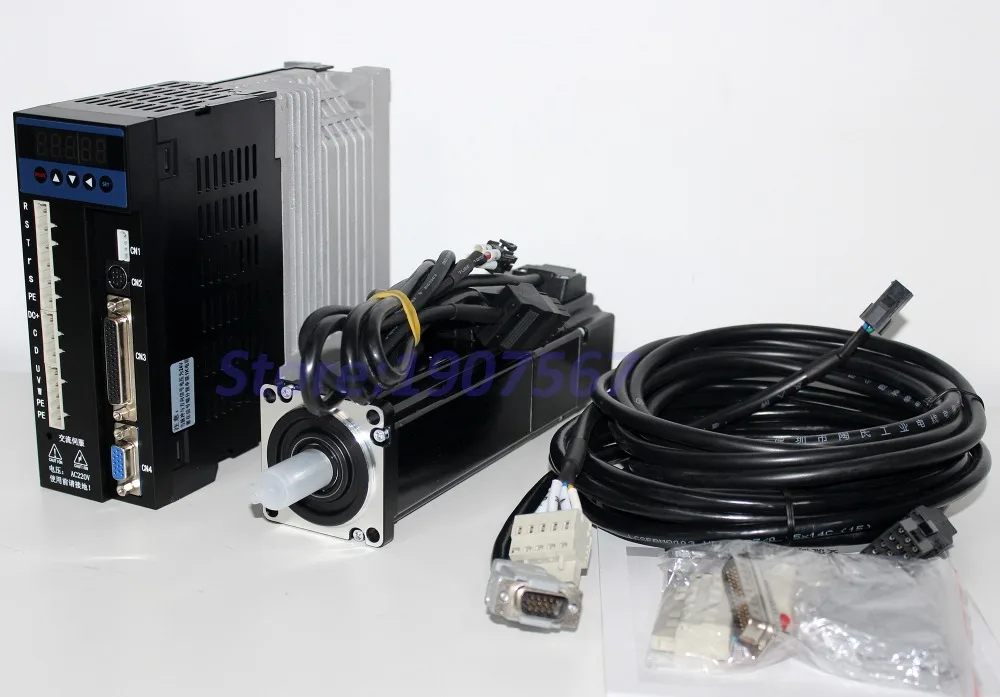

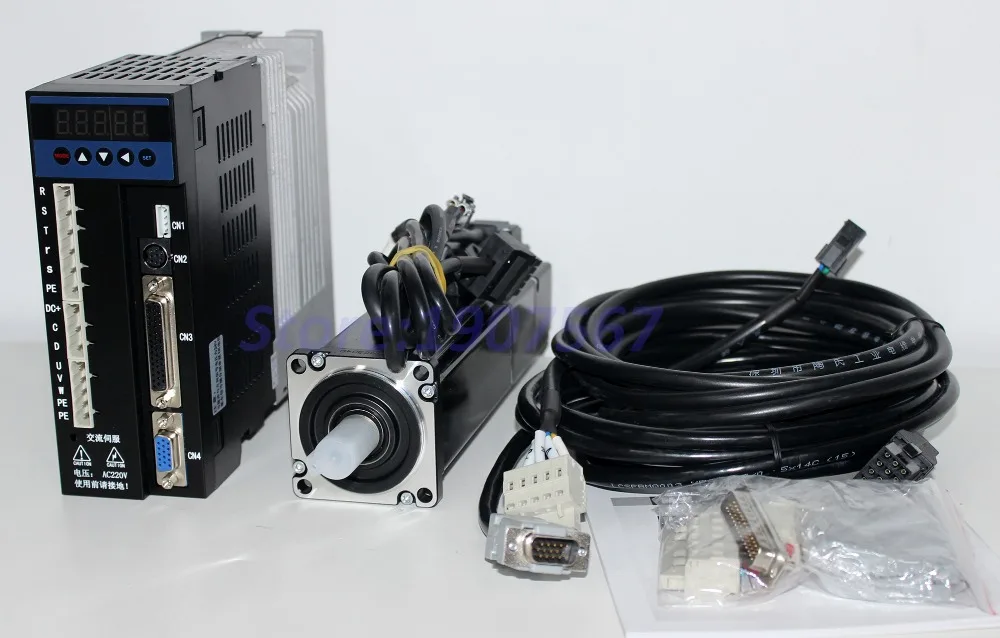

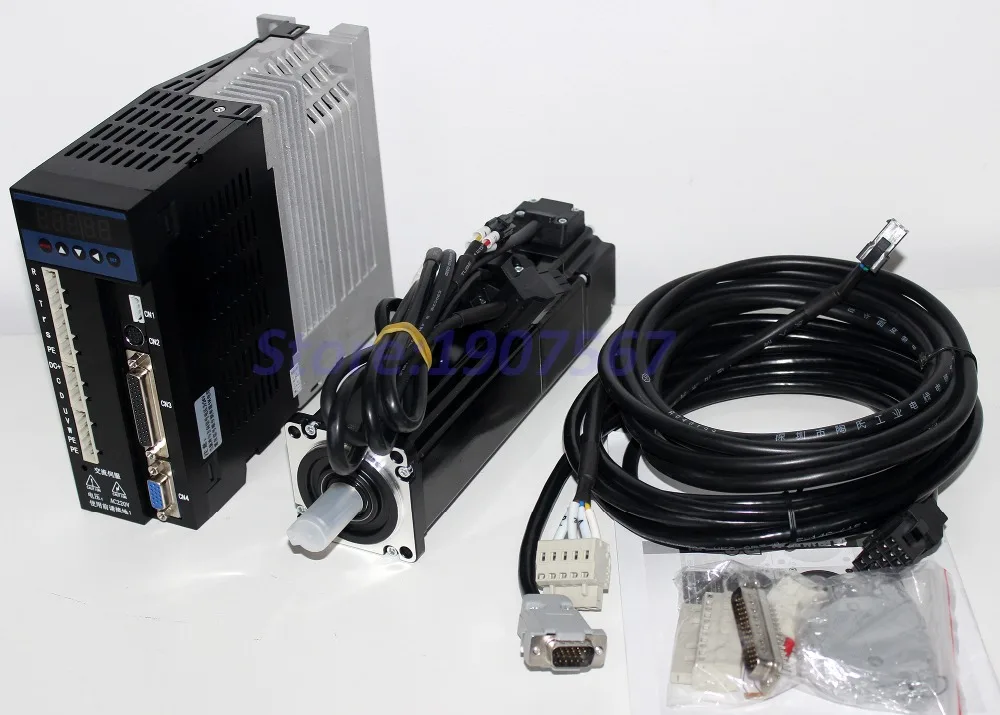

Hot 600w servo motor set 60ST-M01930 ac servo drive and motor permanent magnet synchronous motor with brake for tapping machine

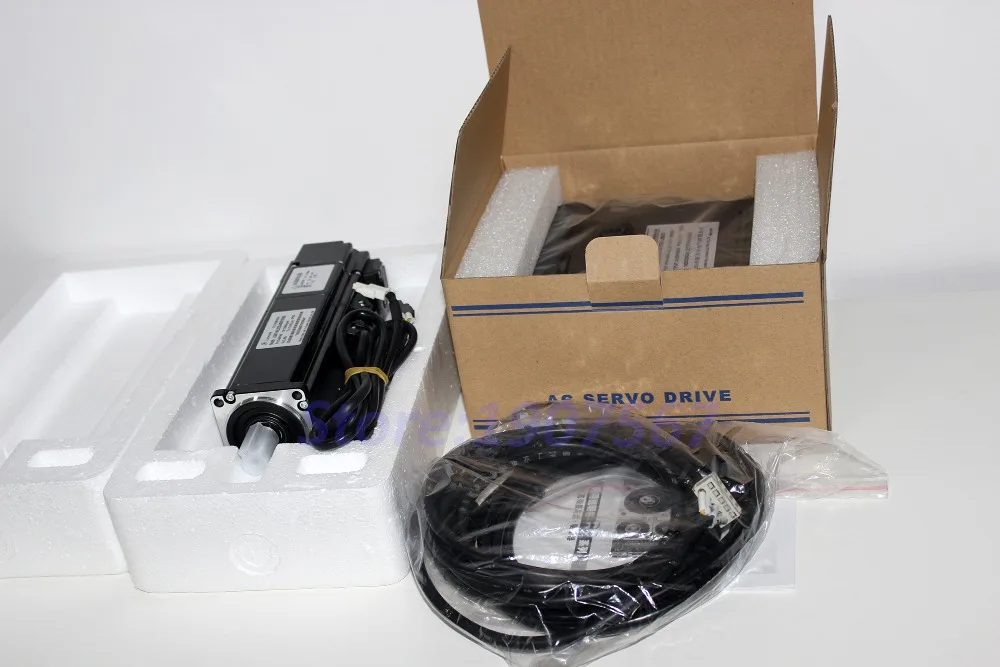

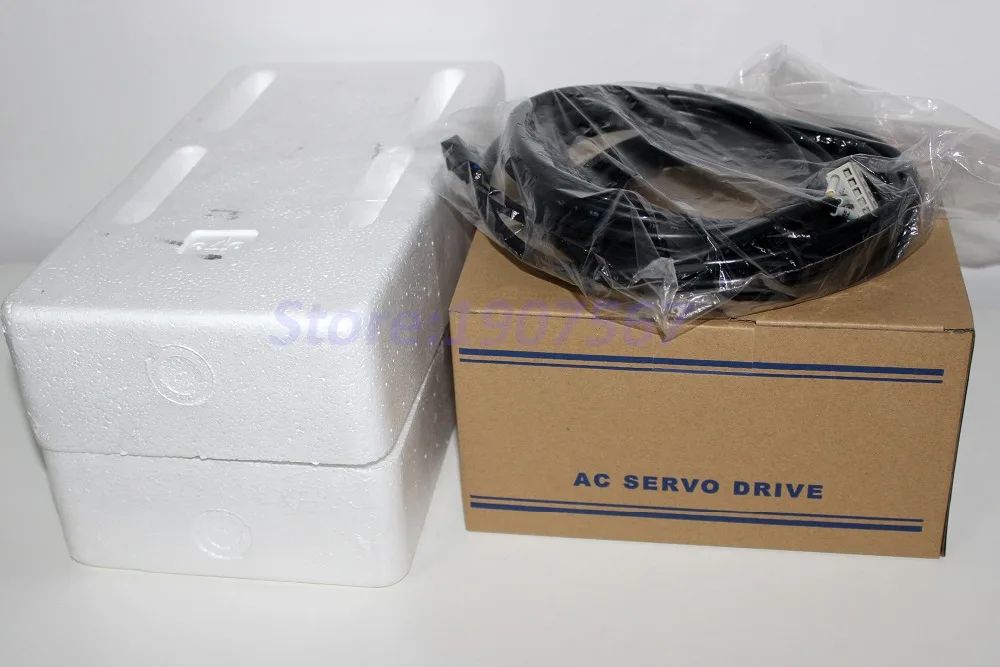

 Packaging List



No. Product Specifications Qty 1 600W 60ST-M00630 Servo Motor with Brake LCMT-06L02ZB-60M01930B 1 2  Lichuan 600W Servo Driver LCDB2-062002-LB622 1 3 Power Cable Standard (3m) 1 4 Encoder Cable Standard (3m) 1 5 Servo Driver Instruction Book  Standard  1          600W 60ST-M01930 Motor Parameters Overviews

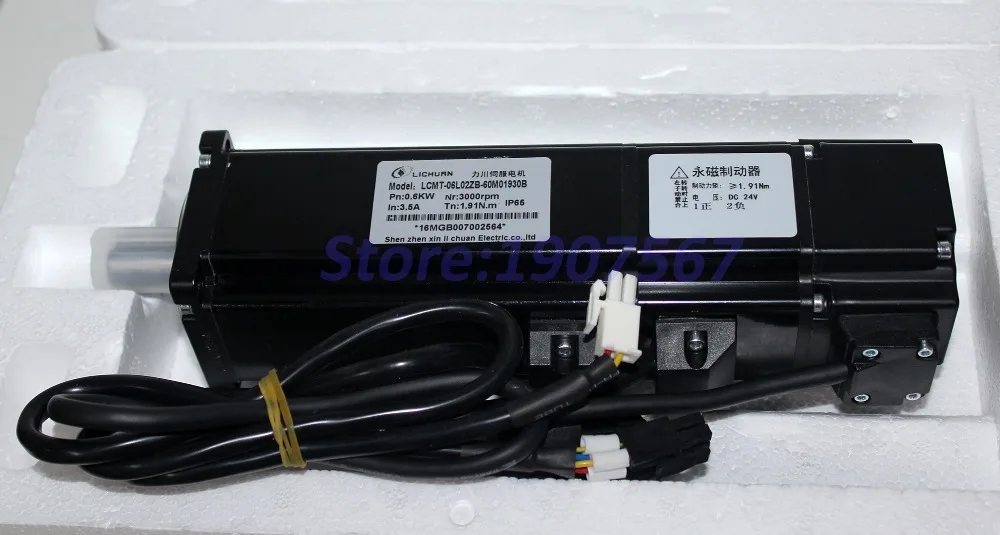

Motor Model LCMT-02L02ZB-60M01930B Brand Lichuan Frame Size 60 mm * 60 mm Motor Length 154 mm Shaft Diameter 7mm Driving Voltage Single / 3 Phase 220V Rated Torque 1.91 N.M Rated Speed 3000  RPM Positioning Accuracy a wire (0.01 mm) Edcoder Tamagawa  2500ppr Weight 1.78 kg Matched Driver Lichuan 600W Servo Driver



 Motor Mechanical Dimensions





 60ST-M AC Servo Motor Specifications









 600W Servo Driver Features







1. Power Range: 0.6kw

2. Input Voltage: AC 200V ~ 230V , one phase / 3 phases

3. Position / Speed control mode
4. With MODBUS communication performance(RS-485 / RS-422 / RS-232),

    ASCII and RTU communication protocol
5. Encoder: 2500ppr
6. Articles made to order: drag ,oil seal
7. Axis: Circular shaft / keyway



 Lichuan Servo Motor Naming Rules

    LCMT - 02 L 02 N B - 60 M006 30 B



LCMT--- Product information       02-------- 200W ( 04---400W /  07---750W /  10---1KW ) L---------- Motor inertia ( L---low / M---middle )                   02-------- Sensing form ( 01---line saving encoder 2500     02---15 type encoder 2500 ) N---------- Without brake ( Z---with brake ) B--------- only keyway no oil seal ( A---only oil seal no keyway  C---oil seal and keyway ) 60-------- Frame size M006---  Torque 30-------- Speed B---------  B series ( A--- A series / C--- C series )



 Lichuan Servo Driver Naming Rules



     LCDB2 - 02 20 02 - L B 6 22



LCDB2-- Product information       02-------- Motor power  ( 02---200W 04---400W /  07---750W /  10---1KW ... ) 20-------- Peak current ( 20---20A / 30---30A / 50---50A / 75---75A )                     02-------- Encoder information ( 01---line saving encoder  / 02---15 type encoder ) L---------- Motor inertia ( L---low / M---middle )  B---------Driver series ( A---A series / B---B series / C---C series ) 6--------- Frame size ( including 6  /  8  /  9  /  110 ... ) 22-------- Voltage ( 22---single phase 220v / 32---3 phase 220v / 34---3 phase 380v )

 Lichuan Servo Motor Driver Wiring Diagram
