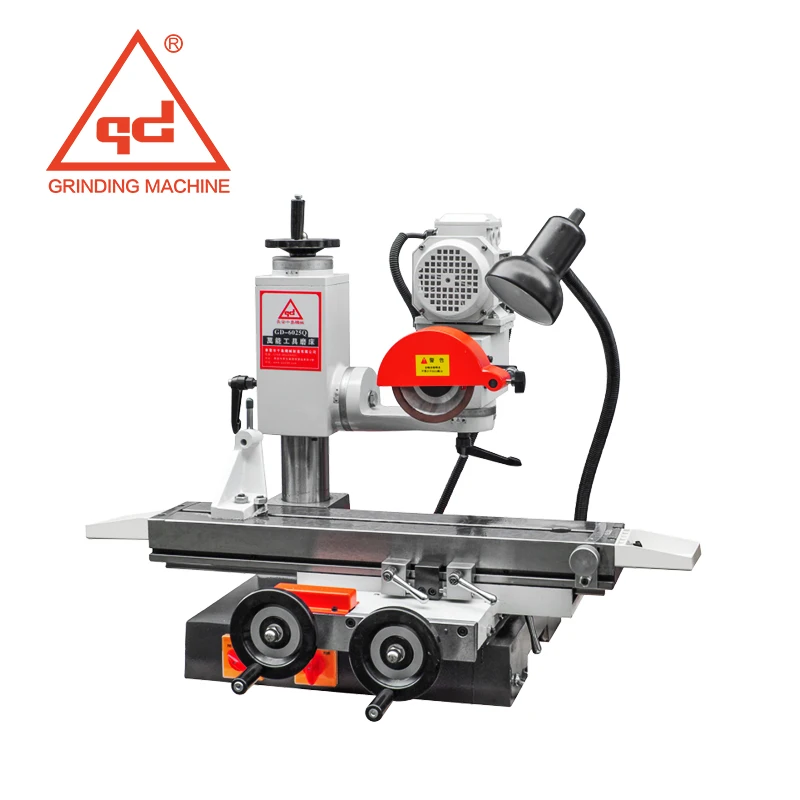

Tool Grinder Universal Cutter GD-6025Q CE approved knife grinder | Инструменты

Tool Grinder Universal Cutter GD-6025Q CE approved knife grinder | Инструменты

GD-6025Q universal grinding machine ,universal tool grinding machine

Product Features:

1.Universal cutter sharpeners of GD-6025Q series are applicable to sharpen various cutters. It has many accessories of various functions, from which users can select and set up the desired ones according to cutters to sharpen.

2.The machine is able to grind various drilling bits, screw tap, end-milling cutters, R type milling cutters, R type turning tools, hobbing cutters, circular paper cutters, cones, and columns, etc.

3.The machines base, made of semi-steel, has higher stability. The lengthwise operating table, made of high precise rolling straight-line guide rails, can move easily and flexibly.

4.The grinding head support is made of a double-rotating bracket, which can rotate in horizontal and vertical planes, and adjust the grinding wheel in 3-D.

5.Since the head can rotate 360 degree in horizontal plane, the grinding wheel can be changed rapidly.

6.The column structure of the machine enables it to lower and raise the grinding wheel.

Specifications:

Longitudinal travel of the operating table

170mm

Horizontal travel of the operating table

300mm

Elevating Distance of Wheelhead

140mm

Rotating Angle of Wheelhead

360 degree

Speed of Grinding Wheel

3600RPM

Power

550W 220V/380V

Height of the head holder

135mm

Taper hole of main spindle of head holder

Morse3# MT 3#

Max.hold capacity of head and back holder

450mm

Area of the operating table

130x680mm

Grinding Wheel Size

125x50x32mm

Gross/Net Weight

185kgs

Package Size

760x740x740mm
