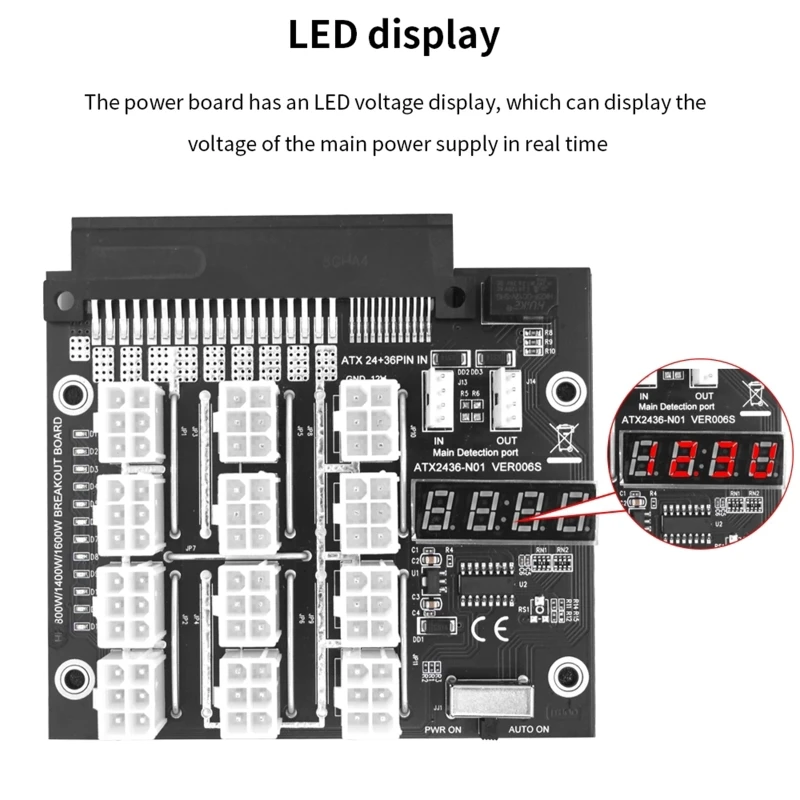

Карта распределения питания с разъемами 12x6 Pin для сервера с LED-дисплеем напряжения для D750E-S1 Multi PSU 2200W ON/OFF Sync.

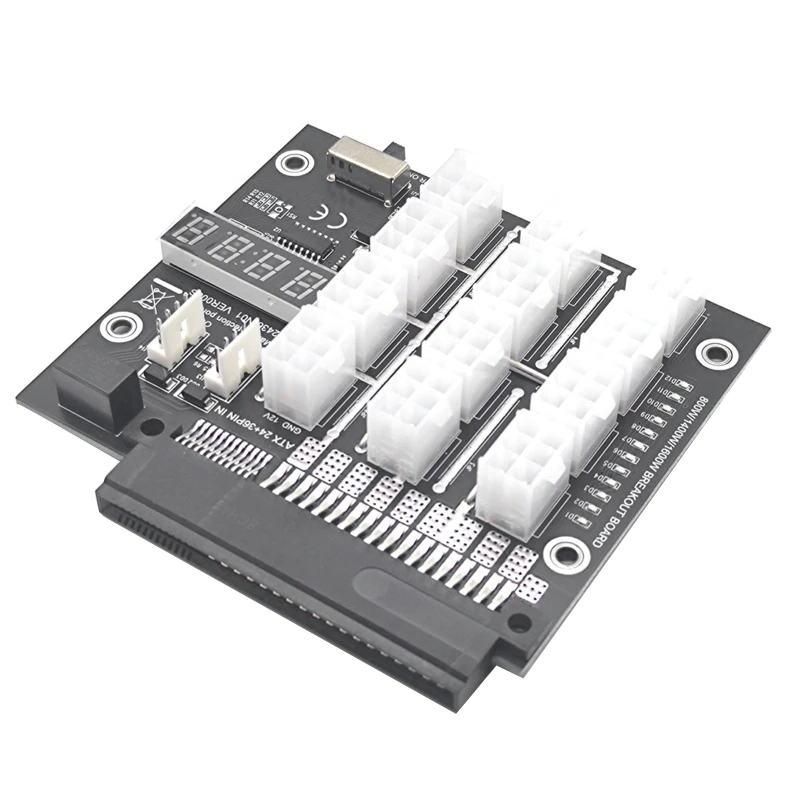

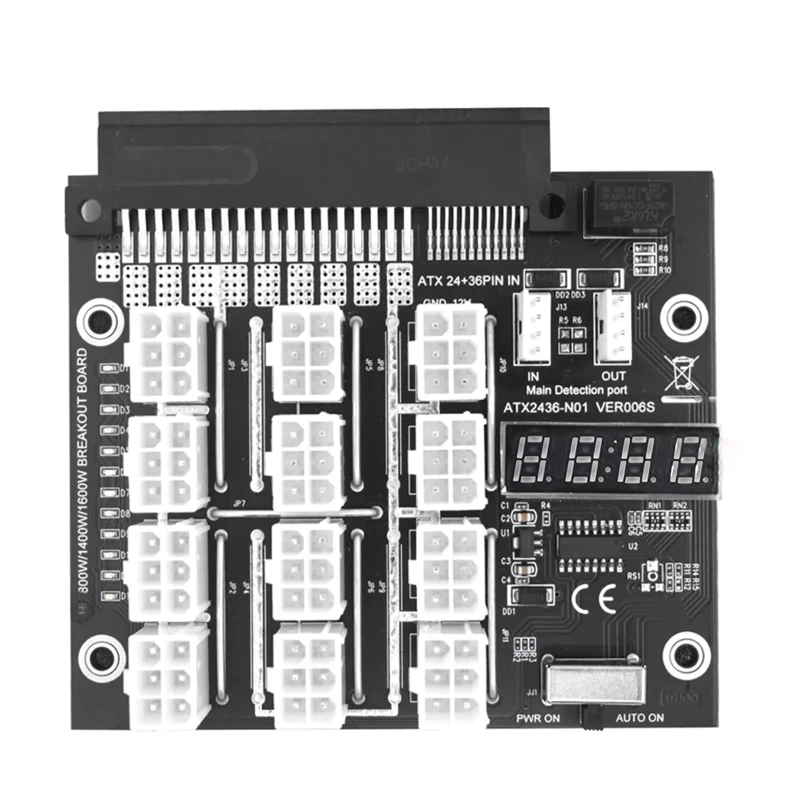

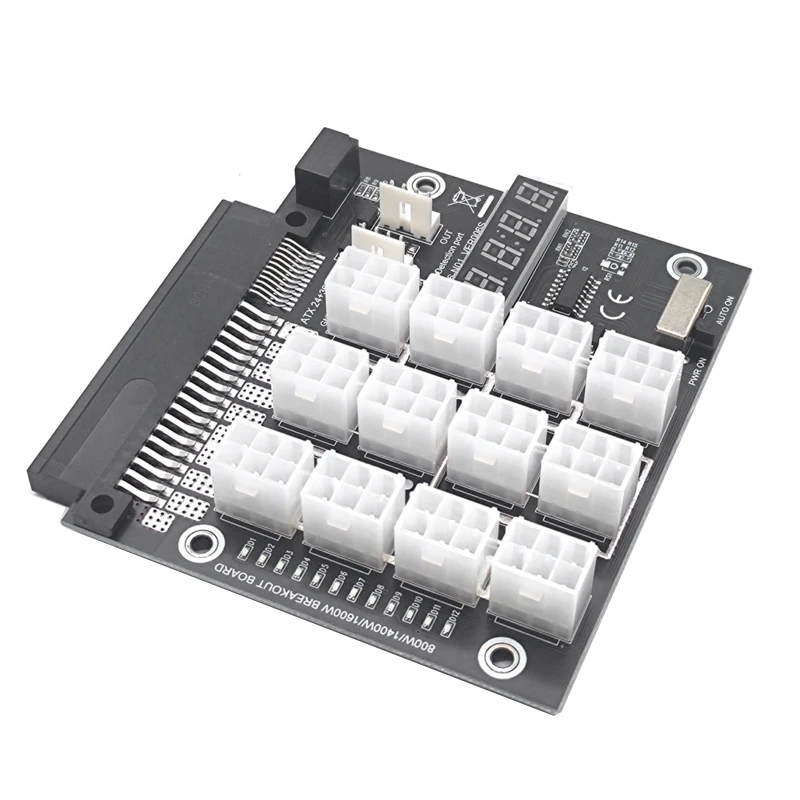

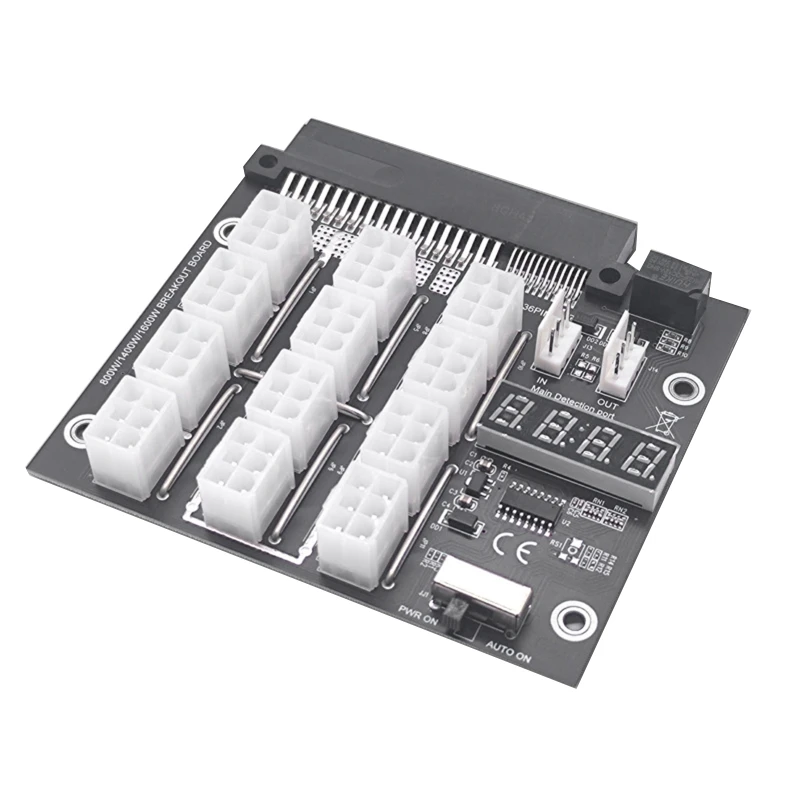

Breakout Board 12 6Pin Power Supply Module Card Server with LED Voltage Diaplsy for D750E-S1 Multi PSU 2200W ON/OFF Sync

Features:
brand new and high quality
Server power strip 36+24Pin to 12 Ports 6 Pin adapter converter for computer server.

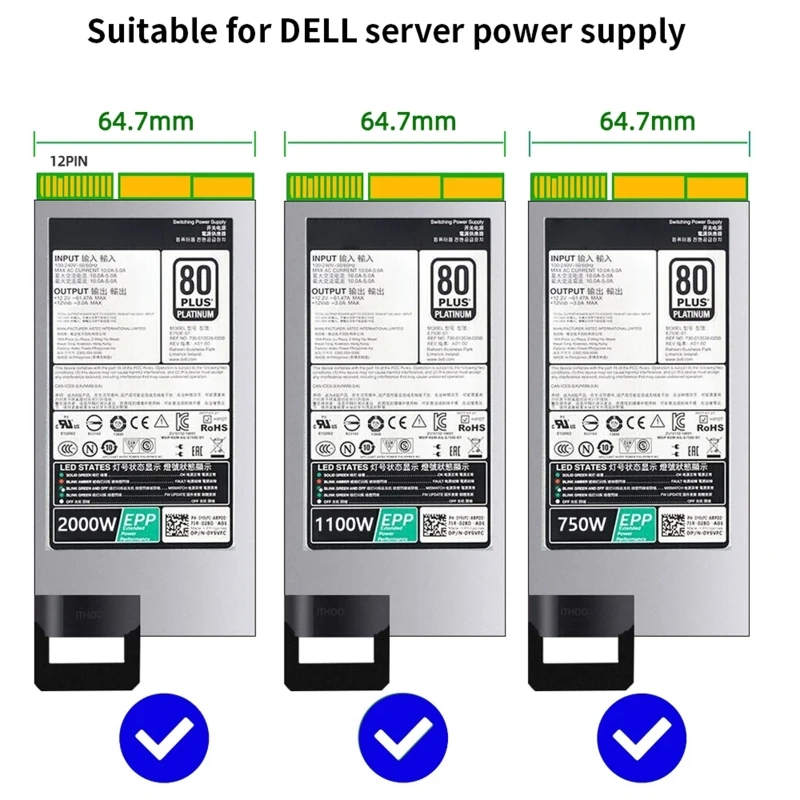

Breakout board only suitable for the following model of power supplyD750E-S1, 095HR5, 700-0139796-0200, DPS-750AB-2 A, D2000E-S0, 700-013796-0000, 05NF18, DPS-2000EB A, 0W1R7V, 039K3H, DS1100PED-3-A, 0J5WMG, D2400E-S0, D1600E-S0, 0MVP7C, DPS-2400BB A, DPS-1500EB A, Z2000E-S1, 0CXC2T etc (forDell )
The function of this adapter board is to take out the 12x 6pin of the host computer to supply power to the hard disk.
Can be used as a computer power boot board.
Lead out the power supply to 12 6PINs, and switch the machine on and off synchronously with the main power supply through the detection line

Specifications:
Item: Server Power Strip 36+24Pin to 12 Ports 6 Pin Adapter
Model: ATX2436-N01
Support System: All

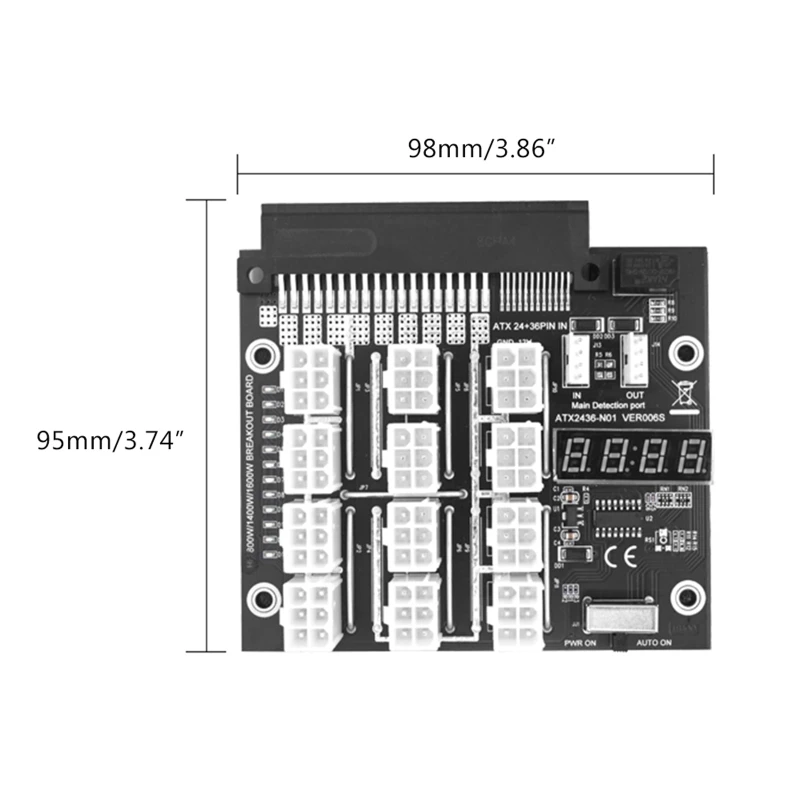

size: approx 98.5x95mm/3.88x3.74in
Support slot: 24Pin+36Pin support
Support unit: for 750W 1400W 1600W 2000W 2200W
Breakout board only suitable for : D750E-S1, 095HR5, 700-0139796-0200, DPS-750AB-2 A, D2000E-S0, 700-013796-0000, 05NF18, DPS-2000EB A, 0W1R7V, 039K3H, DS1100PED-3-A, 0J5WMG, D2400E-S0, D1600E-S0, 0MVP7C, DPS-2400BB A, DPS-1500EB A, Z2000E-S1, 0CXC2T etc

Package Includes:
1 PC x Power Adapter Board

Note:
There might be little error of size for manual measurement.
The color deviation might differ due to different monitor settings, please kindly understand.

---
