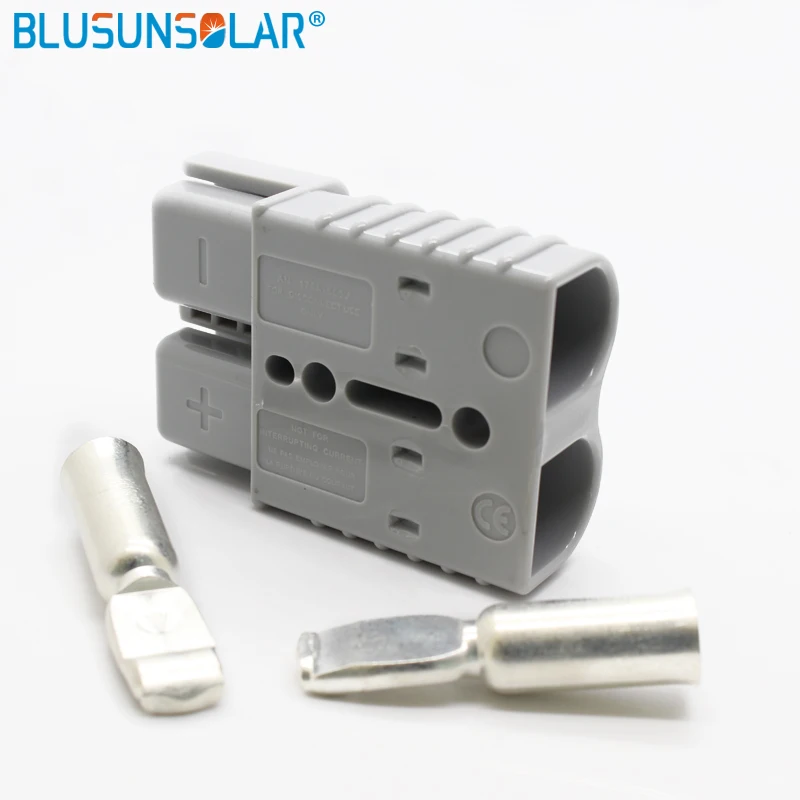

1 pair Power Plug Power Connector SB50 Connector Kit, 50 Amps, Gray Housing, w/10 12 AWG

Features & Benefits

1. Genderless Housings

Provide simplified assembly and minimize the number of components.

2. Low Resistance Connection

Sliver or tin plated copper contacts inside housing that strongly force the contacts together.

3.Hot Plugging AC or DC

Contacts feature a sacrifical tip that allows high current circuit interrupt.

4.Keyed & Color Colded Housings

Prevents accidental cross mating of circuits

5.Self Secureing Design

Stainless steel springs cerate a robust force between the contacts that holds the connectors in the mated position.

6.Long life.

CHARACTERISTICS:

Contact material:

Copper/ Plating Sliver

Rated Voltage

600V DC

Rated Current

50A

Avertage Contact Resistance

0.05 mΩ

Voltage proof

2200VDC

Insulation Resistance

500MΩ

Pollution Degree

2

Protection class

Class II

Flame calss

UL94-V0

Plug Force

less than 50N

Withdrawal force

more than 50N

Ambient temperature range

-40  ~ +  90.

Compatible cable cross sections  Solar cable

2.5mm⊃2; ,4.0 mm⊃2; and 6.0 mm⊃2; (14 awg,12awg,10awg)

Pin dimention/

/

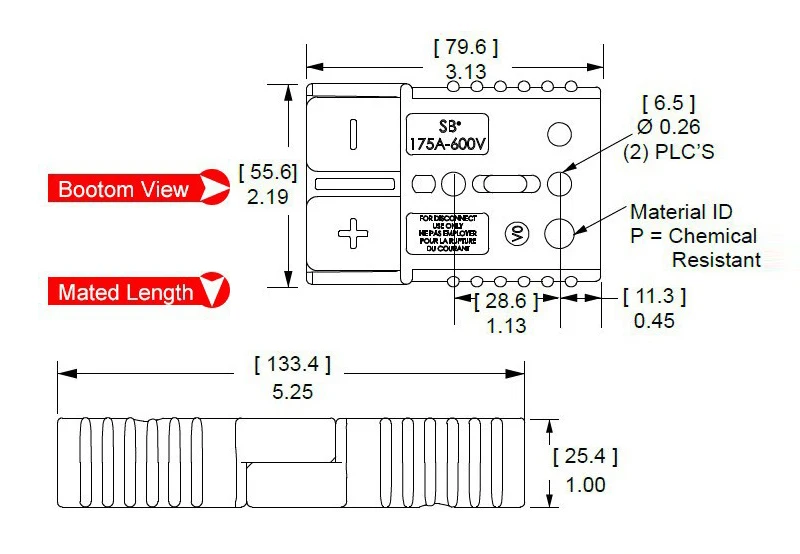

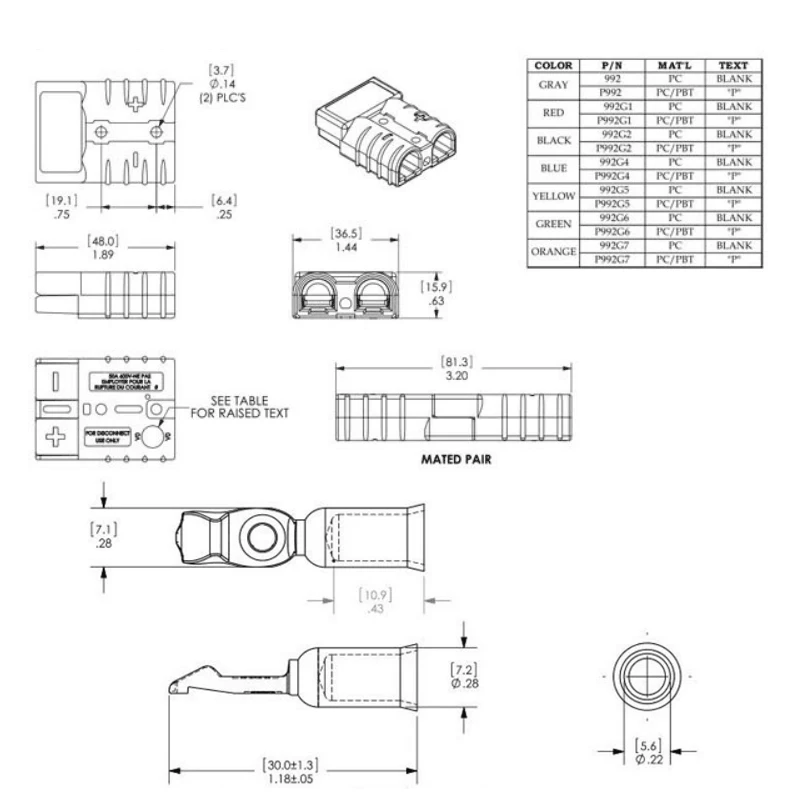

Dimension and Drawings
