Product parameters:

This product can be used for lead-acid batteries: 6V 12V 24V 36V 48V 60V 72V 84V

Can also be used for lithium batteries: 2S 3S 4S 5S 6S 7S 10S 13S 16S 17S 20S 23S

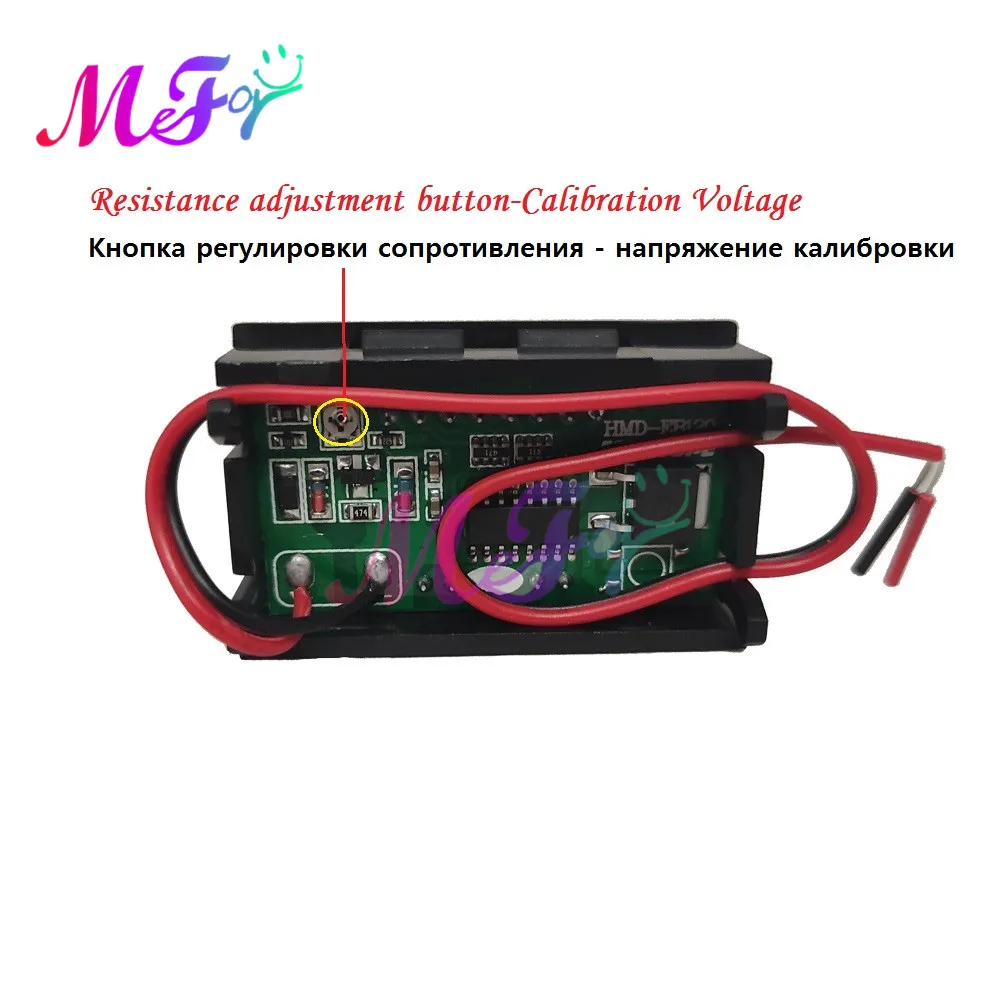

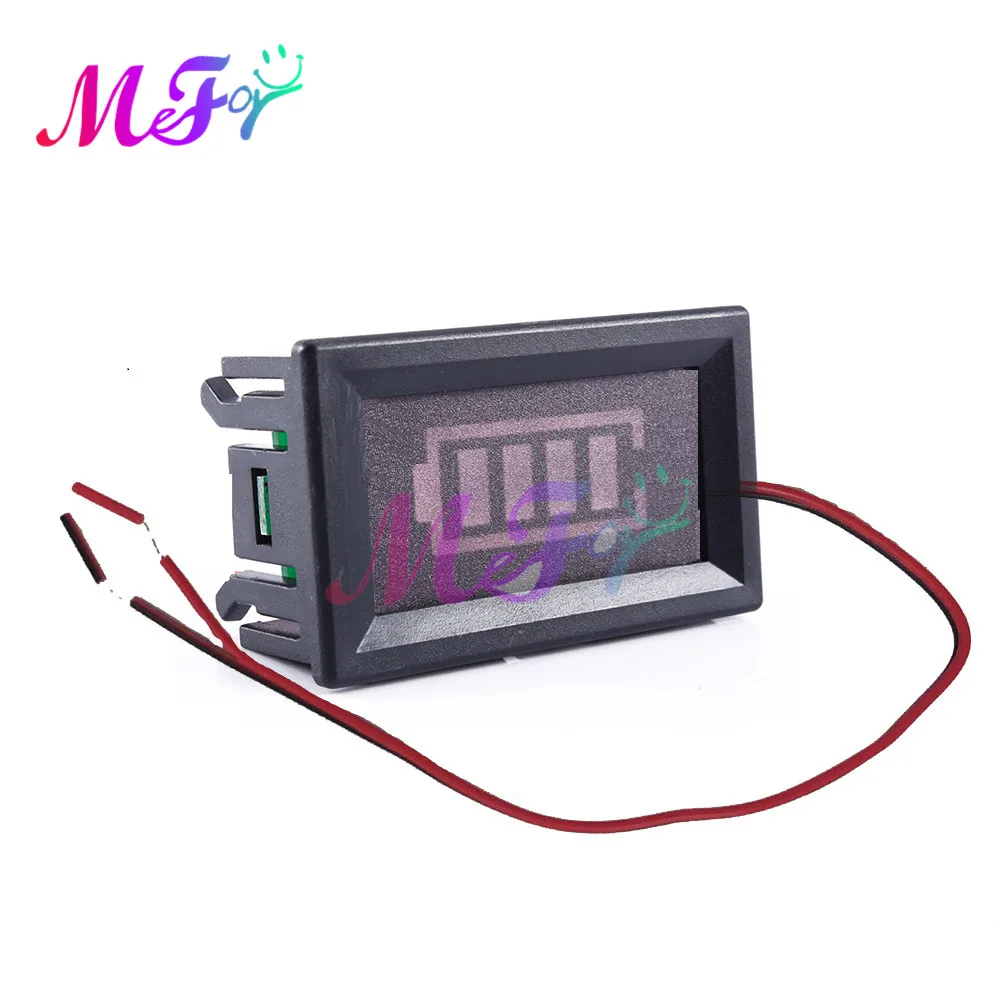

There is an adjustment button on the back, which can be converted and has a very wide range of use

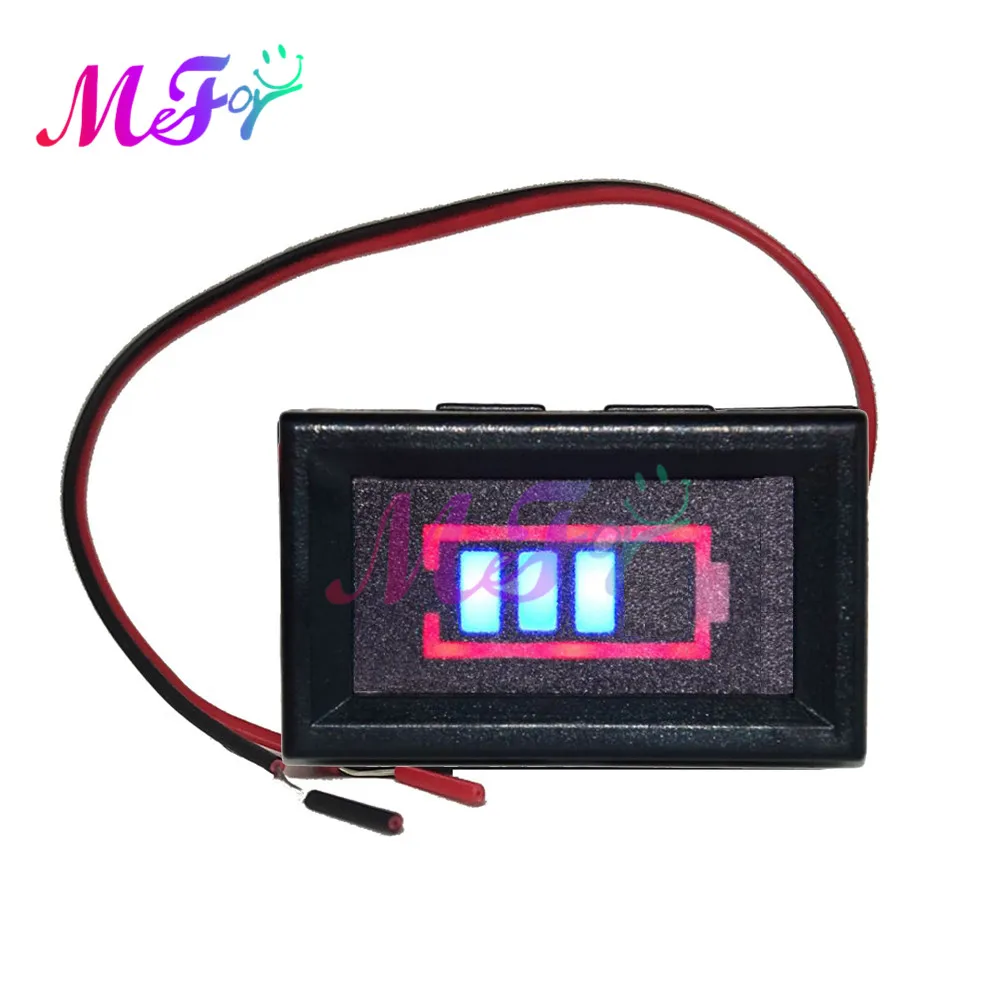

This power meter uses a 4-segment power indicator to visually display the current battery power.

Anti-reverse protection.

4-segment battery display 25% 50% 75% 100%

Refresh speed: about 300mS once

Display color: blue

Voltage tolerance: ±2%

Working current: <20mA, low heat generation, high efficiency.

Working temperature: -10℃~65℃

Lead length: 15cm

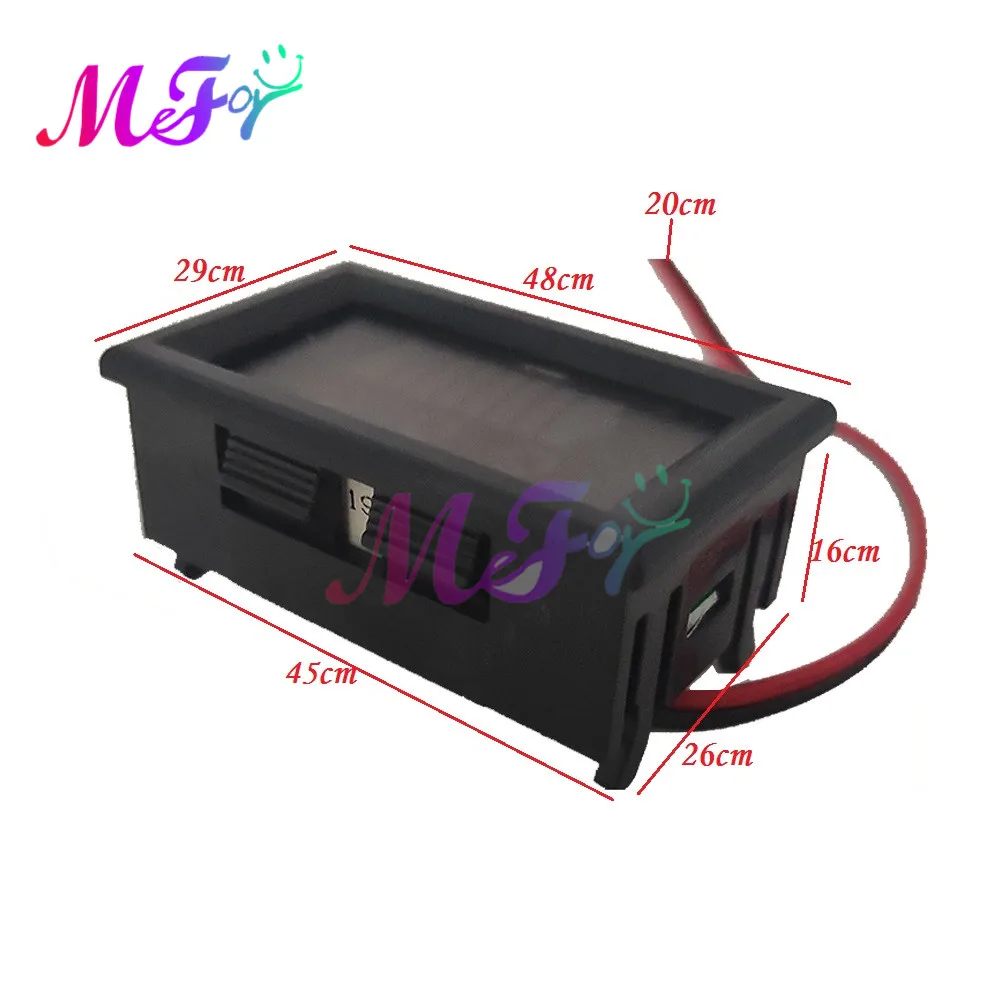

Dimensions: 48 x 29 x 22 mm, length X width X thickness;

Mounting hole: 46 x 27 mm

Weight: 17g

Correspondence between battery voltage and power:

If the battery voltage is greater than the number of batteries × 3.3V, the power level of 1 bar will be bright.

If the battery voltage is greater than the number of batteries × 3.5V, the 2 bars of power will become brighter.

The battery voltage is greater than the number of batteries × 3.7V, and the 3 bars of power become bright.

The battery voltage is greater than the number of batteries × 3.9V, and the 4 bars are all on.

The battery voltage is less than the number of batteries × 3.3V, and the 4-segment battery displays are all off, indicating that the battery is lower than 3.3V, and it is time to charge the battery.

Instructions:

Connect the positive/negative terminal of the display board to the positive/negative terminal of the battery under test, and the digital tube can display the real-time battery power.

Application scope:

The electricity meter is suitable for Lithium Battery.

Both electric car batteries and electric equipment can be used.

Cars, trucks.

Solar power generation system, etc.
