This item is shipped from EU (German) warehouse,via DE-DHL / GLS etc., fast and free shipping to all EU countries,Free VAT.

DE-DHL tracking number:

//www.dhl.de/en/privatkunden/dhl-sendungsverfolgung.html

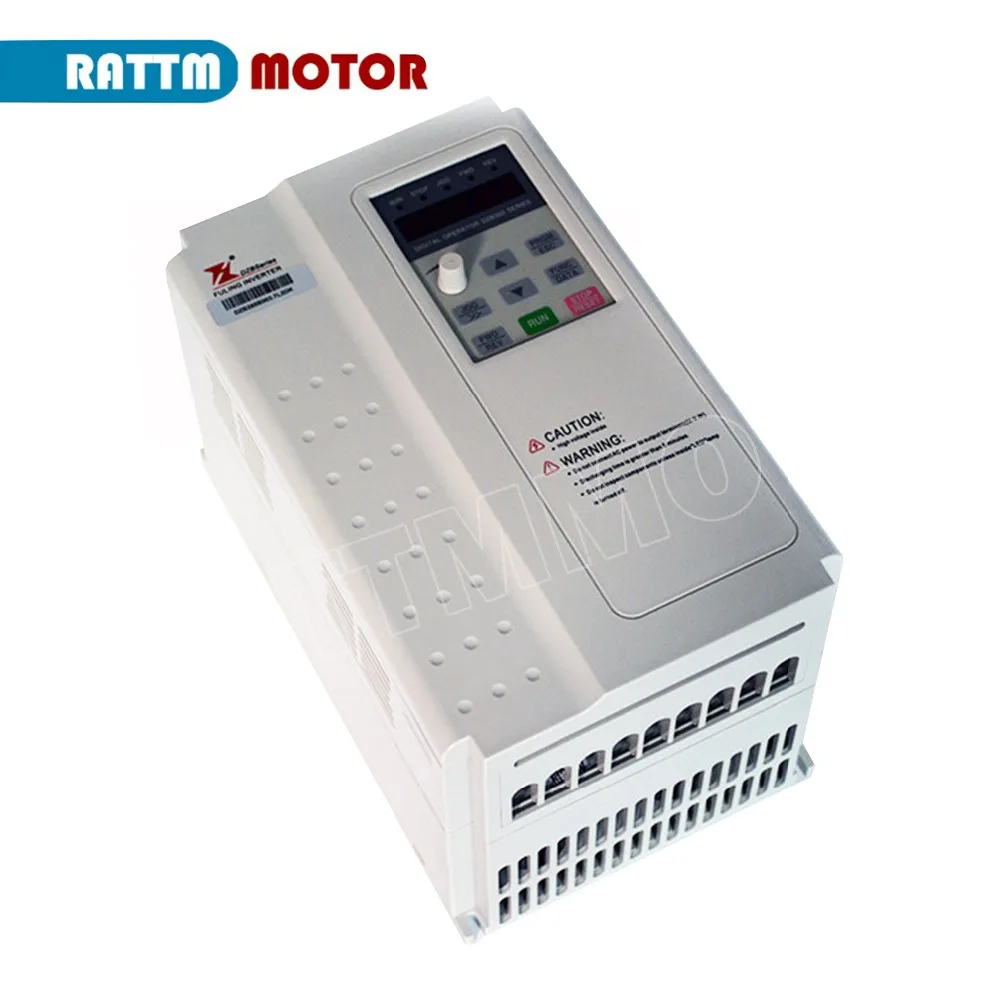

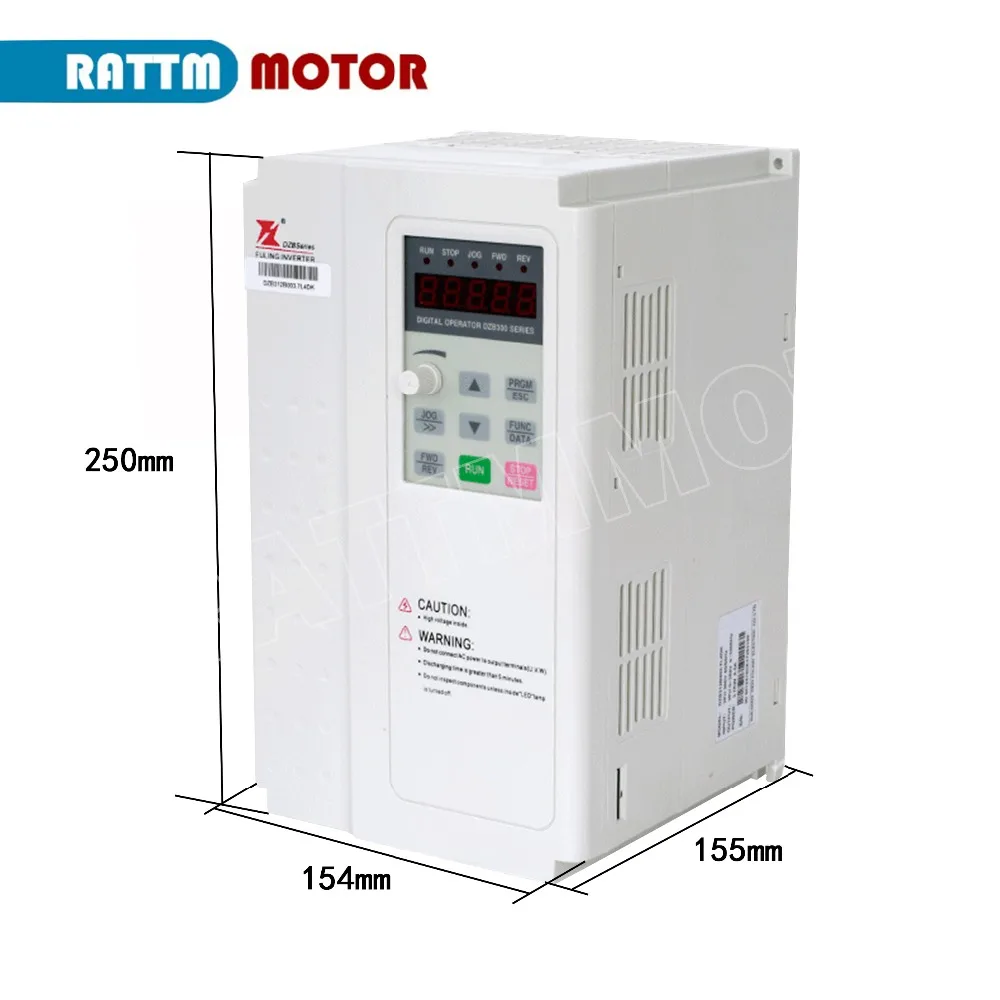

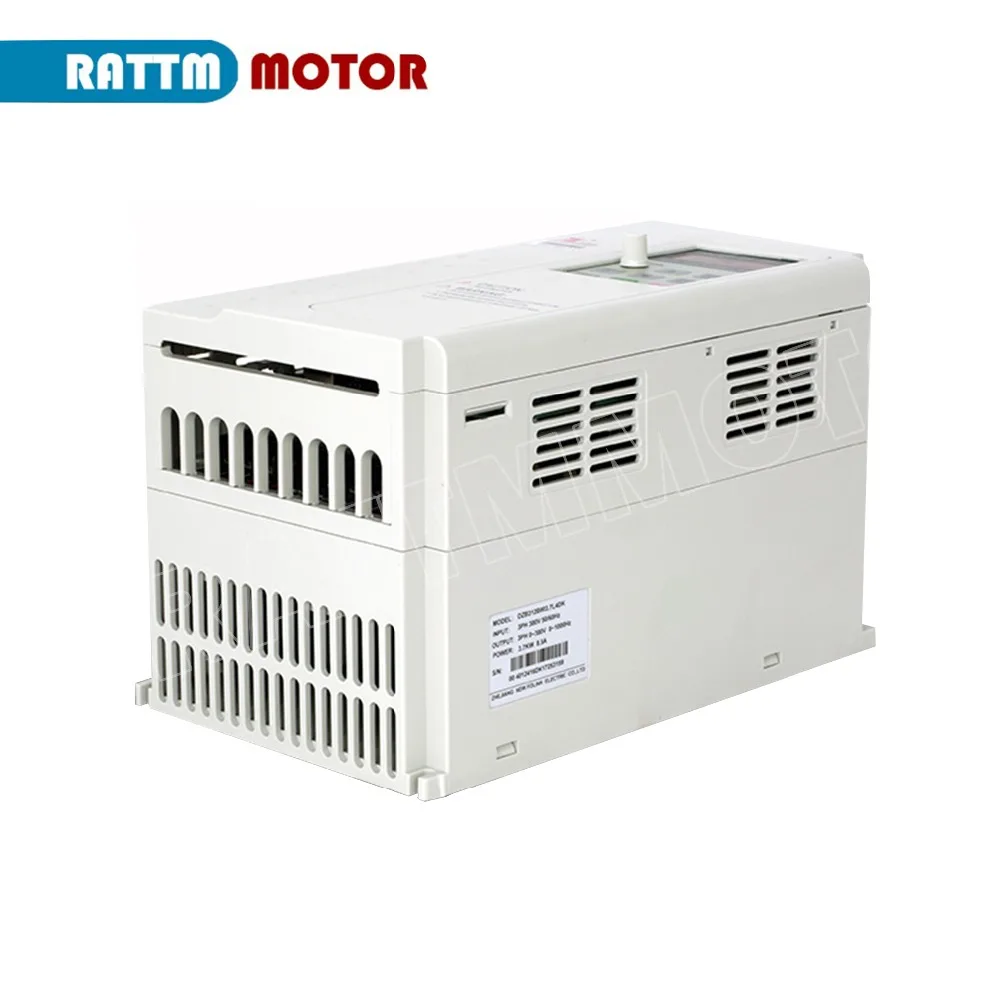

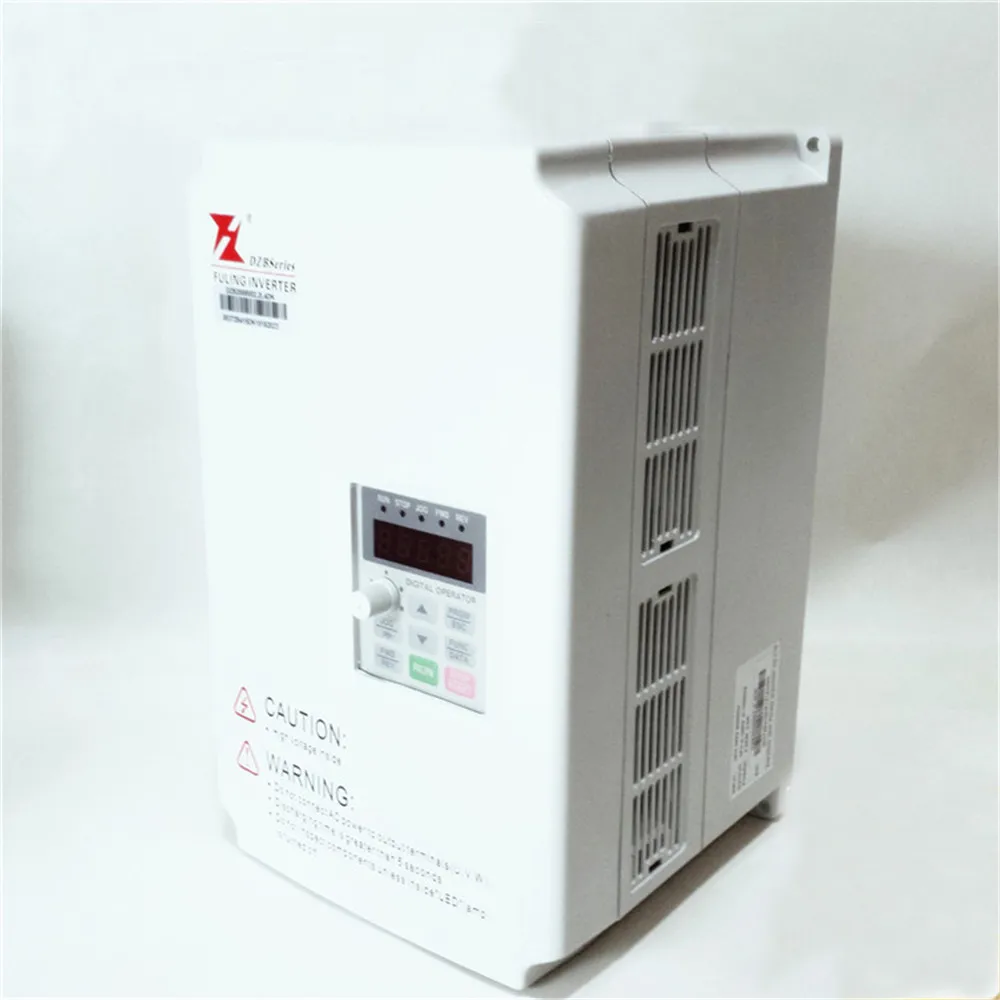

1 x Inverter 5.5Kw 220V / 380V

1 x User manual sent via e-mail.

Power: 5.5kw

Input Voltage: 220v (±20%)

Input Phase: 1 or 3 phase

Input Frequency: 50-60Hz (±5Hz)

Output Voltage: 220v

Output Phase: 3 phase

Output Current: 23A

Output Frequency: 0-1000Hz

Control Method: Open-loop flux vector control

DZB312 series special inverter for carving machine is designed for carving machining industry, it adopts  sine wave pulse width vector control technology with specialized macro code function built-in, it's easy for installation and debugging,  reasonable wiring technology makes it stable and reliable.

Product features

◆ It can realize 8 segment speed running for convenient macro card control

◆ Adopt 32-bit microprocessor and sine PWM control

◆ Unique core algorithm and low interference

◆ Adopt independent air duct for many dust occasions

◆ Automatic torque promotion and automatic slip compensation function

◆ Output frequency range 0~600.0Hz，customized up to 2000Hz

◆ Built-in standard 485 communication function

◆ Humanized design: Carving machine specialized macro code factory set parameters, easy for debugging

Applications

◆ various engraving machine, high speed motorized spindle

Technical parameters

◆ input voltage：1AC220V±15%  3AC220V±15%  3AC380V±15%

◆ Output power range：220V：0.75kW~15kW，380V：1.5kW~15kW

◆ output frequency：0~600Hz，custom-made above 600Hz

◆ Input frequency 47~63Hz，power factor≥95%

◆ control mode：Non-PG vector control, V/F control

◆ Source of operation instruction：given by panel, terminal and   RS485 communication

◆ Source of given frequency：given by panel figure, analog quantity, RS485  serial communications, multi-speed simple PLC and PID etc.

◆ Overload capacity：130% rated current 60s、150% rated current 3s

◆ Carrier frequency：1.0kHz~15.0kHz，and can be automatically adjusted according to temperature and load characteristic.

◆ Frequency resolution：the given digital value is 0.01Hz，and the analog quantity is given as the highest frequency plus 0.1%

◆ Torque elevation：Manual torque can elevate 0~30%

◆ Inching operation：frequency range：0.0Hz~ Maximum output frequency Inching acceleration and deceleration time：0～3600.0s

◆ Simple PLC and multistage speed operation：it can realize up to 8 segments running

◆ Automatic voltage regulation： When grid voltage fluctuation occurred, it can automatically maintain constant output voltage

Application case

At present, numerical control carving machine gradually become the essential professional tool for production in each industry. With the CNC numerical control technology combined with high performance inverter controller and servo drive device, numerical control carving machine now has become the mainstream in today's carving industry.
