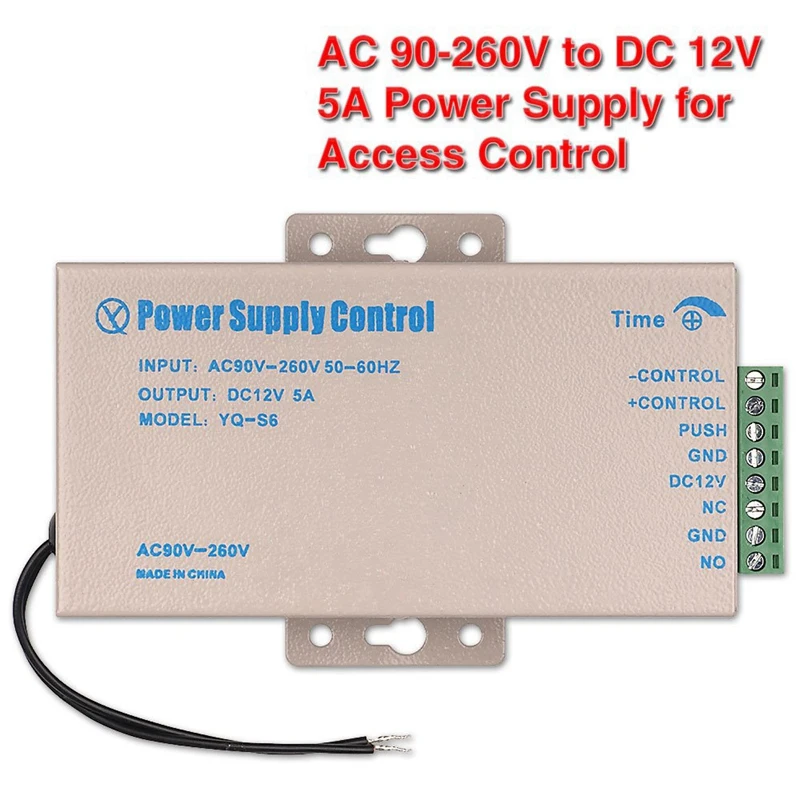

DC 12V 5A Access Control Power Supply AC 90-260V For Home Office Electric Door Lock Security System | Безопасность и защита

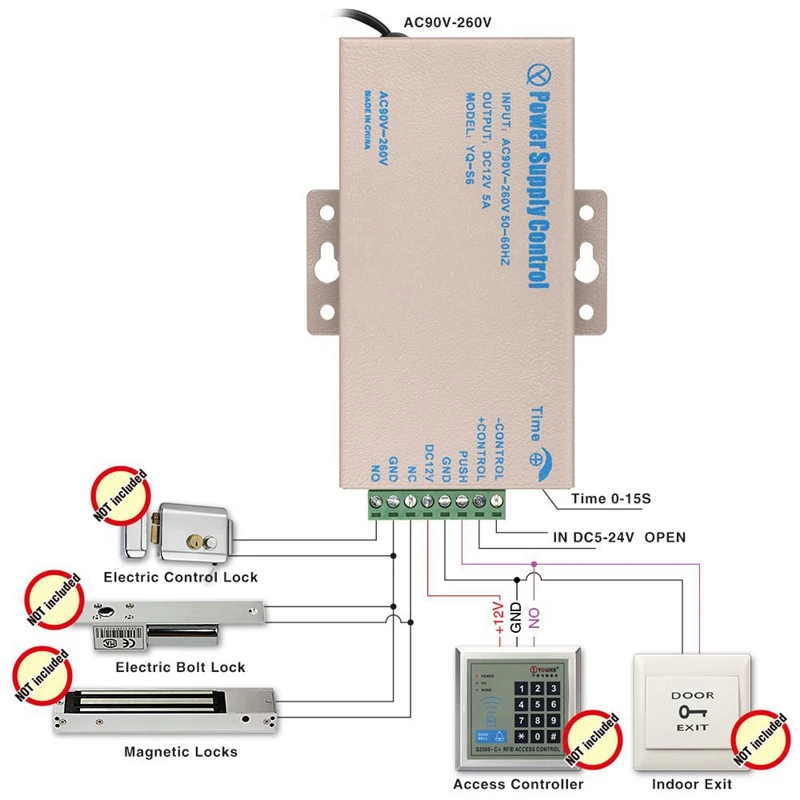

Specifications: Compatible with E/M lock, access controller, exit push button and RFID reader
Can reduce the load of access controller, save wiring to reduce the trouble
Set NC / NO outputs, can control various types of electric locks
Based relay control circuit, lock time can be adjusted with 0 -15 seconds
Automatic protection function for dangerous situation: overload / over voltage / short circuit
This is a 90V - 260V Access Control Power supply, it is made up of high quality electronic components and advanced international technology, it has anti-interference ability, provide stable and reliable output in a various applications such as lock control / controller control / exit button / RFID ID IC keypad reader etc.
Output Voltage: DC 12V, 5A
Protection mechanism :power may be temporarily disconnected or the fuse auto insured
Compact design and light weight
Technical Information:
Input Voltage: AC 90 ~ 260V
Input Frequency: 50 ~ 60Hz
Output Voltage: DC 12V, 5A
Output Voltage Trim Range: ± 10% ~ ± 15%
Load: 1% Typical
Output Stability: 0.5% Typical
Ripple and Noise: 1% peak to peak (100 mVp - p typical)
Insulation Voltage:
Junior / Sub-polar inter: 1500V AC
Primary / Shell Between 1500V AC
Sub-polar / Shell Between 500V AC
Hold Time: Full Load Typically 20ms
Operating Temperature: -20°C ~ 65°C
Adjustable Locking Delay: 0 ~ 15 sec

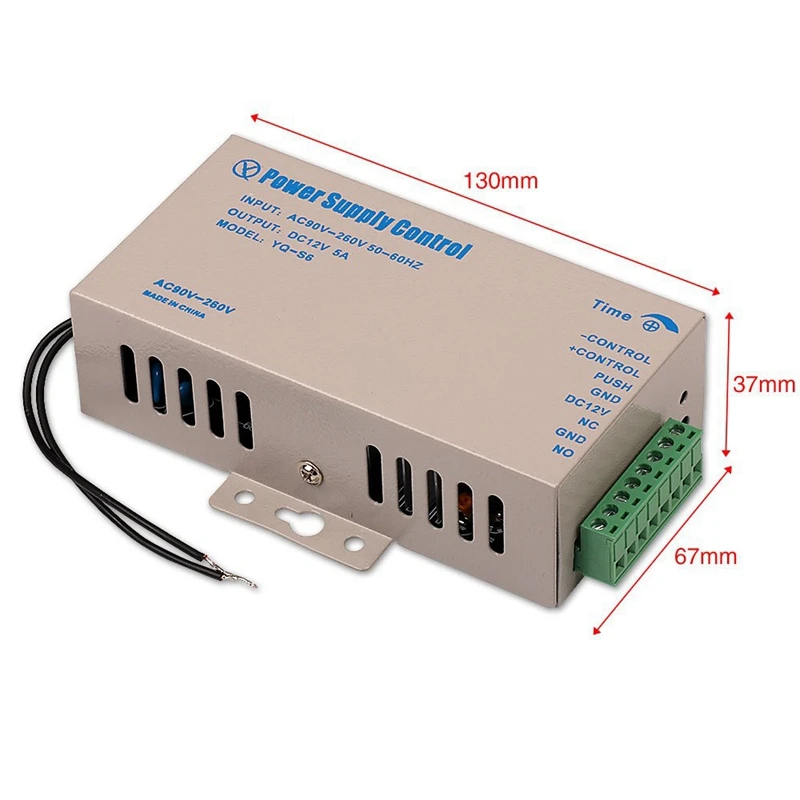

Dimensions: approx. 130 (W) x 67 (H) x 37 (D) mm
Color: silver
material: metal

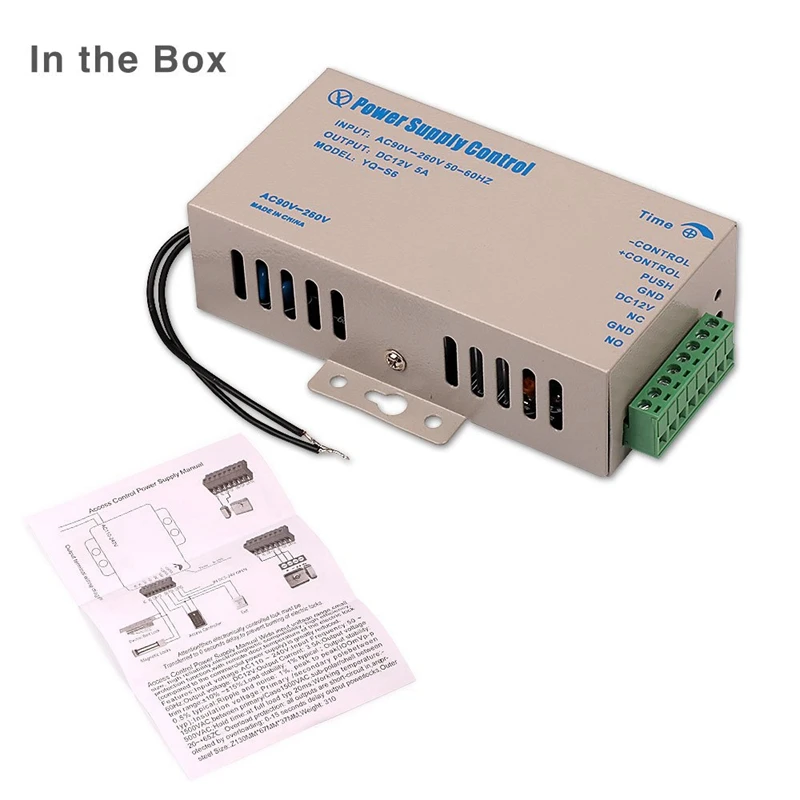

Package Contents:
1 * Power Supply Converter
1 * User Manual
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
