If you chose With any 1 pcs T12 tip,you can left message in your order the Tip you

want,otherwise we will random Tip!

you can just place the order,we can also send the tips like your request!

Question:can I change with other tips?

Yes,you can ,you can just left message in your order the tip you want!

This is T12 soldering station,not sh72 soldering station,can not use sh72 tip,only can use T12 tip,if you order that,please check about that!

Normaly Most regions of Russia delievery date is 2 to 3 week，South Korea is 7 to 10 days，Most European countries are also 2 to 4 weeks delivery!

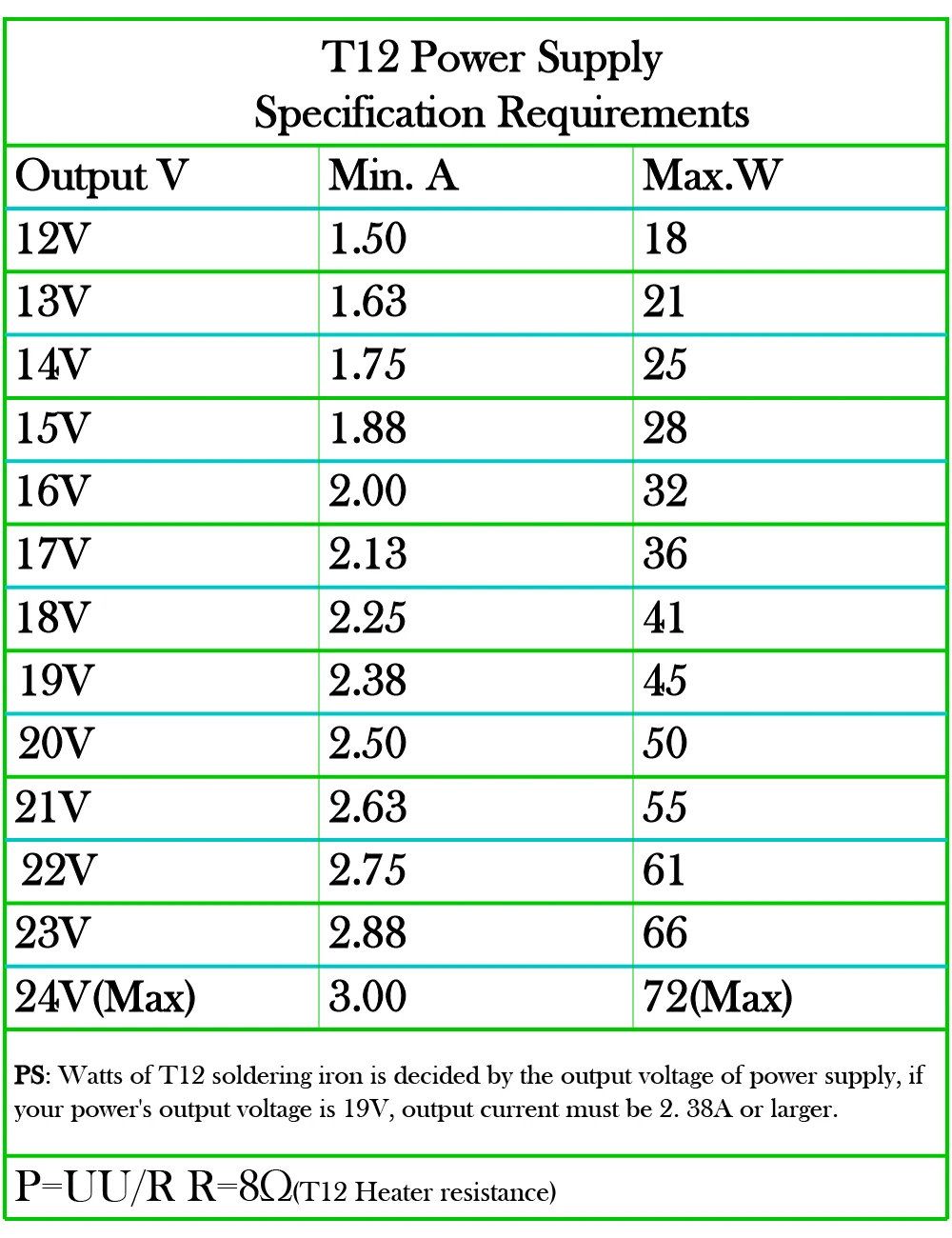

This product not include power supply!if you chose 24v eu power supply,the package only the power supply not t12 station!

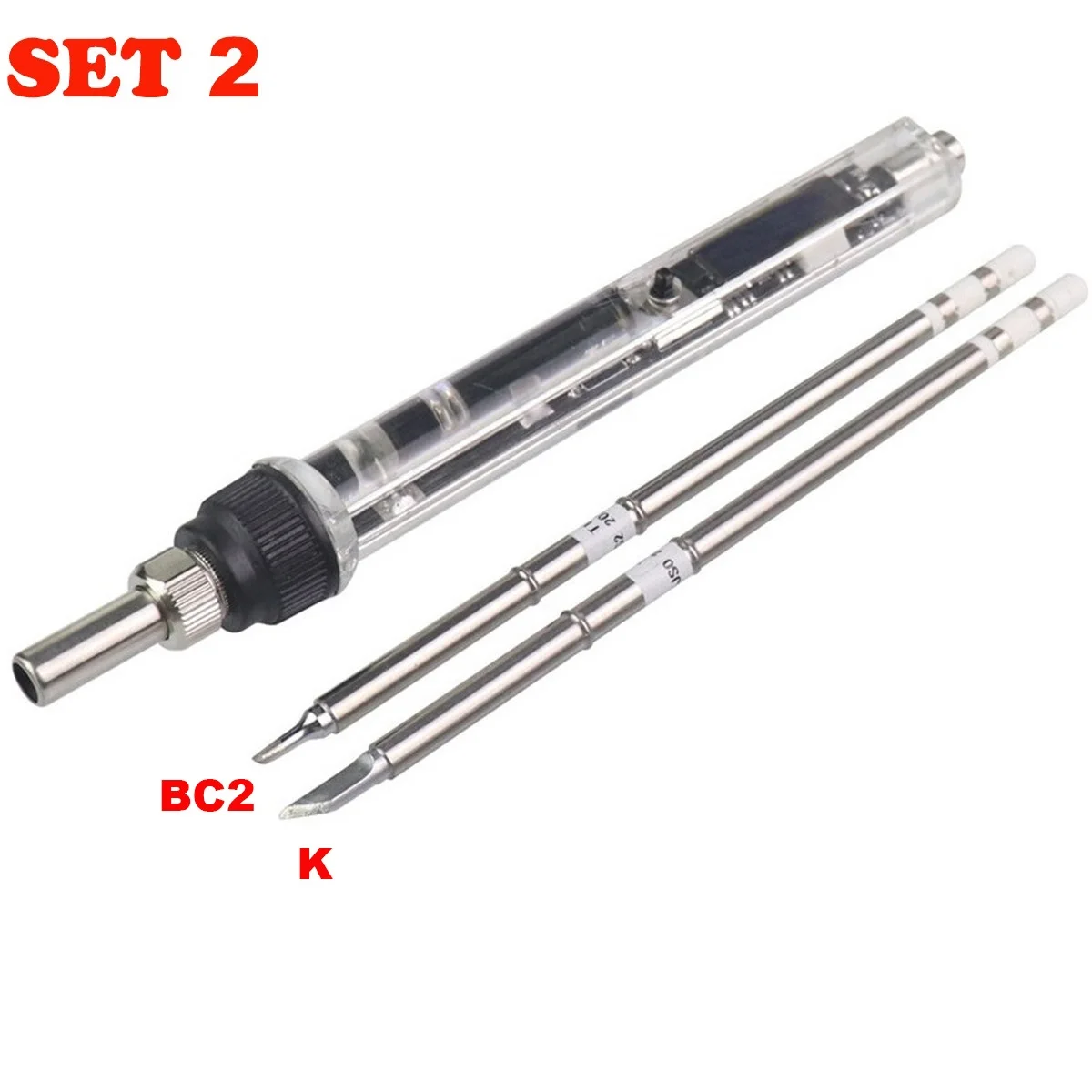

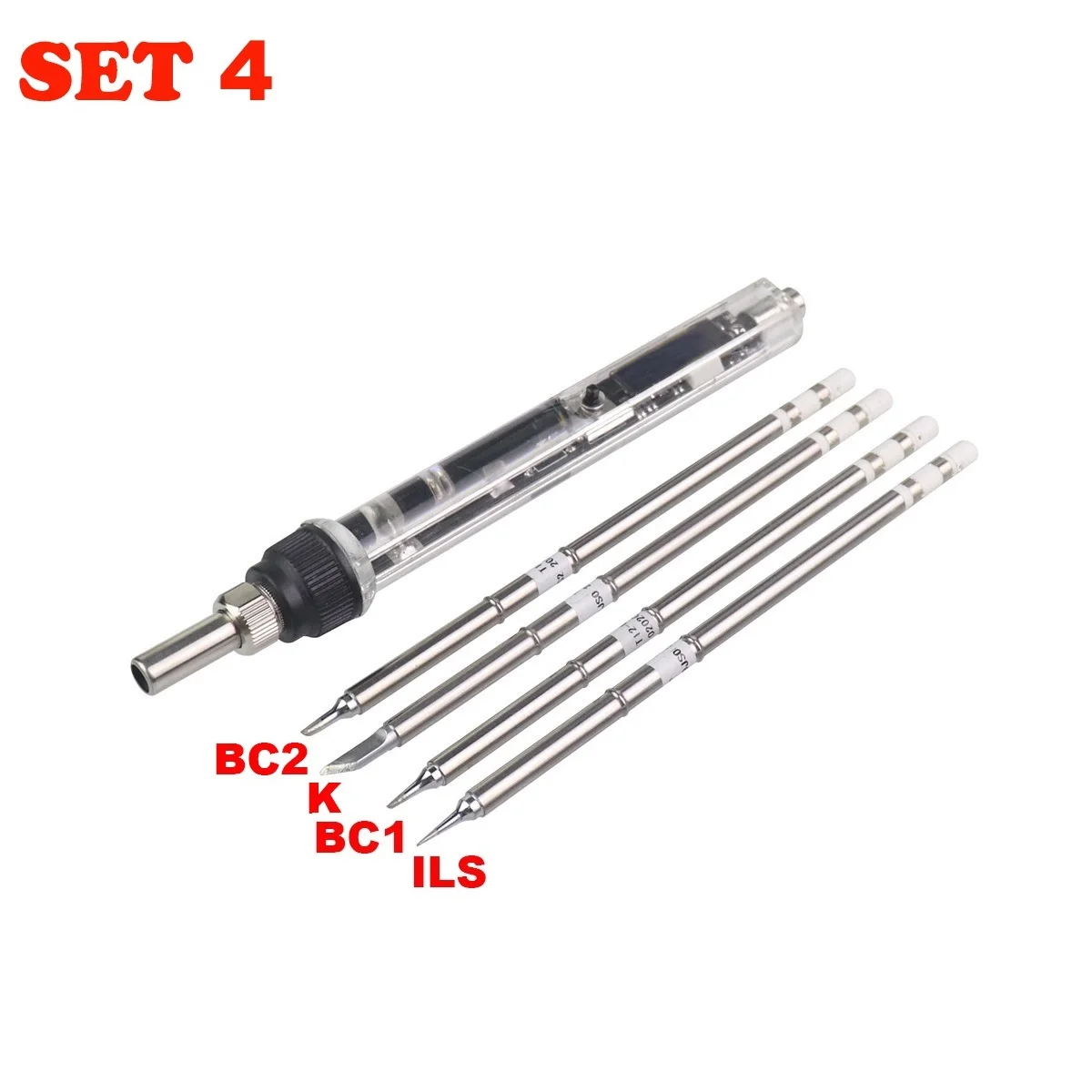

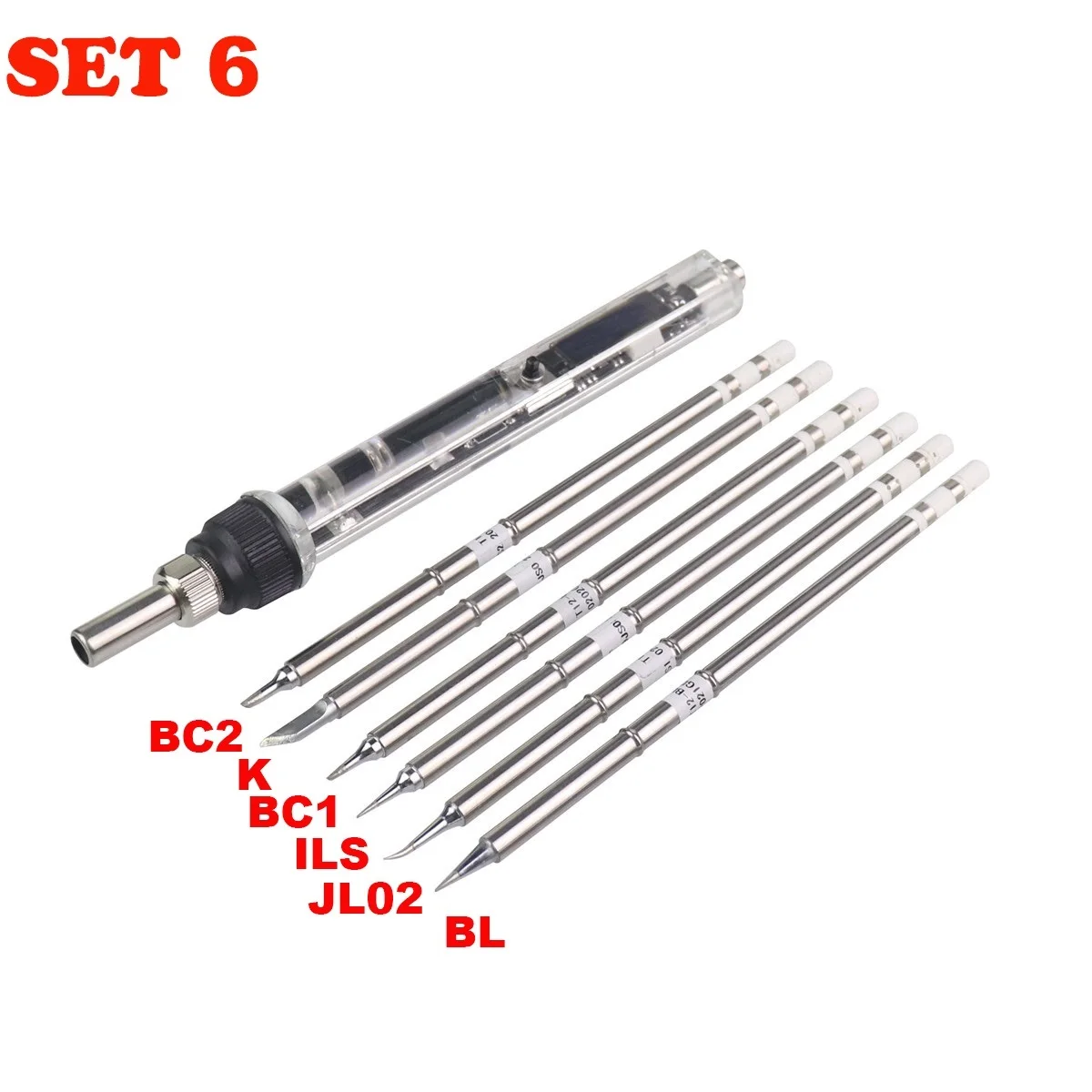

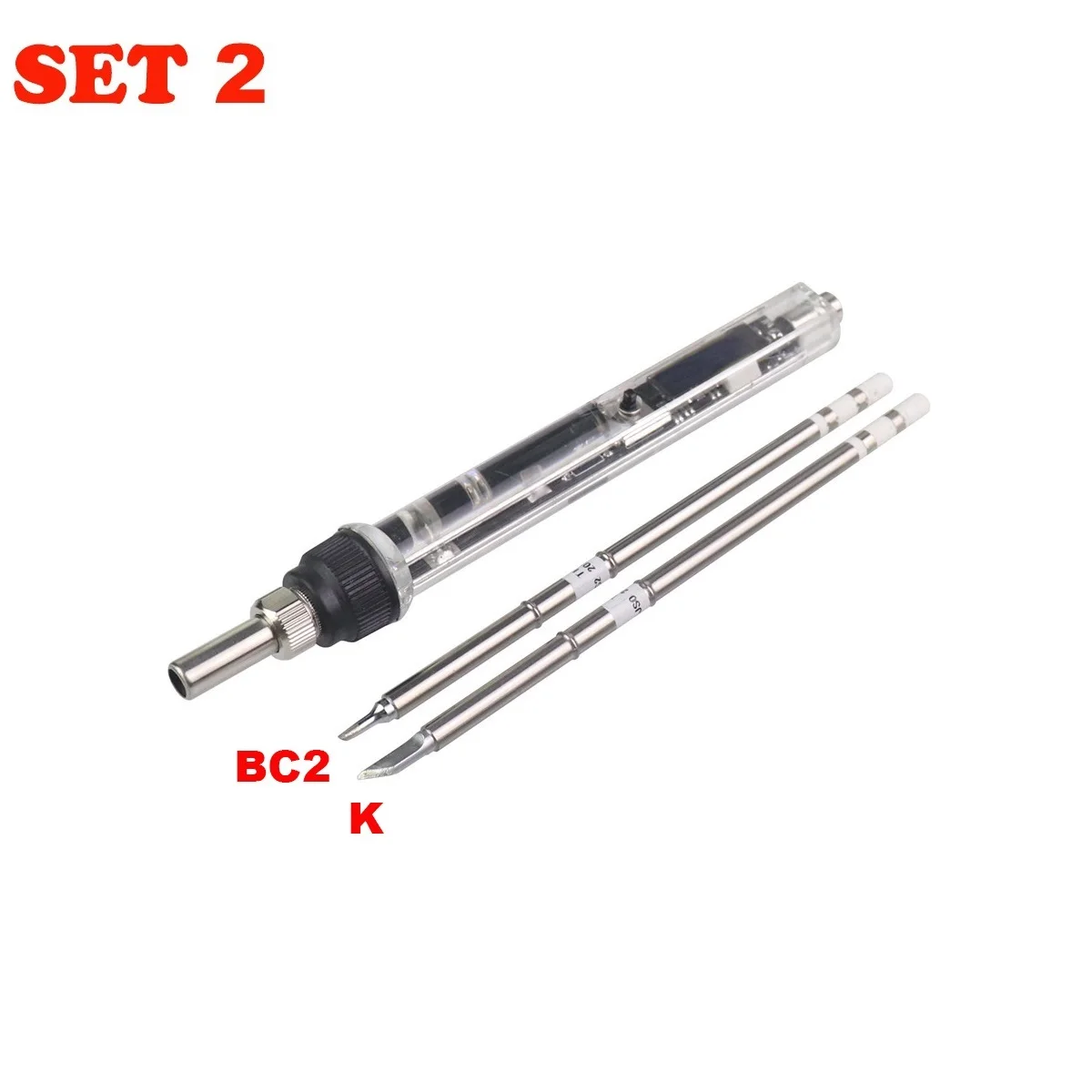

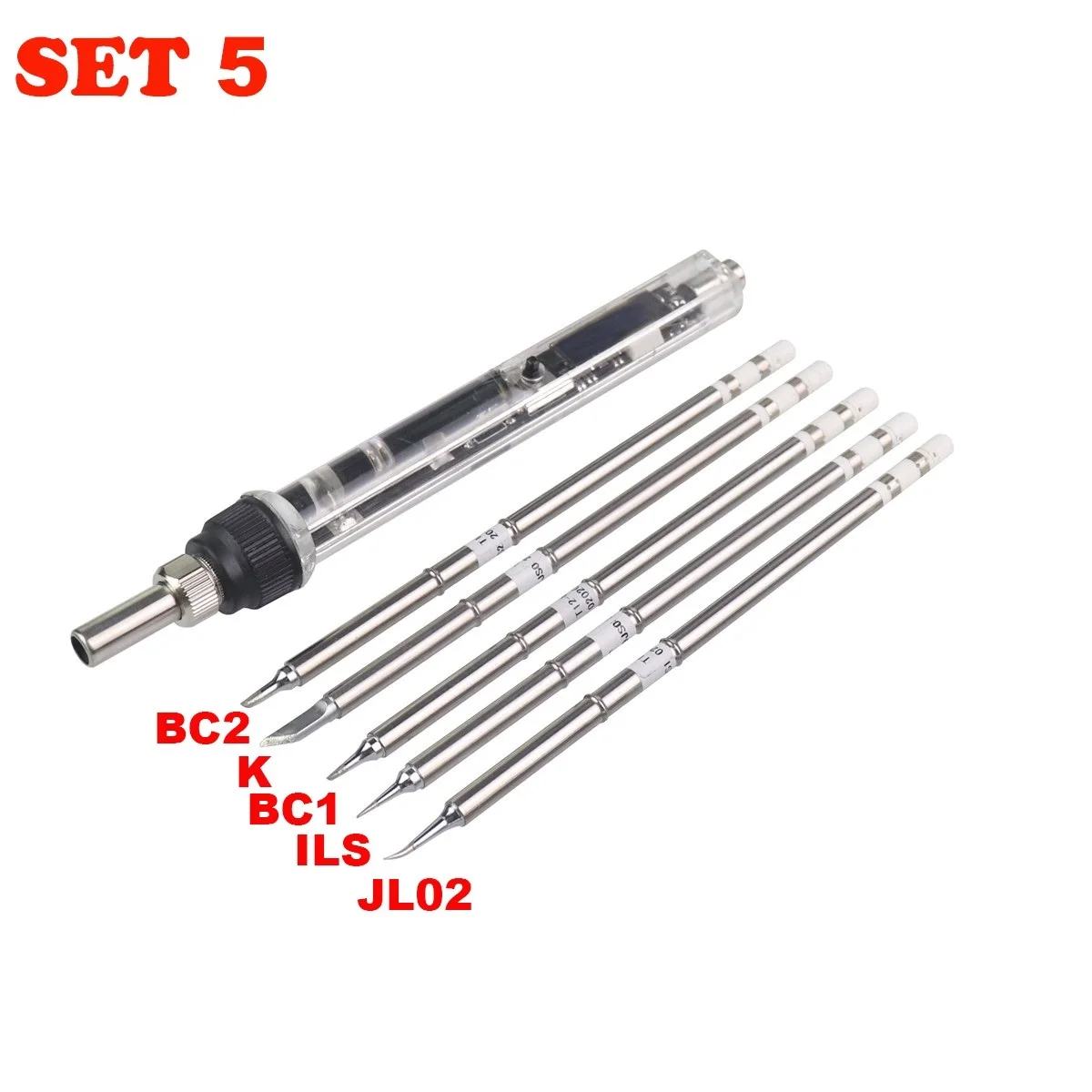

if you chose with 2 pcs T12 tips（SET2）,the package include 2 pcs T12 tips

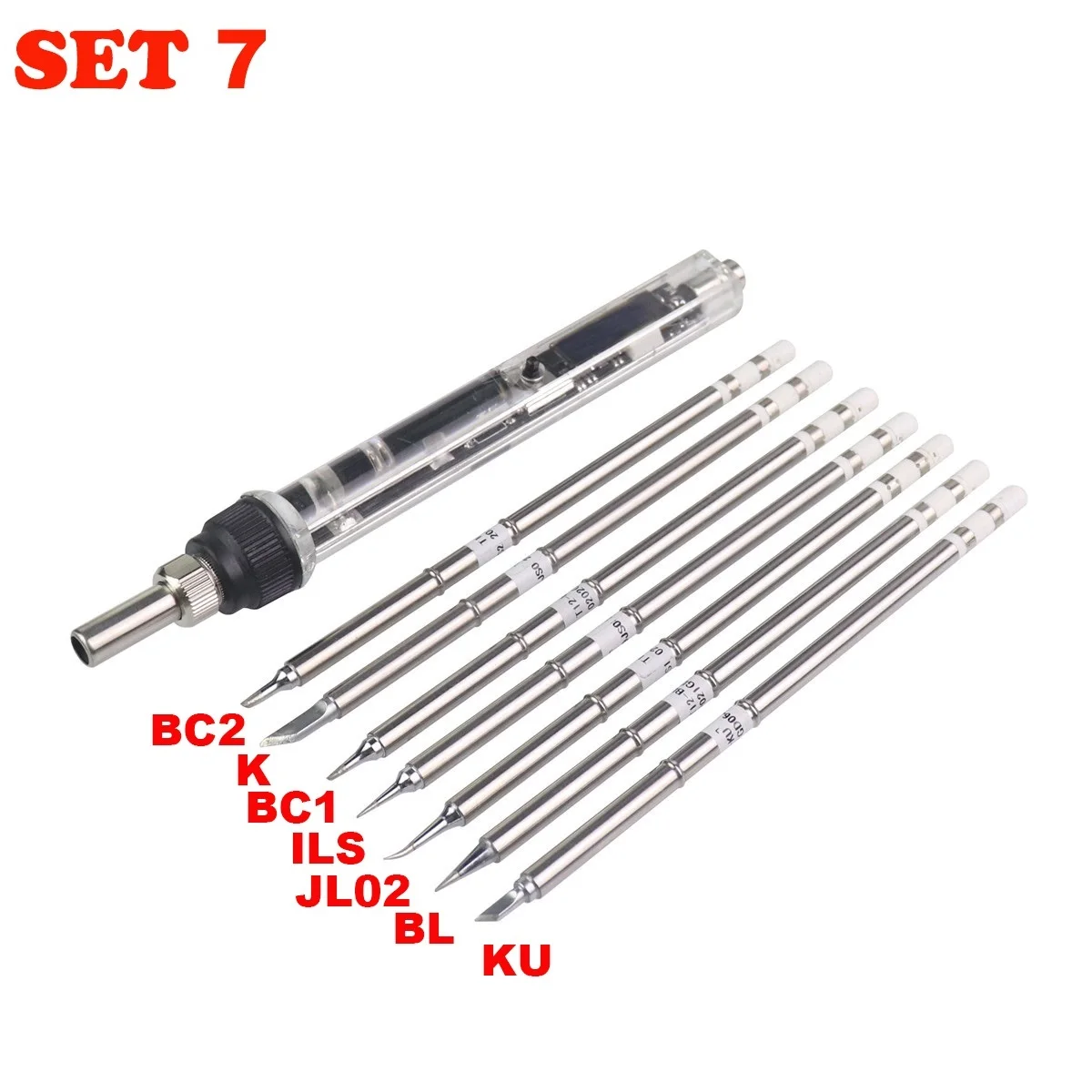

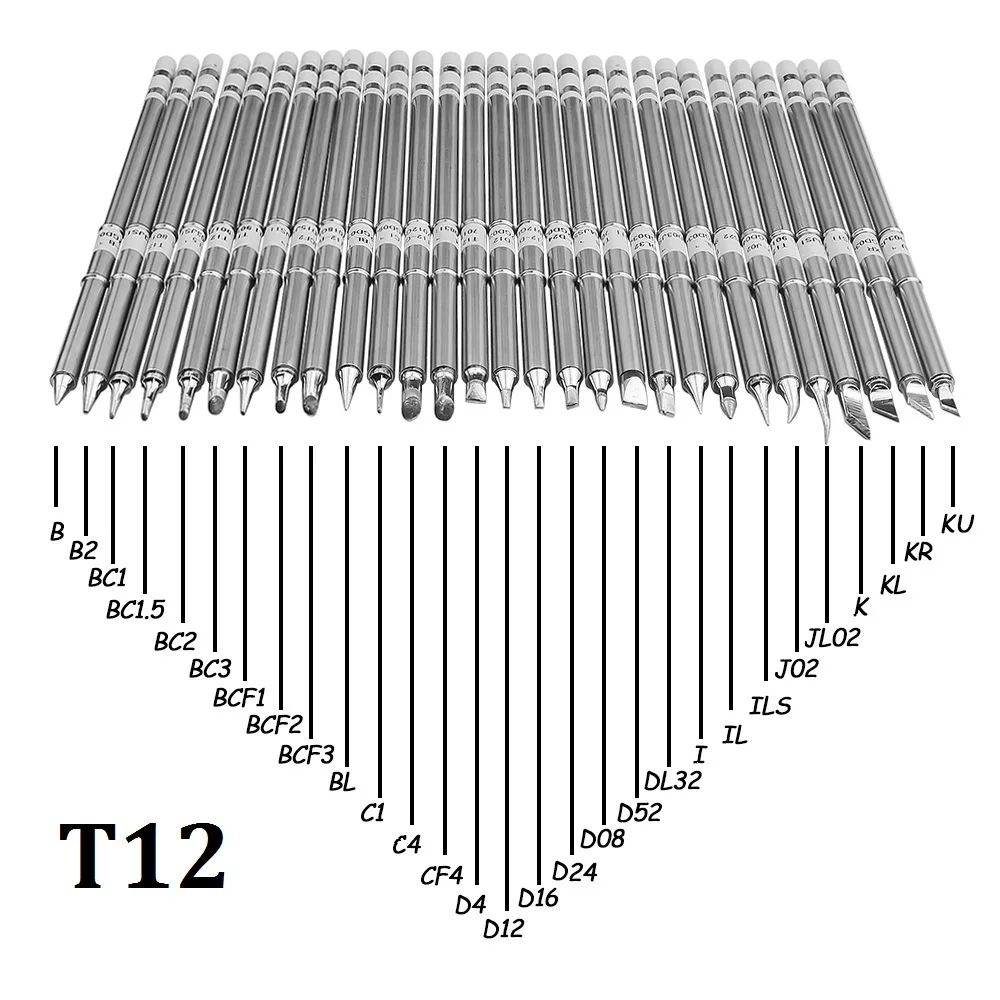

The types are below(Total 29 pcs choose):

T12-K,T12-B,T12-B2,T12-BL,T12-BC1,T12-BC1.5,T12-BC2,T12-BC3,T12-C1,T12-C4,T12-CF4,T12-D12,T12-D16,T12-D24,T12-D4,T12-D52,T12-DL32,T12-J02,T12-JL02,T12-KU,T12-KR,T12-KL,T12-I,T12-IL,T12-ILS,T12-BCF1,T12-BCF2,T12-BCF3,T12-D08

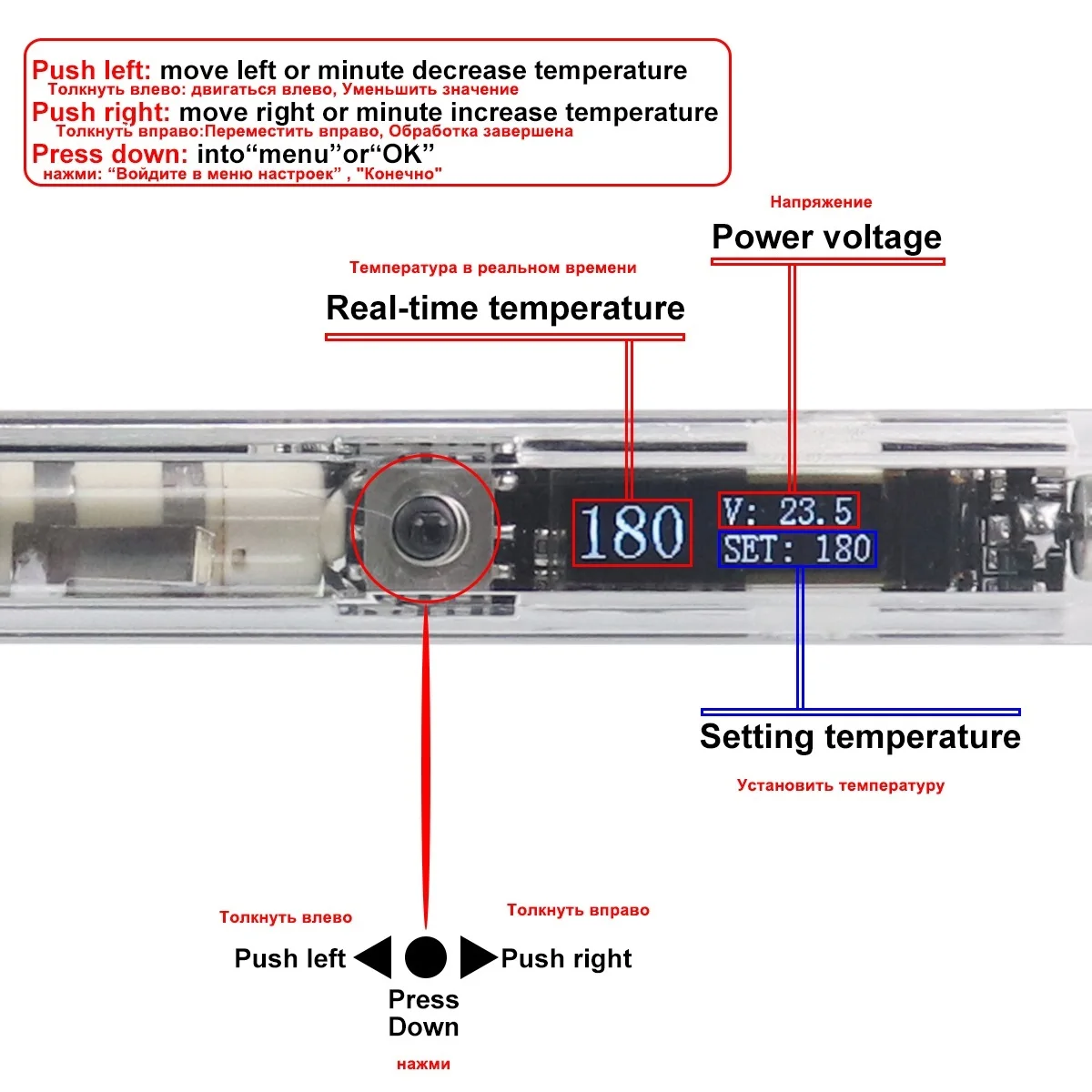

1. Knob and display

2. Menu instructions:

Press the knob to enter menu, it will shows 7 options:

ACT: calibration ,HSL: brightness ,DMH: sleep ,LED: always on display ,LVF: power ,LAG: language ,RTN: return

ACT: calibration

Insert the T12 tip to handle and power on,  set the temperature at 300, until the temperature in "real-time temperature" is stably display at 300, at this time, use a temperature measuring instrument to measure the temperature of T12 tip and record it. such as the measuring temperature is 350, then the calibration value is 50.

Calculation formula:  calibration value=measuring temperature - setting temperature

(Note: Before calibration, the value after calibration must be set to 0)

HSL: brightness

brightness adjustable range is 2-100 , 2 is darkest, 100 is the brightest

DMH: sleep

when screen is "DMH ON 5" ,It means that if the operator does not use the soldering iron for 5 seconds(automatically detect the use status of the soldering iron), the soldering iron will stop heating, and it will start heating again after picking it up.

when screen is "DMH OFF",It means that the soldering iron will always be in working condition, and the automatic detection function is turned off.

LED: always on display

when screen is "LED ON 5",It means that after 5 seconds of no key operation, the screen will be off, and when the key is operated again, the screen will light up again.

when screen is "LED OFF", It means the screen will stay on

LVF: power

This option indicates whether the power supply is stable. If the power supply is unstable, you can adjust the value appropriately. If the main menu shows insufficient power, it is recommended to replace the power supply

LAG: language

Available languages are: Chinese , Engligh

IMA: Screen display direction

Can switch left-hand or right-hand operation display

RTN: return

Return to main interface

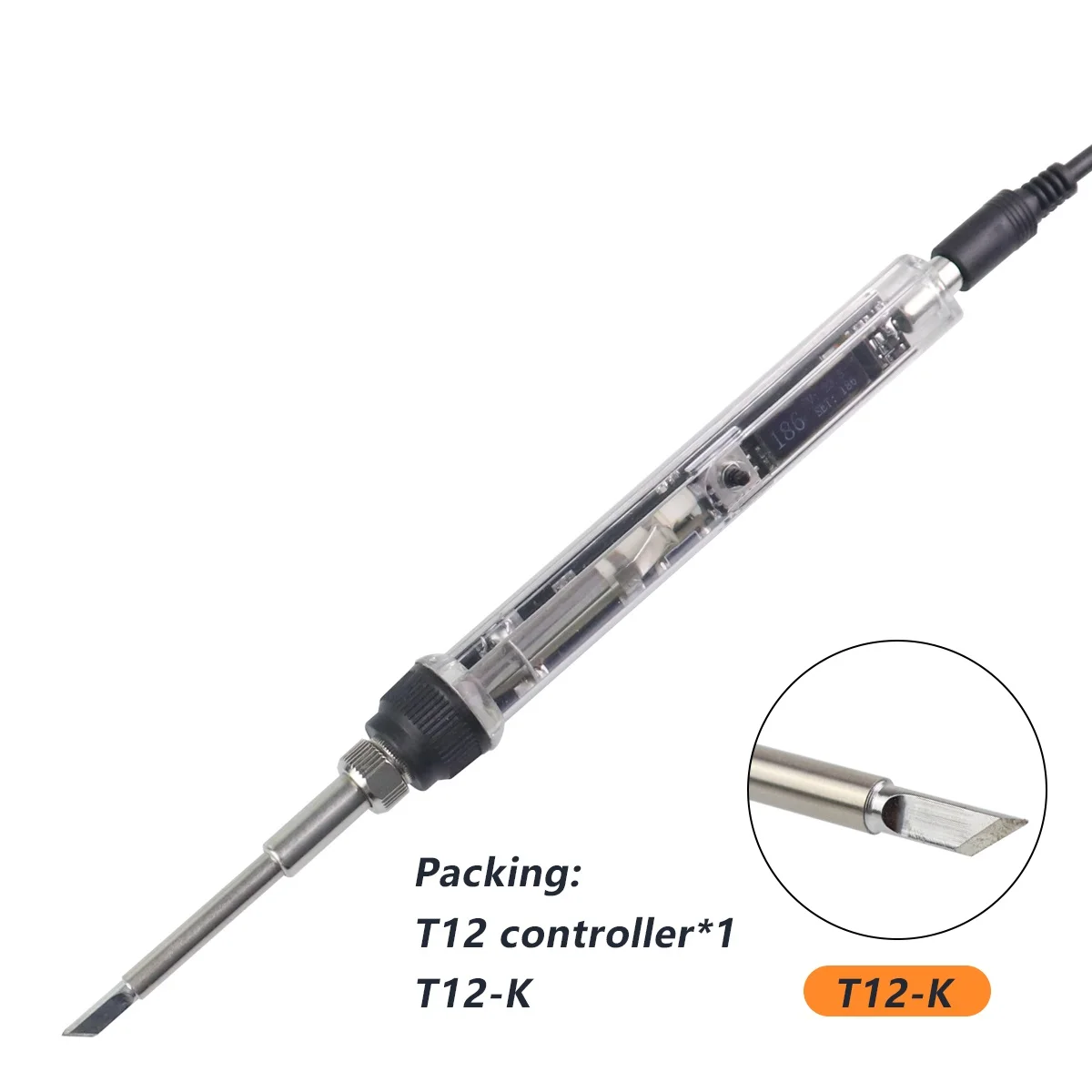

The Package listing as what you chose:
