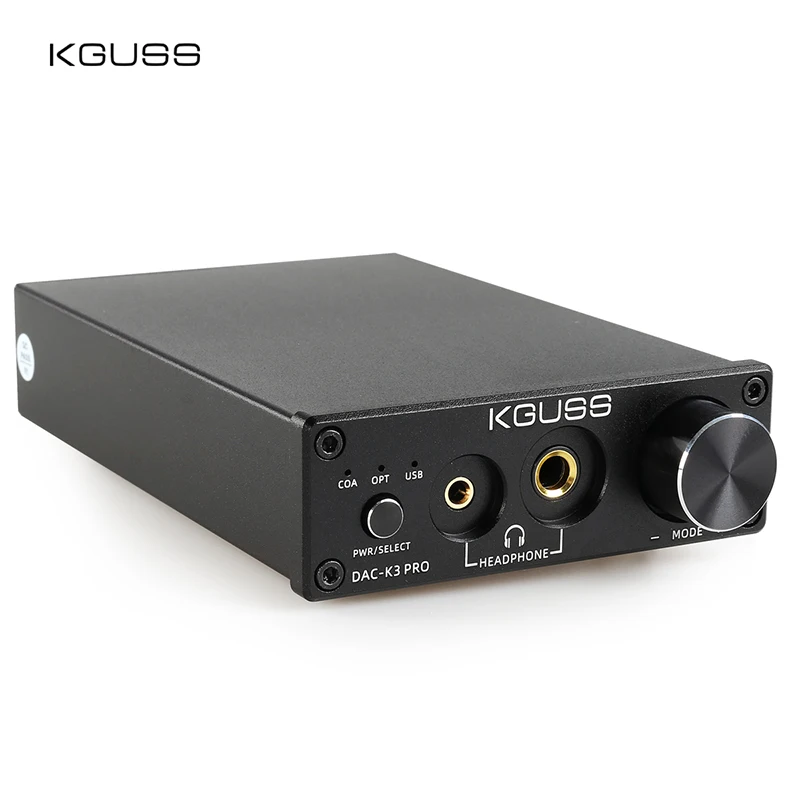

DAC-K3 PRO HIFI audio decoder USB fiber coaxial fever DAC decoding headphone amplifier

Product parameter

Model: DAC-K3 PRO
Working voltage: 12V1A (voltage can not exceed 12V, current can be large or small)

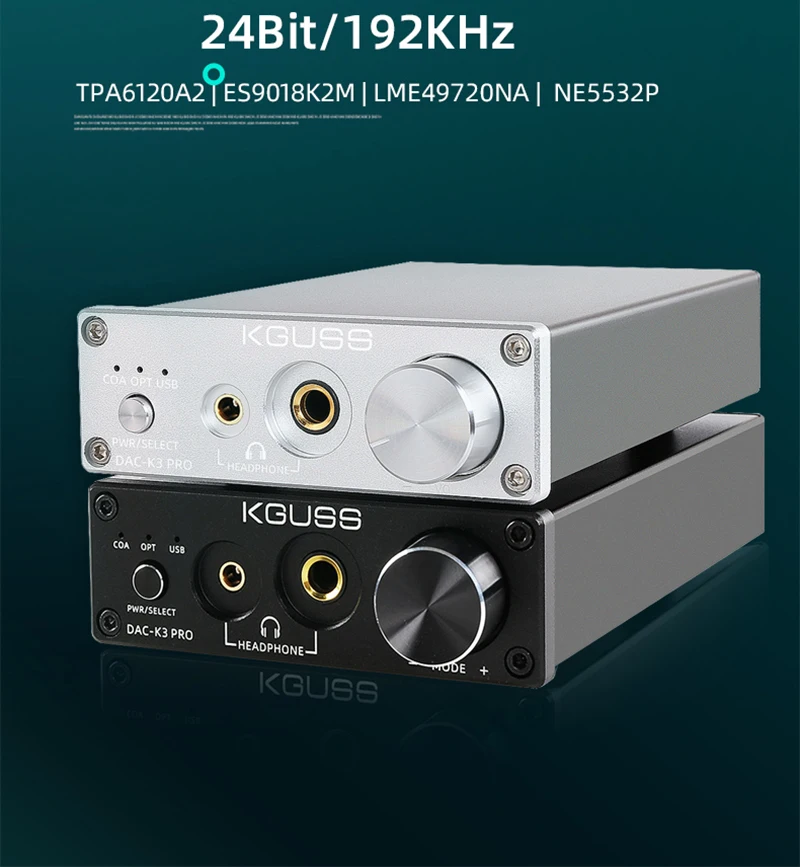

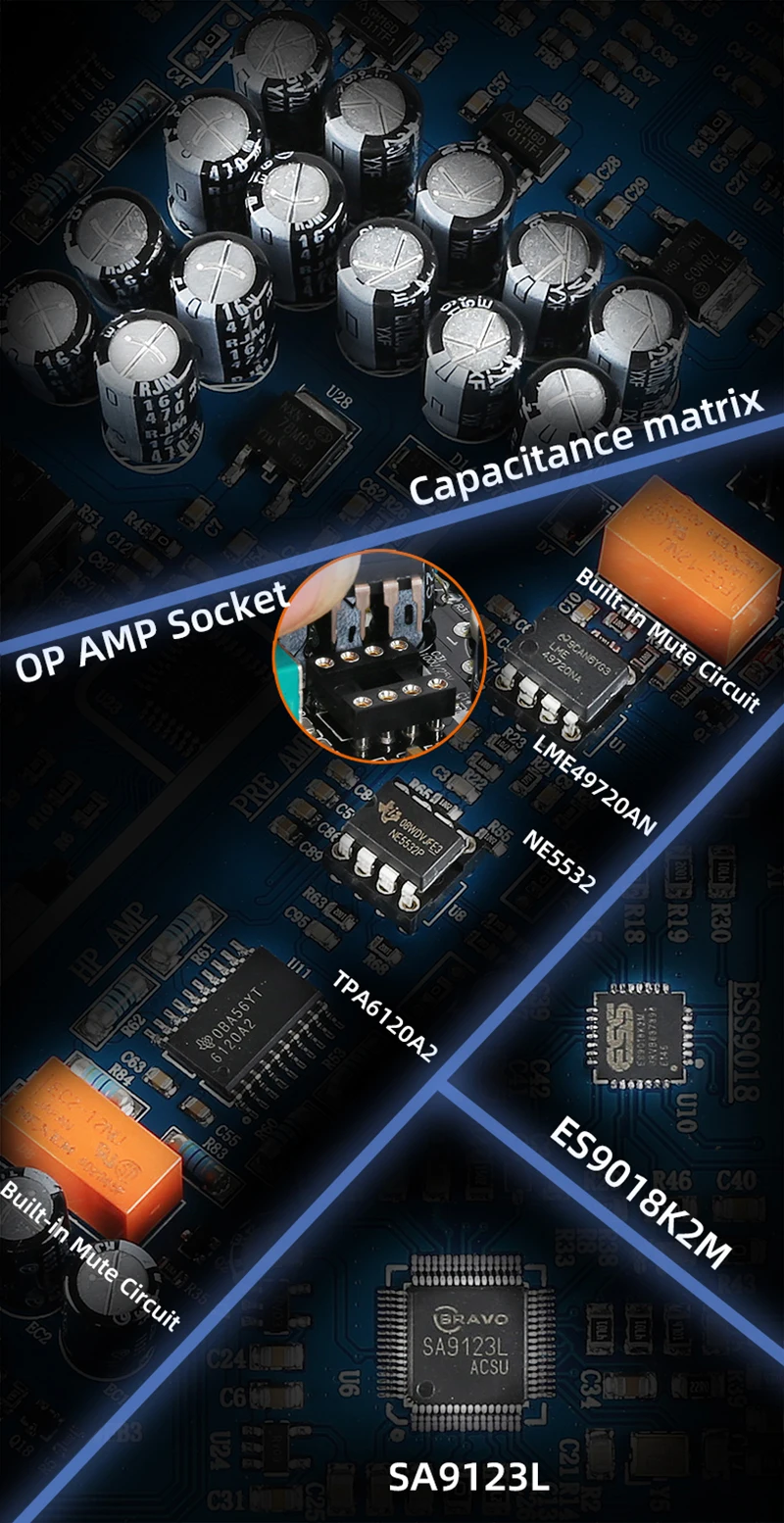

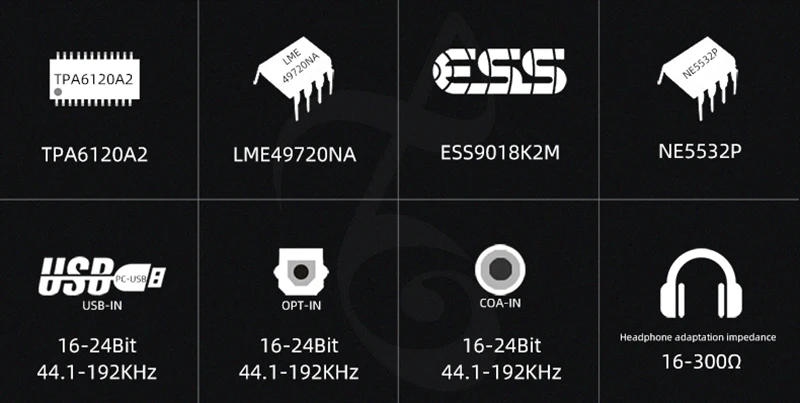

Chip combination: TPA6120A2+LME49720AN+NE5532+ES9018K2M+SA9123L
Frequency response: 20Hz~20KHz(-0.5dB)
Signal to noise ratio: ≥116dB
Total harmonic distortion: ≤0.005%
Output level: 2V
The highest sampling rate supported: 24Bit/192KHz (PC-USB/optical/coaxial)
PC-USB support operating system: XP/W7/W8/W10/MAC/Linux (USB connection computer needs to install the driver, please contact customer service to obtain the driver)
Headphone impedance matching: 16-600Ω
The maximum output power of the amplifier: 500mW
Audio input: PC-USB input, optical input, coaxial input
Audio output: RCA line output, 6.35mm headphone output and 3.5mm headphone output
Product size: 149*98*33mm
Product weight: 0.7KG (including packaging)

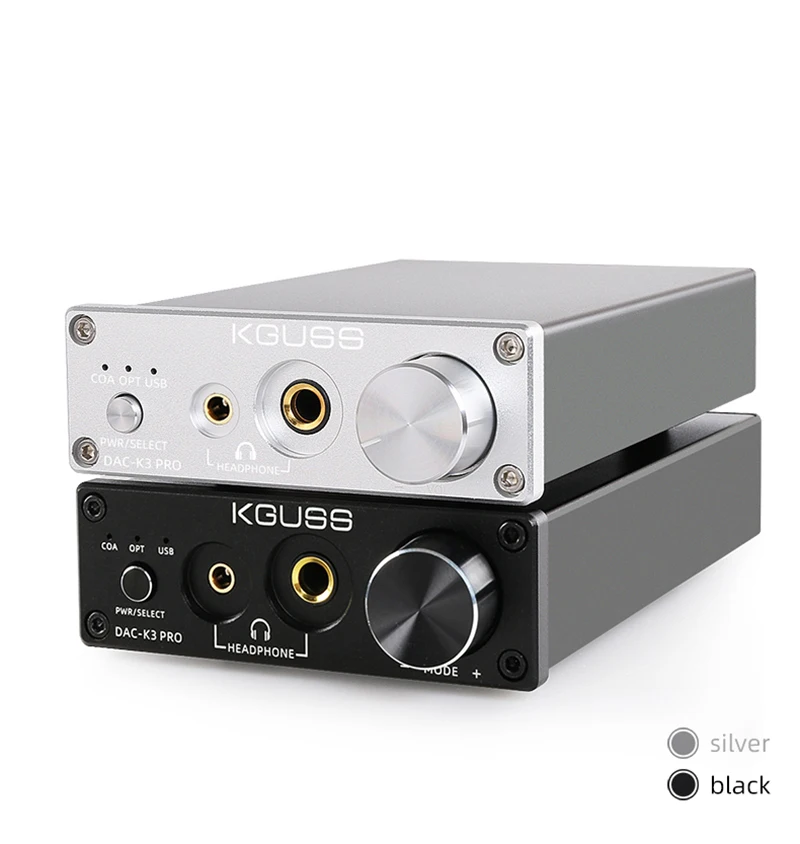

Product color: black, silver



Product Description:

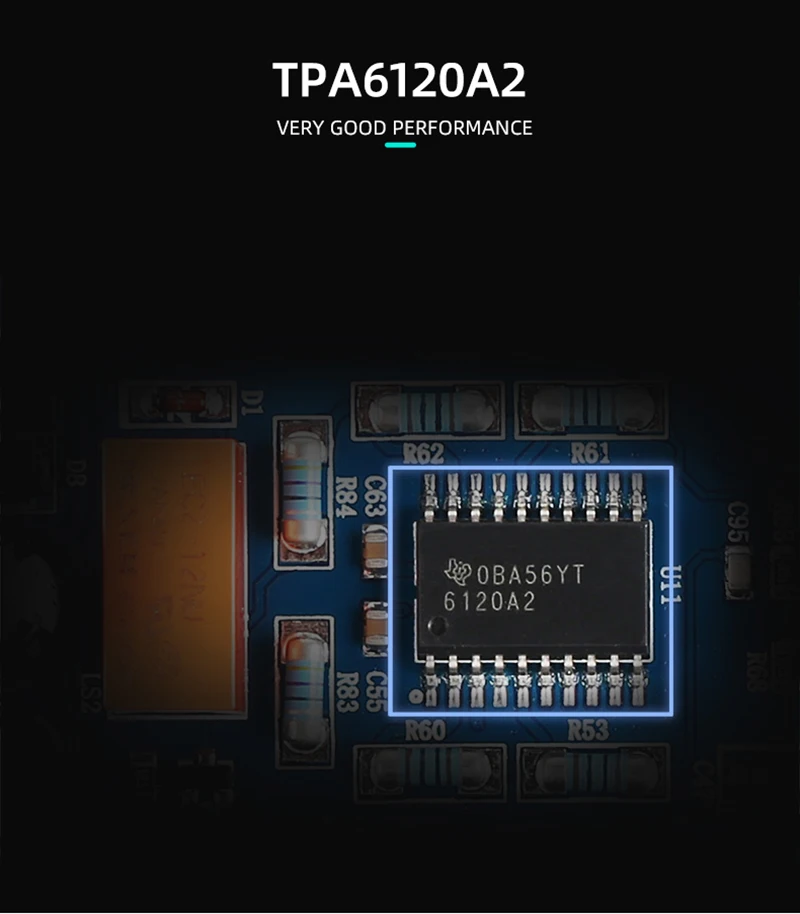

TPA6120 is a current feedback amplifier with excellent performance, its distortion is far more than many op amps that only handle small signals. What's more frightening is its frequency response, which can surpass the video, directly to the radio frequency, from 10Hz to 100MHz! There is also a rise rate of as high as 1300V per second, which is a breakthrough chip design.

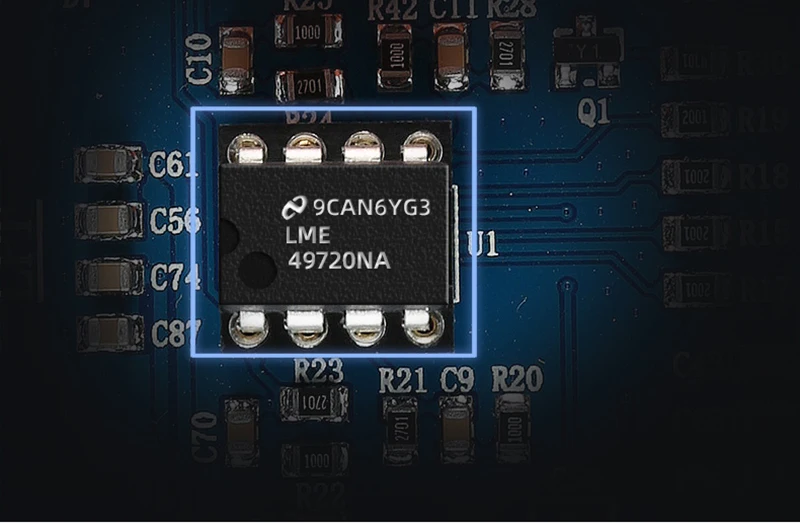

LME49720AN, compared with various indicators, LME49720AN is better than OPA2134, especially 100KHz triangle wave and square wave. The three-frequency LME49720AN has good balance, good dynamics, high low-frequency intensity and volume, wide sound field and smooth high-frequency. The timbre is very naive, the sound is very light at the beginning, there is no modification or coloring, especially the texture and sense of space are very good.

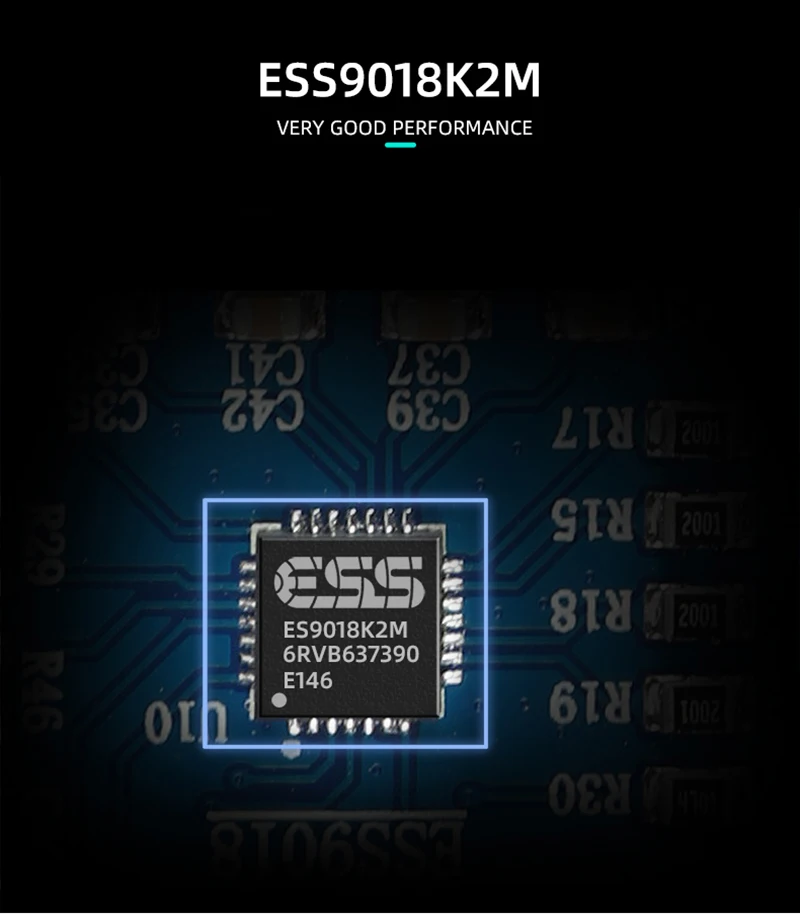

ES9018K2M decodes less sound, the sound is more real, the index is higher, and the sound is more plastic. You can create different tones according to your needs.

The amplifier/preamplifier automatically switches. When no headphones are connected to the DAC-K3 PRO, the RCA output is in front mode, and the amplified signal is output from the RCA interface. When the earphone is connected to any interface, the DAC-K3 PRO will automatically switch to earphone mode, and the signal will only be output from the earphone jack.

DAC-K3 PRO is not only a professional headphone amplifier, it is also a pre-amplifier, as a pre-amplifier can also play the same excellent performance, widely used in power amplifiers or active speakers!

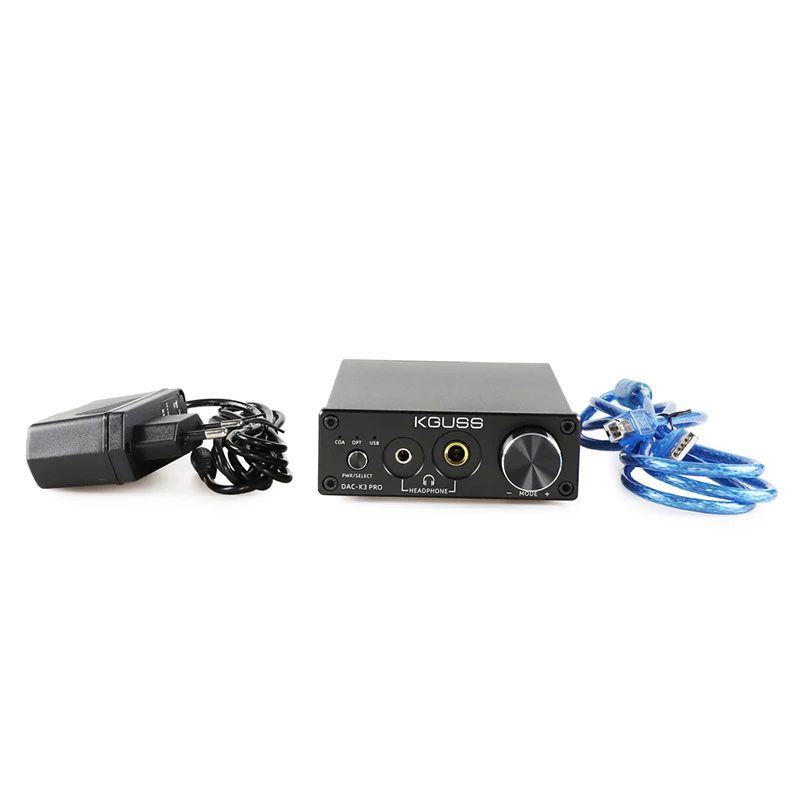

Shipping list:

DAC-K3 PRO main unit*1
Power adapter 12V1.5A*1
PC-USB data cable*1
User Manual*1
Certificate of Conformity*1
Product packaging box*1

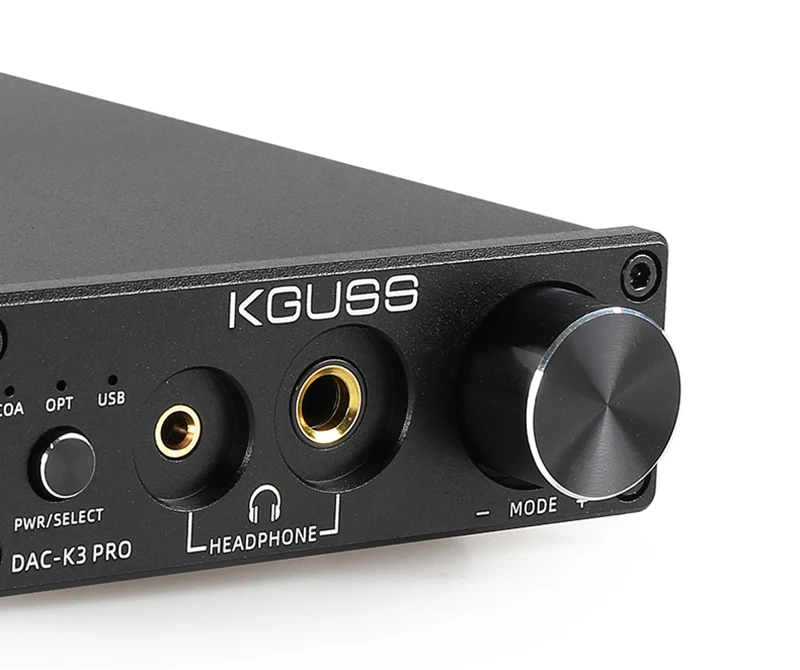

Product function introduction: (see picture below)

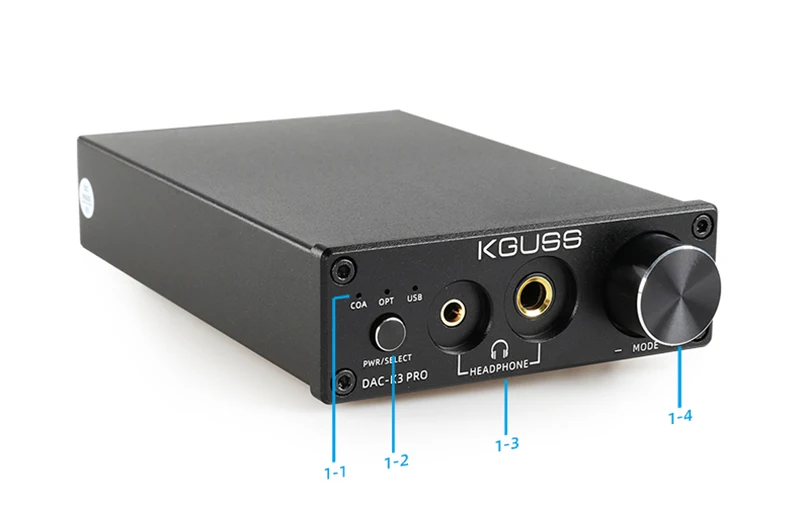

1-1: Signal input indicator
1-2: Power on/off key/input selection key (short press to power on, short press to switch input channels, long press to power off)
1-3: 3.5mm headphone output interface and 6.35mm headphone output interface
1-4: Volume knob (turn up the volume clockwise, turn down the volume counterclockwise, press to mute) The volume knob controls RCA output and headphone output.

(USB connection to the computer needs to install the driver, please contact customer service to obtain the driver)

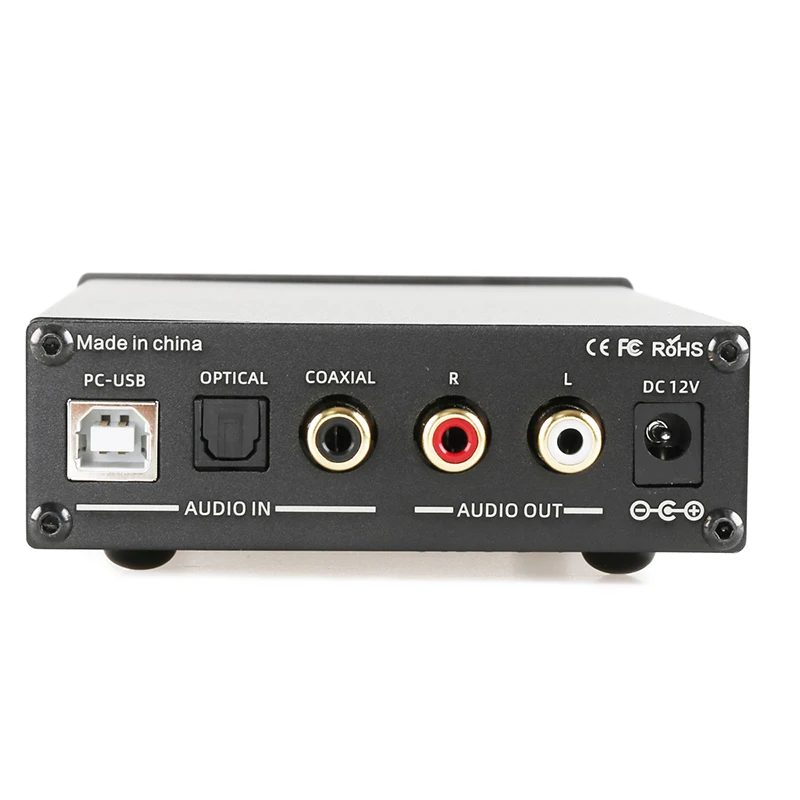

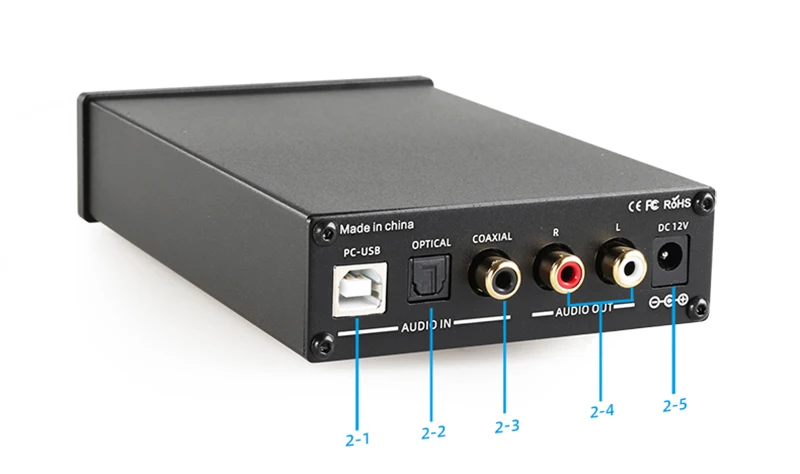

2-1: PC-USB input: connect to a computer, it can also support OTG (but your mobile phone also needs OTG), if you need to connect to a mobile phone, you need to purchase an OTG adapter cable (type-c/Android/Apple)
2-2: Optical fiber input: can be connected to TV set-top boxes, DVDs, VCDs and other playback devices with optical fiber output
2-3: Coaxial input: can be connected to TV set-top boxes, DVDs, VCDs and other playback devices with coaxial output
2-4: RCA output: can be connected to power amplifier, tube power amplifier, active speaker
2-5: Power interface: DC 12V (note: voltage cannot exceed 12V, current 1-2A, internal and external positive and negative poles, outer diameter 5.5mm, inner diameter 2.1mm), please use a power compatible with this machine to avoid the possibility of poor filtering power Will generate current noise.
