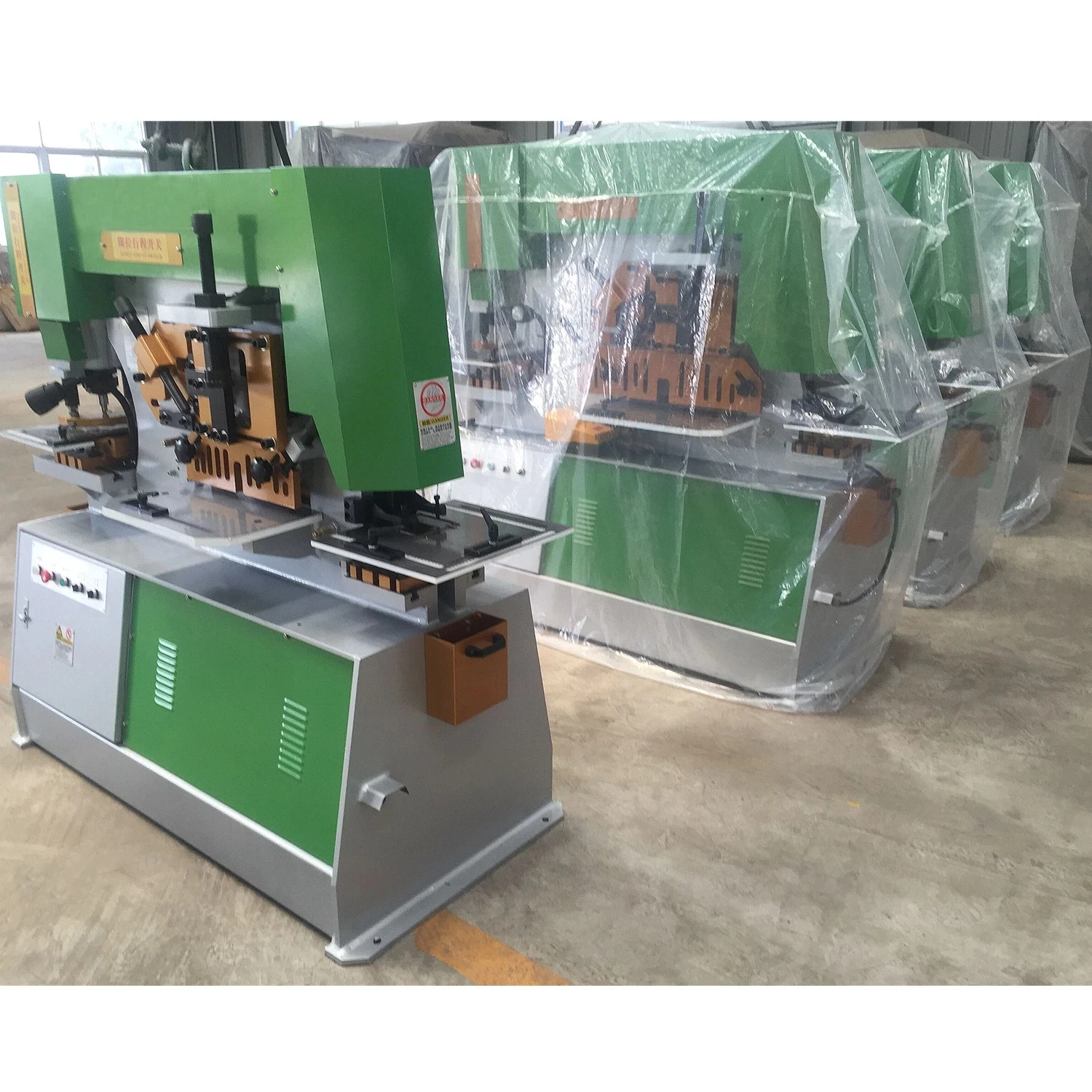

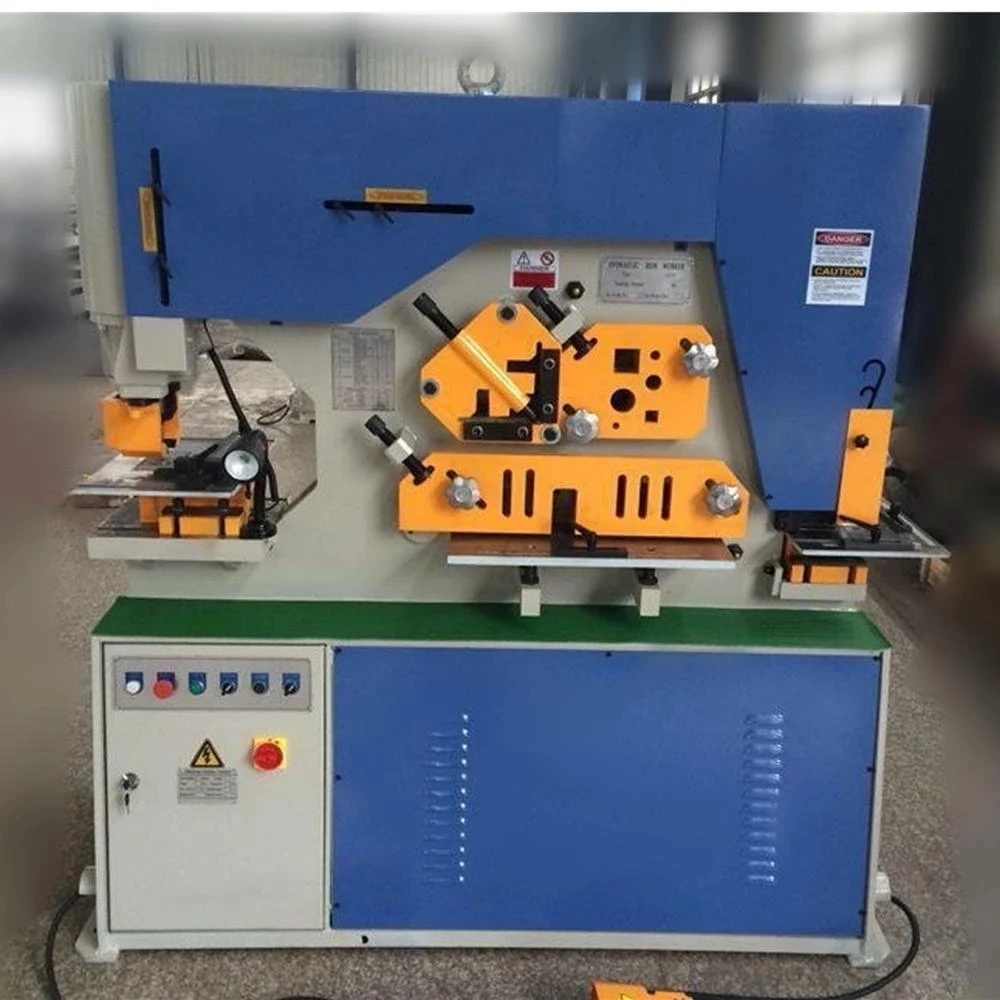

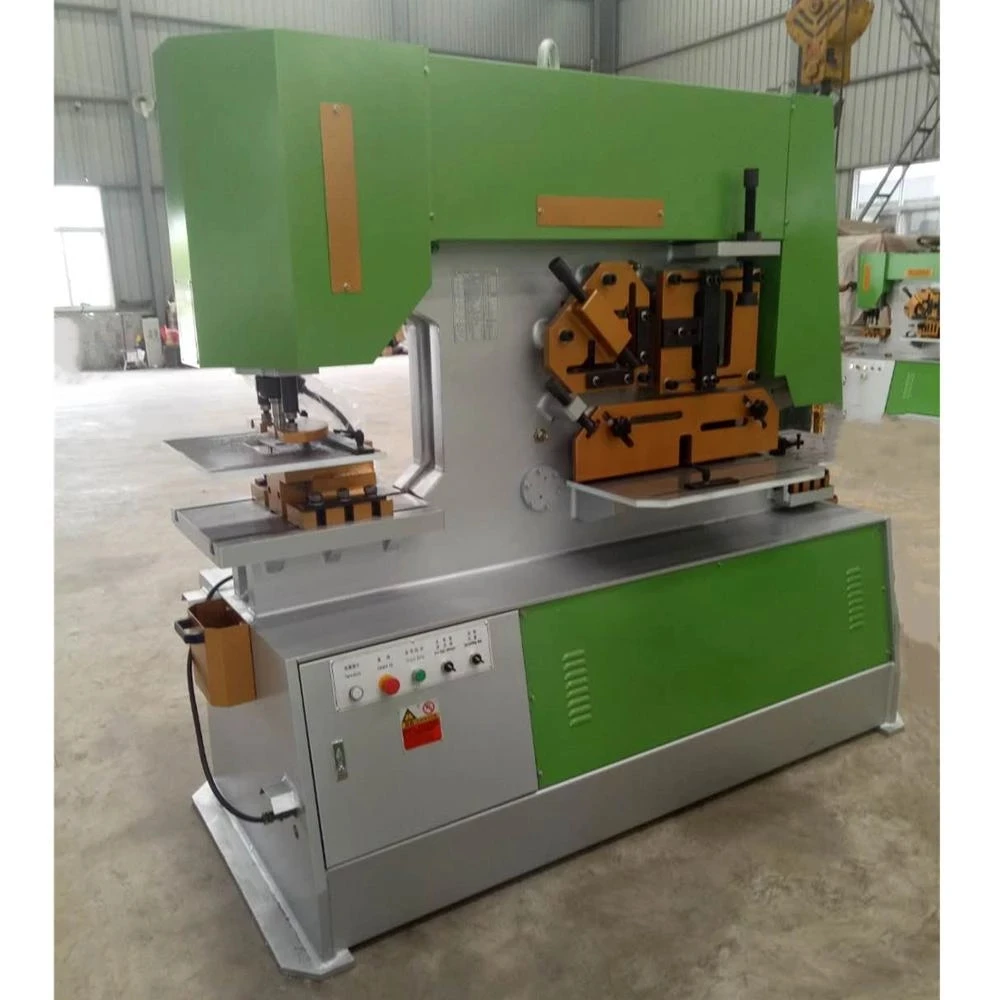

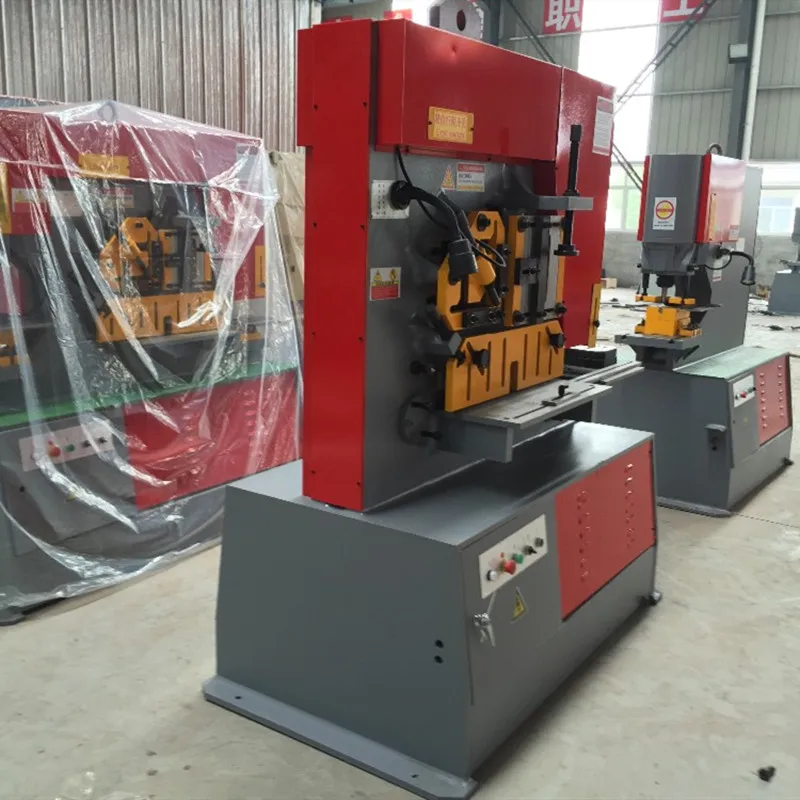

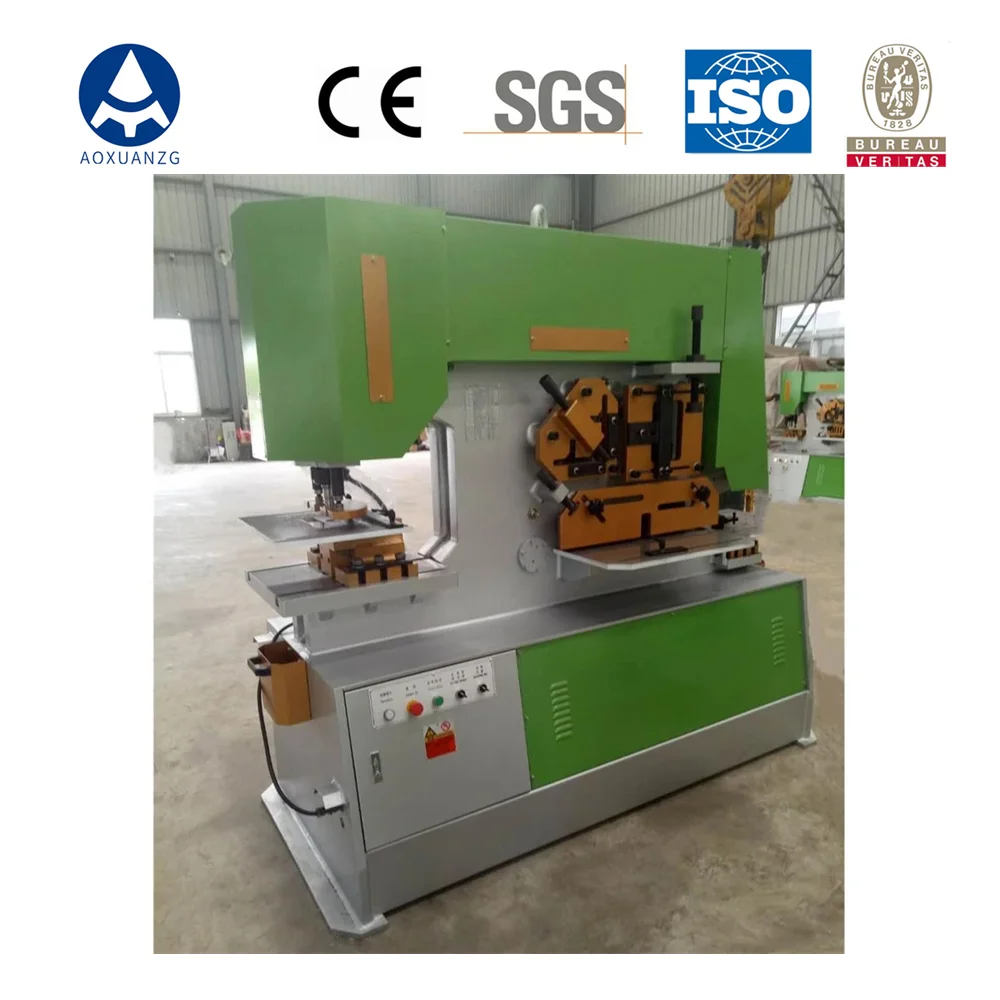

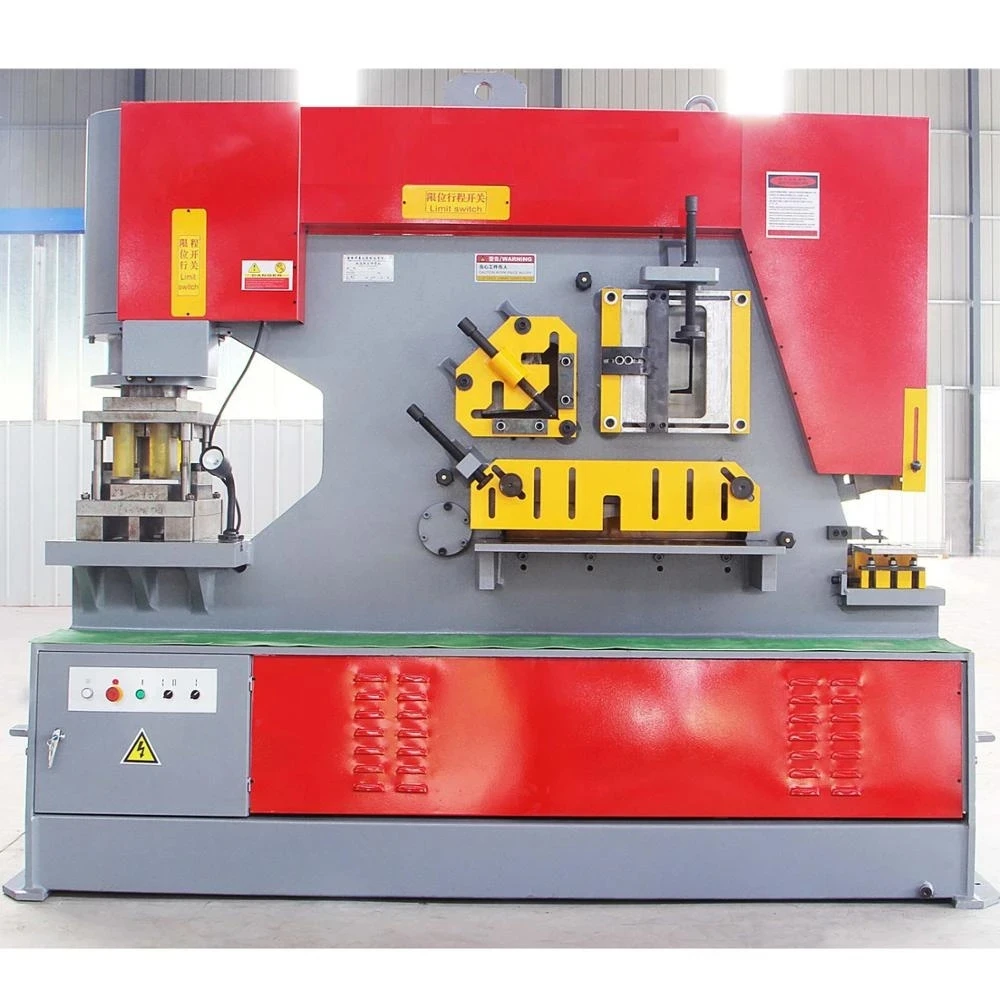

Hydraulic Ironworker Q35Y-40 Max Punch And Cut 40mm Mild Steel Hydraulic Metal Iron Worker

（The price without shipping cost）

Products Description：

Q35Y series industrial-grade hydraulic ironworker machine featuring multiple functions, including: round
hole, square hole, oblong hole punching; steel plate, flat bar, angle steel, C-channel, H-beam punching; steel plate
bending; angle steel shearing, notching and bending; flat, round, square bar, C-channel, I-beam, T-bar shearing/cu
tting; angle bending and pipe notching.

*The hydraulic ironworker machine comes standard with: quick-change coupling nut & sleeve, squaring arm with s
cale, electronic back gauge, gauging table with stops, punching base table, safety guards and more. With its multif
unction, Q35Y series hydraulic ironworker is your first choice among the counterpart machine. Besides, all the com
ponents are of the highest quality in the matter of safety, function, capability and maintenance.

*Our hydraulic ironworker machine is designed via the most advanced technology and has the virtues of easy oper
ation, low consumption and low maintenance cost. We also can provide customized solutions to better cater for cu
stomers' needs.

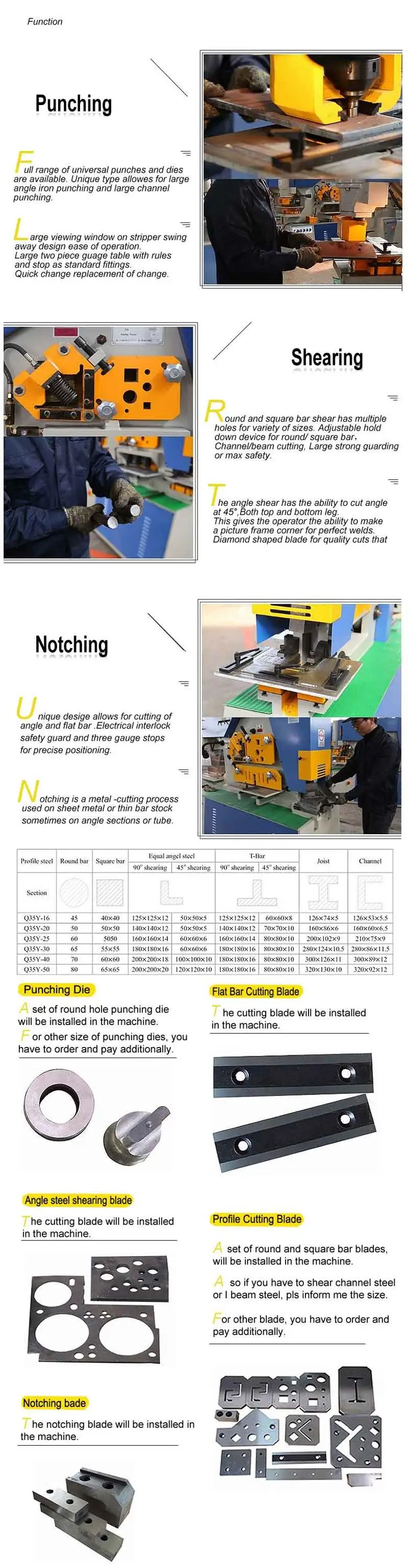

*Optional tooling of hydraulic ironworker machine

*Automatic Holding System: The automatic holding system can be chosen to set up in angle steel shearing and pl
ate shearing work position. Additionally, the holders will fix the position of work piece in order to save time and im
prove working efficiency.

*Temperature cooling system: When the hydraulic ironworker machine is working, you can read the temperature
of oil through the monitoring screen. If the oil temperature goes higher than 55 degree which is the default confi
guration, the inside cooling system will run automatically to decrease oil temperature in order to protect hydraulic system

Main standard properties components of hydraulic ironworker machine

1. All the electrical parts are IMPORT with CE certificate.
2. Professionally engineered design frame structures.
3. Steel welds with high precision strength and rigidity to eliminate vibrations.
4. Ironworker steel frame Q235 = American standard steel A306 GR55.

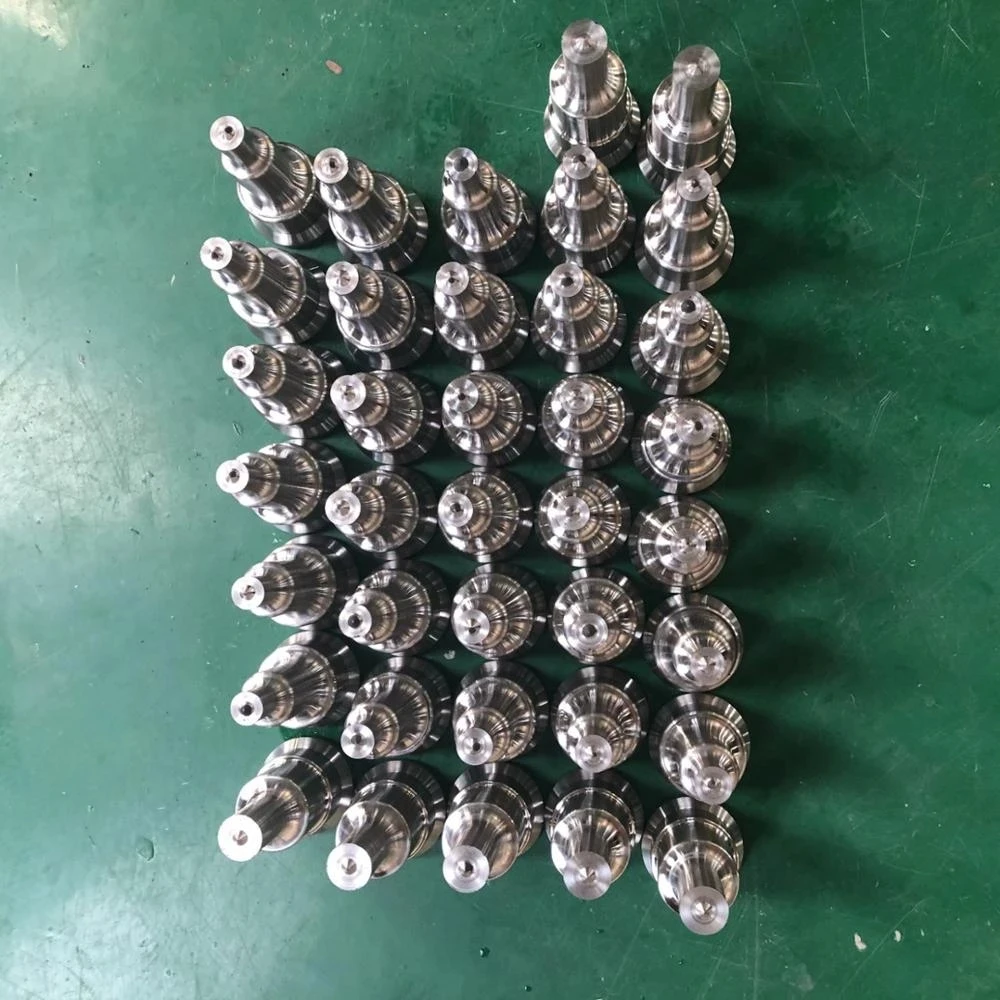

5. Five sets of punch and blades were installed on the machine.
6. Timer relay by Japanese OMRON.
7. All wiring terminal block by WEIDMULLER.
8. Main Electrical component by Germany Schneider.
9. Oil seals by Japanese, NOK.
10. O-Ring and Valve by Taiwan for piston pump more durable.
11. Hydraulic System by Japanese Yuken.
12. Motor by Chinese Jiangsu Dazhong
13. Hydraulic fuel tanks and ironworker frame built by our Factory.
14. Dual independent hydraulic cylinder
15. Dual Footswitch controlled work separately
16. Easy Adjustable stroke control with ruler
17. Indicator on both hydraulic cylinders
18. Electric back gauge auto stop
19. Moveable working light that can be placed at any desired position
20. Hydraulic system with overload protection system
21. Emergency safety stop switch
22. Large punching table with ruler guide
23. Larger notching table with Ruler guide
24. Large flat shearing table with Ruler guide
25. Most important easy maintenance

Hydraulic Ironworker Q35Y-40 Max Punch And Cut 40mm Mild Steel Hydraulic Metal Iron Worker

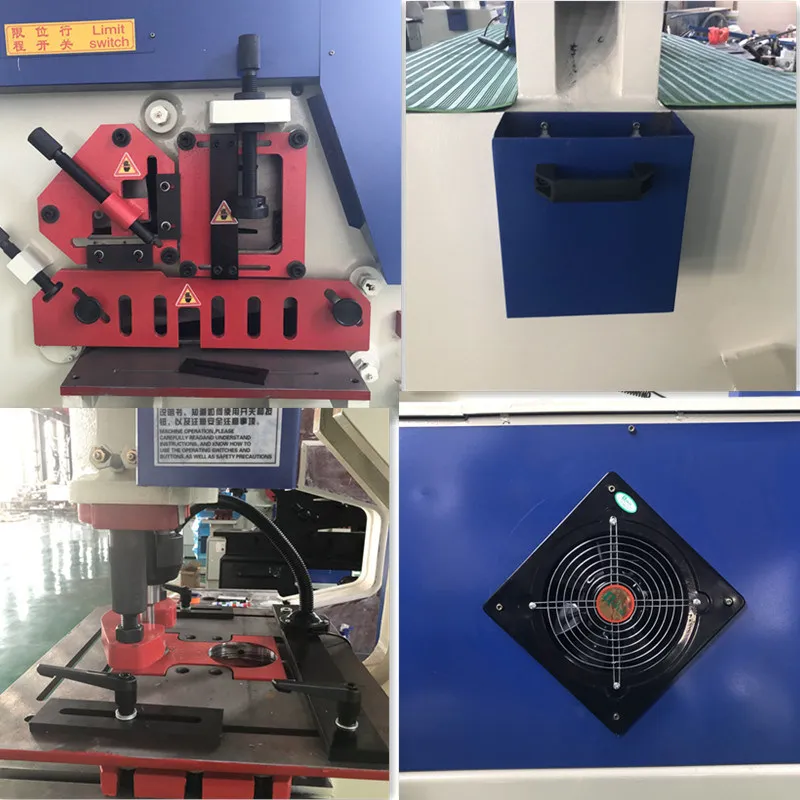

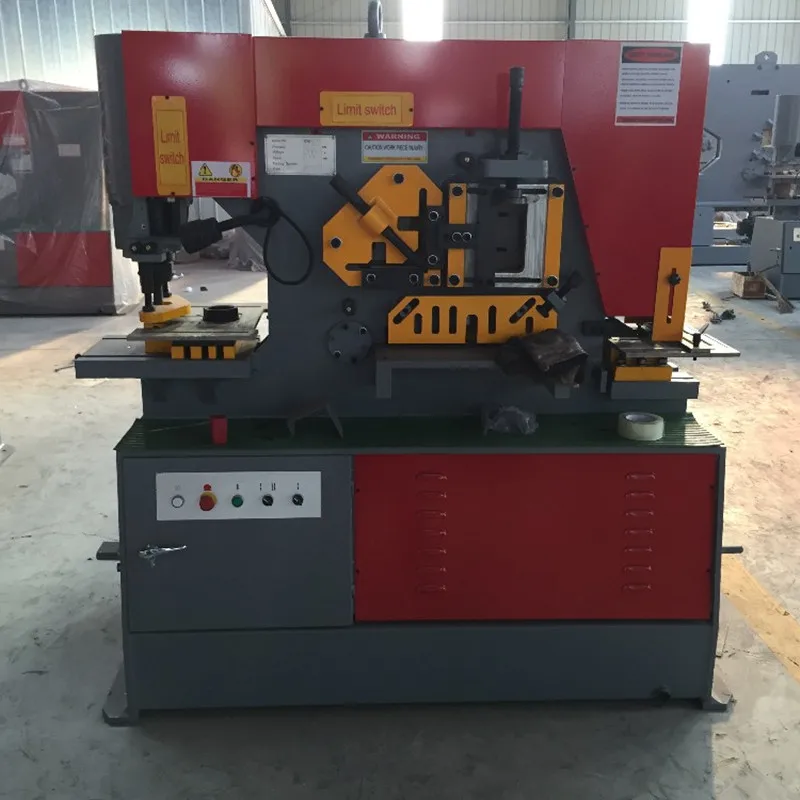

Detail pictures

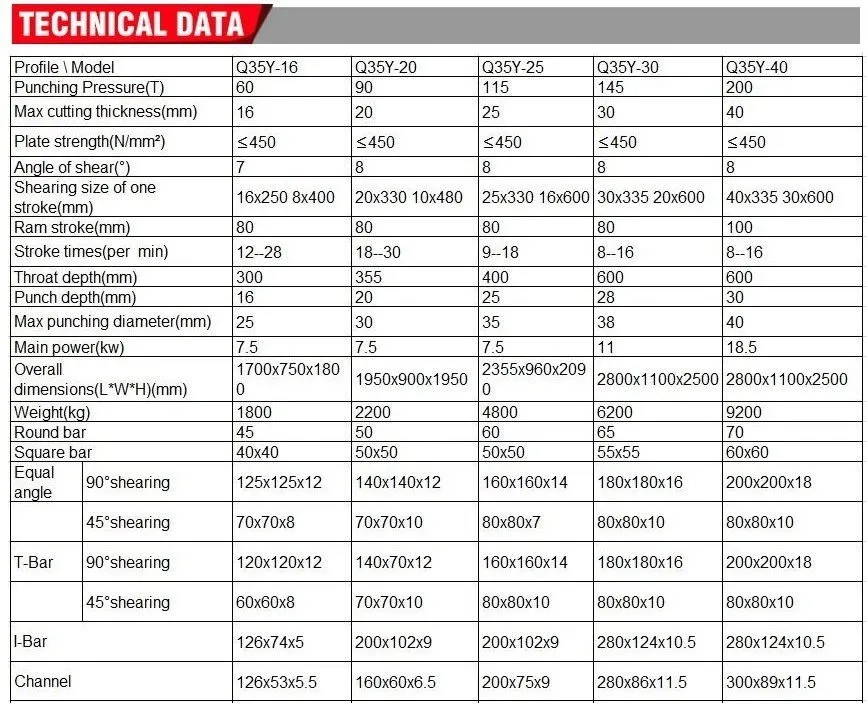

Technical Parameters

Shipping & Packing

Each power press machine with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers
and ship them abroad.
Delivery Detail:
Shipped in 30 days after payment

Our factory

Certification

Our customer

Our service

Pre-sales.

* Project design, performance introduction, technical agreement, contract signing, packaging
* Inquiry and consulting support.
* Sample testing support.

In-sales.
* We will provide you with the latest progress in the product assembly, packaging and transportation.

After-sale.
* We will provide free accessories for the damage to non - human parts.
* Training how to install the machine, training how to use the machine with video and so on
* And our technical staff can go abroad to provide technical guidance.

RFQ

1. Are you the manufacture?Can we visit your factory?

We are manufacturer and we are located in Anhui,China.And we have our own design team for products design.
And welcome you visit our factory and check our machine qualtiy on spot,any question will be solved on spot at first time.

2.What's your main product and what is your main foreign market?
Our main products are press brake,shears machine,press,cutting machine,locking machine ,auto duct line and related products.
Our main foreign market are Asia, North America, Europe, Africa.

3. what are the advantages of your machines?And how can i believe the quality of your product?
The main configuration is to import quality products, and Professional product quality inspection team ensure machine in
top-quality, precision and life.
For example,Germany Bosch-Rexroth Valve group,Germany Siemens Main Motor,Schneider Electrics system and so on.
Once tested as qualified .our machine would be sent out.So The quality of our product is stable and reliable.

4. And are you able to update the production process Information in time after placing our order?
After confirming your order ,we would keep you updated of production details of emails and photos.

5. Can we be your agent?
Yes,we are looking for Global agent we will help agent improve the market ,and supply all the service like machine technical
problem or other after-sales problem, meanwhile ,you can get big discount and commission.

6. Payment terms?
T/T, L/C, Western Union, Paypal, Alibaba Secure Payment ect.

7.Are you provide product metal parts and provide us technical guidance?
Wearing parts,Disassembly tool(free) are what we could provide.And we can give you technical guidance.Our technical staff can go
abroad to provide you with technical guidance.

8. How long is your warranty?
13 months free warranty, life-long maintenance.

9.Do you accept customer Logo and customized ?
we accept kinds of customized ,including logo and machine .
