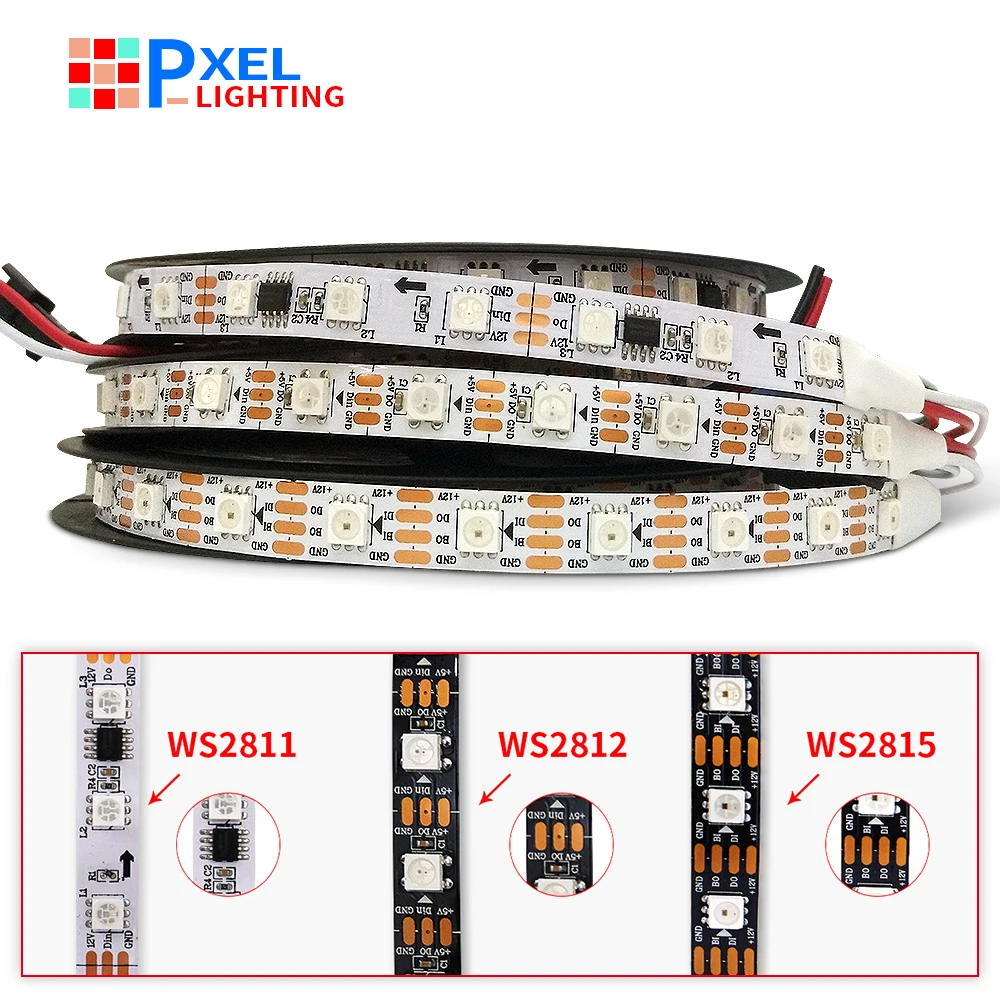

Light strip difference:

(1) WS2812B is a 5V light strip, one IC controls one lamp bead.

(2) WS2813 is a 5V light strip. It is an upgraded version of WS2812B, with 2 signal lines. One lamp bead damage will not affect the work of the lamp bead behind.

(3) WS2815 adopts upgraded version 2813IC and adopts parallel welding. The damage of some lamp beads will not affect the work of the next lamp bead. And has a smaller voltage drop.

note:

(1) The price is only Led Strip, excluding power supply or Led controller!
(2) The LED light bar must work with the power supply and controller!
(3) There are solder joints every 0.5 meters, please pay attention!
(4) WS2815, WS2812B, WS2813 are three different types of lamps, please pay attention when buying!
(5) WS2812B/WS2813 is a 5V light bar. WS2815are 12V LED strips!
(6) WS2812B uses a 3pin connector. WS2815/WS2813 uses 4pin connector.

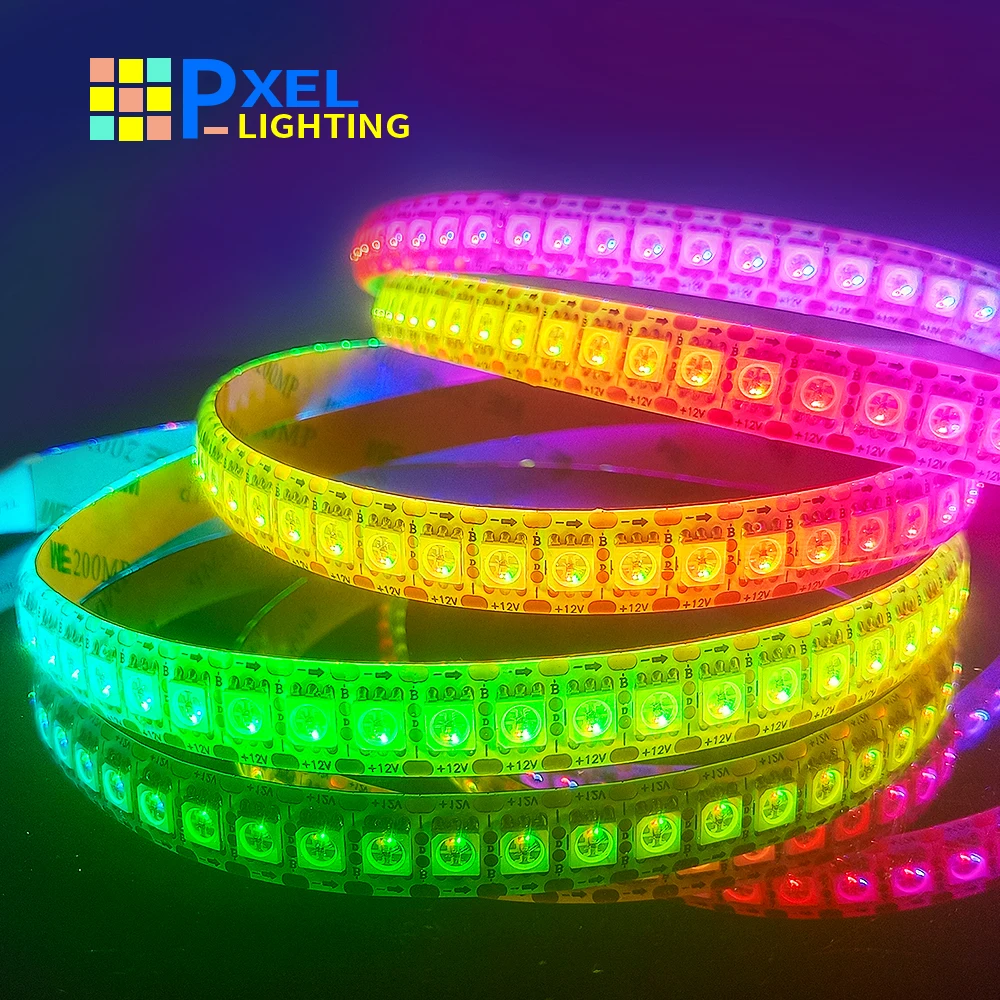

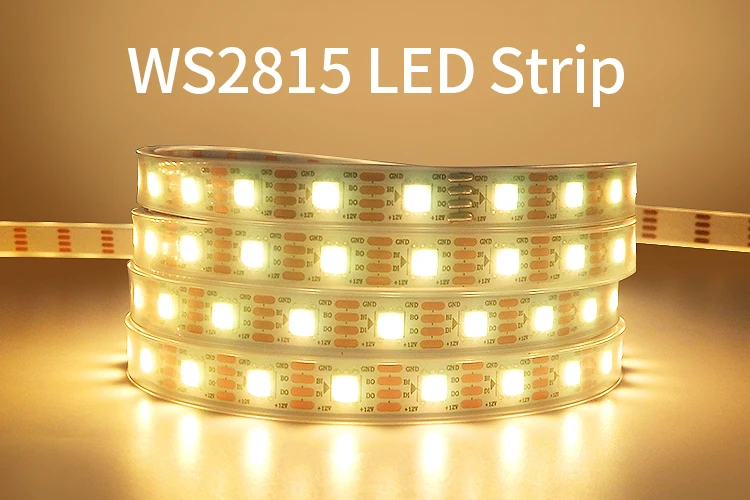

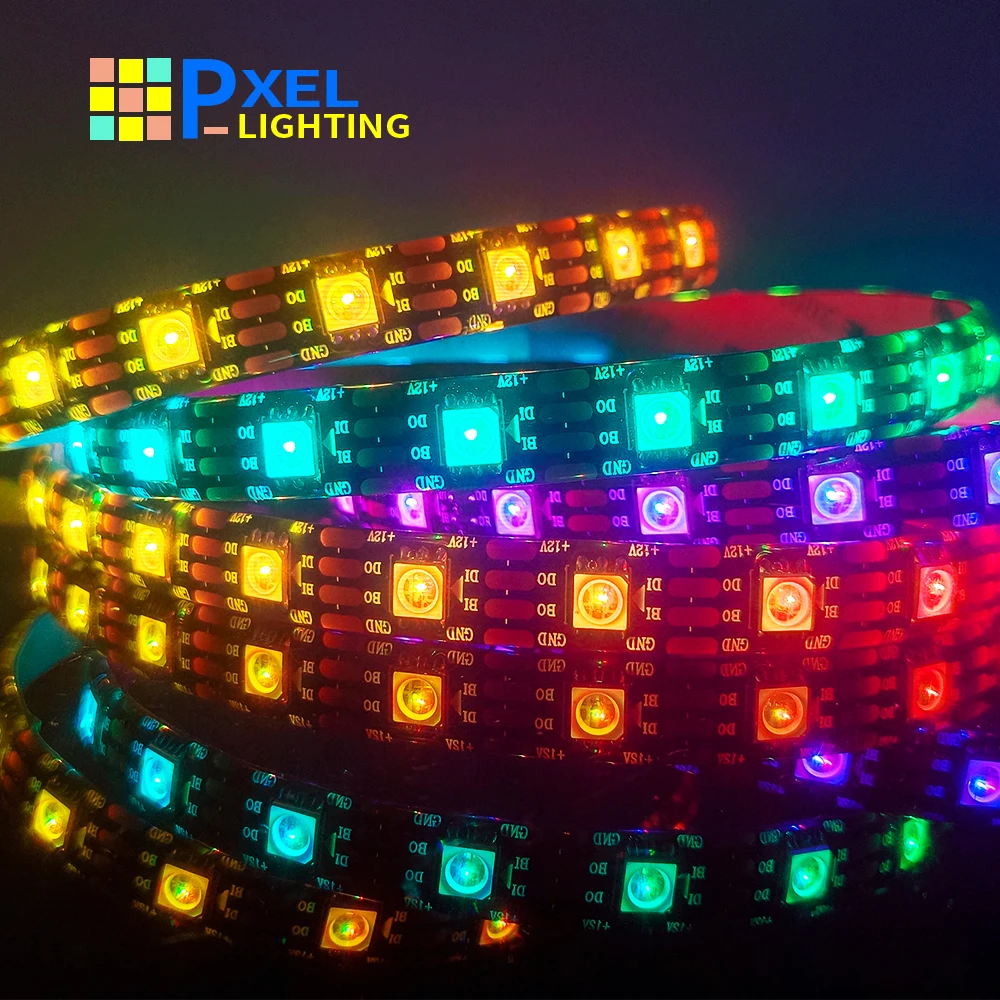

WS2815 description

Main feature:

(1)One pixel damaged will not affect the other LEDs working. (2)The power protection,if +12V and GND reverse polarity,the LED will not be burned. (3) Dual signal wires version, signal can jump to transfer. (4)The original electronic devices integrated,it does not cause virtual welding in the installation process.

Product parameters:

(1)LED light source: WS2815 LEDs
(2)same protocol as WS2813S with Dual-signal wires,so can be controlled by the same WS2811/ws2812 controllers
(3)Input voltage:DC12V;
(4)Power:30leds/m----9watt/meter
60leds/m----18watt/meter

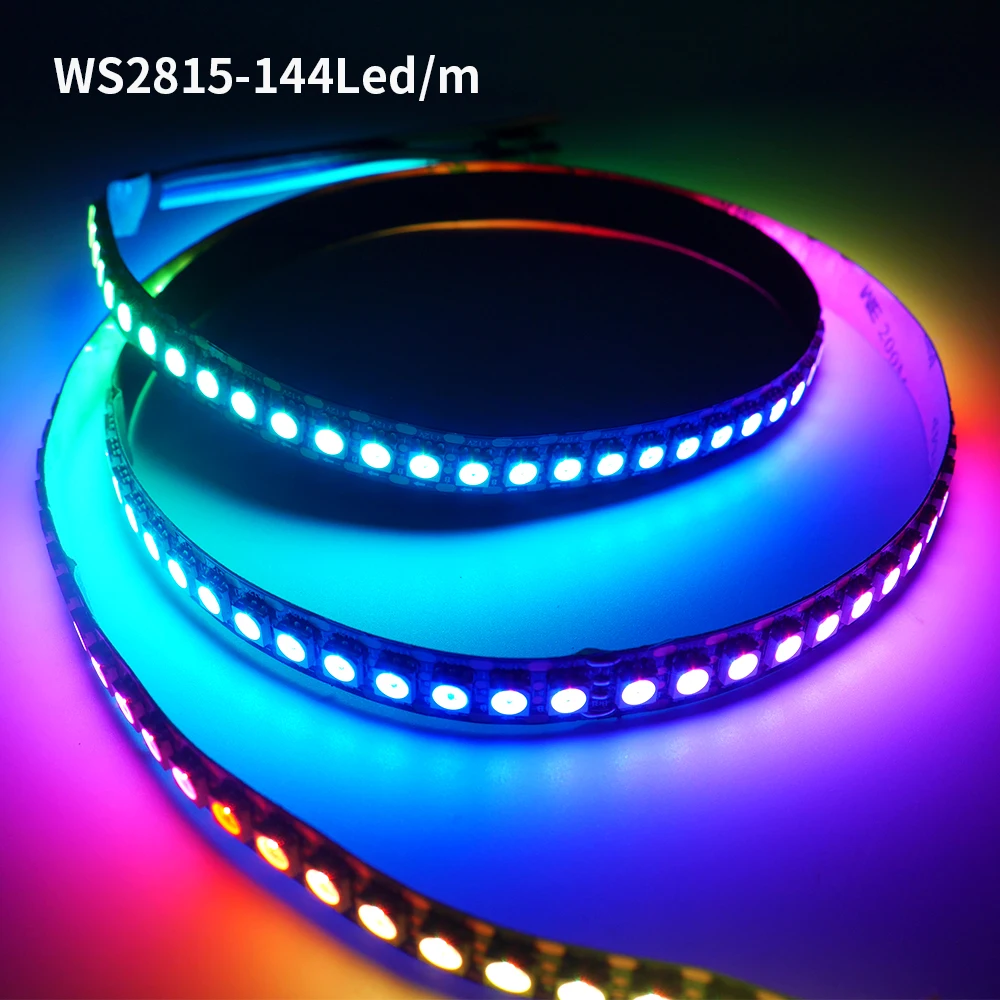

144leds/m----43.2watt/meter
(5)LED resource:WS2815 led(5050 SMD RGB LED with built-in improved version of ws2811 ic)
(6)LED:each LED is separately controlled
(7)IC Type:improved version ws2815 IC(built inside the 5050 smd rgb led)
(8) IC:1 IC drives 1 led chip
(9)Pixels:30/60/144/meter;
(10)Pitch:16.6mm(1000/64);
(11)Grey scale:256
(12)Bits/color:8-bits/color;
(13)FPC Width:30leds/m----10mm
60leds/m----10mm
144leds/m----12mm
(14)FPC color:White PCB、blackPCB
(15)Protection rate：IP30/ IP65 /IP67
(16)Colors: Full color RGB, dream color changing;
(17)Cuttable:every LED is cuttable;
(18)Connector：4PIN connector terminal pair

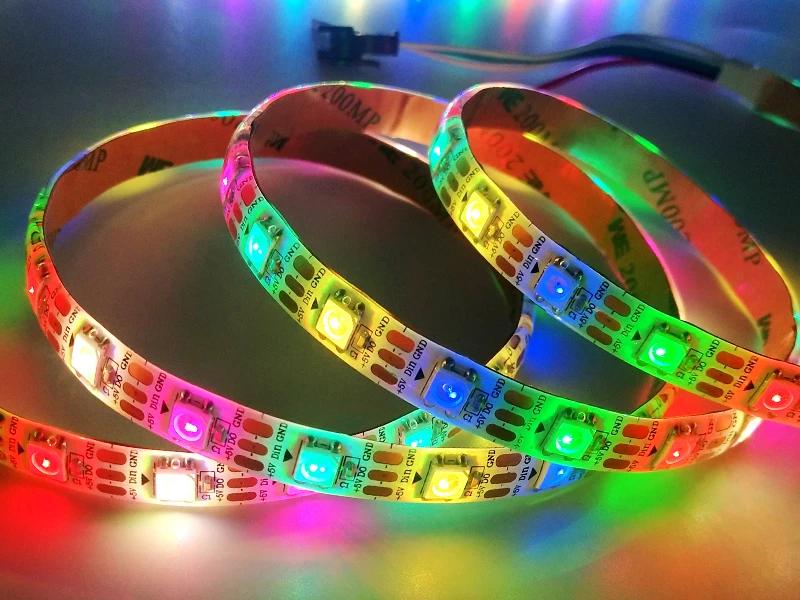

WS2812B description

Features:

(1)Input voltage:DC5v;
(2)Power:30leds/m----9watt/meter
60leds/m----18watt/meter
74leds/m----22watt/meter
96leds/m----28.8watt/meter
144leds/m----43.2watt/meter
(3)LED resource:WS2812B led(5050 SMD RGB LED with built-in improved version of ws2811 ic)
(4)LED:each LED is separately controlled
(5)IC Type: improved version ws2812 IC(built inside the 5050 smd rgb led)
(6)of IC: (1 IC drives 1 led chip);

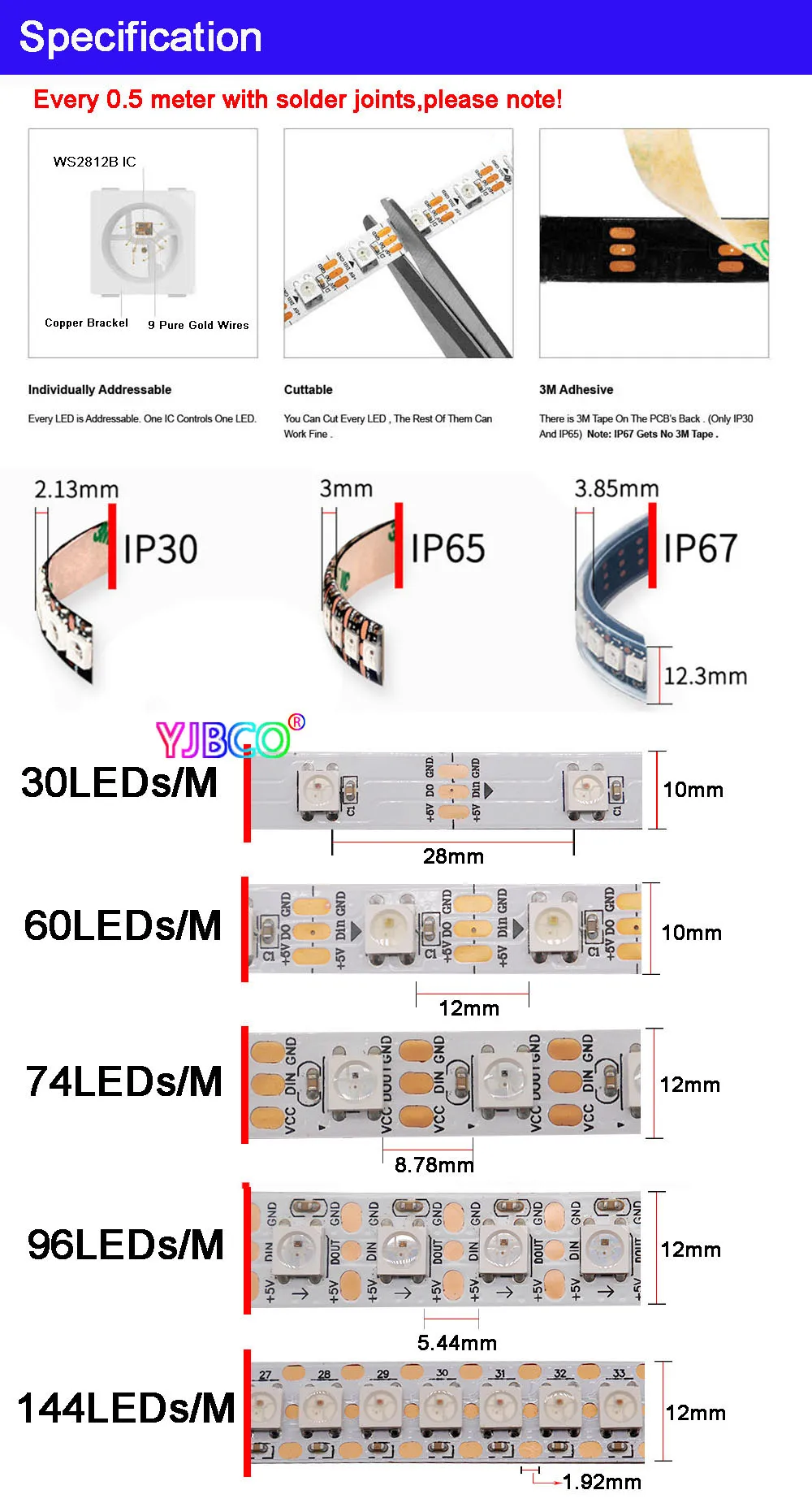

(7)Pixels: 30/60/74/96/144/meter;
(8)Grey scale: 256;
(9)Bits/color:8-bits/color;
(10)FPCB Width: 30leds/m----10mm
60leds/m----10mm
74leds/m----12mm
96leds/m----12mm
144leds/m----12mm
(11)FPC color: BLACK/White

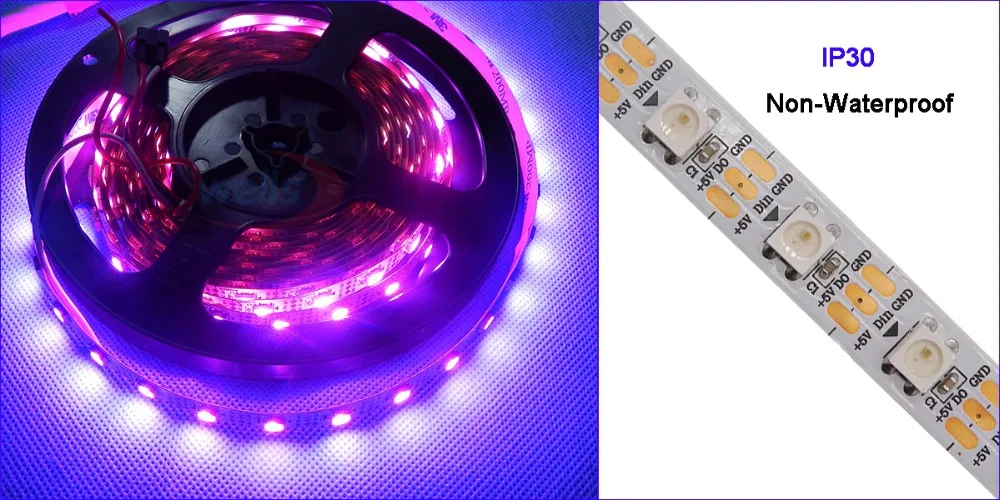

(12)Protection rate: IP30 Non-Waterproof

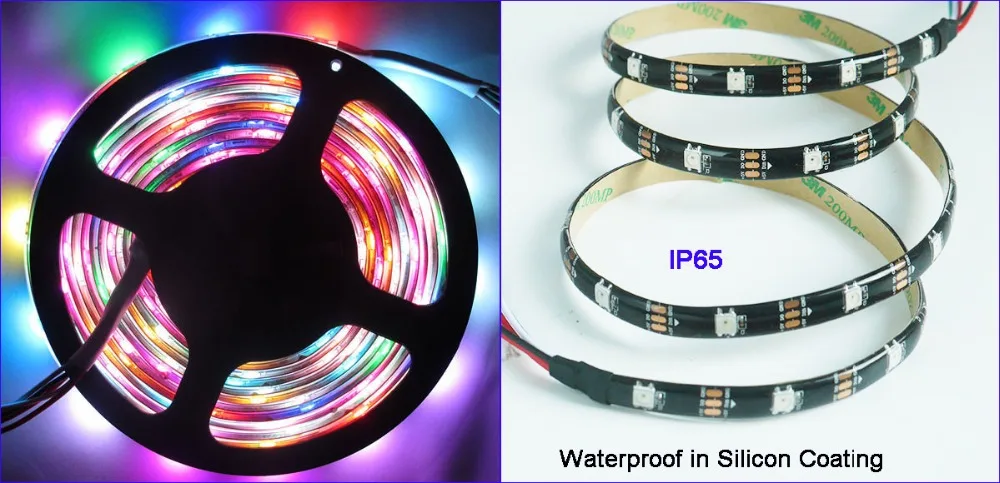

IP65 Waterproof in Silicon Coating

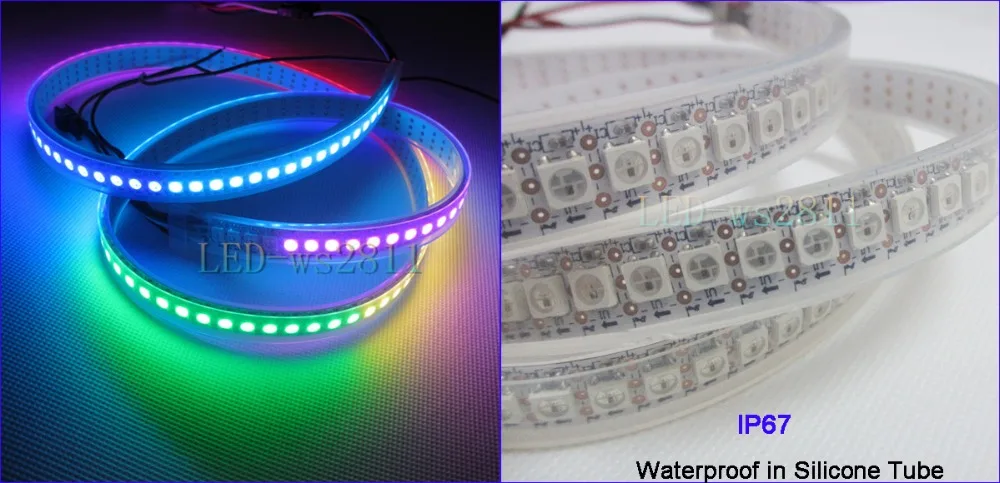

IP67 Waterproof in Silicone Tube
