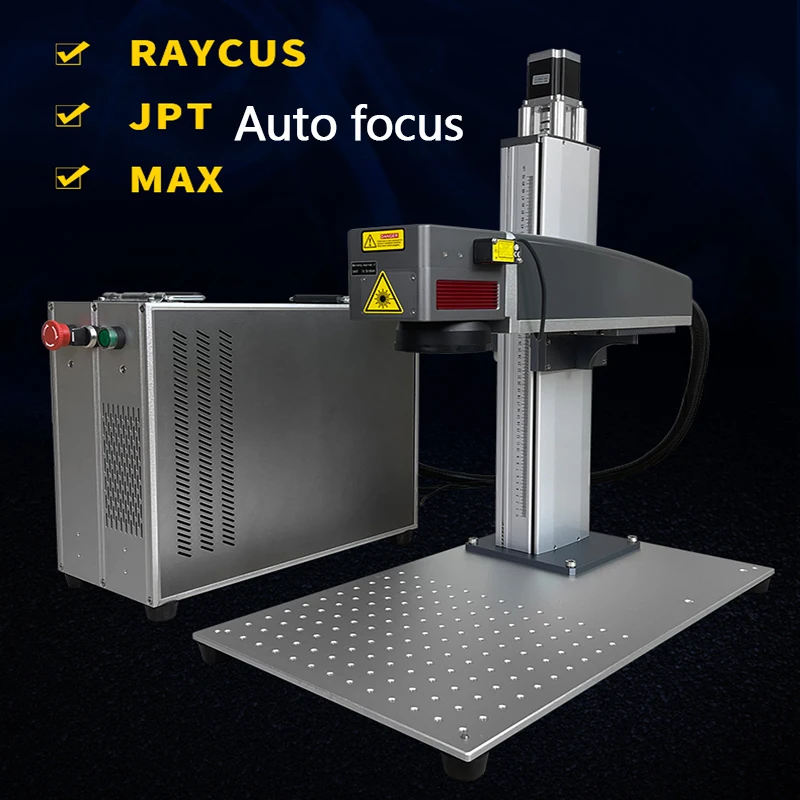

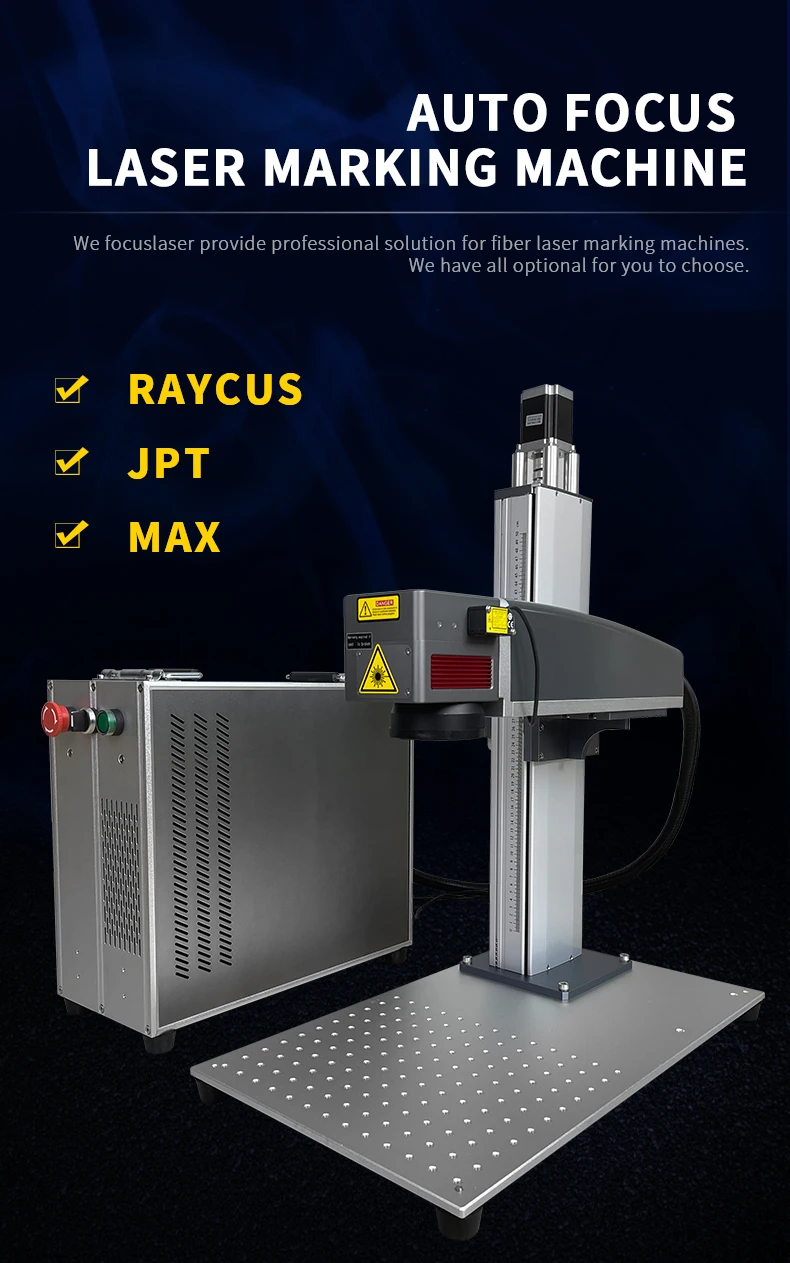

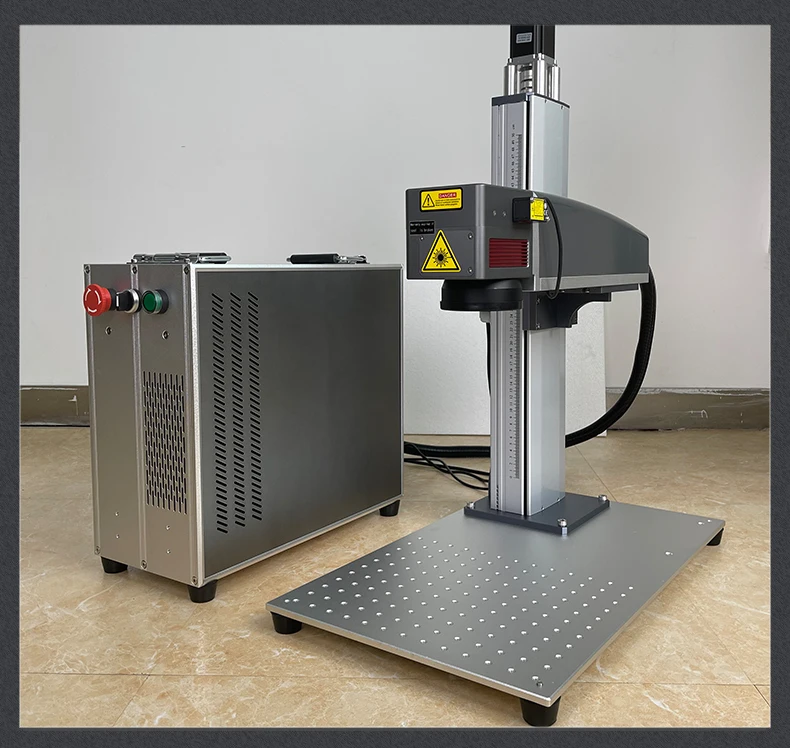

20W 30W 50W Auto Focus Fiber Engrave Laser Machine Marking Cutting Steel Gold Silver Raycus JPT Source BJJCZ Control Card |

20W 30W 50W Auto Focus Fiber Engrave Laser Machine Marking Cutting Steel Gold Silver Raycus JPT Source BJJCZ Control Card |

Data sheet / Configuration

Model

FLFB20W/30W/50AF1

Autofocus

Japan Panasonic

Motorized

Step Motor

Focus detection

Automatic Find Focus Distance

Laser Source Power

20W/30W/50W

Laser module Brand

JPT/Raycus/MAX

Scanner

Focuslaser

Power supply

Taiwan Brand“Meanwell”“HF”

F-lens

Singapore WavelengthF-theta

Key switches

CE imported components made

Pulse Repetition Rate

1-600KHZ

Operation Windows

WIN 7, WIN8, WIN 10 32 bit/64bit

Control software

Genuine EZCAD2

Format Supported

BMP, JPG, GIF, TGA, DXF, PLT, PNG, TIF, AI, DXF, DST, etc.

Beam Quality ㎡

<1.1

Operating Voltage

AC 110V/220V  50/60HZ 5A

Laser Wavelength

1064nm

Engraving Range

110*110/175*175/200*200/300*300mm

Repetition Precision

±0.003mm

Engraving Speed

≤9000mm/s

Minimum Line Width

0.01mm

Character Size

0.5-110mm

Cooling System

Air Cooling

FLmark control software

1 copy

Working Temperature Range

10-30℃

Driver for rotate

Yes

Net Weight of Machine

45kg

Packing Weight

65kg

Fast Speed 9000mm/s

Digital Galvanometer Scanning Head Fast Speed ＜9000mm/S With Focuslaser Brand Selected High Scanning And Accuracy. We Also Installed Heat Transfer Sheet（Red One），This Will Release The Heat As Soon As Possible. In This Way Will Make Sure Inside Scanner Head Temperature Is Cooling Faster To Get A Better Performance.

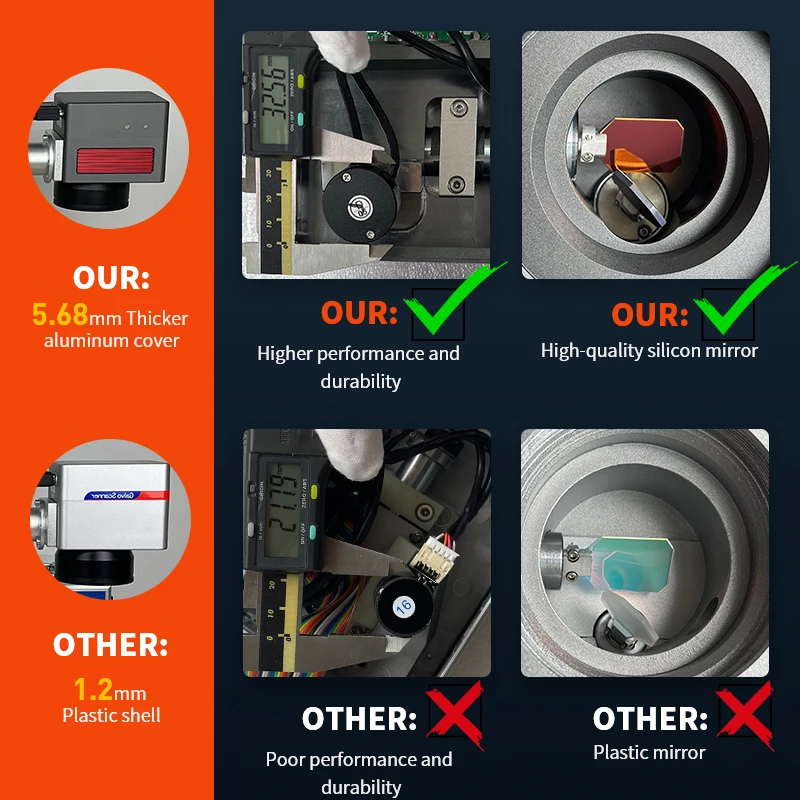

Thick Aluminum Scanner Head

We Make The Scanner Head With High Quality Aluminum And Connection Wall Thickness Up To 5.68mm，Under Scanner Wall Is Nearly Up To 10mm.

High Quality Motor

Bigger High Quality Motor To Ensure Higher Performance，Make Our Machine More Faster And Durable Compare With Other Scanner Head.

High Quality Si Mirrors

Si Mirrors Installed Which Is More Durable And Less Reduce Power Than Glass Mirrors. This Is About 10 Times Durable Than Glass Mirrors. But Cost Is More Expensive Than Glass. However，Reflection Effect Is Great Advanced Than Glass Mirrors.

Lens

We Choose Famous “Singapore Wavelength”Focus Flied Lens To Ensure Best Coating Materials On The Lens To Get A Best Engraving Result. If Use Unknown Brand Lens Can Not Ensure Better Engraving.

Laser Source

Fiber Laser Source We Choose Raycus, JPT, Max With Detail Selected Laser Source With High Quality Spot Size And Long Lifetime Over 110,000 Hours Running. Like 8 Hours A Working Day Running More Than 30 Years.

Red Dot Pointers

Red Dot Pointers We Choose Best Quality With Insulation Out Coating Materials To Ensure Long Time Use, With Inner And Outer Red Laser Dot Which Compare With Scan Head Inbuilt Type Small Red Dot. Big Professional Red Dot Pointers Are Durable And Easy For Future Maintain. We Also Make A Fast Plug For Fast After Sales Service If Needed.

BJJCZ Original Control Card

BJJCZ Original Control Card With Lasted Version 2.14.11 Support Windows 10 64 Bits Computer. Very Easy Use And User Friendly Operation With A Better Anti Interference Ensure Highest Stability.

Power Supply

Famous Taiwan “Meanwell”“HF”Power Supply Adopted With Most Stable Continues Power Supply Energy With Longest Lifespan Use.

We focuslaser high educated engineers make machines with heart for these detail we can see it takes time to make a good machine.

Aluminum Pillar

Aluminum Pillar With Ball Screws Inside Over 500mm Travel Distance To Ensure Enough Height Use For Many Kinds Of Engraving Objects.

Switches And Buttons

Switches And Buttons：Imported Adopts Taiwan Famous Brand With Longest Turn On And Turn Off Times. Compare With Other Competitors No One Use Such Expensive Switches And Buttons. Emergency Stop: Press Down To Cut Off All Electric Of Machine For Operator And Products Safety. Key Switch: Control Main Power Of Machine. We Can Use A Key Or Without Insert A Key Type To Avoid Loosing The Key. Red Light Indicator Button: Turn On And Off Red Light When Necessary. Such As When Make Positioning Red Light To Bright Can Turn Off，Can Save Red Light Laser Lifetime.

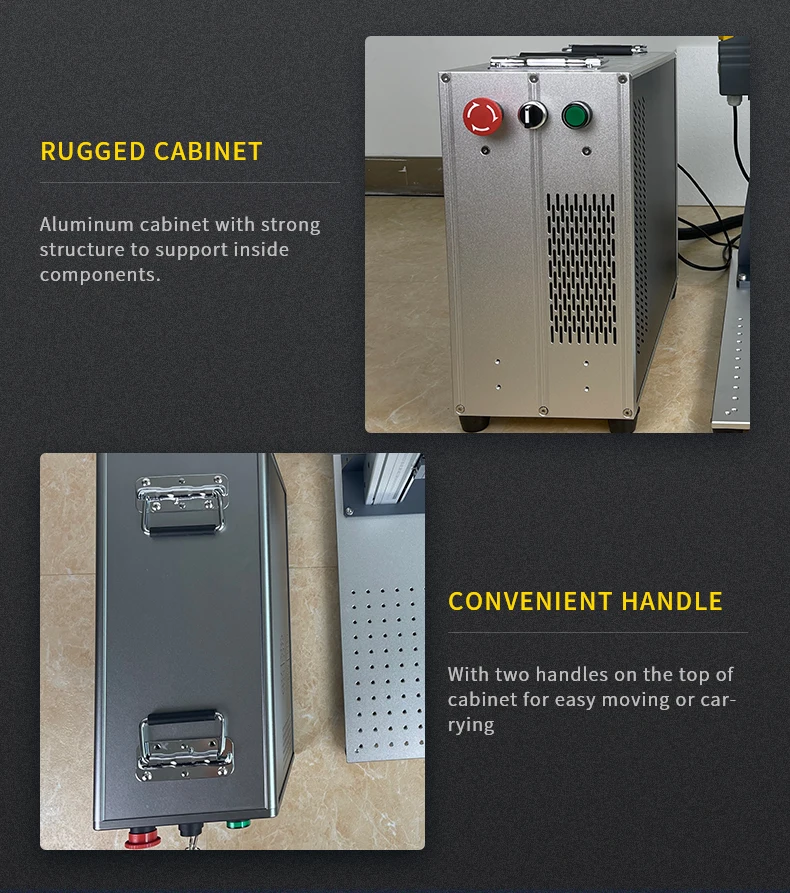

Aluminum Cabinet

Aluminum Cabinet With Strong Structure To Support Inside Components. With Two Handles On The Top Of Cabinet For Easy Moving Or Carrying.

Ezcad2 Software

Ezcad2 Software: Support Latest Windows 10 64 Bit, 2.14.11 (Updated On 23rd,November, 2020) Compatible With CorelDraw Files Such As .Plt, .Ai, .Dxf,. Dst, .Svg, .Nc,.G, Gbr , .Jpc, And Pictures File Such As: .Bmp, .Jpg, .Jpeg, .Gif, .Png, .Tif, .Tga Ect. Support All The Language: English,French,German, Korea, Arabic, Portuguese,Japanese ,Russian,Spanish,Brazilian,Mexican, Italian Etc.
