Introduction:

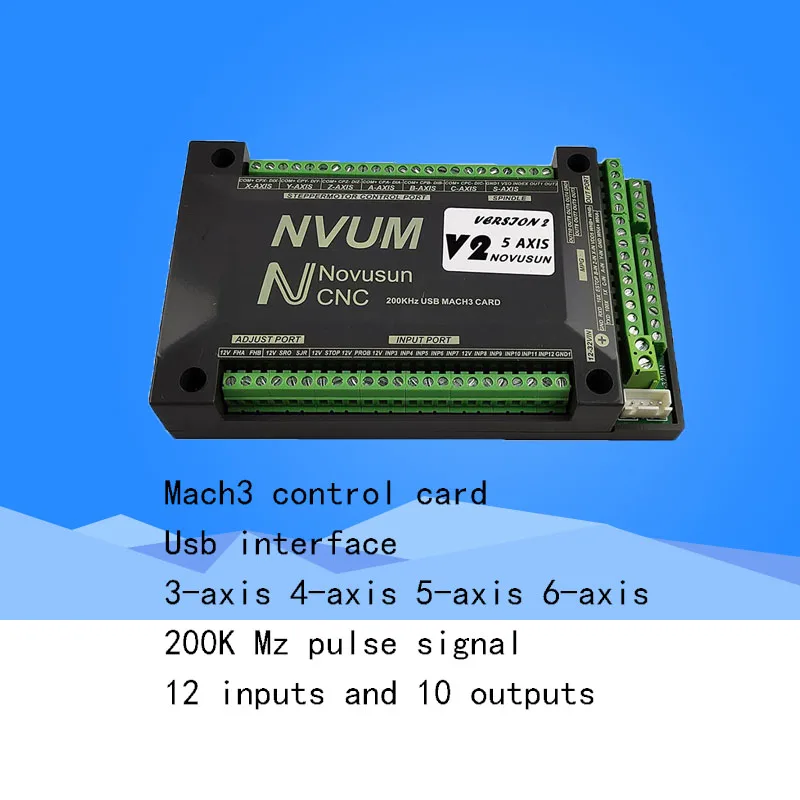

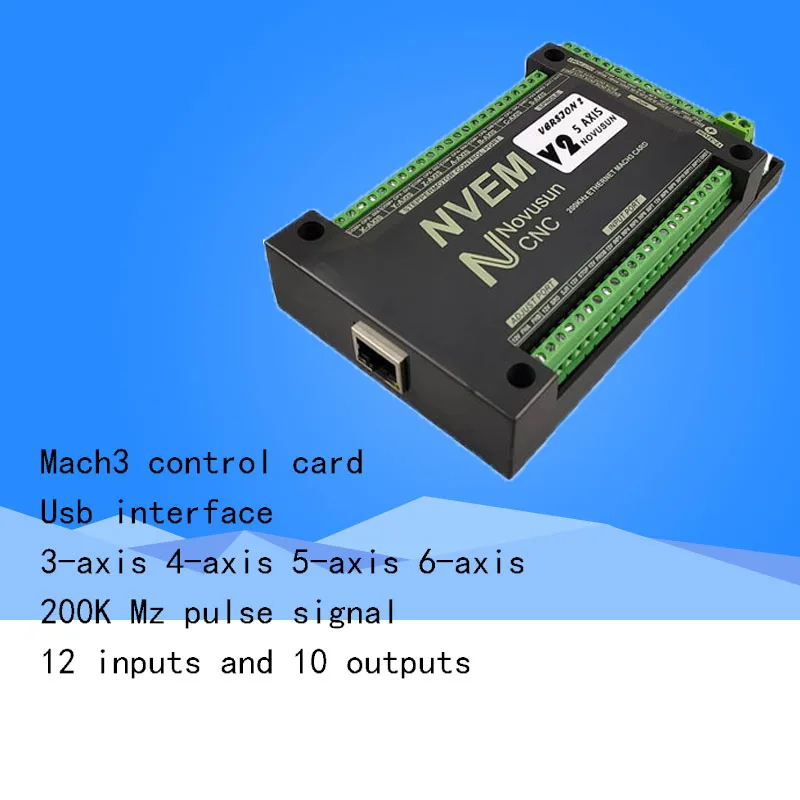

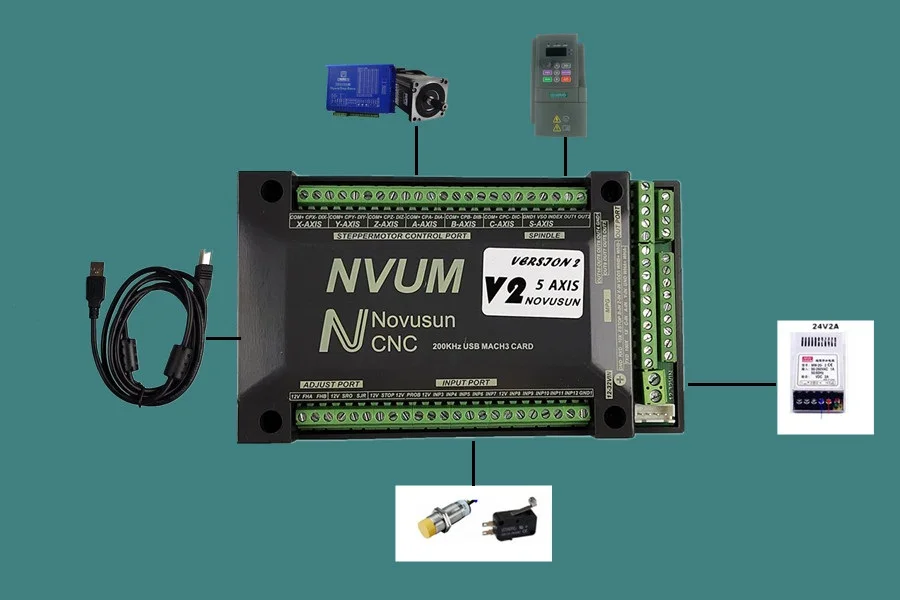

NVEM/NVUMV2.1 is a 3-6 axis motion controller. It supports Mach3 software and standard MPG, and communicates with computers through Ethernet and USB, only by using Twine to connect directly or transmit with routers. The motion controller of NVEM/NVUMV2.1 adopts ARM design framework. ARM design includes communication, collaborative analysis, underlying algorithm and pulse generation. Reasonable design, reliable control and convenient operation. .

Features:

 12 ports photoelectric isolated input interface for ordinary digital data；  10 ports photoelectric isolated output interface for ordinary digital data；  1 port 0-10V spindle speed analog output interface(can change to PWM output)  can support 3-6 axis stepper systems,200KHz pulse output for every axis；  ARM motion control chip；  main device is 12V-32VDC power supply input,current should higher than 0.5A；  Compatible with MPG input,support the digital display MPG from our company。

Overall dimensions:

NVEM/NVUMV2.1 motion controller is with the sealed shell structure,there are 4pcs setting holes at the bottom.We can fix 4pcs 4mm diameter holes at the cabinet,and install the controller into the cabinet. The products overall size is 163.1mm*80.8mm*27.8mm； The bottom install size is 101.4mm*39.5mm。

Introduction:

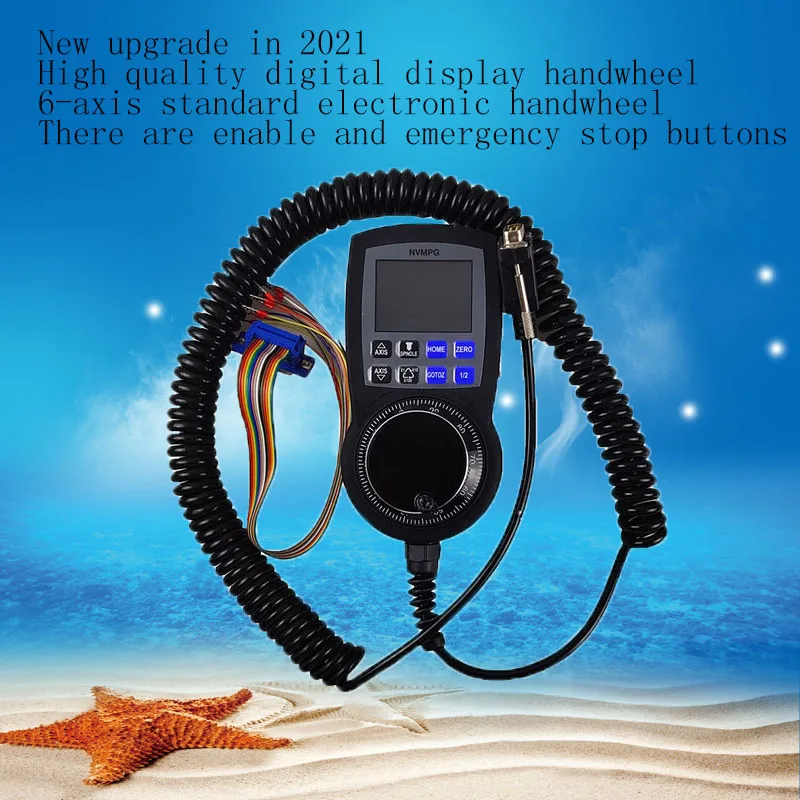

This MPG has a screen and 10 buttons. Coordinates and other parameters are displayed on the screen. The user can change the axis and speed through buttons. E.g. ZERO/ GOTO0/HOME on the button. The encoder of NVMPG is the same as general MPG. But the choice of axis and speed Use USART ports instead of universal ports.

Features:

High performance, low prices 2.2' TFT Screen 10 buttons Voltage 5VDC 8 wire control line 6 axis coordinates /RESET/FRO/SRO/SJR/SPINDLE are display on the screen

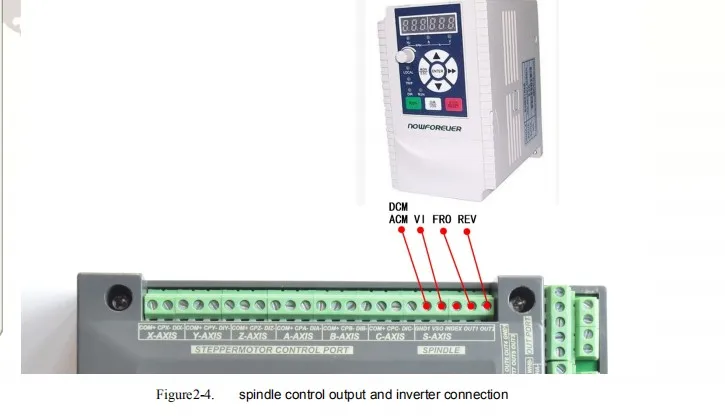

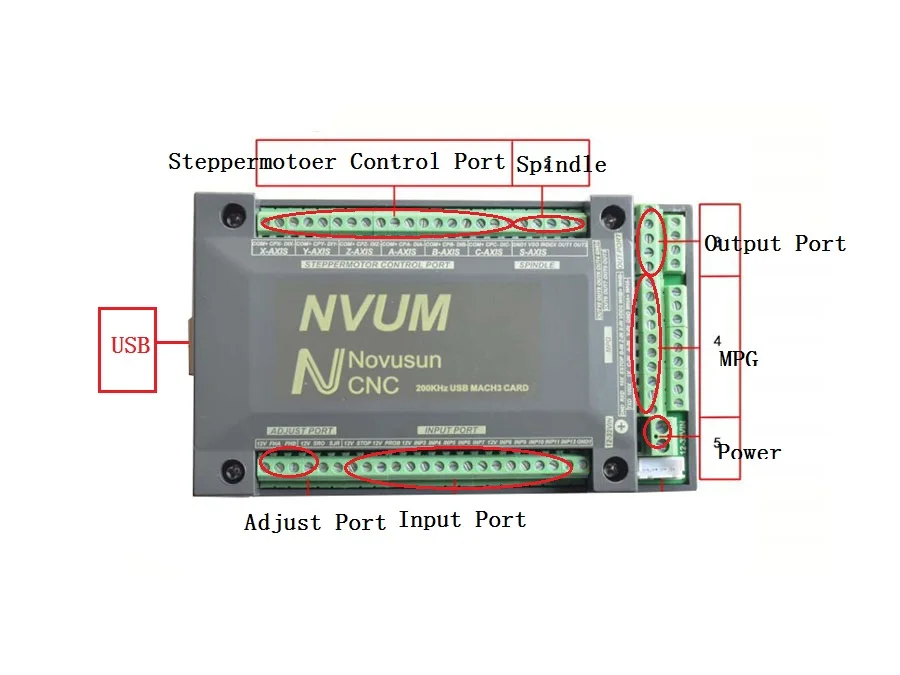

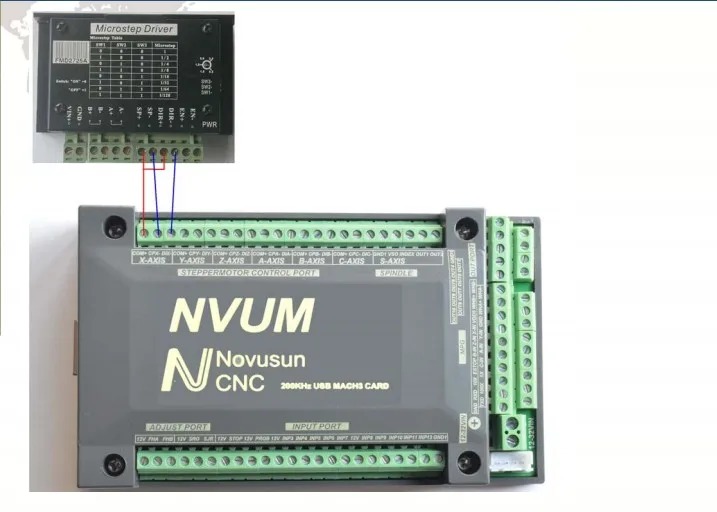

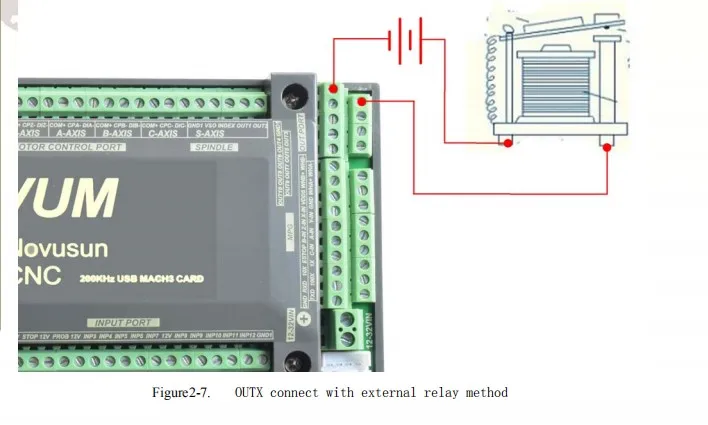

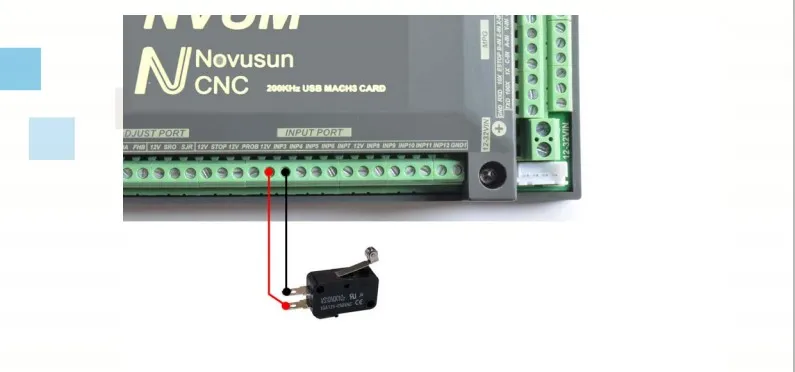

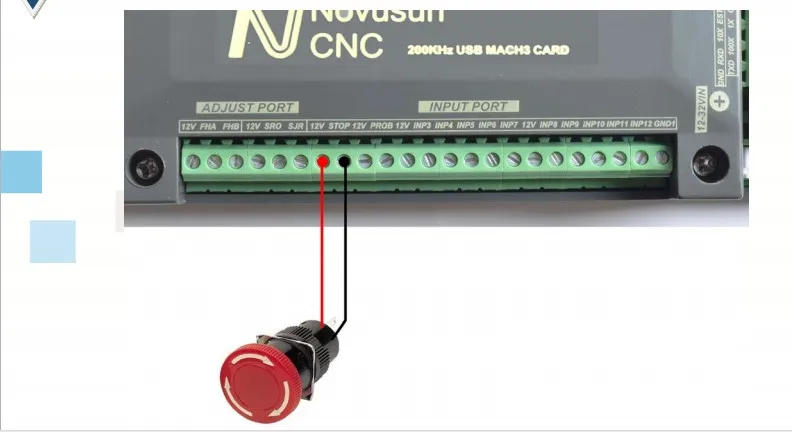

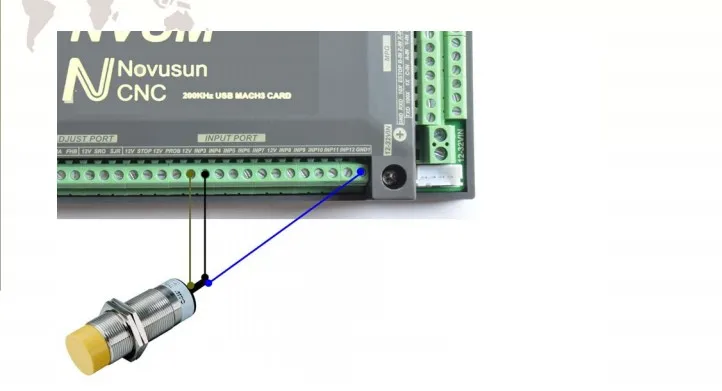

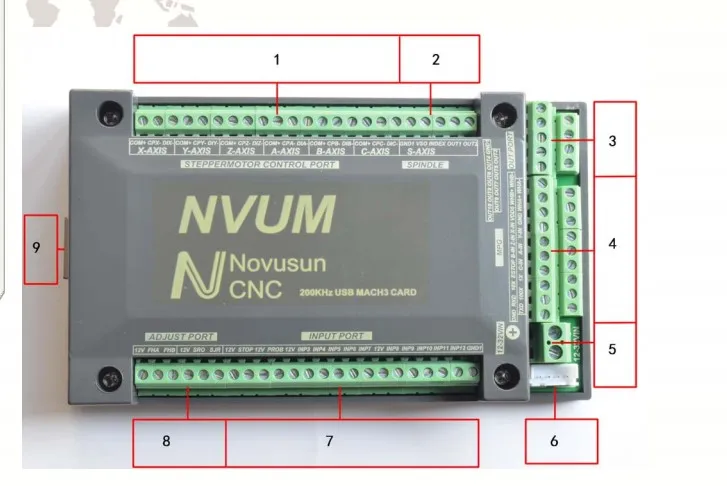

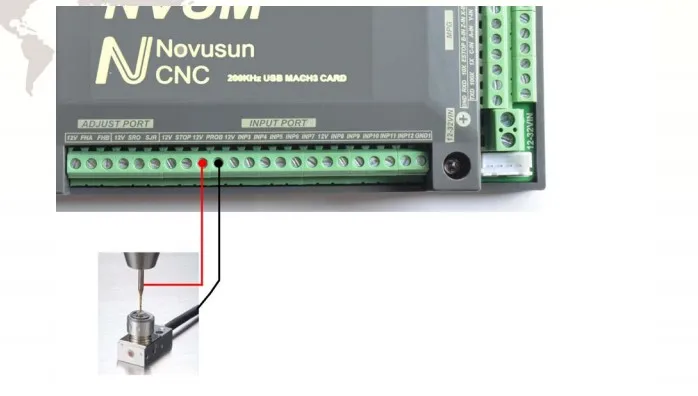

Introduction of control card wiring:
