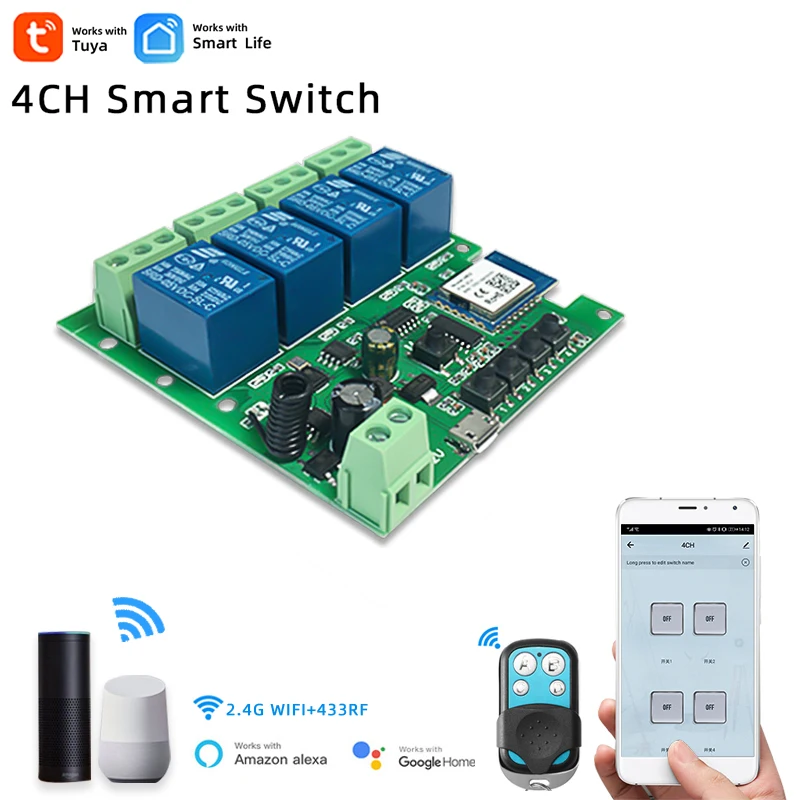

Wifi 4 Channel Relay (Three Working Modes)

Use for

1.Remotely give a pulse signal to turn on/off Lights,Lamps and other home appliance.

2.Remotely give a pulse signal to turn on/off Garage Door,Door Access

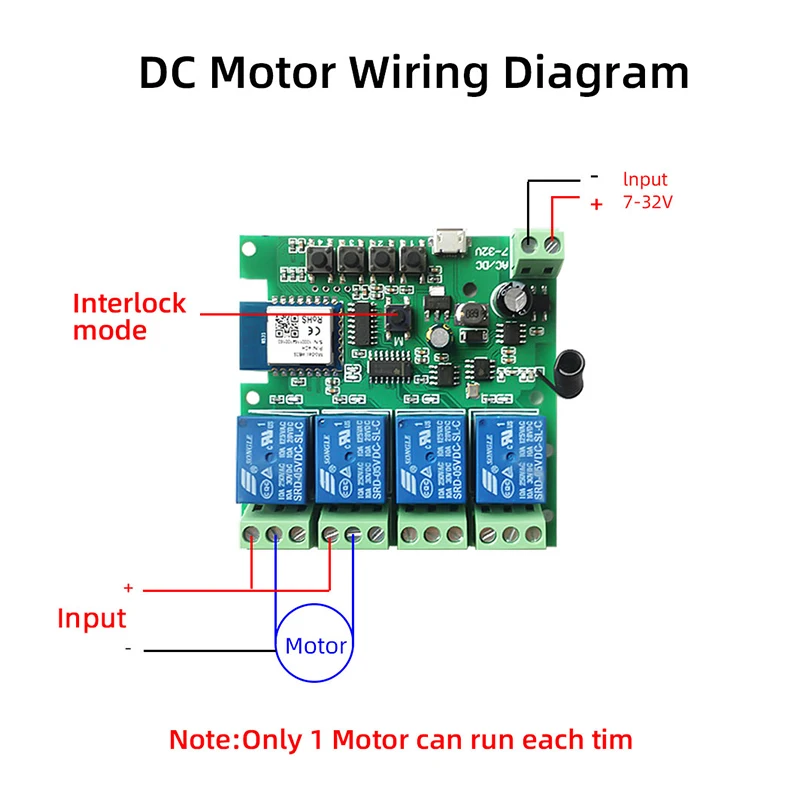

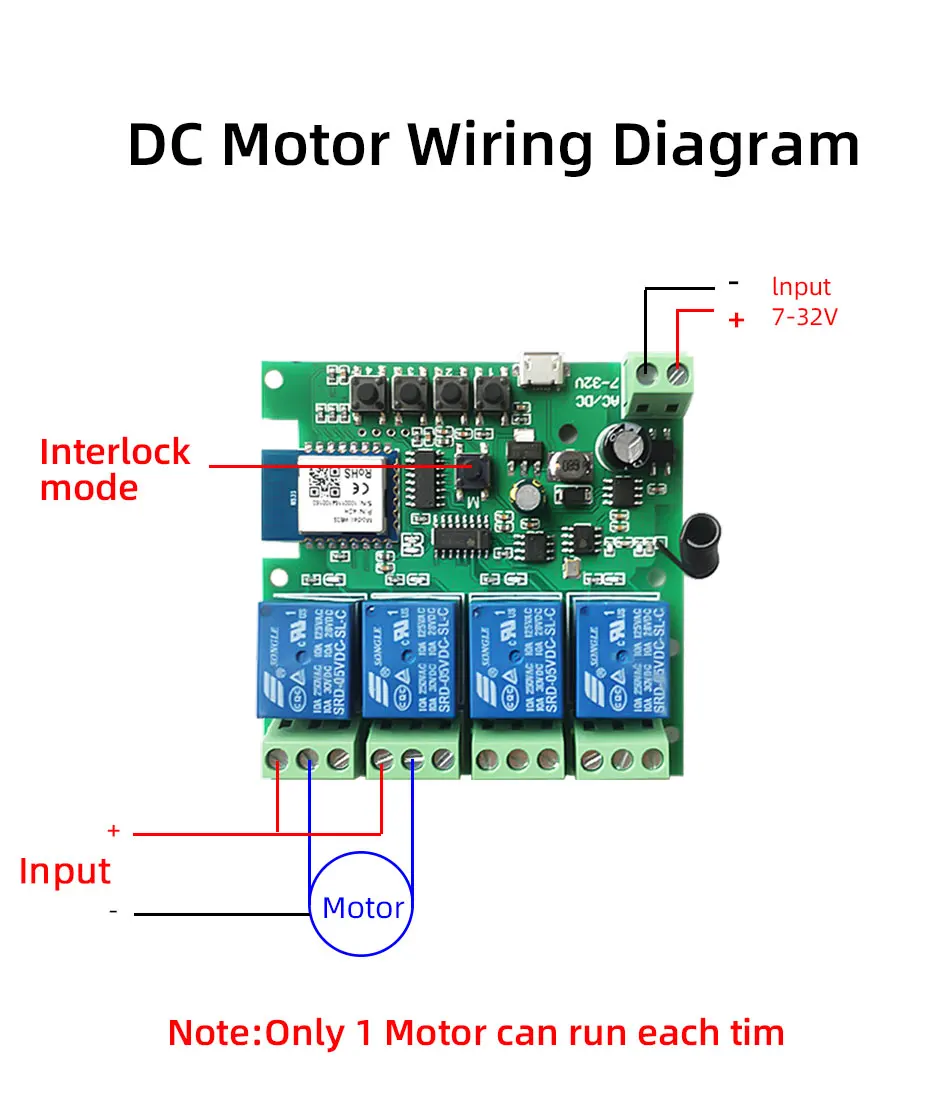

3.Remotely give a pulse signal to control DC Motor,AC Motor to Forward and Reverse

The RF433 remote controller don't include battery
battery type;27A 12V,
The picture of the battery is in the end of the page.

Note

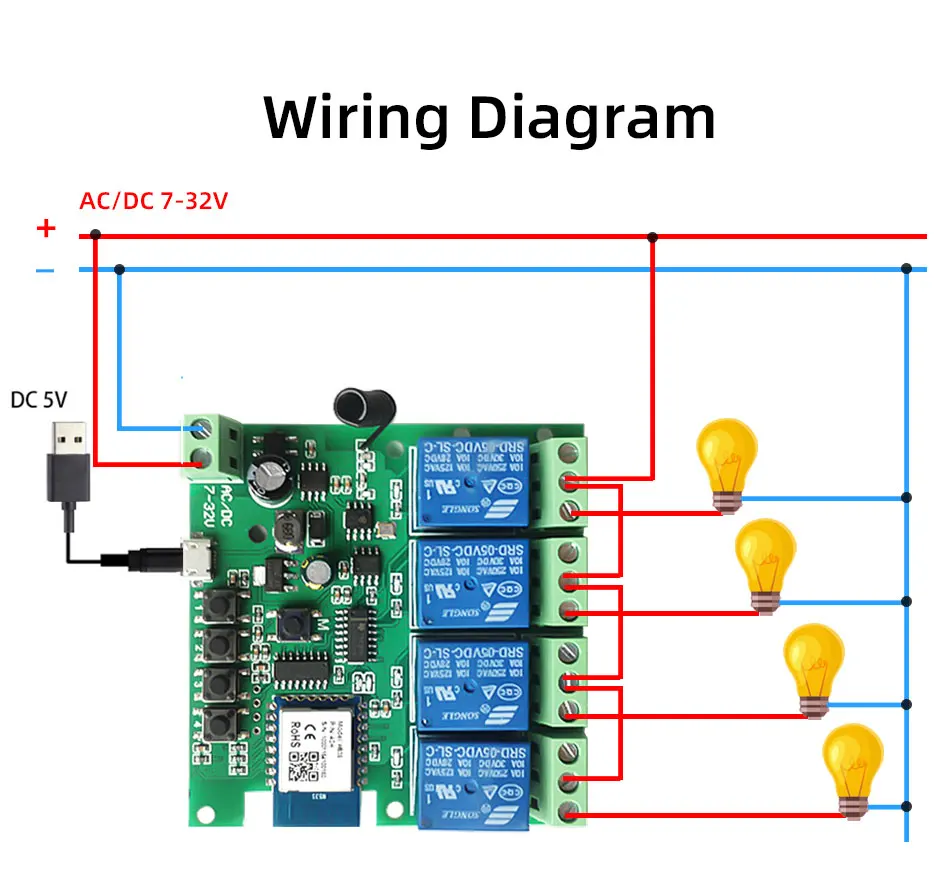

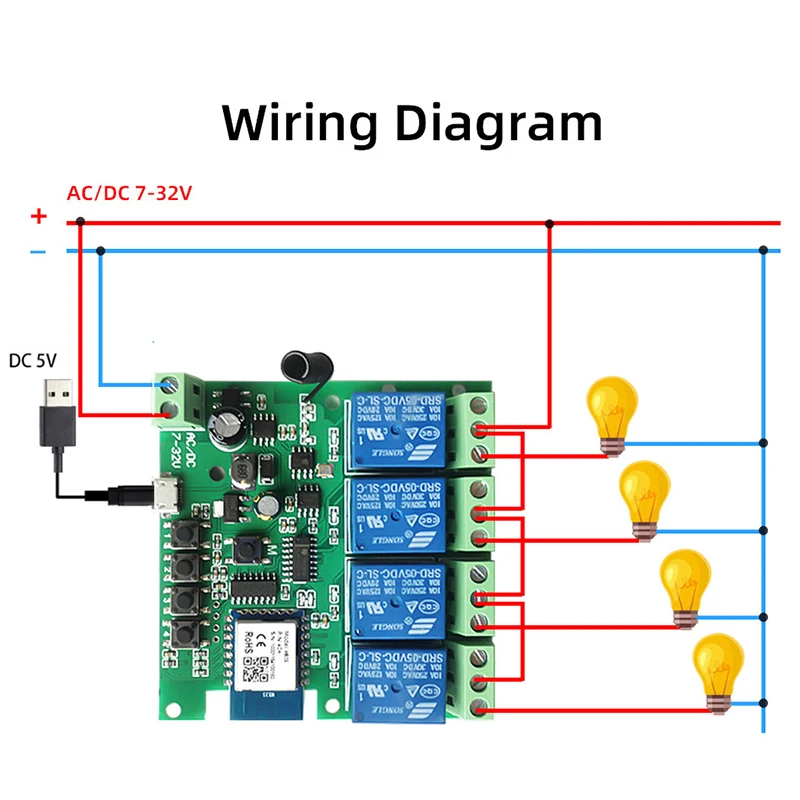

1.The WIFI module is passive output(Dry contact), No matter the power you supply in the input, the output don't have any voltage, you also need to supply power in output.
The power supply in the input just can make PCB board work.if you do not supply power in output, the connectted device can't work.

3 Working Modes

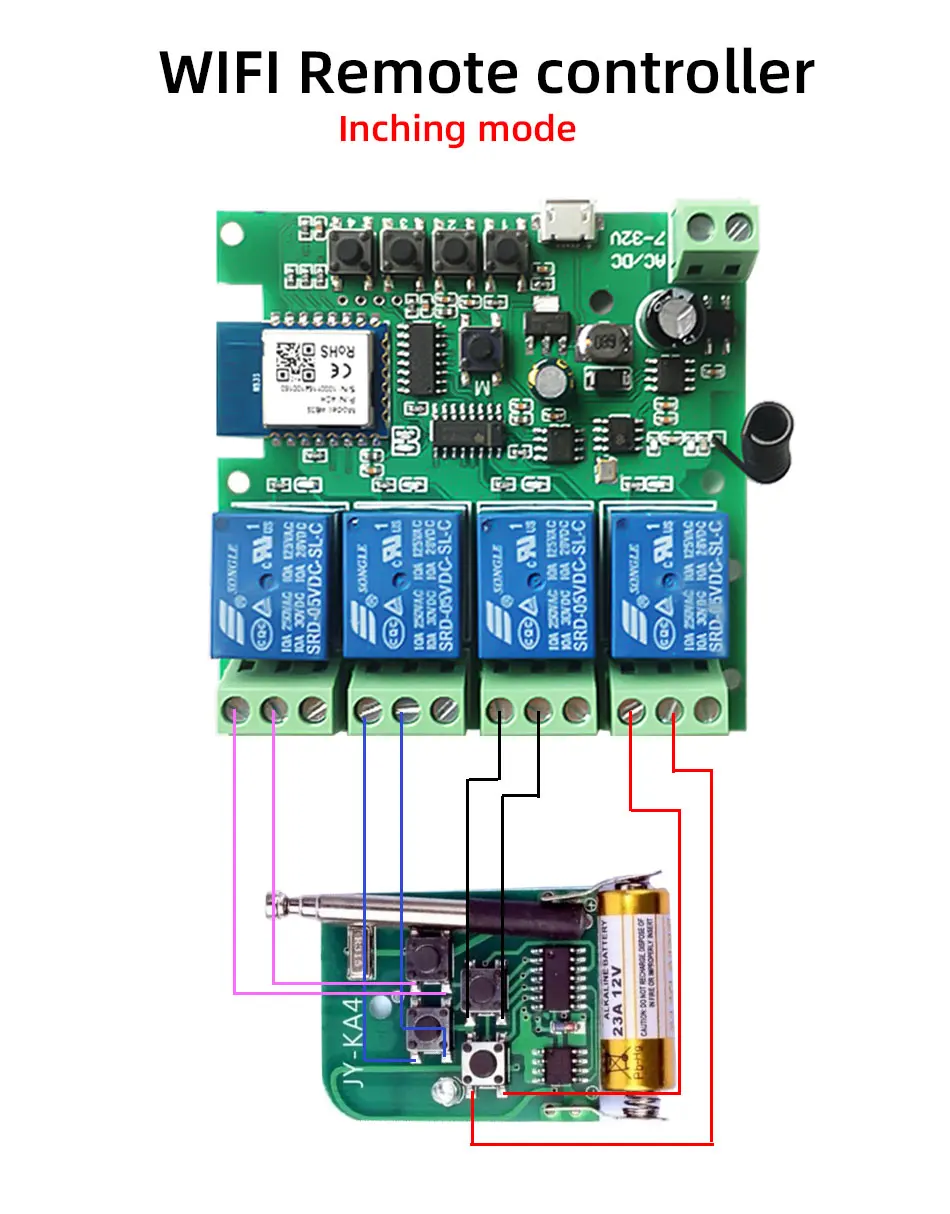

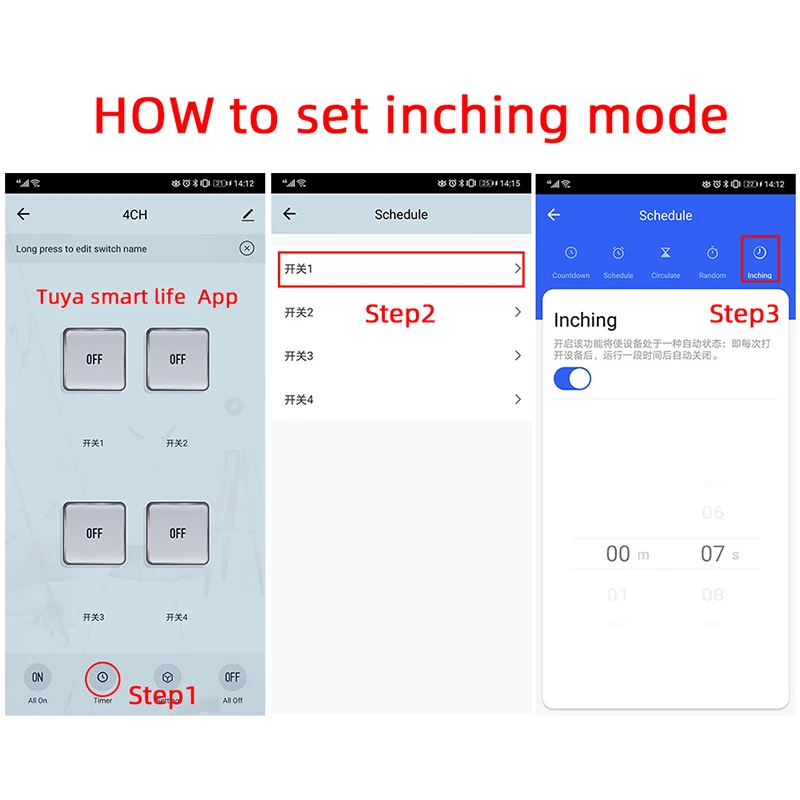

Inching mode :
Switch on one channel ,the channel will be automatically closed after 0.5 seconds . Other channel is same to the channel .

Self-locking mode :
Each channel could be switched on/off seperately .You also can turn on/ off all channel at the same time.

Interlock mode :
Switch on any channel , other channels will be switched off automatically .

You could press the mode button to change the working mode.

Features:

【Two Input Ports】
You could choose USB 5V port or the screw terminal port to supply power in the input to make the pcb board board work.
【Dry Contact/Passive Output】
No matter the power you supply in the input, the output don't have any voltage
If you do not supply power in output port, the connectted home appliance can't work, you also need to supply power in output.
【Timer】
The connectted home appliances can be automatically turned on/off according to the time schedule.
Each channel can set different time schedule.

Different Ways to Control the WIFI Module

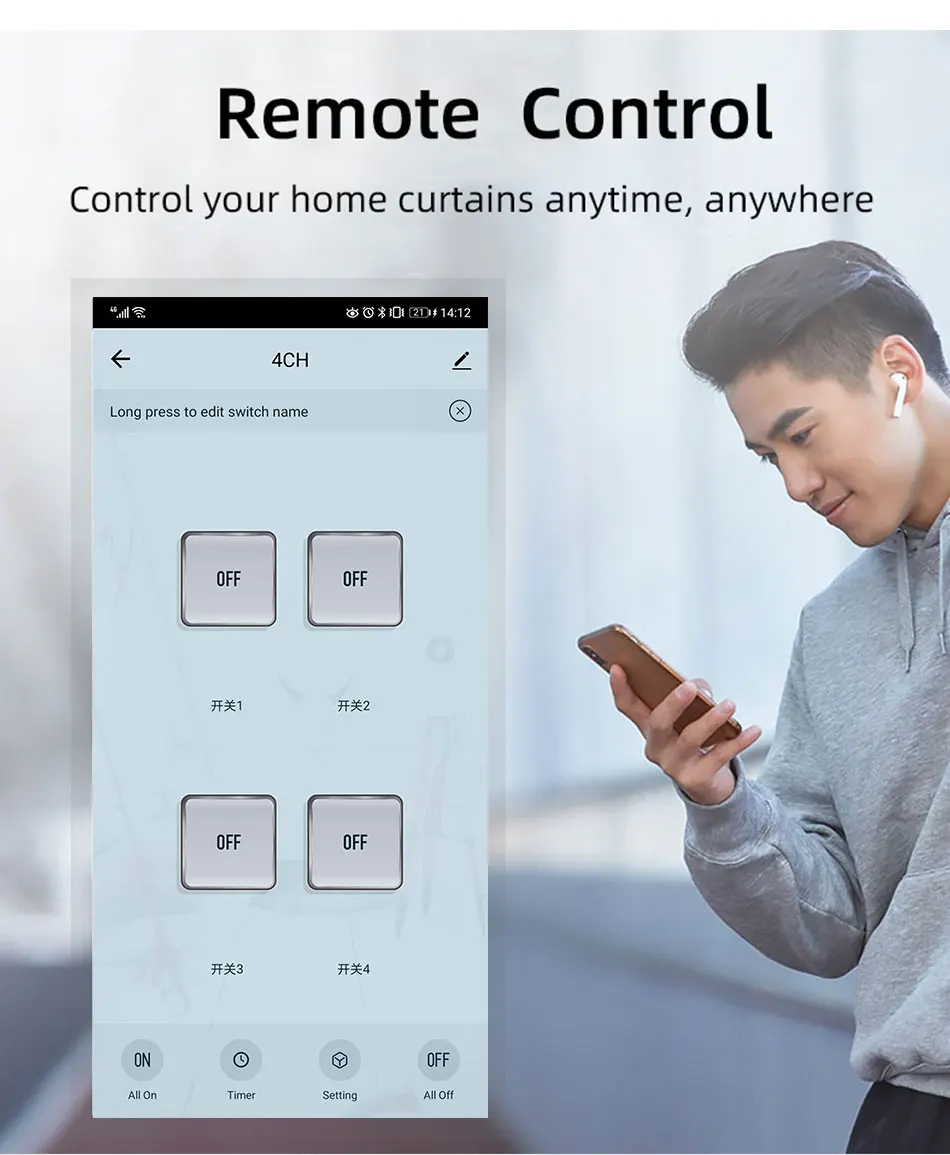

【APP Remote Control】
You can control the connectted home appliance in Tuya or smart life APP anywhere and anytime.Such as light, electric kettle, electric rice cooker, electric curtain, etc.
【RF433 Control】
The WIFI Module support RF433 Frequency,and you can control the WIFI module by fix code EV1527 RF433mhz remote controller.
【Mobile Phone Control】
When you go outside or at home ,you could control the device in your smart phone by 2G/3G/4G Mobile Network or WIFI.
(Note:The router need to online and the WIFI module need to keep a close distance with the router and keep WIFI connection with the router)
【Voice Control 】
Compatible with Alexa and Google Assistant, you can use the voice control to turn on/off the connectted home appliances .
【Share Control】
One device can control by Multiple phones,you can share the wifi module with your family.
【Group Control】
one phone can control Multiple smart device.You can add the wifi module and other smart device in a group,and then you can turn on/off all smart device at the same time.

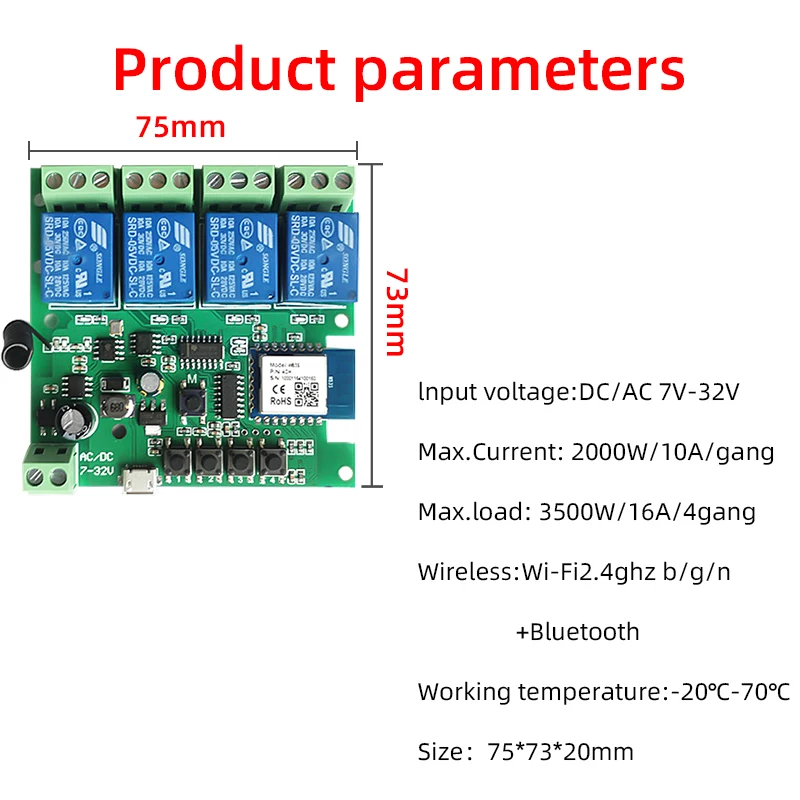

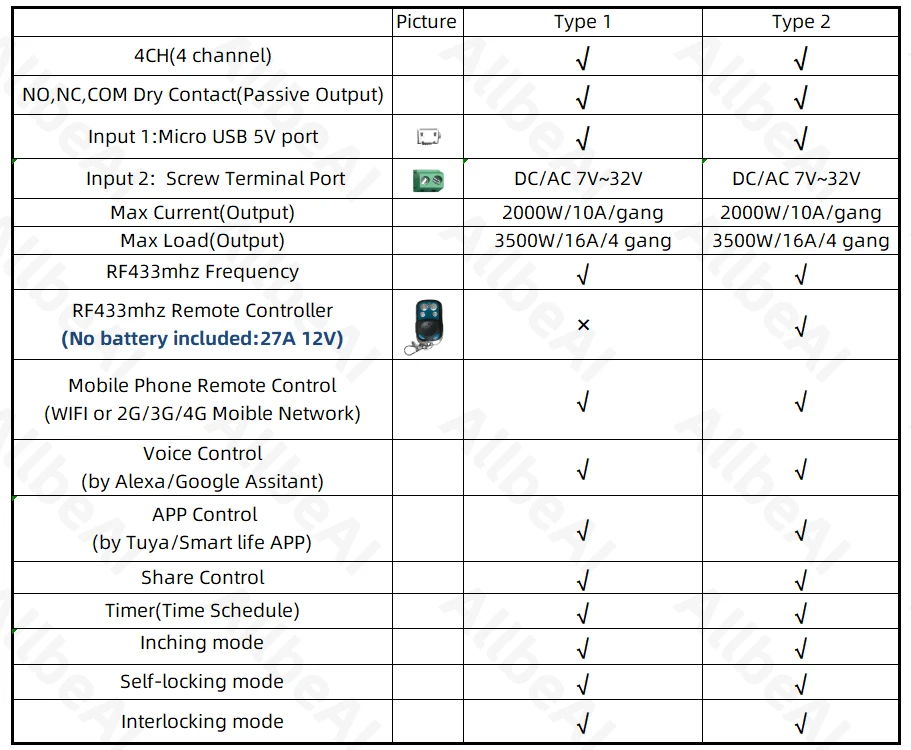

Description:

Input 1：Micro USB 5V
Input 2 (screw terminal ):DC/AC 7-32V
NC,NO,COM Output:Passive output(Dry Contact)
Working frequency: 50-60Hz
Working temperature: -20-70℃
Wifi standards/ protocol :IEEE 802.11 b/g/n, WIFI 2.4Ghz
Total load power: 3500W/10A/4 gang
Max Output Currect:2000W/10A/gang
Application: Amazon Alexa Google Assistant
Size: 75*73*20 mm

APP Remote control

You can remote turn on/off household appliances via app Tuya/Smart life anywhere anytime, Also can set timing schedules to turn on/off the household appliances , such as lights, celectric curtains ,electric curtains fans.

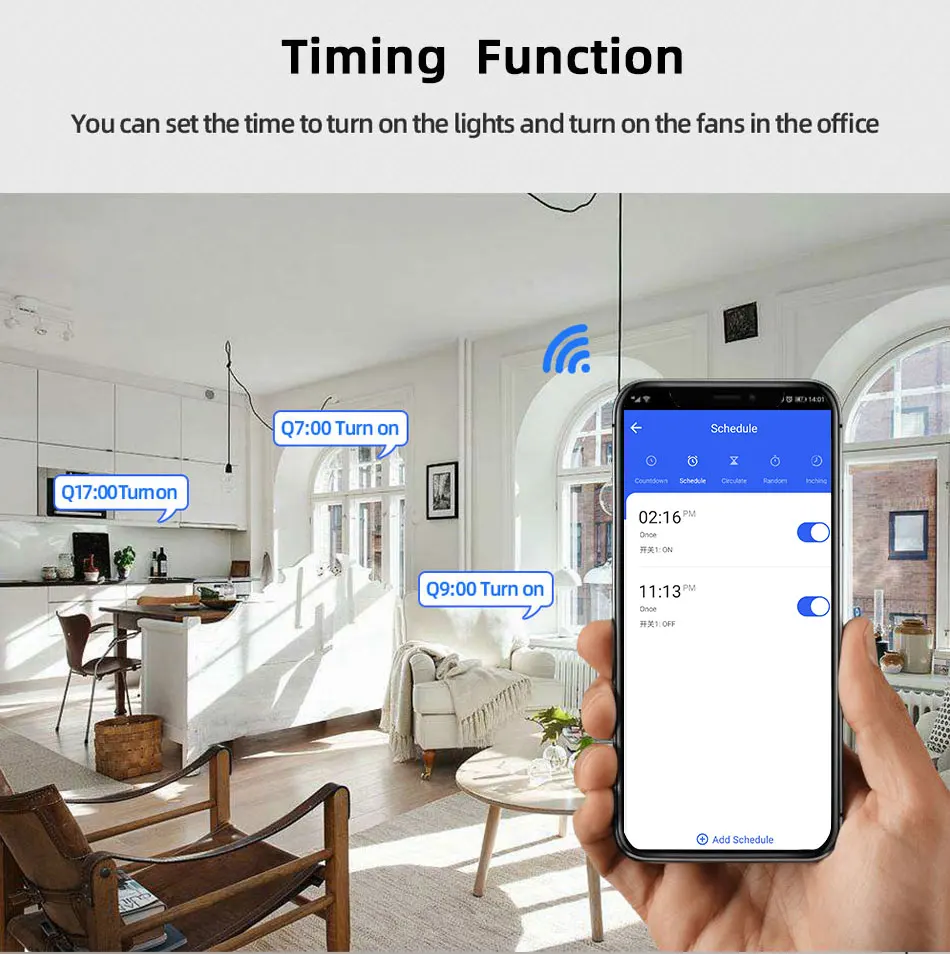

Timing Fuction

Via app,you can set time schedules to turn on/off the household appliances , such as lights, celectric curtains ,electric curtains fans.

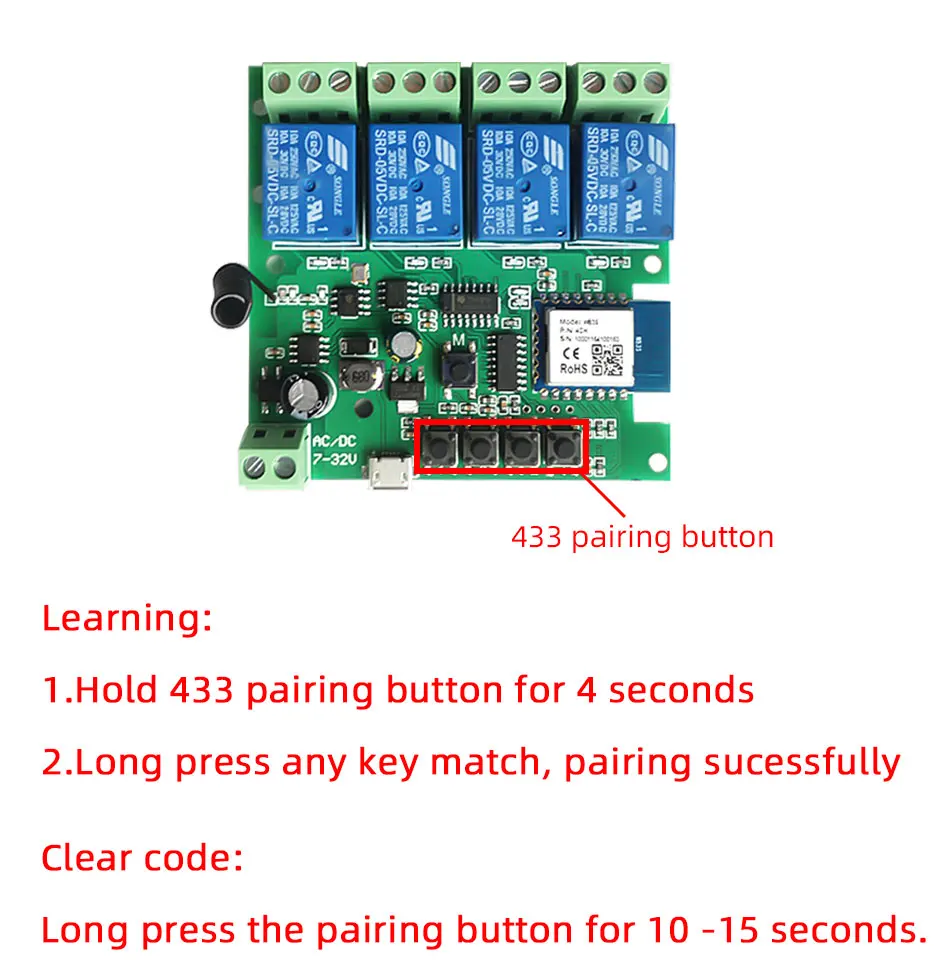

How to pair the RF433 remote controller with the device

1.Long Press the RF433 pairing button for 4 seconds,and wait until the blue led indicator turn on
2. Quickly press any key of RF433 remote controller, and then you can pair one channel with RF433 remote controller successufully
If you need to pair other channel and other button of RF433 remote controller,you need to repeat the step.

How to clear the pairing between the RF433 remote controller and the device

How to clear the pairing between RF433 remote controller and the device
Press the pairing button for 10-15 seconds,and wait until the blue led indicator turn off

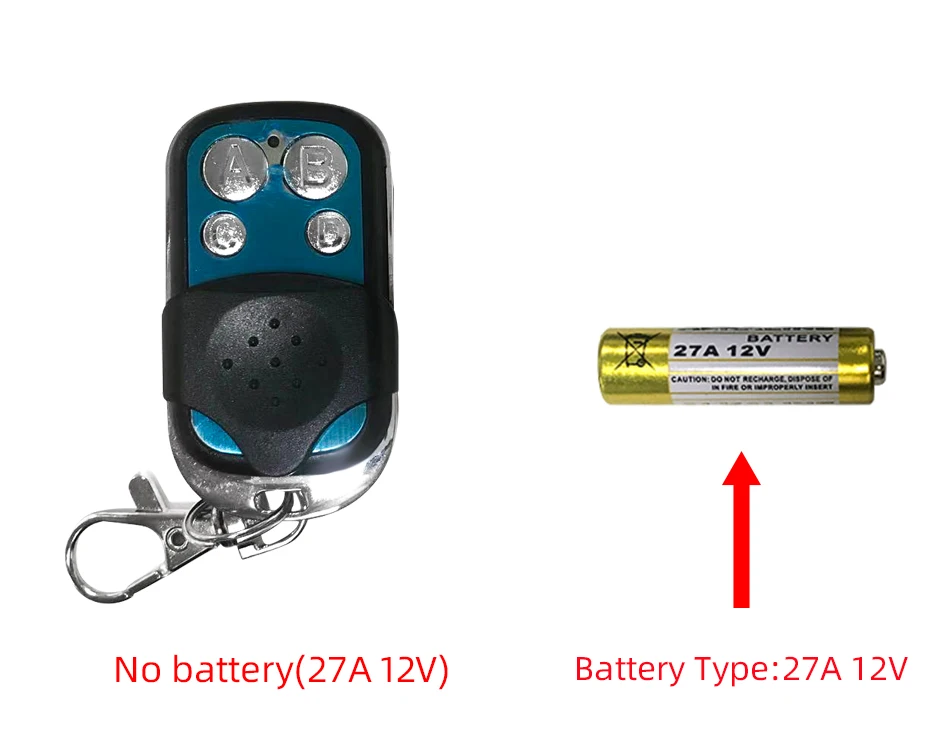

The picture of Battery( Not included)
