Мини-PCIe к USB 3.0 адаптер PCI Express 4 порта 3 USB3 USB3.0 контроллер расширительная карта с кабелем.

Мини-PCIe к USB 3.0 адаптер PCI Express 4 порта 3 USB3 USB3.0 контроллер расширительная карта с кабелем.

Delivery to Moskva g

Delivery to a Post office

Self-pickup

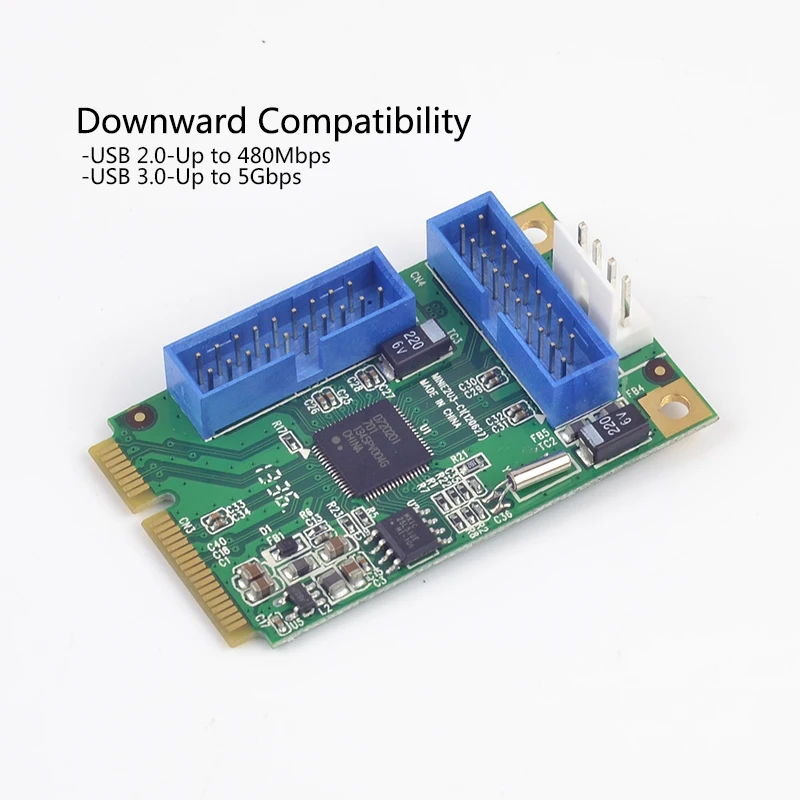

This Mini PCI-Express USB 3.0 Host Controller Card complies with the Universal Serial Bus 3.0 specification revision 1.0 and PCI Express Generation 2 specification. The Super Speed USB 3.0 standard, operating at 5 Gbps full-duplex mode, is 10 times faster than USB 2.0 High-Speed (480 Mbps) standard. The product is also backward compatible with current USB 2.0 devices running at High-Speed (480 Mbps), Full-Speed (12 Mbps), and Low-Speed (1.5 Mbps) modes. This product is an ideal choice for any PCI-Express expansible embedded or micro system needing for larger volume and higher speed data transfer connectivity with USB devices, such as external Hard Disk Drive, Solid State Drive (SSD), optical drive, high definition video camera, etc

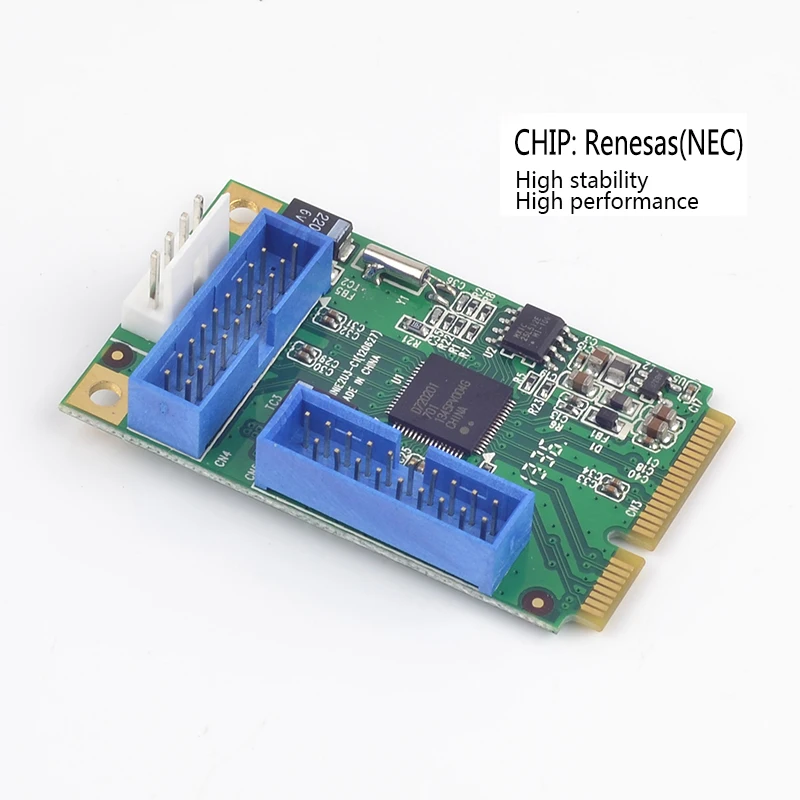

 A native PCI-Express single chip design
 Supports 2 internal USB3.0 sockets capable for 4 expansion ports
 Compliant with PCI Express base spec. revision 2.0 backward compatible to revision 1.0a
 Single-Lane (x1) PCI-Express with throughput up to 5.0/2.5Gbps
 Supports PCI-Bus Power Management Interface specification revision 1.2

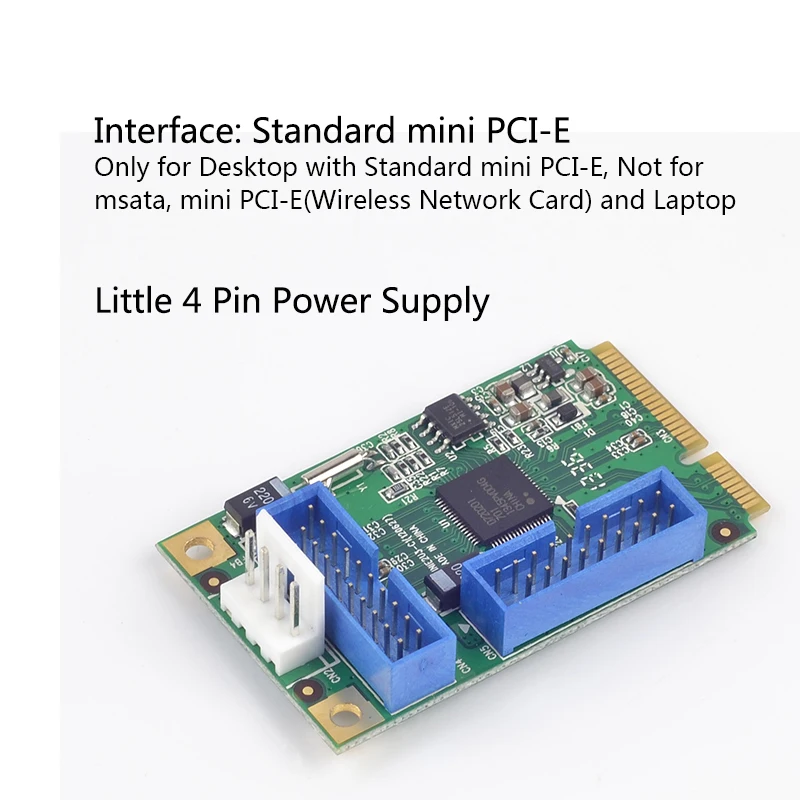

 Compatible with PCI-E Mini Card Electromechanical specification revision 1.2
 Compatible with Full-Mini (F1) card type form factor
 Supports Windows 10 / 8.x / 7 / Vista / XP / Server 2003-2008 32/64-bit, Linux Kernel 2.6x or later

USB3.0 Interface
 Complies with Universal Serial Bus 3.0 specification revision 1.0
 Backward compatible to USB 2.0 and PCI-Express 1.0
 Compliant with Intel's Extensible Host Controller Interface(xHCI) specification revision 1.0
 Supports USB compliant data transfer types(Control/Bulk/Interrupt/Isochronour)
 Supports the following data transfer rate:
        - USB 2.0 mode up to 480 Mbps*
        - USB 3.0 mode up to 5 Gbps*
 Max. 5V/900mA power output to each USB 3.0 Port

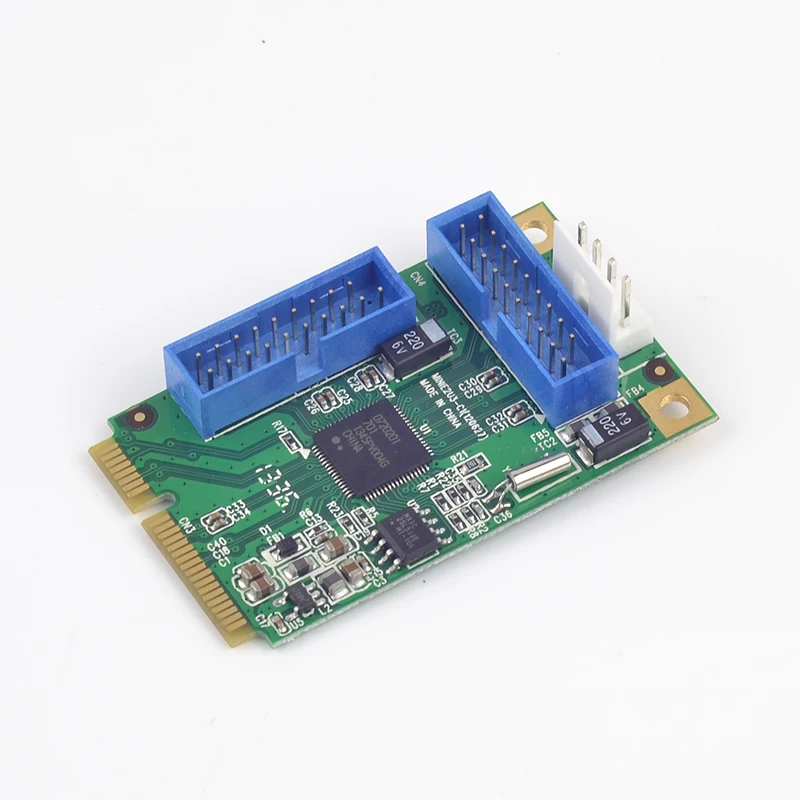

 Support up to 4 USB3.0 ports on 2 standard internal 2 x 10(19 pins) box headers
 4-pin internal FDD power connector for extra power to the USB devices(optional)
 Fully Plug and Play compatible

* This term does not represent actual data rate of 480Mbps, 5Gbps & 3Gbps and simply indicates compliance with USB 2.0, USB 3.0 & SATA II standards. Actual maximum data rate depends on PC configurations, cable conditions as well as connected devices.

System Requirement

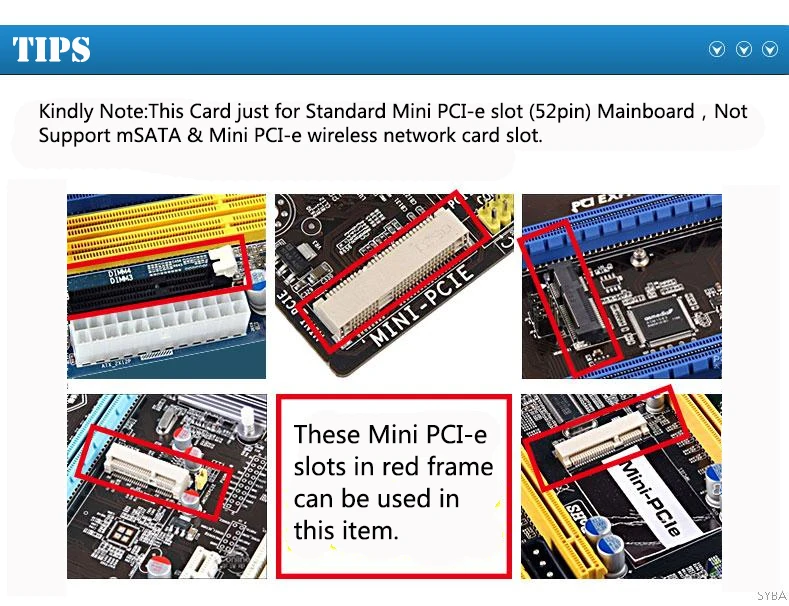

 Computer system with one Mini PCI-Express slot available
 Properly installed one of the supported OS mentioned above

Software Driver CD x 1

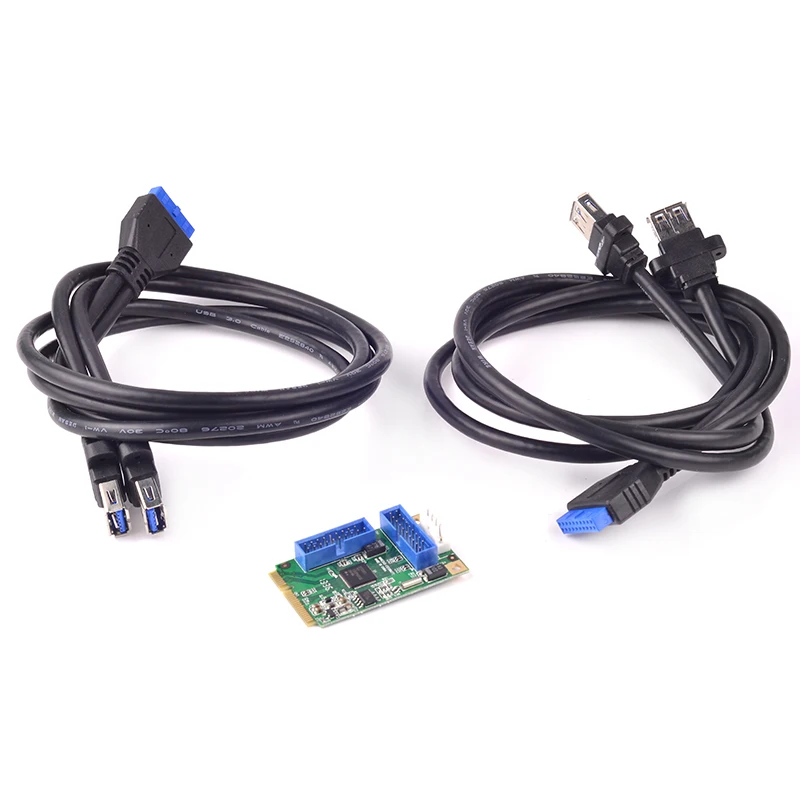

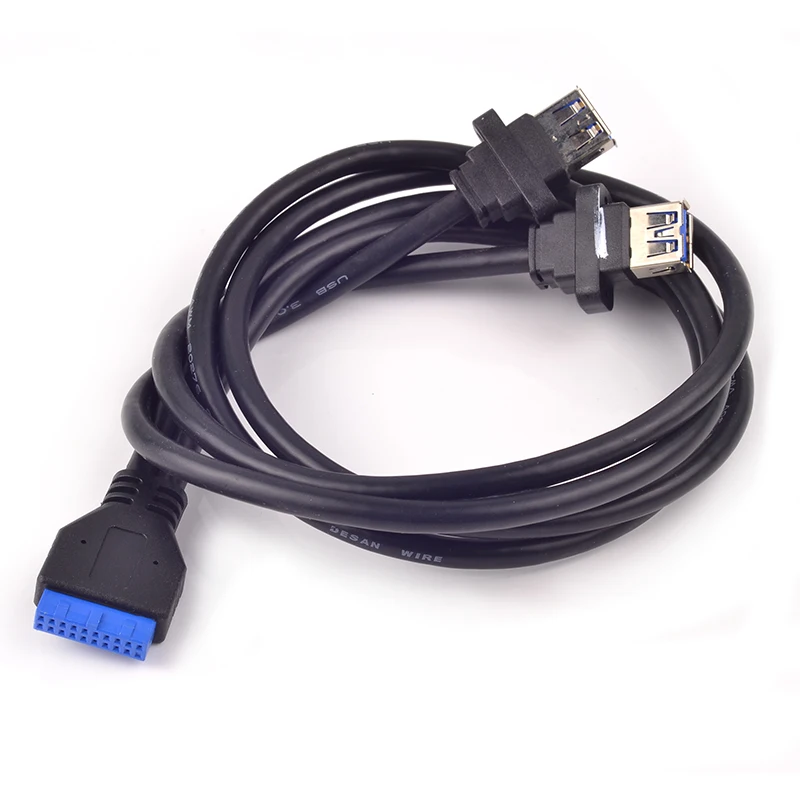

2 x 19pin Cable

Kindly note: For incompatible items, we accept returning【must be returned in their original condition(with all accessories). Refund will be arranged ONLY after item received. Buyers are responsible for all shipping cost】Thank you so much for your kind understanding.
