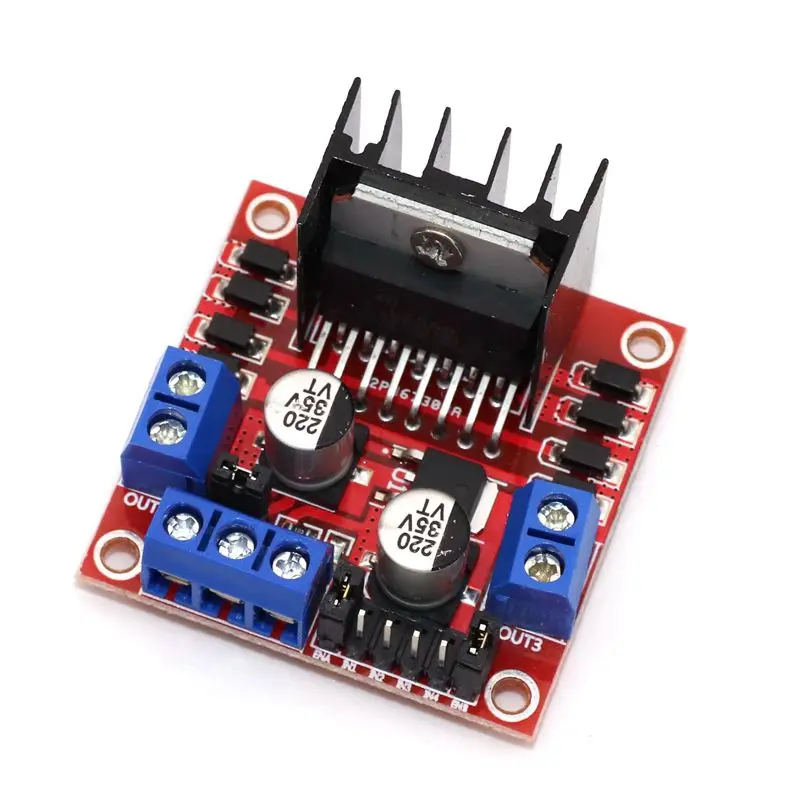

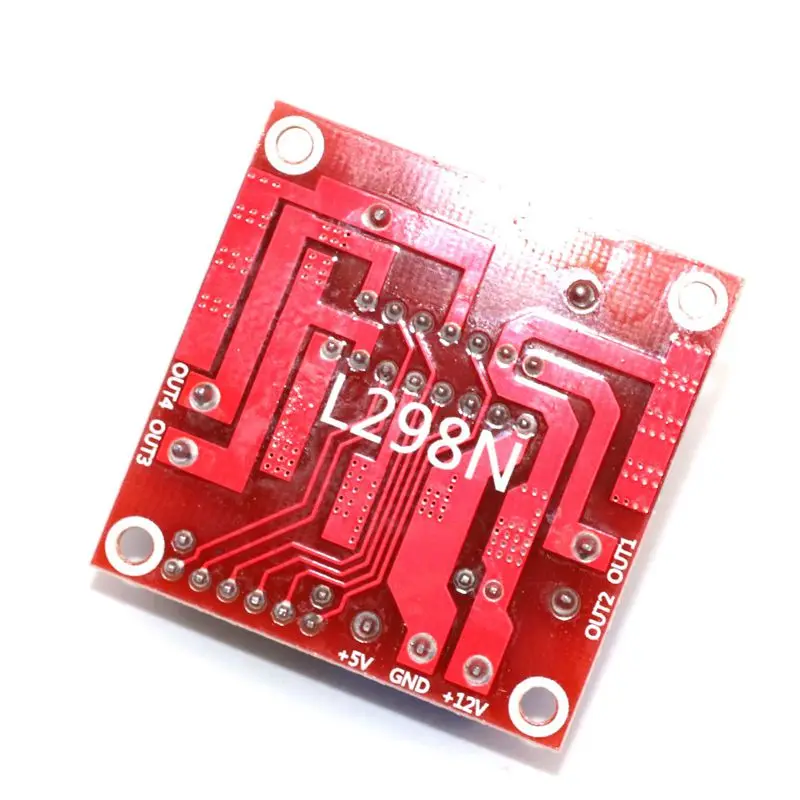

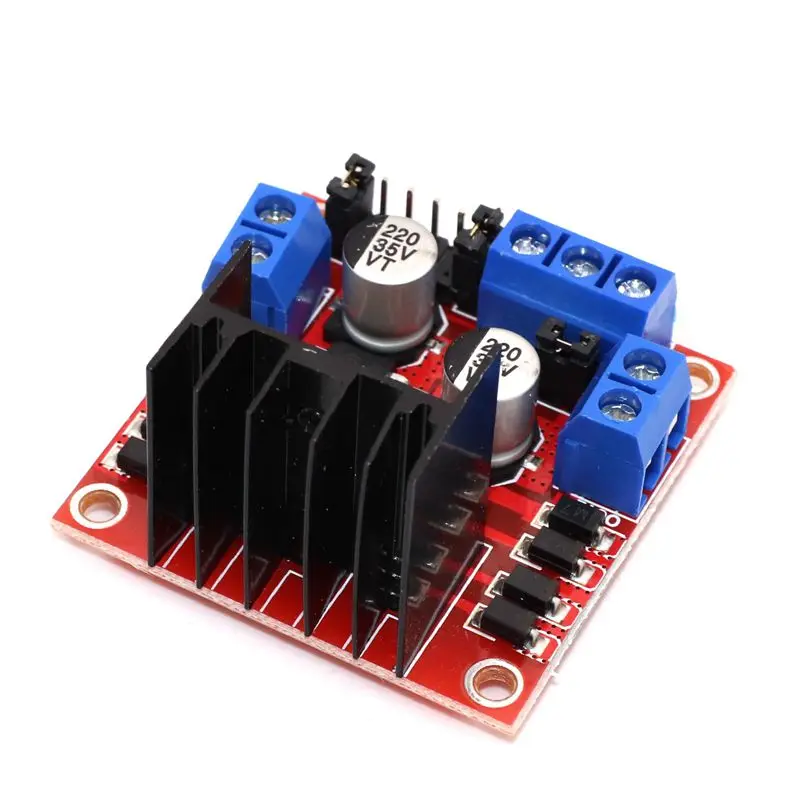

L298N RED Module name : dual H bridge motor drive module Work mode : H bridge drive (double road) Main control chip : L298N Packaging : electrostatic bag Logical voltage : 5V Drive voltage : 5v-35v Logical current : 0mA-36mA Driving current : 2A(MAX single bridge) Storage temperature : - 20 ℃ to + 135 ℃ Maximum power : 25W Peripheral dimensions : 43*43*27mm Product features: This module USES L298N as the main drive chip, with strong driving ability, low heat and strong anti-interference ability. Through this module can use the built-in 78 m05 drive power supply parts of their work, but in order to avoid the voltage regulator chip damage, when using the driving voltage is greater than 12 v, please use the external power supply 5 v logic. This module USES a large capacity filter capacitance, a continuation protection diode, can improve reliability. Notes: 1. When you are driving voltage (above logo for the 12 v input, can actually accept input range is 7 to 12 v) for 7 v to 12 v, can make to onboard power supply 5 v logic, when using the onboard after 5 v power supply, interface of + 5 v The power supply does not input voltage, but can yield 5V voltage for external use. ​ 2. When the driving voltage is higher than 12V, it is less than or equal to 24V (the chip manual proposes to support 35V, but according to the book When the maximum voltage is applied to the maximum voltage of 298 conservative applications to 24V, for example, the motor with a rated voltage of 18V shall be driven. You must first remove the board 5V output to enable the jumper cap. Then 5V is accessed outside the 5V output port The 5V enables the power to be a control signal with a level of 5V. When the signal input is valid, and when the power supply is normal in the motor drive module, the motor drive module outputs the current. Otherwise, even if the power supply is normal, there is no current on the motor. Voltage to L298N internal logic circuit power supply. (this is a high-pressure, unconventional app!)

L298N driver board module L298N stepper motor smart car robot breadboard peltier High Power L298 DC Motor Driver for arduino

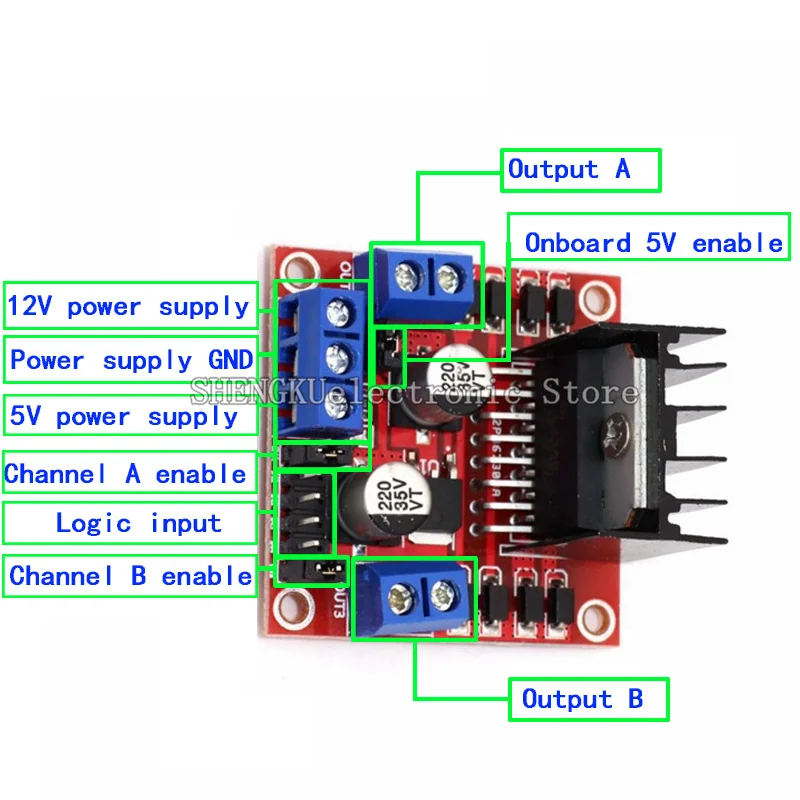

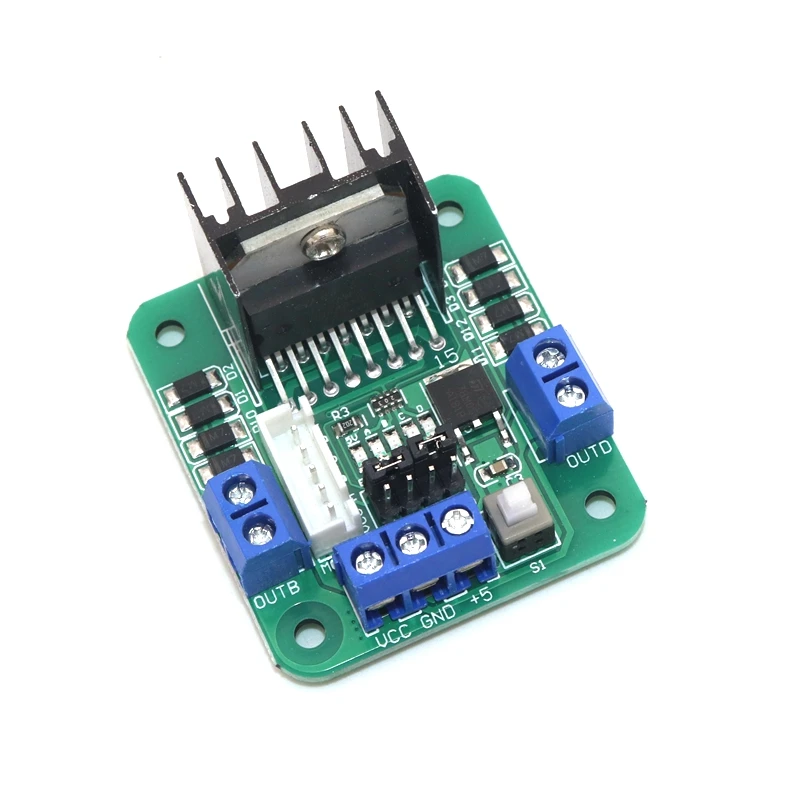

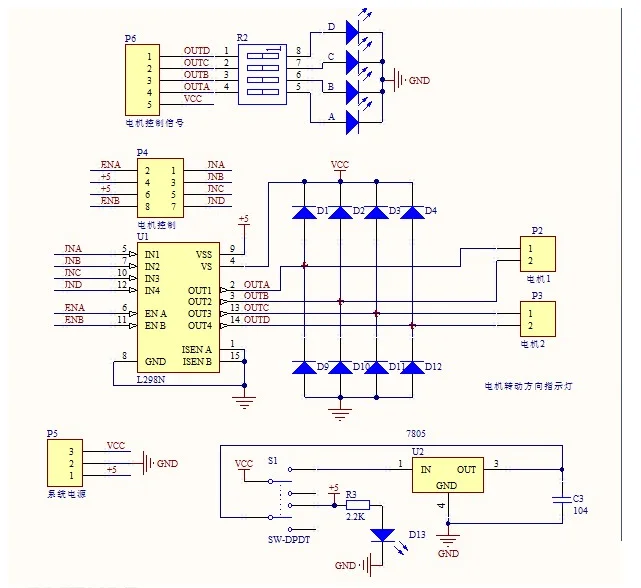

L298N GREEN 1.Using L298N made by ST company as the control chip,the module has such characteristics as strong driving ability,low calorific value and strong anti-interference ability. 2.This module can use built-in 78M05 for electric work via a driving power supply part.But to avoid the damage of the voltage stabilizing chip,please use an external 5V logic supply when using more than 12V driving voltage. 3.Using large capacity filter capacitor,this module can follow current to protect diodes,and improve the reliability Specification: 1.Double H bridge drive 2.Chip L298N (ST NEW) 3.Logical voltage 5V 4.Drive voltage 5V-35V 5.Logical current 0mA-36mA 6.Drive current 2A(MAX single bridge) 7.Storage temperature -20 to +135 8.Max power 25W 9.Weight 30g 10.Size:43*43*27mm This module is integrated with a built-in 5V power.When the drive voltage is 7V-35V, it can enable the onboard 5V logic power supply;afterthe power supply,don't input voltage in the interface+5V power supply,but you can lead the 5V for external use. when ENA enable IN1 IN2 control OUT1 OUT2 when ENB enable IN3 IN4 control OUT3 OUT4

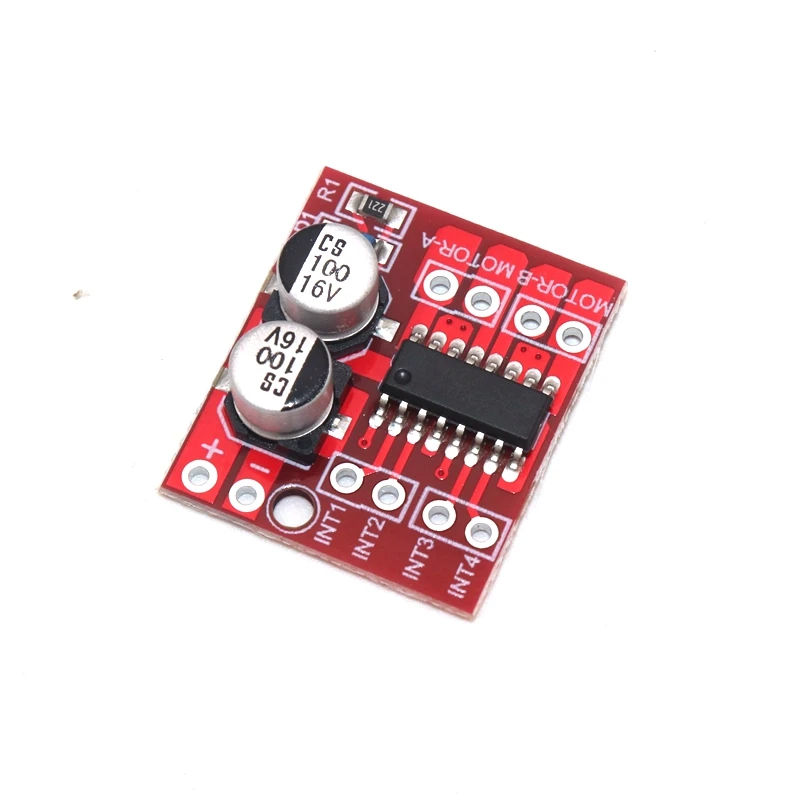

L298N MINI

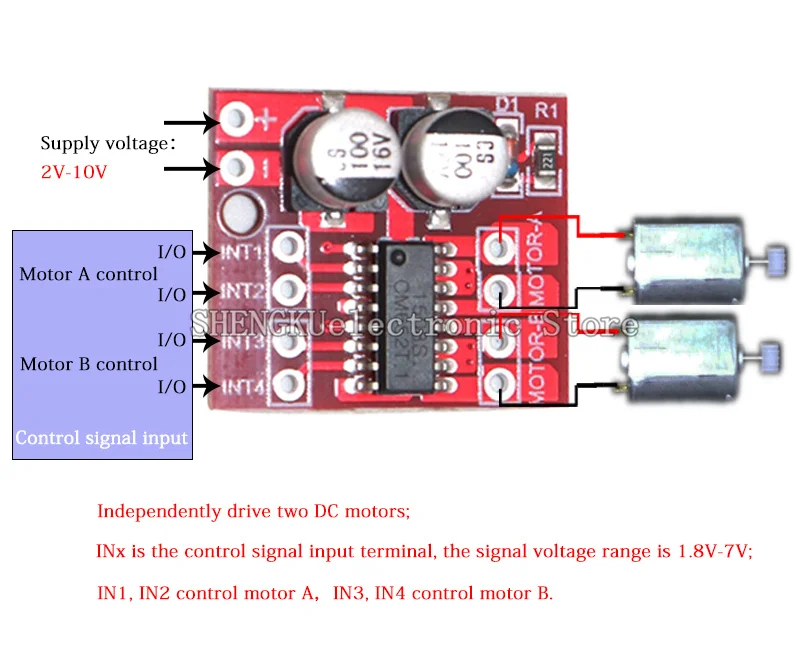

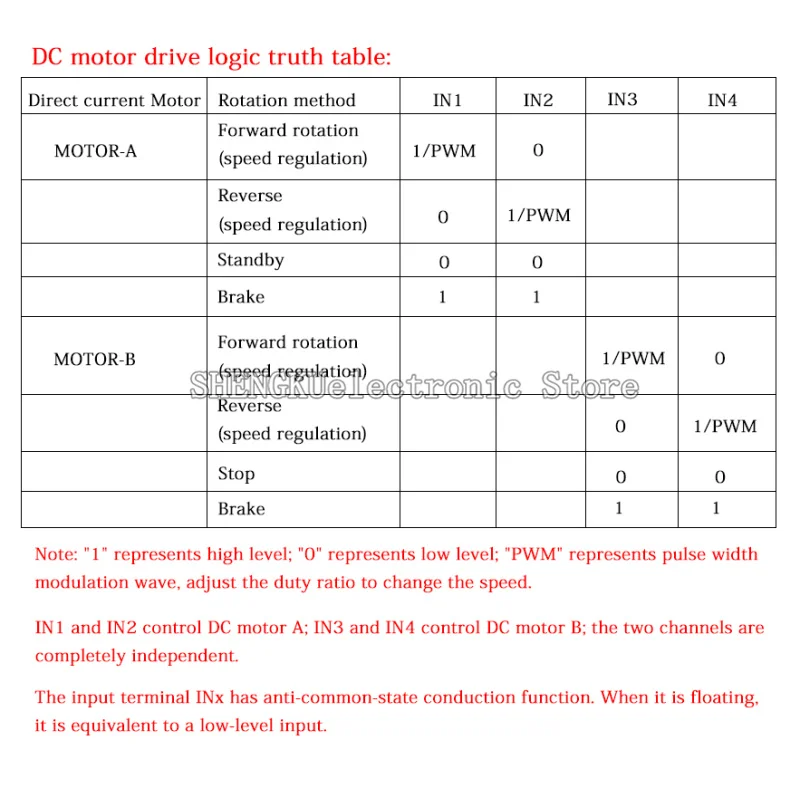

motor drive module is very suitable for use in battery powered smart car, toy car, robot and so on, the supply voltage of 2V~10V can simultaneously drive two DC motor or 1 4 line 2 phase stepper motor, can achieve positive and speed control function, each current to 1.5A continuous current. The peak current is up to 2.5A, with thermal protection and automatic recovery. Product highlights: 1. imported professional motor driver chip, built-in low conduction resistance switch MOS, heating minimum, without radiator, small volume, energy saving, is your ideal choice for battery powered. (L298N internal transistor switch, low efficiency, high fever, without heat, heavy volume, the market of L298N is easy to burn out, do not use the original chips, this product can be the perfect replacement.) 2. dual 1.5A*2, peak current to 2.5A, built-in overheat protection circuit, do not be afraid of motor stalling burn, automatic recovery after falling temperature. (the smart car voltage and current on the market are within this range) 3. small size, light weight, 0 standby current, is your ideal choice for vehicle model Product parameters: H bridge motor dual drive, and can drive two DC motor or 1 line 4 phase stepper motor; The voltage of the power supply module 2V-10V; The signal input voltage 1.8-7V; Single channel current of 1.5A, peak current up to 2.5A, low standby current (less than 0.1uA); The built-in common conduction circuit, the input end is suspended, the motor will not malfunction; The built-in overheat protection circuit with hysteresis effect (TSD), there is no need to worry about motor stall; Product size: 24.7*21*5mm (LxWxH), ultra small size, suitable for assembly and vehicle; Mounting hole diameter: 2 mm.
