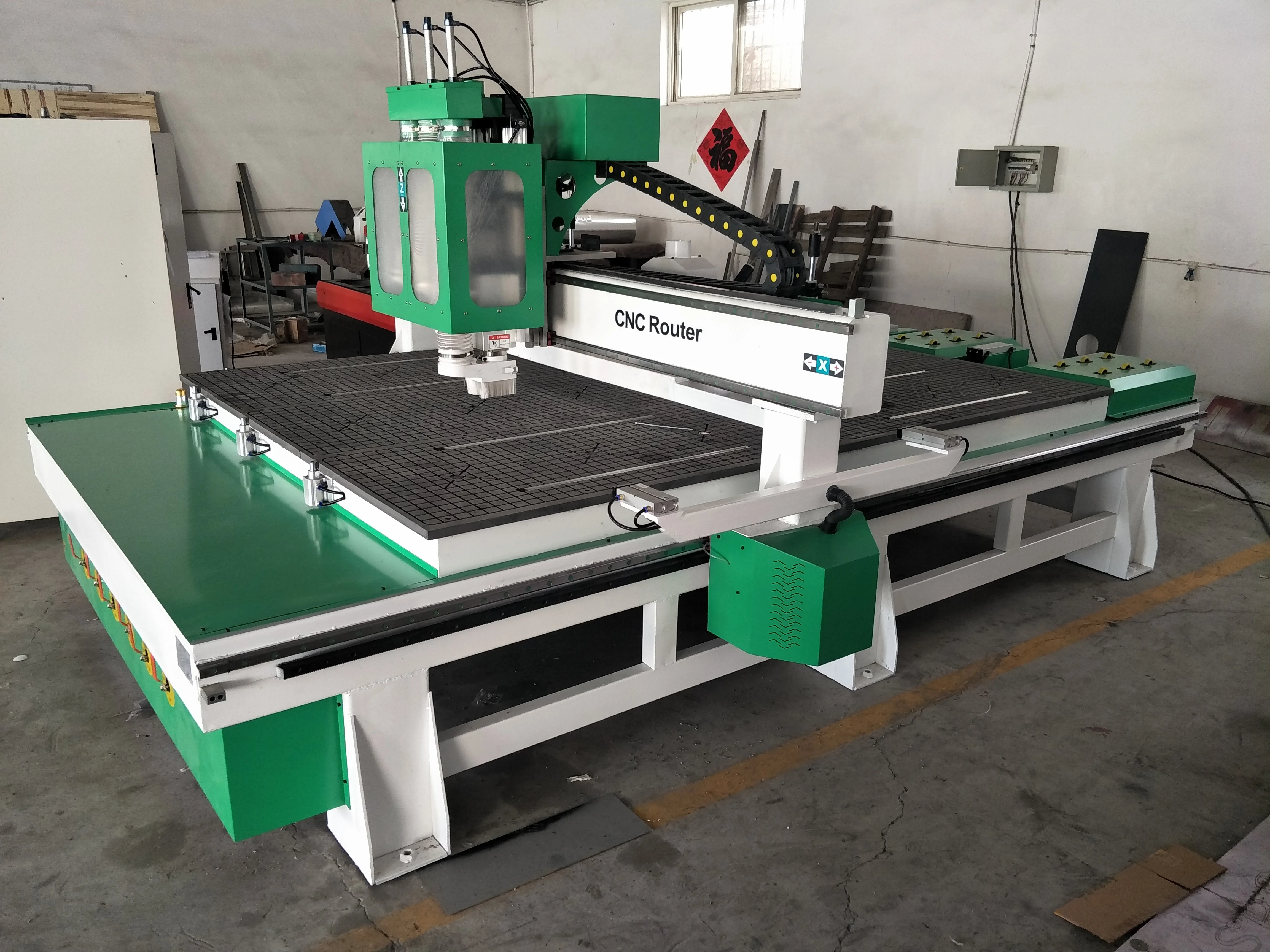

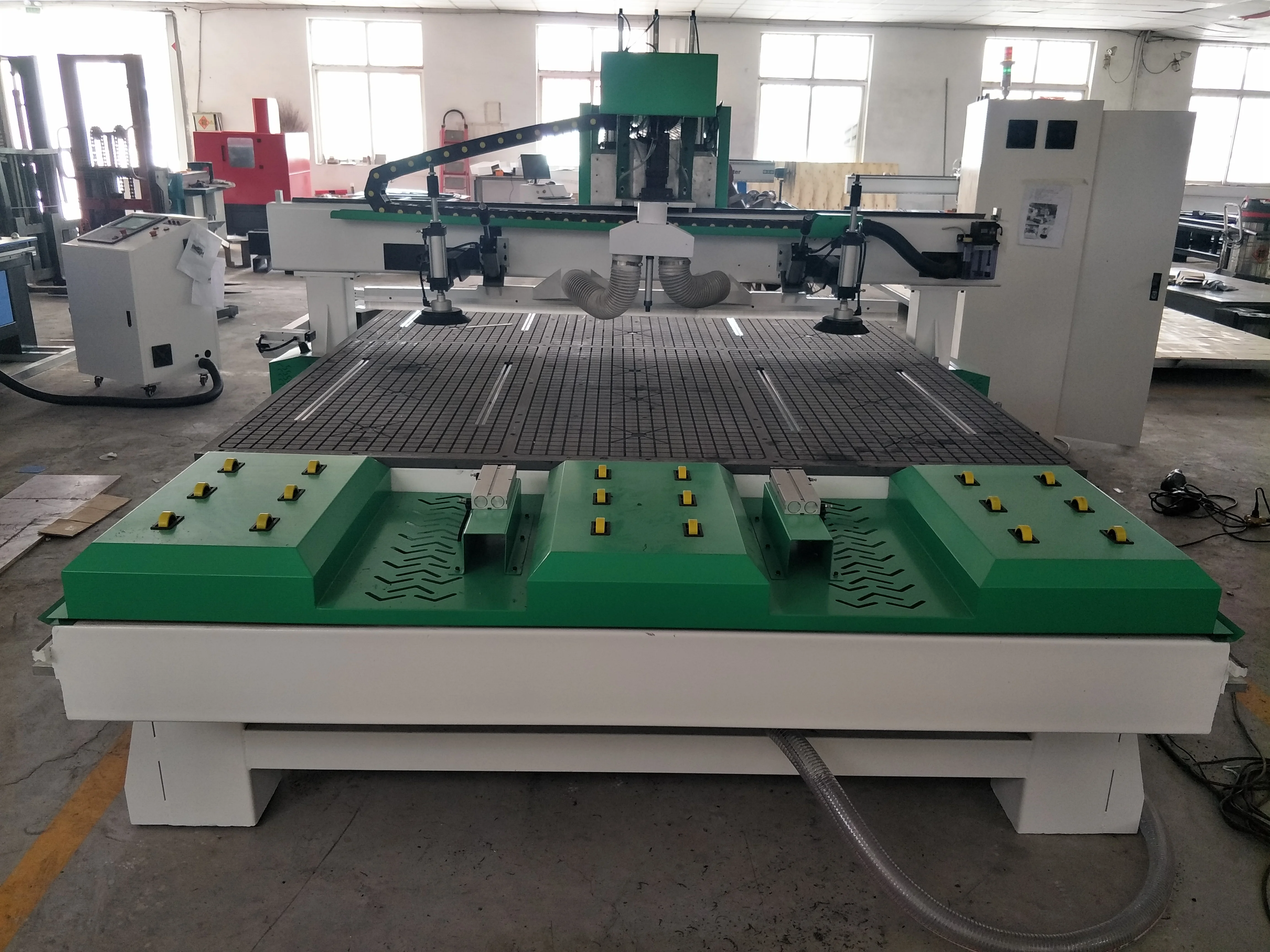

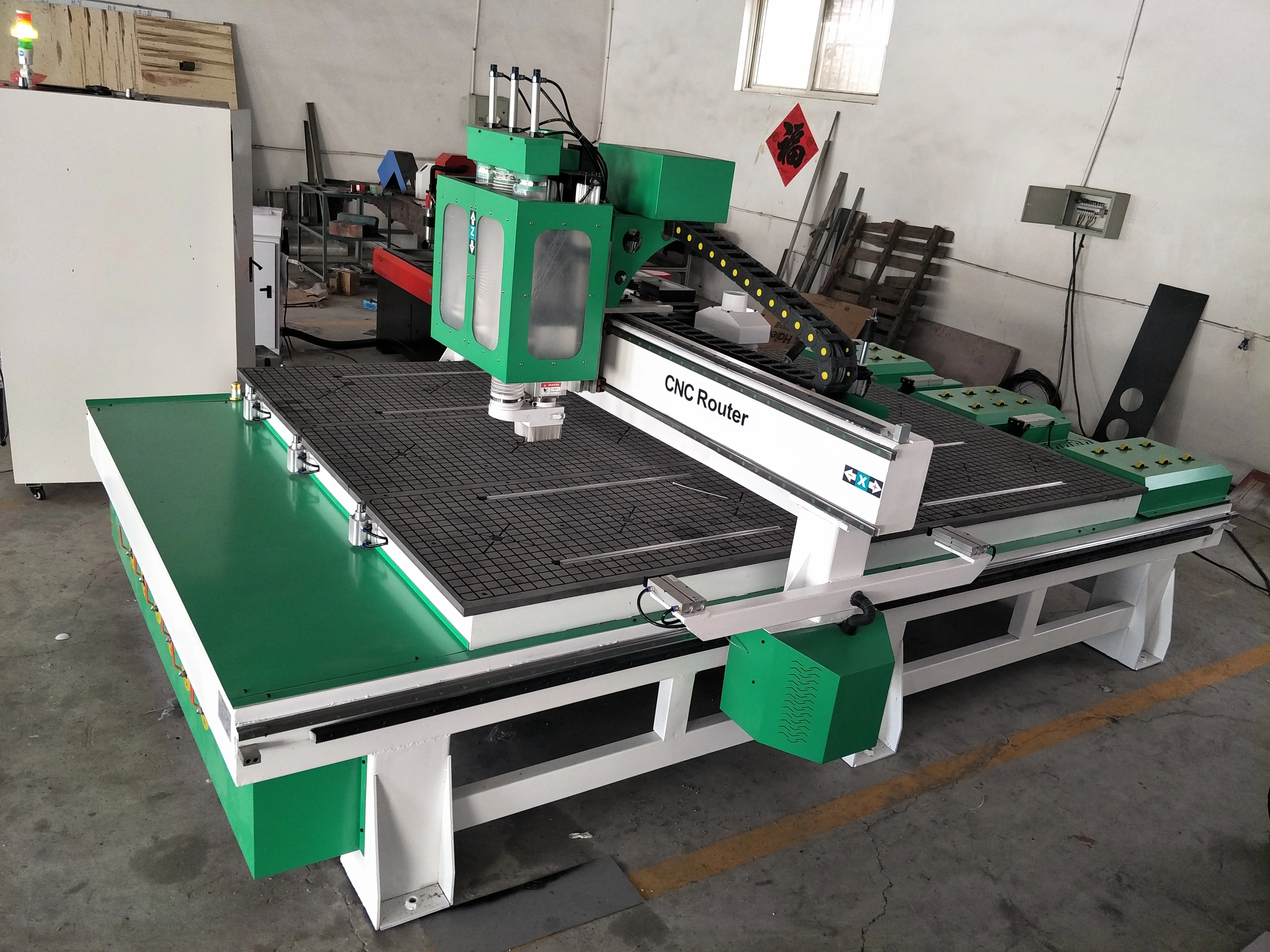

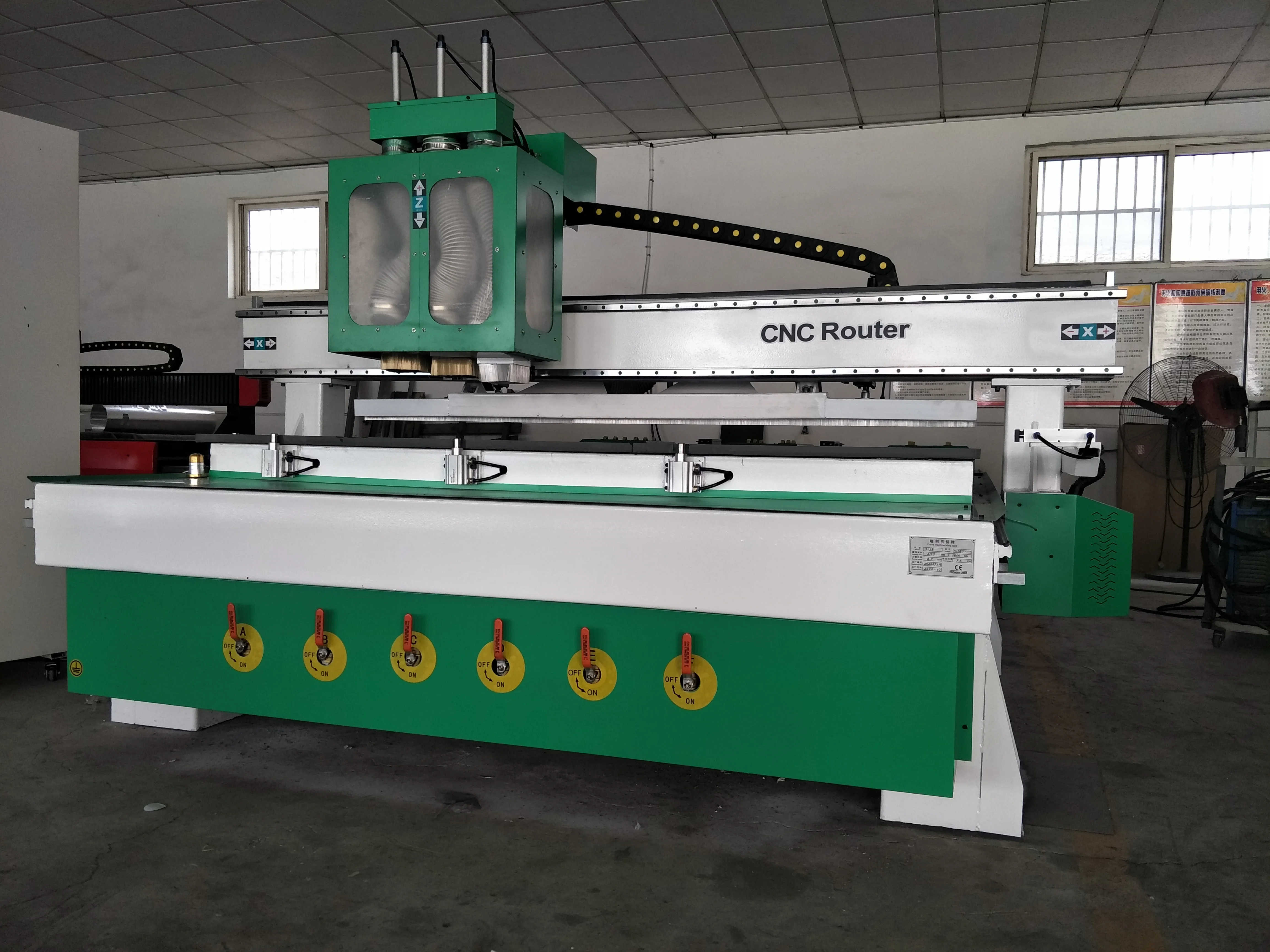

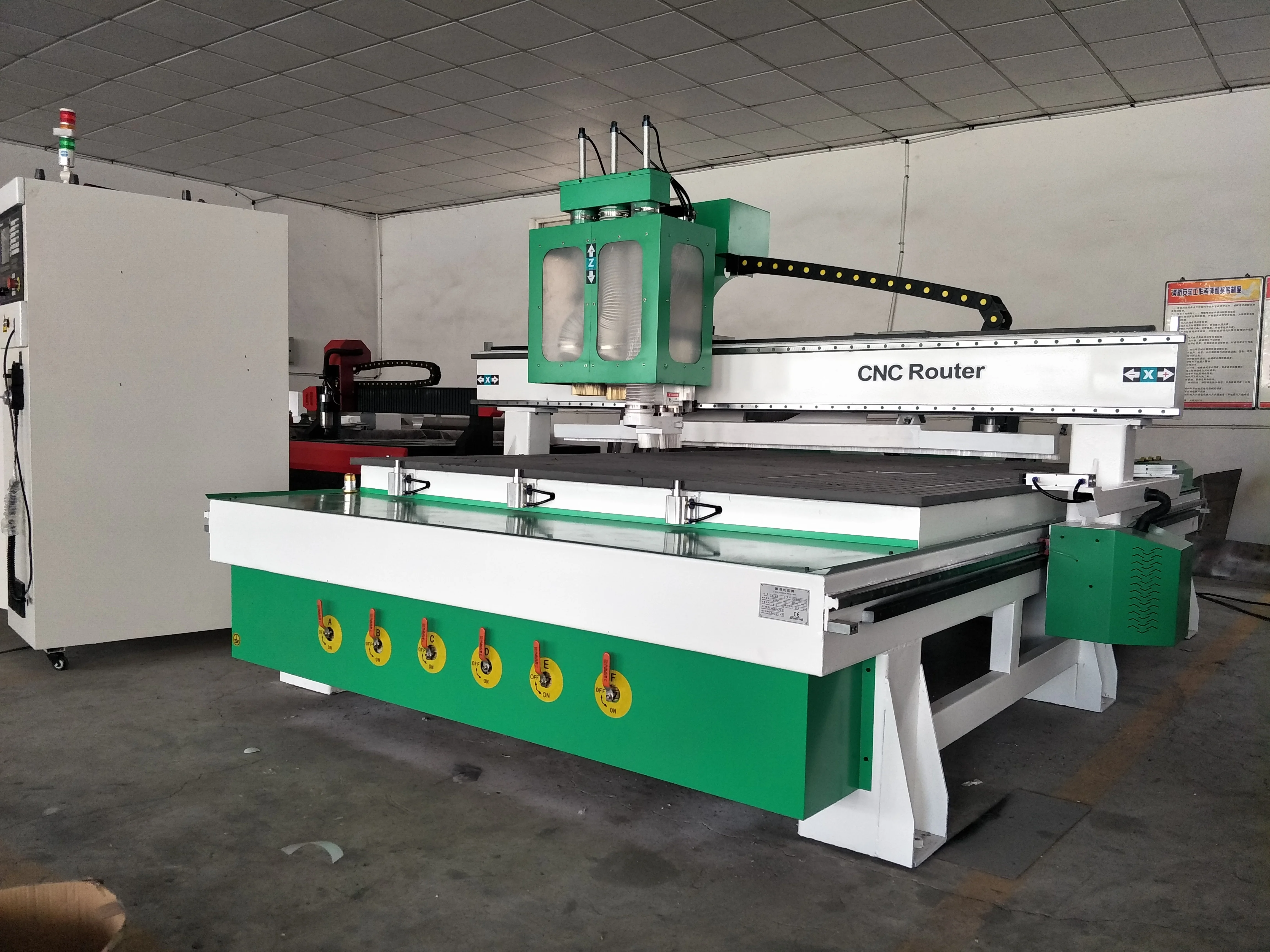

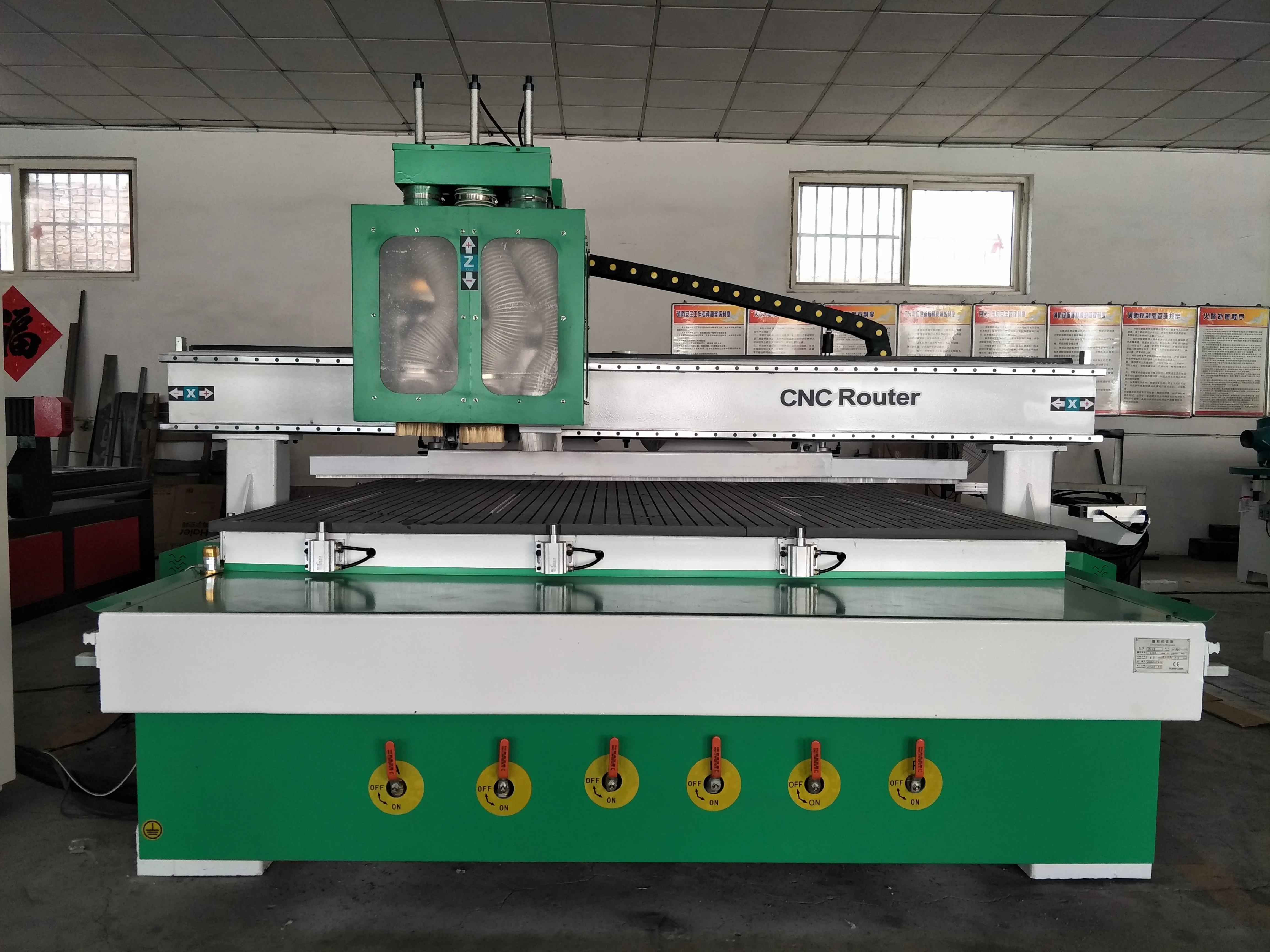

2130 2040 atc cnc router/ high speed wood router for furniture cabinet door window | Инструменты

2130 2040 atc cnc router/ high speed wood router for furniture cabinet door window | Инструменты

#3 Spindle auto change

#Heavy duty machine body

#2100*3000*200mm XYZ working size

#Vacuum table with T-slot, 2 sets 5.5kw water cooled vacuum pump

#Three sets 3.5 KW air cooled spindle, 0-18000RPM, 3 spindle auto change

#Fuling inverter

#Leadshine servo motor and driver

#X Y axis Taiwan Hiwin square rail and bearings; Helical rack pinion

# Z axis Taiwan Hiwin square rail and bearings; TBI ball screw

#SHANLONG/WEIHONG Integrated control system with USB interface

#Oil lubrication system

#Big independent control box

#Dust collector system with spindle hood and 5.5kw double back dust collector

#Auto height tool sensor

>>Applicable Material: Acrylics, artificial stones, artificial marble, woods, bamboos, organic boards, double-color board, PVC board, aluminum, brass and other materials.

>>Applicable Industry: Woodworking industry, stone industry, advertising industry, artwork or decoration industry, electronica industry, mold industry and music industry etc.

1. Service before order: our salesman will try to know more about your demands ,  including the max working size, main processing materials and the thickness , so we will offer you suit machine.

2.Service during production : we will send the production the machine pictures for customer in time , customer can know more the detailed machine parts.

3.Service before shipping : the machine parts will be installed and tested by our professional.

technician, send the test video according to customer’s processing materials for customer confirmations.

4.Service after shipping : we will check when the machine arrive your sea port or the approximate arrival date, so that the customer can know the arrival date and to prepare to pick the machine up

5.Service of training : the English manual and operating video will be sent to customers with the machine together, it will help customer how to operate the machine , it there is any question about the operation , we will have the professional technician to help them how to operate by online ,until the customer can use it freely.

6.Service of warranty : we guarantee the machine for  Two Years, some machine parts ( quality problems ) can be free charge to replace it within warranty.
