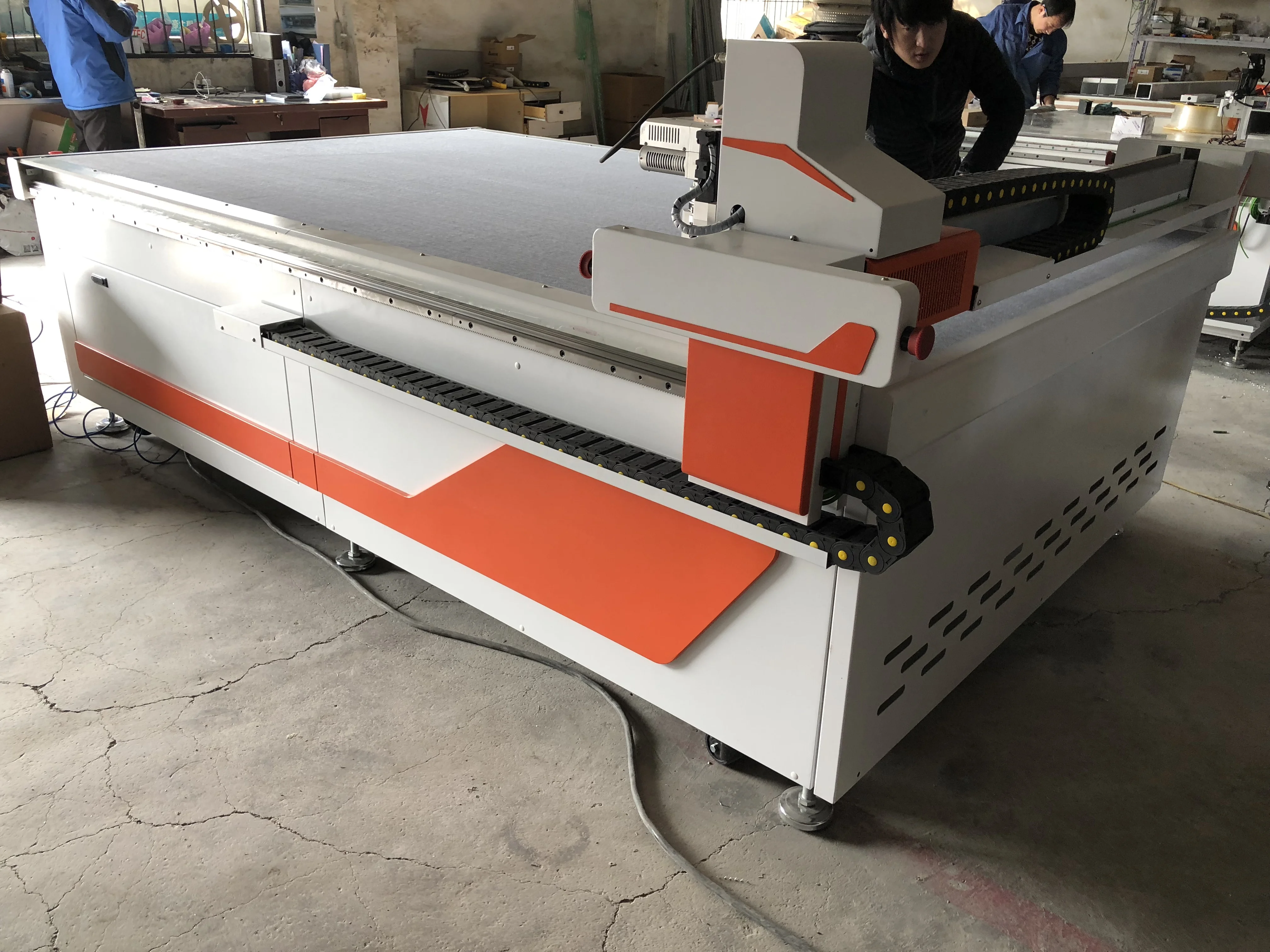

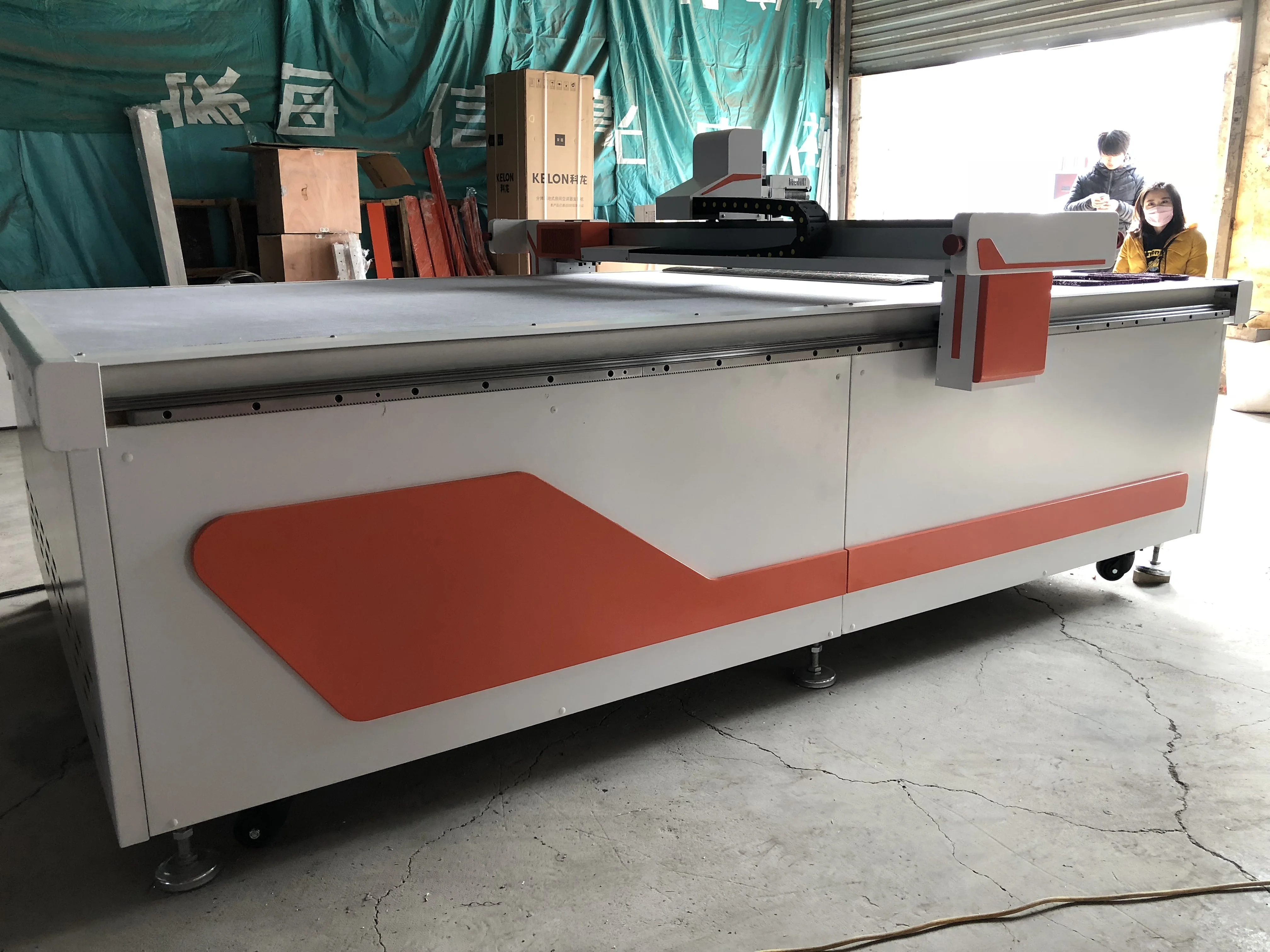

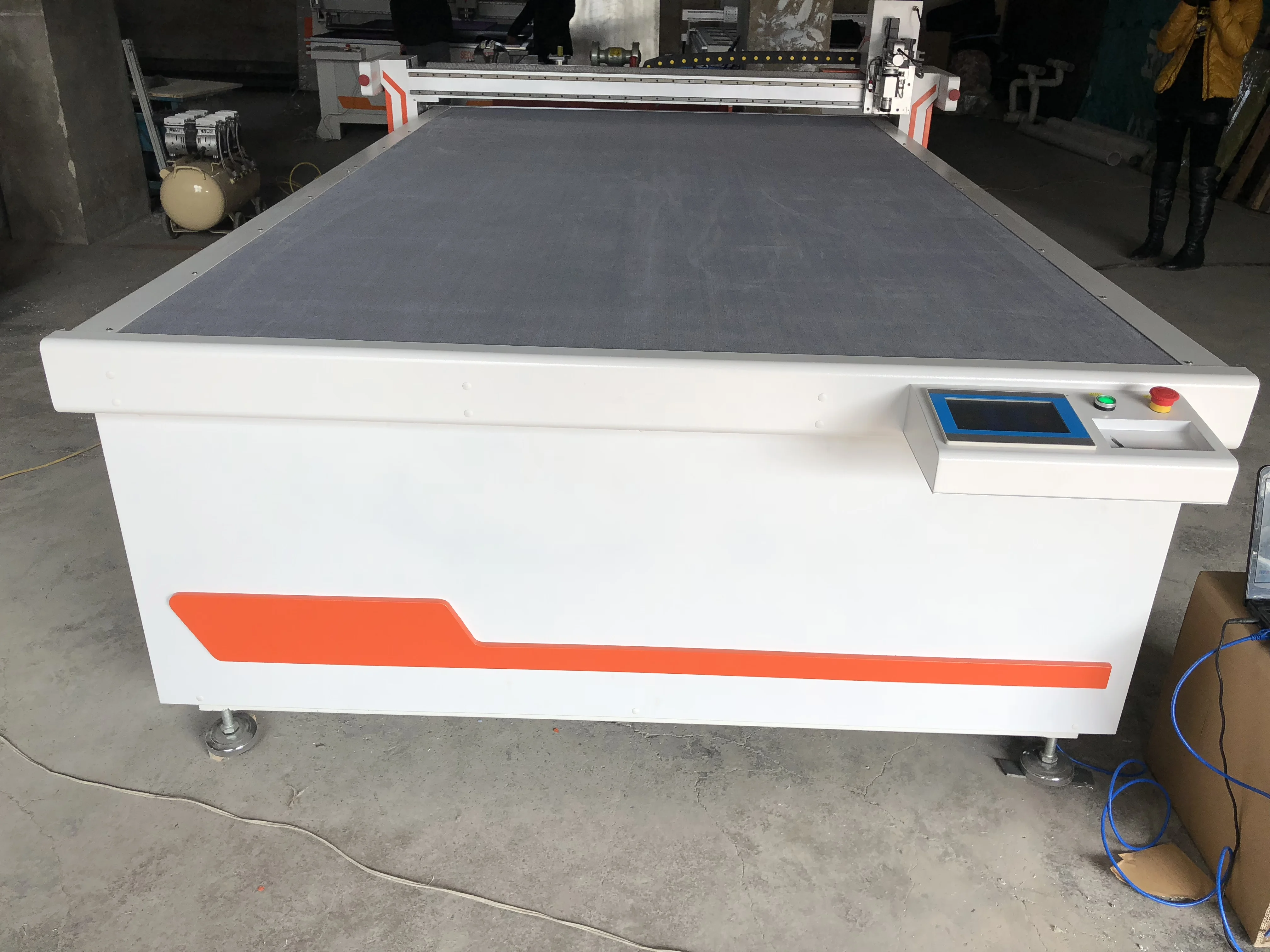

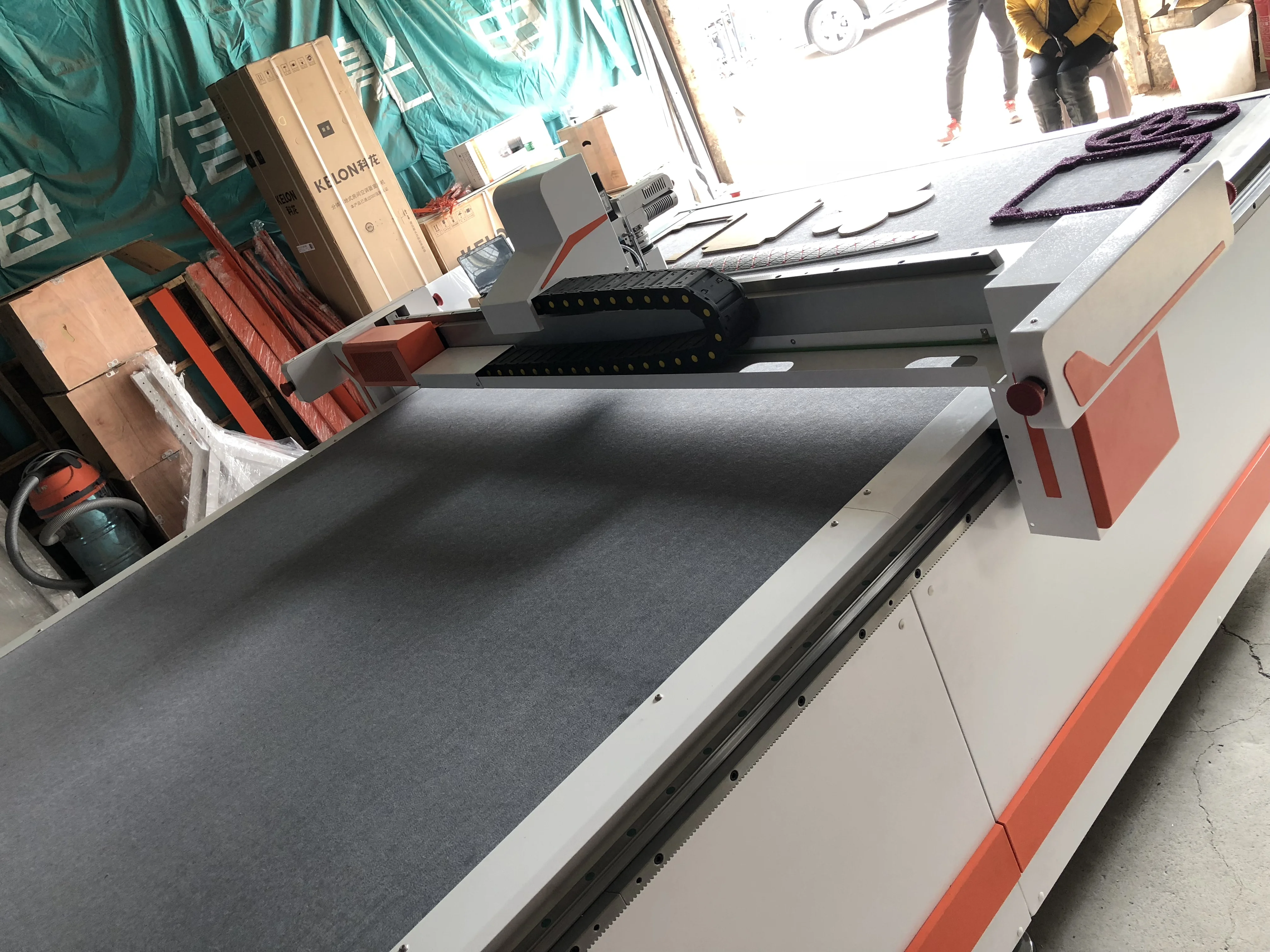

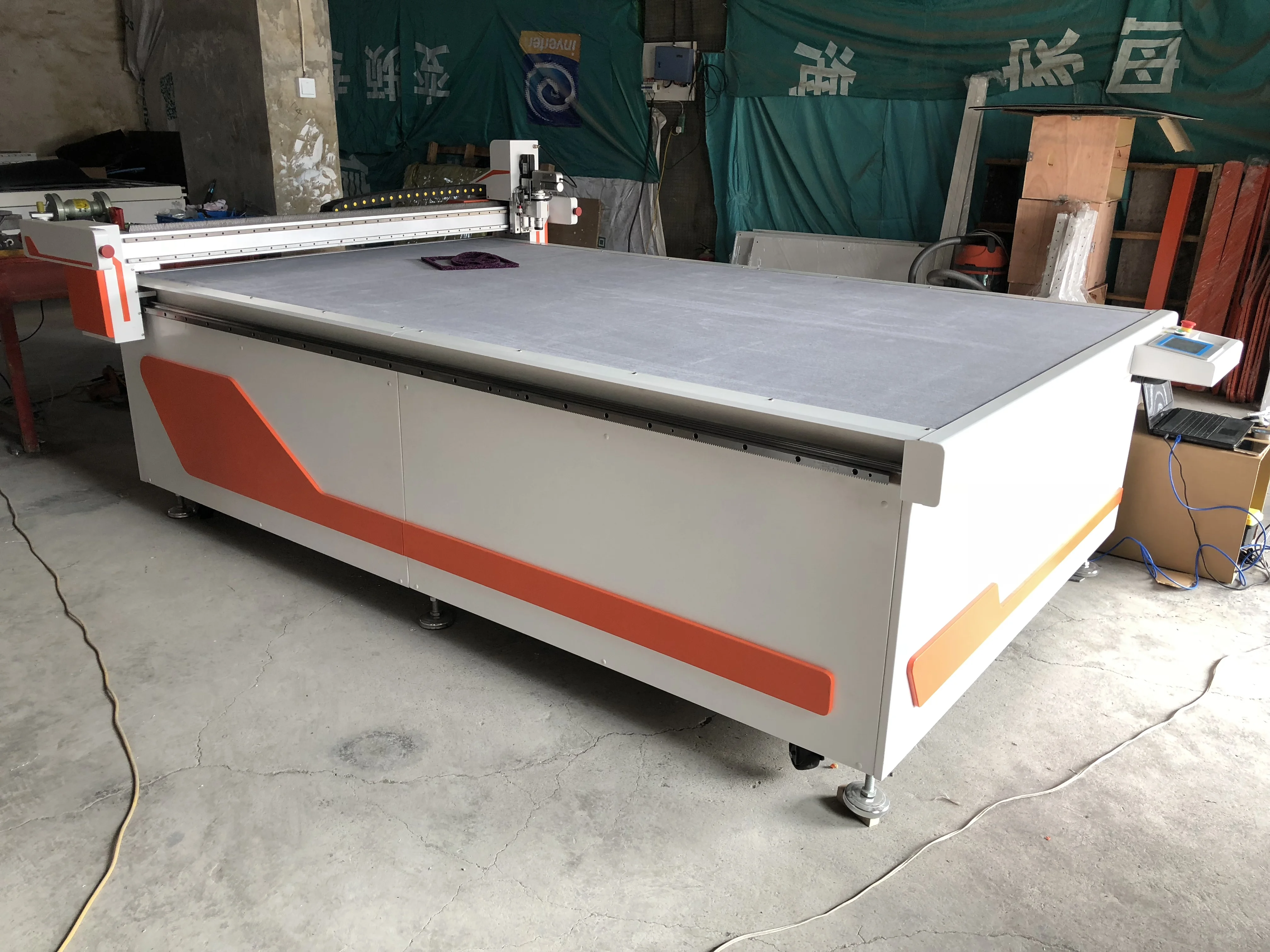

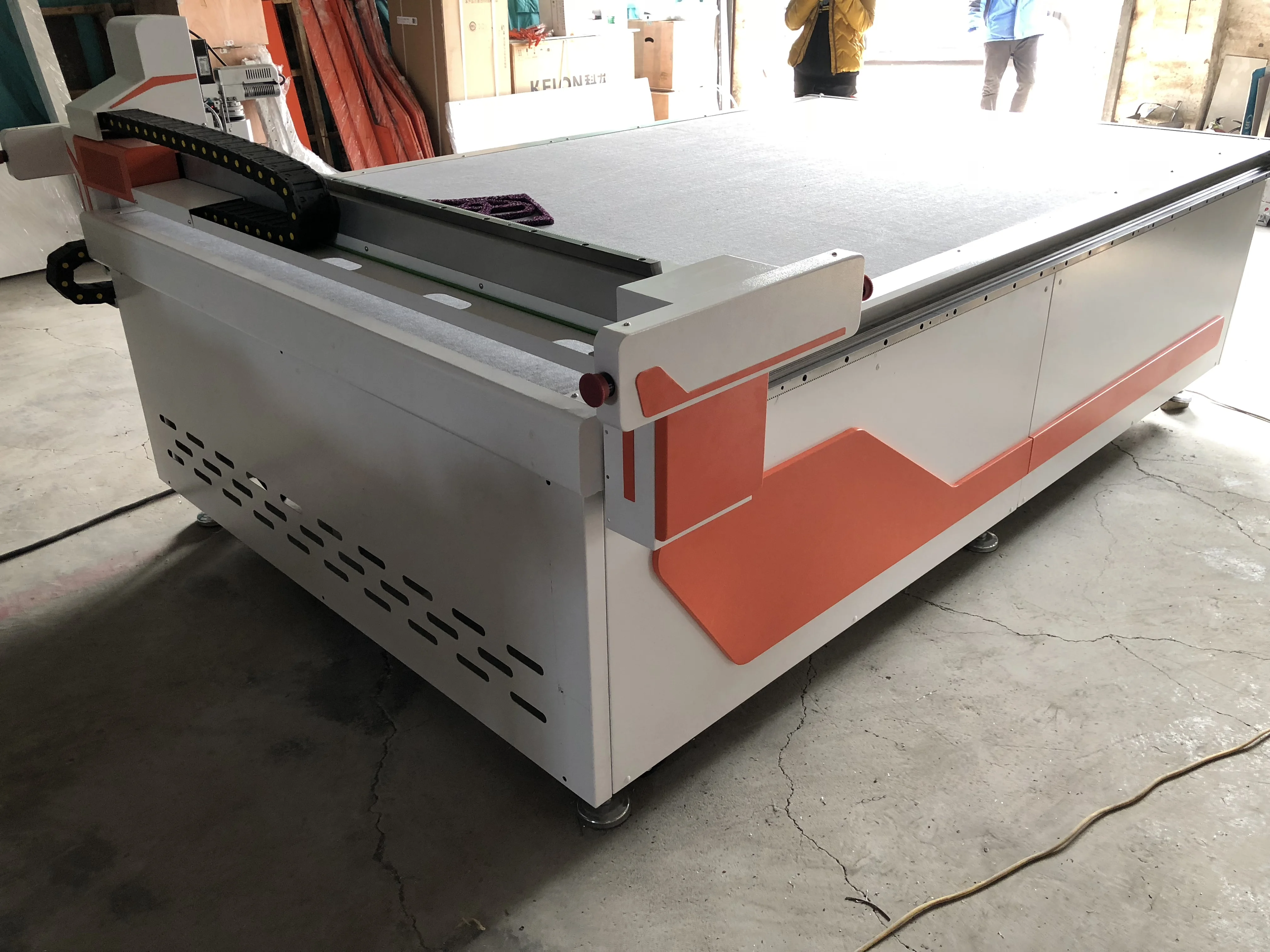

High Speed Oscillating Leather Knife Cutting Machine 1625 shoe leather cutting machine/leather round knife machine | Инструменты

High Speed Oscillating Leather Knife Cutting Machine 1625 shoe leather cutting machine/leather round knife machine | Инструменты

>>Technical parameters:

Item  /  Model

RTZ-1625

Cutting area

2500mm*1600mm

Cutting speed

Maxi 1200mm/s

Cutting Thickness

0.4mm-50mm, can be adjusted according to the material thickness.

Cut materials

Corrugated materials, sponge and foam board, lvory cardboard, gray paper, corrugated paper, plastic sheets, composite materials and leather materials

Number of pens

8 different groups of strokes, half blades, full blades and pressure wheel setup

Positioning device

Red Ultra-Light

Method for fixing paper

Vacuum absorption

Cutting tolerance

±0.2mm

Repeat accuracy

≦0.05mm

Minimum circle

≧5mm diameter

Transmission interface

Ethernet port

Format compatible

Compatibility format AI software, Autocad, Coreldraw and all box software

Direcive system

HP-GL and GP-GL

Digital control panel

Liquid crystal display and contact button

Transmission materials

A transmission mechanism of high precision module

Motor type

dopts servo motor

Vibration blade

Vibration cutter head motor at 25000rpm

Overall dimension

3300*2250*1300mm

>> Functions and special feature:

Professional Tools & Functions

1. Cutting.

Cutting is the main function.But it is different because it is professional.

2. Marking

The cutting machine can also mark lines or patterns with common signing pen, oil pen, ball-point pen, etc.

3. Punching

Punching function is also available on the machine. It is optional.

For some materials, like PU, punching holes sometimes are needed.

Application materials

The cutting machine can cut many kinds of soft materials and some hard materials as well. Such as:

Cloth, fabric, mash, jean, fiber, many layers

Leather, PVC, PU, cloth

Cardboard, corrugated board, honeycomb board, chipboard, plastic corrugated board
Shoe insole, EVA,rubber,PE foam, Car mats,Composite materials, plastic, acrylic, etc.

1) Machine has been adjusted before delivery.
2) English software, user manual and detailed installation & training Videos DVD
3) Warranty period: one year on parts from date of shipping date, 3 additional years on free repair. Life-time

    technical support.
4) Machine spare parts and repair service is offered in lifetime.
5) Free training is offered in the plant and free samples are available.
6) 24 hours technical support by e-mail, calling or door-to-door service.
7) Professional cnc router machine supplier with 10 years experiences.
8) International quality certificate: CE, ISO9001
