Tech Specs

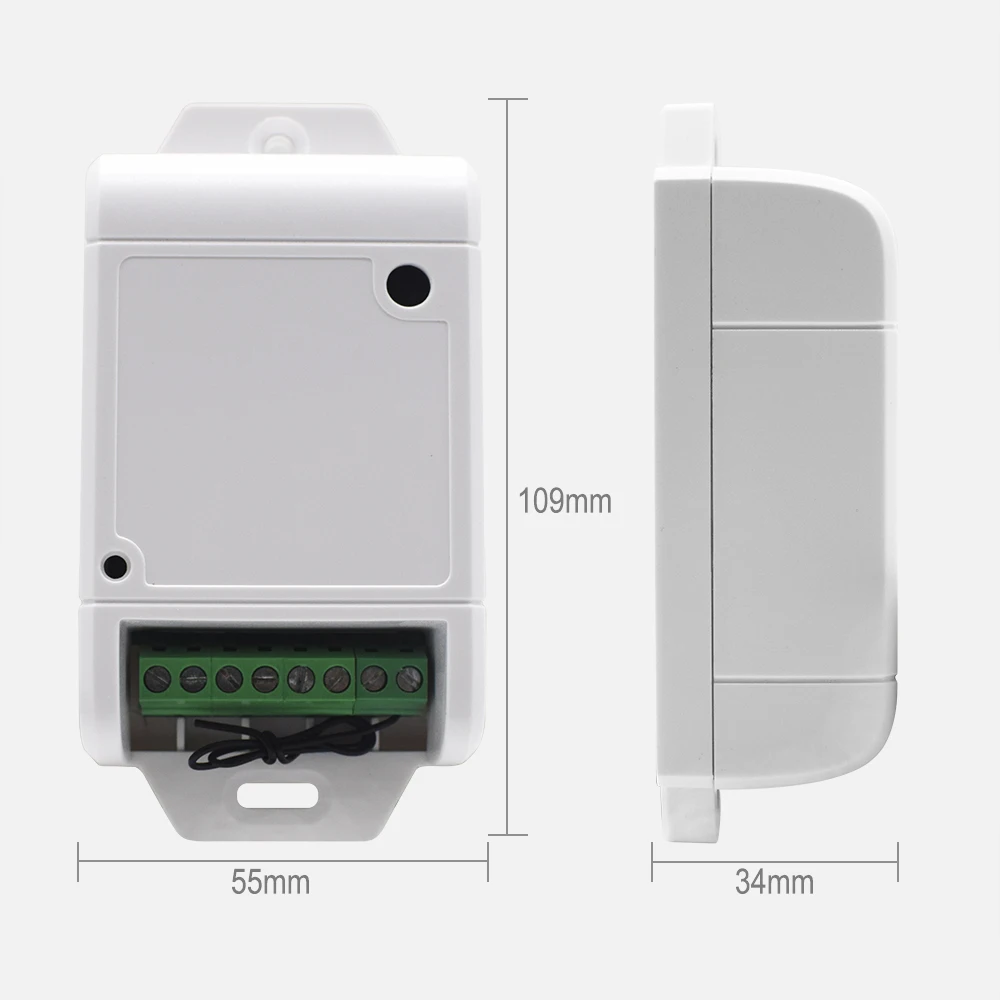

The Compatible Sommer 434.4mhz and 868mhz receiver can be replaced original Sommer receiver both 434mhz and 868mhz 12/24V AC DC. 1) Frequency: 434.42Mhz / 868Mhz 2) Power Supply: 12/24V AC DC 3) Number of relays: 2 4) Number of programmable codes: 107 per relay (214 in total) 5) Code: Rolling code 6) Option to increase radio range by antenna (more than 80 meters in open space) 7) Operating temperature: -20°C +70°C 8) Dimensions (L X W X H): 109 x 55 x 34 mm approximately

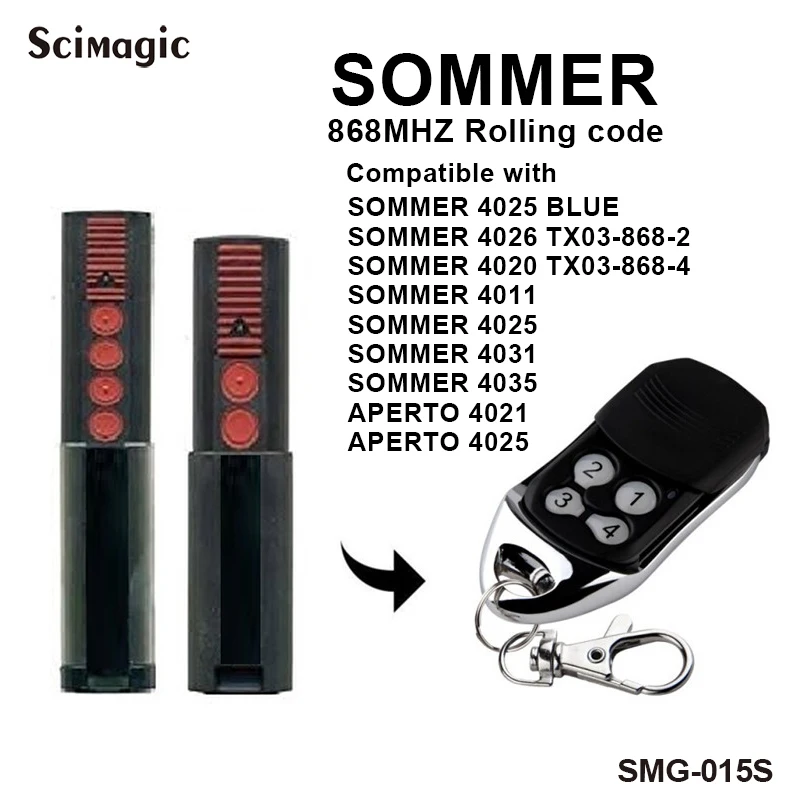

Receiver Compatible With

SOMMER 4011 SOMMER 4025 SOMMER 4025 BLUE SOMMER 4031 SOMMER 4035 APERTO 4021 APERTO 4025 SOMMER 4020 TX03-868-4 SOMMER 4026 TX03-868-2 SOMMER 434.42MHZ green and orange LED Note: If your remote is not in the list, please do not buy it.

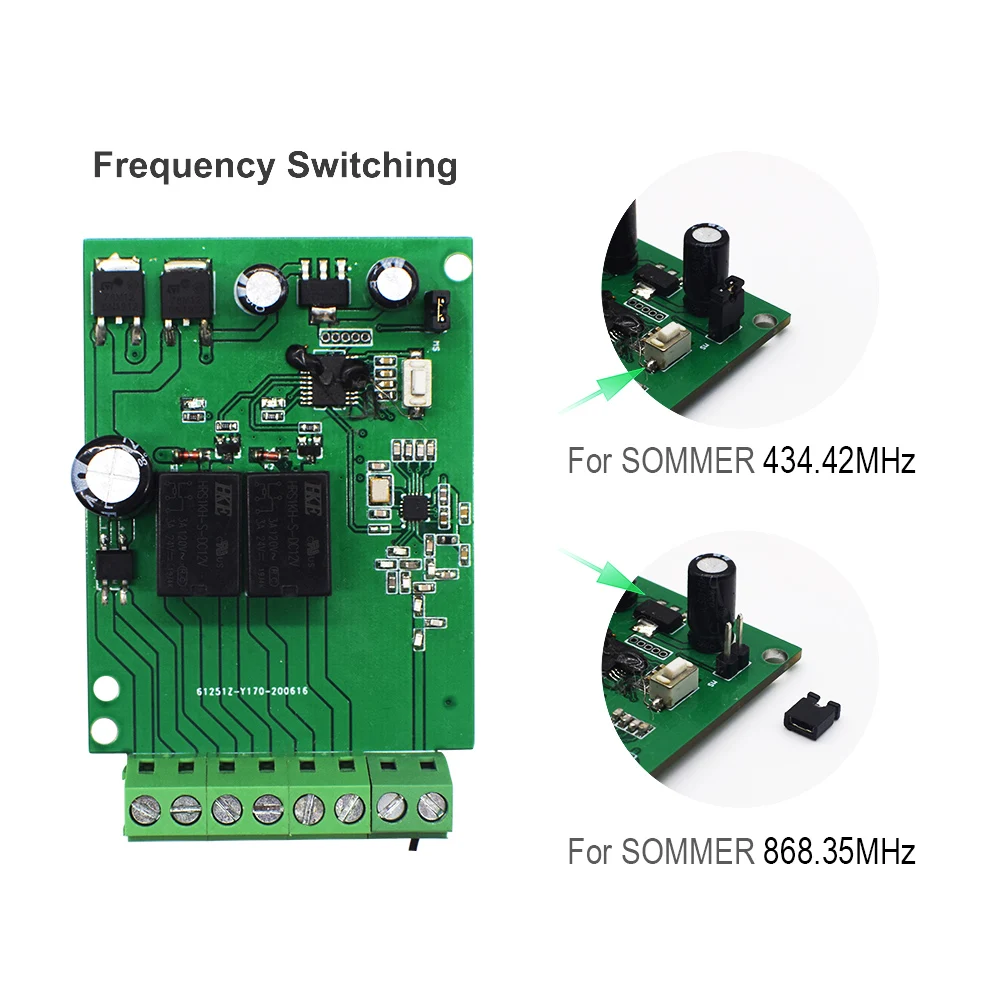

Switch Frequency

Put on the jump cap,it's 434mhz Sommer, take off the jump hat, it will be 868MHZ Sommer

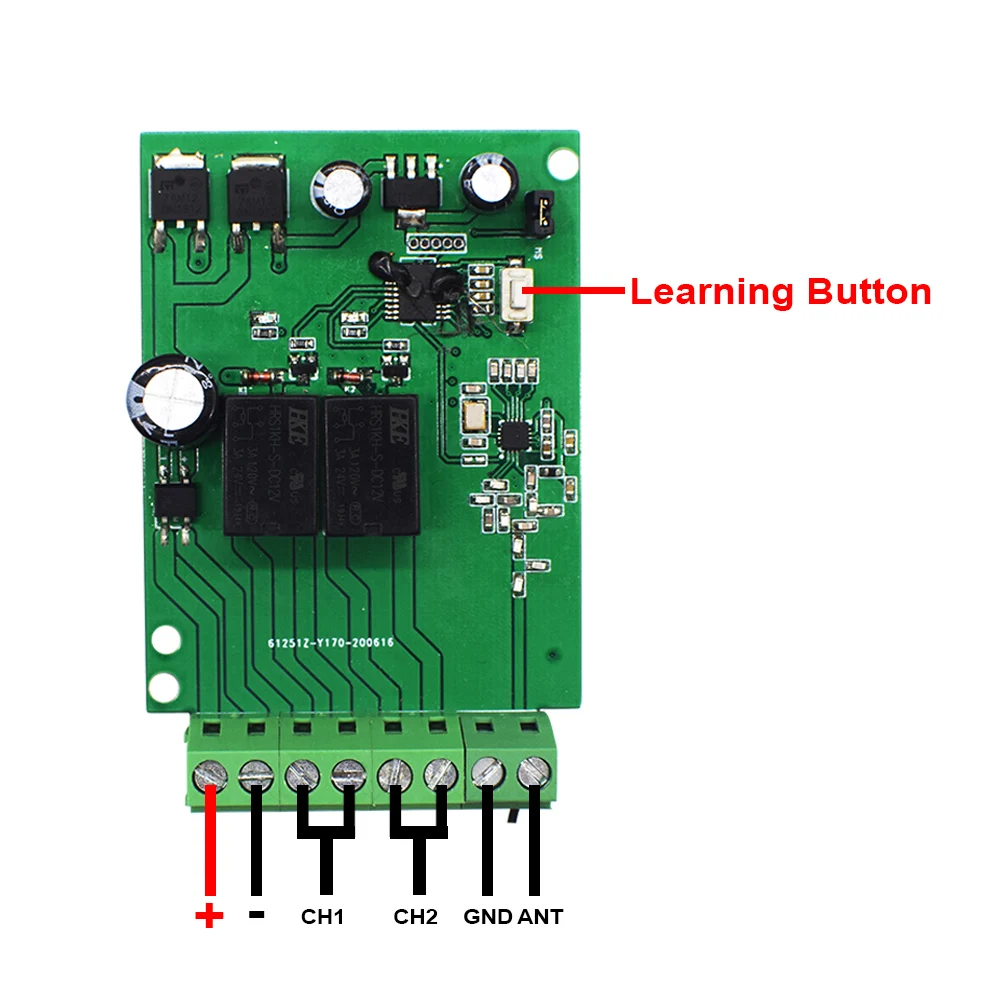

Switch Programming Channel

Press the learn button, LED1 turns on and LED2 turns off, it means you can learn CH1, then press again, the learn button again, LED2 turns on and LED1 turns off, and the switch is cycled.

Programming

Select the LED light corresponding to the channel to light up (CH1 = LED1, CH2 = LED2), press the remote control, and the LED light corresponding to the CH will flash to indicate successful learn

Clear code:

Press and hold the corresponding light of the learning button to light up, and don't let go at this time. The LED light flashes quickly for about 8 seconds, indicating that the clearing of the code is successful.
